AMS22S5A1BLAFL322

Description
ROTARY NON-CONTACT ANALOG SENSOR
CategoryThe sensor
File Size246KB,2 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric View All

AMS22S5A1BLAFL322 Overview

ROTARY NON-CONTACT ANALOG SENSOR

AMS22S5A1BLAFL322 Parametric

Parameter NameAttribute value
for measurementrotation position
technologyHall Effect
Angle of rotation - electrical, mechanical10° ~ 220°, continuous
linear range-
outputAnalog voltage
output signalincreasing clockwise
Actuator typeflat shaft
linearity±0.5%
Resistor tolerance-
Voltage - Power5V
Installation typePanel mounting
Terminal typeLug
Operating temperature-40°C ~ 125°C
PL
IA
NT
Features
n
Non-contacting magnetic technology
n
Highly resistant to vibration/shock
n
Highly resistant to fluid/dust ingress
n
Programmable at factory for zero position
n
Robust design for industrial applications
F
RE
E
*R
oH
S
C
OM
n
RoHS compliant*
n
Highly repeatable
LE
AD

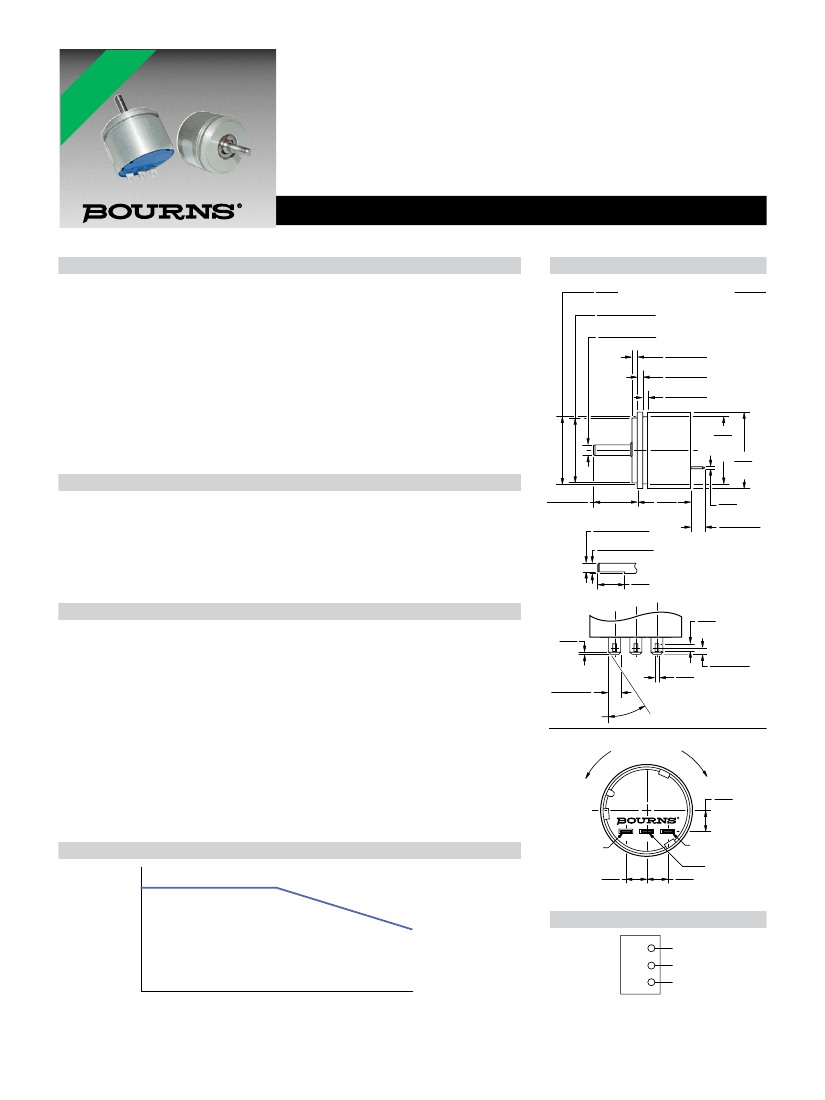

AMS22S
Non-Contacting Analog Rotary Position Sensor
Product Dimensions
19.69
MAX. DIA.
(.775)
19.05 +.000/-.025
(.750 +.000/-.001)
3.167 +.000/-.025
DIA.
(.1247 +.000/-.001)
1.57 ± 0.10
(.062 ± .004)
1.57 ± 0.10
(.062 ± .004)
1.57 ± 0.10
(.062 ± .004)
19.69
(.775)
MAX.
DIA. 22.23
(.875)
DIA.
12.7 ± 0.76
(.500 ± .030)
15.62
(.615)
2.67 +.000/-.076
(.105 +.000/-.003) DIA.
3.18 +.000/-.025
DIA.
(.125 +.000/-.001)
FLATTED
OPTION
7.80
MIN.
(.307)
2.03
(.080)
0.51
(.020)
1.02
(.040)
1.55 ± 0.25
(.061 ± .010)
0.51
3 PLCS.
(.020)
4.06 ± 0.38
(.160 ± .015)
3 PLCS.
VDD Supply Voltage ..................................................................................................5 V ± 10 %
Supply Current
2
For Low Speed Processing (Code L) ................................................................... 10 mA max.
For High Speed Processing (Code H) ................................................................. 20 mA max.
Output Signal (Single) ..................................................................................................... Analog
Independent Linearity ...................................................................................................... ±0.5 %
(±0.3 % available on request)
Hysteresis .........................................................................................................0.2 % VDD max.
Effective Electrical Angle
3
.................................................................................................. 340 °
Programmable Electrical Angle .................................................. 10 ° to 360 ° (10 ° increments)
Voltage Output (Programmable) ................................................................ 1 to 99 % VDD ±1 %
Output Resolution .................................................................................................12 bit @ 360 °
Load Resistance Recommended ....................................................................... 10K ohms to
Overvoltage Protection .................................................................................................+20 VDC
Reverse Voltage Protection ...........................................................................................-10 VDC
Operating Temperature......................................................................................-40 ° to +125 °C
Moisture Resistance .........................................................................MIL-STD-202, Method 106
Insulation Resistance @ 500 VAC..........................................................................500 MW min.
Rotational Life (Shaft Revolutions) .............................................................................. 50 million
Vibration ..............................................................................................................................15 G
Shock...................................................................................................................................50 G
IP Rating .............................................................................................................................. IP50
ESD Rating ................................................................................................................. 2 kV max.
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
Electrical Characteristics
1
(@ 25 °C)
DIMENSIONS:
MM
(INCHES)
Environmental Characteristics
Mechanical Characteristics (@ 25 °C)
Mechanical Angle ..................................................................................................... Continuous
Shaft/RPM ...........................................................................................................200 RPM max.
Torque (Starting & Running) ...........................................................1.06 N-cm. (1.5 oz-in.) max.
Shaft Material ...................................................................................................... Stainless steel
Terminals ................................................................. Brass / 100 % matte tin over Ni Strike (e3)
Bearing .................................................................................................................Bronze sleeve
Soldering Condition
Manual Soldering ................................................. 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean
rosin cored wire; 370 °C (700 °F) max. for 3 seconds
Wave Soldering ............................................. 96.5Sn/3.0Ag/0.5Cu solder with no-clean fl ux;
260 °C (500 °F) max. for 5 seconds
Wash processes ........................................................................................Not recommended
1
At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as
2
See “Processing Speed” in How to Order selection guide.
3
Other Effective Electrical Angles available. See How to Order selection guide.
2.80 ± 0.10
(.110 ± .004)
45 ° ± 5 °
Fig.
1
CW
OUTPUT VOLTAGE INCREASES WHEN
SHAFT IS ROTATED IN THIS DIRECTION
(SEE HOW TO ORDER FOR
DIRECTION CODE)
CCW
noted.
5.08
(.200)
3 PLCS.
+
S1
Rotational Life vs. Shaft Side Load
Rotational Life (Millions of Cycles)
60
50
40
30
20
10
0
0
50
100
150
200
250
300
350
400
450
500
V+ SUPPLY
(INPUT)
5.08
(.200)
GND
(GROUND)
5.08
(.200)
SIGNAL
(OUTPUT)
Schematic
+
S1
V
DD
(5 V)
V
OUT
GND
Shaft Side Load (grams)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
