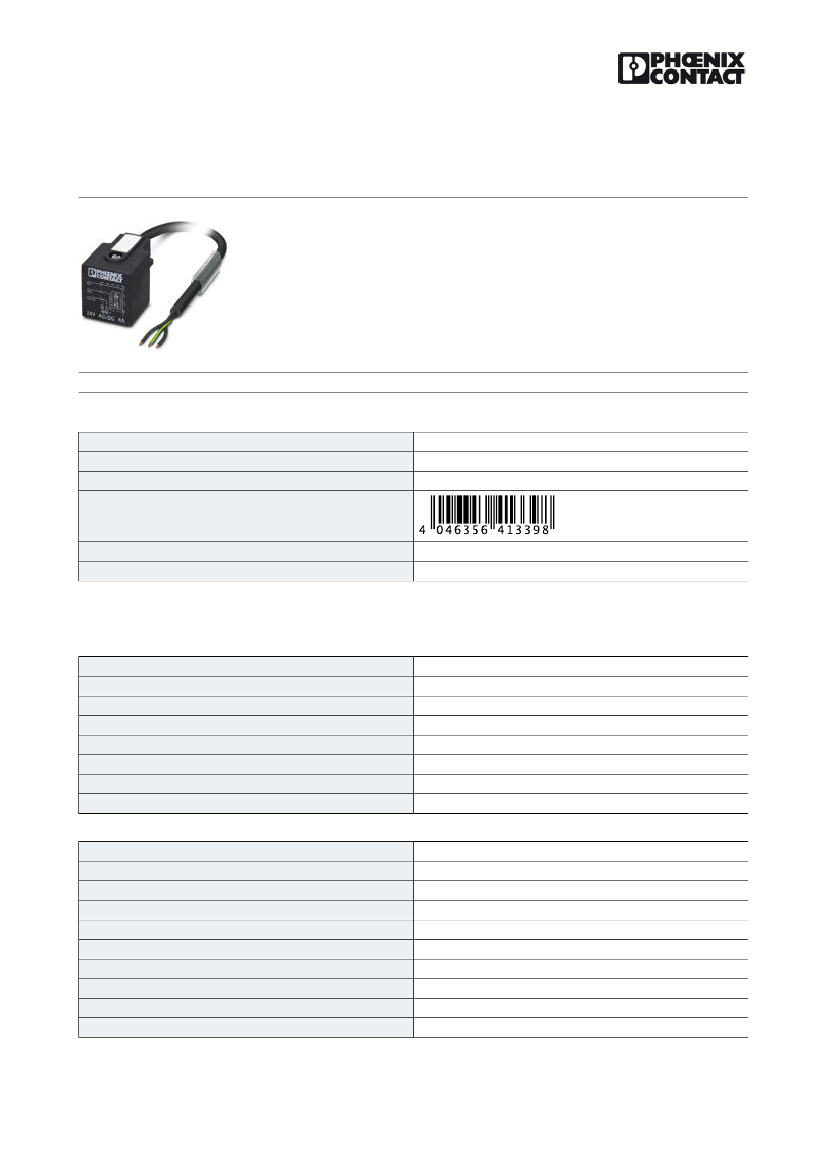

Sensor/Actuator cable - SAC-3P-10,0-PUR/A-1L-Z - 1435014
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/Actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on A
valve plug, with 1 LED, connected with Z diode, Cable length: 10 m
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85444290
POLAND
0
1
Page 164 (PC-2011)
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Insulation resistance
Length of cable
Stripping length of the free conductor end
Ambient temperature (operation)
4A
24 V
3
≤ 5 mΩ
≥ 100 MΩ
10 m
50 mm
-20 °C ... 85 °C (valve plug)
General characteristics
Standards/regulations
Surge voltage category
Pollution degree
Degree of protection
Torque
Contact material
Contact surface material
Valve plug contact insert material
Material housing valve plug
Sealing material
Valve connector EN 175301-803
III
3
IP65/67
0.6 Nm (Valve plug-in connector)
CuSn
Sn
PA 66
TPU
TPU (Seal molded)
08.08.2012 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1435014
Sensor/Actuator cable - SAC-3P-10,0-PUR/A-1L-Z - 1435014
Technical data
General characteristics
Status display
Protective circuit/component
1 LED
Z diode
Conductor data
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM Style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
External cable diameter
Wire colors
External sheath, color
Insulation resistance
Conductor resistance
Nominal voltage, conductor
Test voltage, conductor
Overall twist
Outer sheath, material
Material conductor insulation
Conductor material
Smallest bending radius, fixed installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Ambient temperature (operation)
Ambient temperature (operation)
Flame resistance
Flame resistance
Halogen-free
Other resistance
Other resistance
PUR halogen-free black
PUR
Li9Y11Y-HF
20549
3x 0.5 mm²
20
28x 0.15 mm
1.5 mm ±0.05 mm (signal line)
4.5 mm ± 0.2 mm
Black 1, black 2, green/yellow
Black-gray RAL 7021
min. 20 MΩ*km
39 Ω/km (at 20 °C)
≤ 300 V
≥ 1200 V
3 wires, twisted
PUR
PP
Bare Cu litz wires
22.5 mm
15000000
50 mm
0.9 m
5 m/s
30 m/s²
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
According to DIN VDE 0482
According to DIN EN 50265-2-1
in accordance with DIN VDE 0472 part 815
Largely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
27060306
27060306
27061801
08.08.2012 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1435014
Sensor/Actuator cable - SAC-3P-10,0-PUR/A-1L-Z - 1435014
Classifications
eclass
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27061801
27061801
27061801
etim
ETIM 3.0
ETIM 4.0
EC001855
EC001855
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Accessories
Accessories
Assembly
08.08.2012 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1435014
Sensor/Actuator cable - SAC-3P-10,0-PUR/A-1L-Z - 1435014

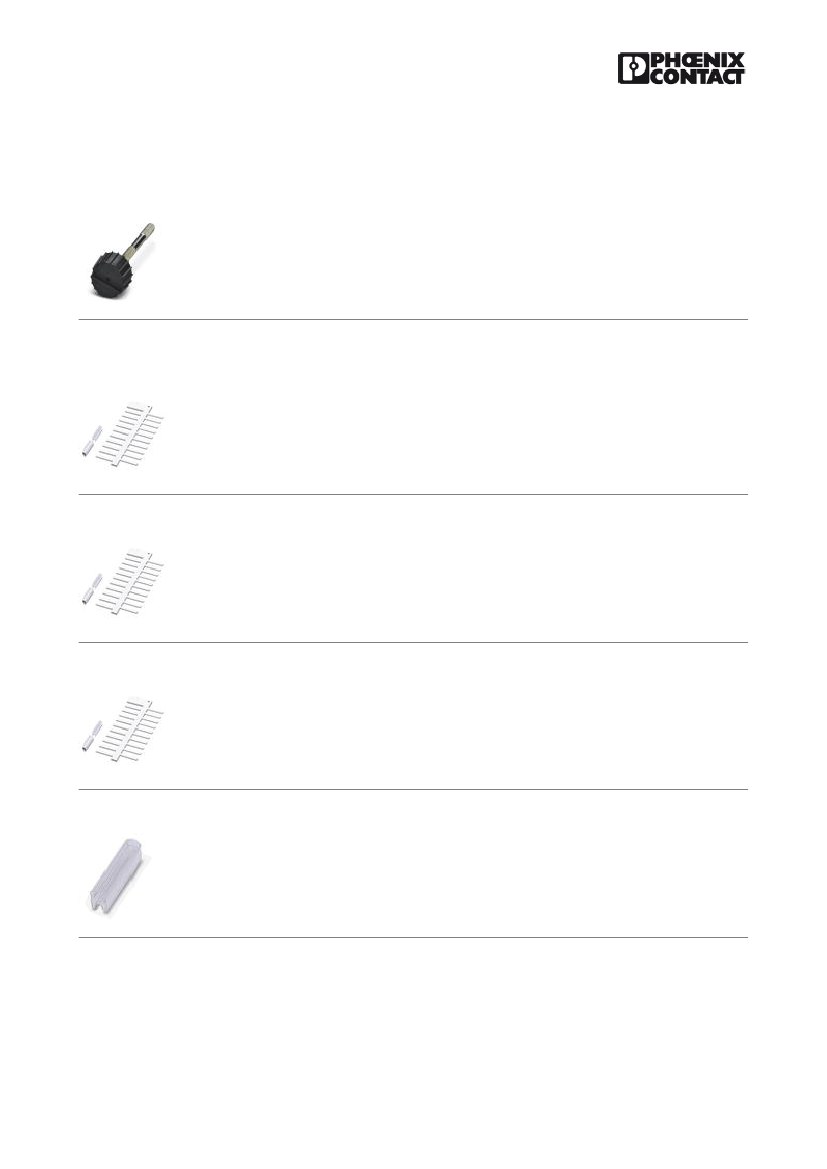

Accessories
Screw - SAC-V-SCREW-M3-29 KNURL - 1403779
Fillister head screw with plastic knurl, M3 x 40
Marking
Insert label - PABA WH/15 - 1013151
Insert label, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter:
0.6-50 mm, Lettering field: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter:
0.6-50 mm, Lettering field: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50
mm, Lettering field: 15 x 4 mm
Conductor marker carrier - PATG 2/23 - 1013850
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 2-4 mm,
Lettering field: 4 x 23 mm
08.08.2012 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1435014
Sensor/Actuator cable - SAC-3P-10,0-PUR/A-1L-Z - 1435014
Accessories

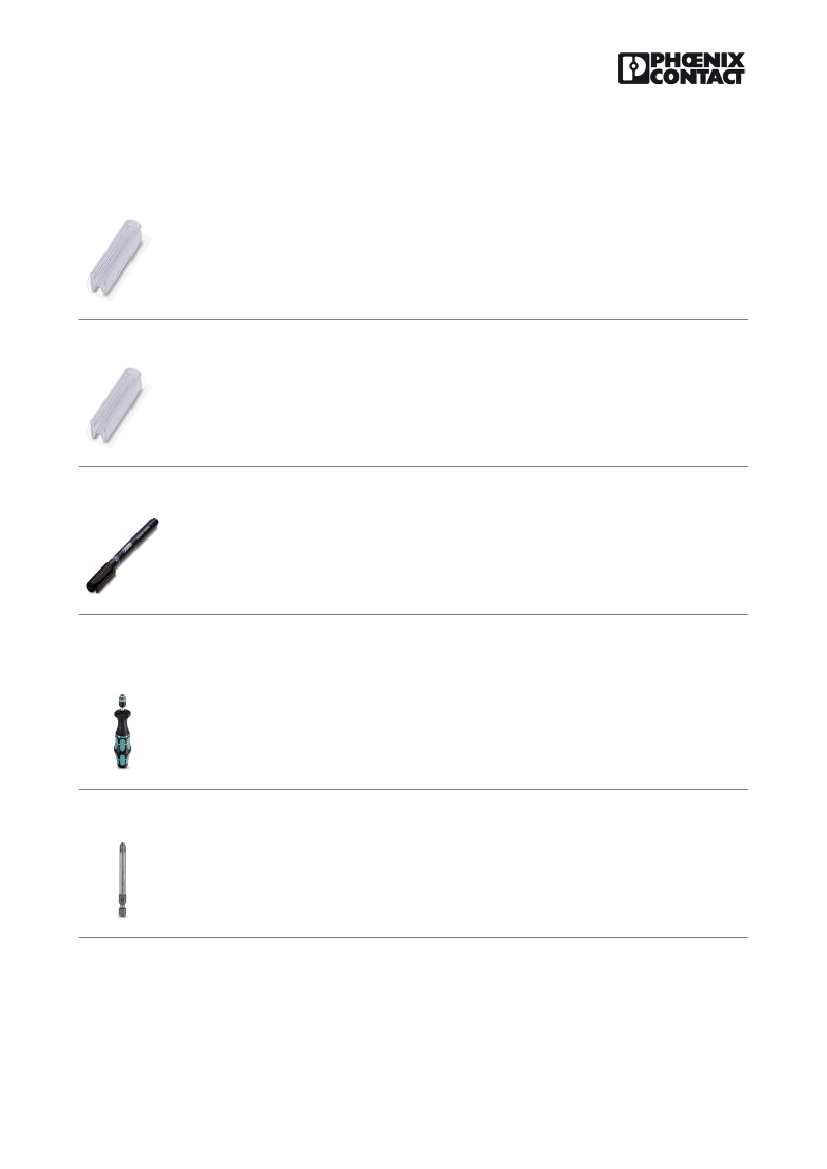

Conductor marker carrier - PATG 3/23 - 1013863
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 4-7 mm,
Lettering field: 4 x 23 mm
Conductor marker carrier - PATG 4/23 - 0808011
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 6-10 mm,
Lettering field: 4 x 23 mm
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Tools
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Screw insert - SF-BIT-PH 1-70 - 1212582
Screw bit, PH crosshead, E6.3-1/4" drive, size: PH 1 x 70 mm, hardened, suitable for holder according to
DIN 3126-F6.3/ISO 1173
08.08.2012 Page 5 / 7
