Housing - HC-B 16-SMLD-67/O2PG21 - 1673724
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

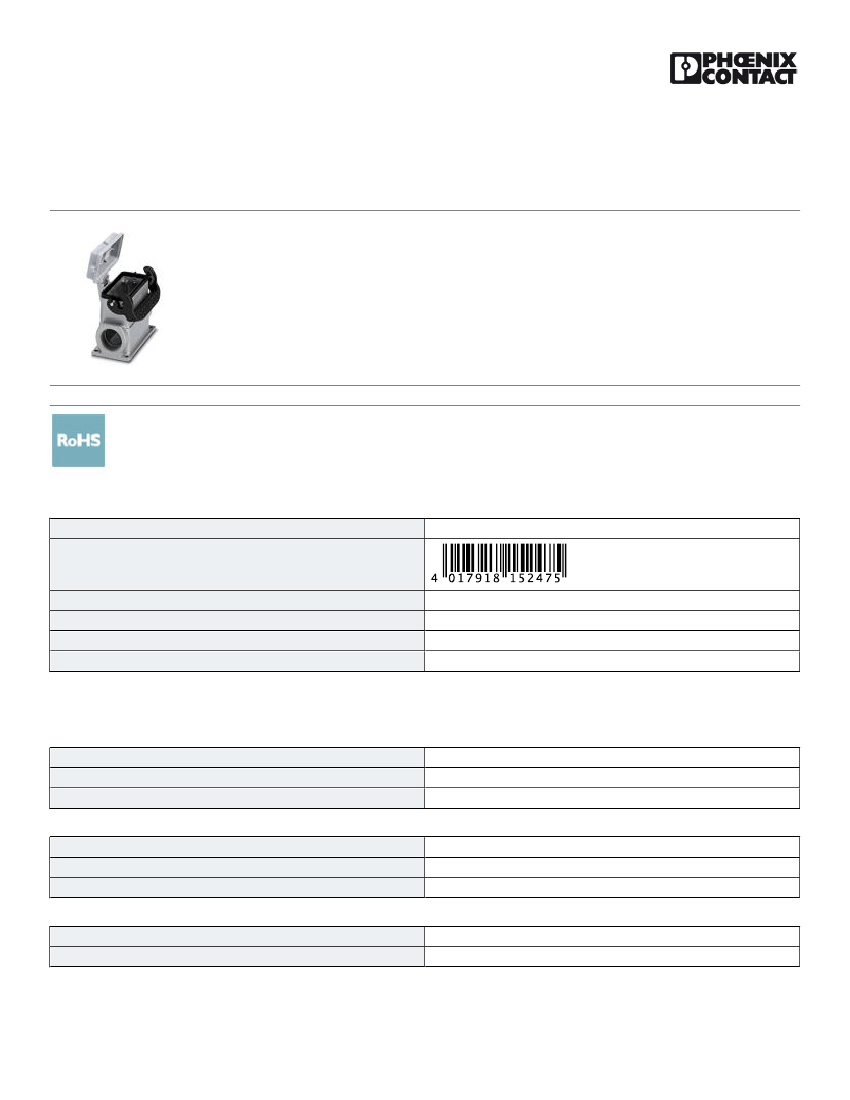

Box mounting base, with single locking latch, height 67 mm, with a support 2x Pg21, with a protective cover
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4017918152475
427.000 g
85389099
Germany
1 STK
Technical data
Dimensions
Height
Width
Length
67 mm
57 mm
117 mm
Ambient conditions
Degree of protection of housing (IP)
Ambient temperature (operation)
IP65 (When plugged in)
IP54 (with closed protective cover)
-40 °C ... 125 °C
General
Note
Size
For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K
B16
04/03/2018 Page 1 / 4
https://www.phoenixcontact.com/us/products/1673724
Housing - HC-B 16-SMLD-67/O2PG21 - 1673724
Technical data
General
Housing type
Locking type
No. of cable outlets
Cable outlet
Screw connection
Type of the screw connection
Protective cover
Housing material
Housing surface material
Seal material
Material lock
Material grip body interlock
Material, protective cover
Box mounting bases
with single locking latch
2
lateral
none
2x Pg21
yes
Aluminum die-cast
Powder-coated, gray
NBR
Stainless steel, handle: PA
PA
PA
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Dimensional drawing
h
4,5
Ø5,5
105
117
45
57
Dimensional drawing; h = 67 mm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
27140816
27140816
27143424
27143424
27143424
04/03/2018 Page 2 / 4
https://www.phoenixcontact.com/us/products/1673724
Housing - HC-B 16-SMLD-67/O2PG21 - 1673724
Classifications
eCl@ss
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27440209
27440202
27440202
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000437
EC000437
EC000437
EC000437
EC000437
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261502
31261502
31261502
31261502
31261501
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
RU C-
DE.AI30.B.01102
Accessories
Accessories
Full screw connection
04/03/2018 Page 3 / 4
https://www.phoenixcontact.com/us/products/1673724
Housing - HC-B 16-SMLD-67/O2PG21 - 1673724

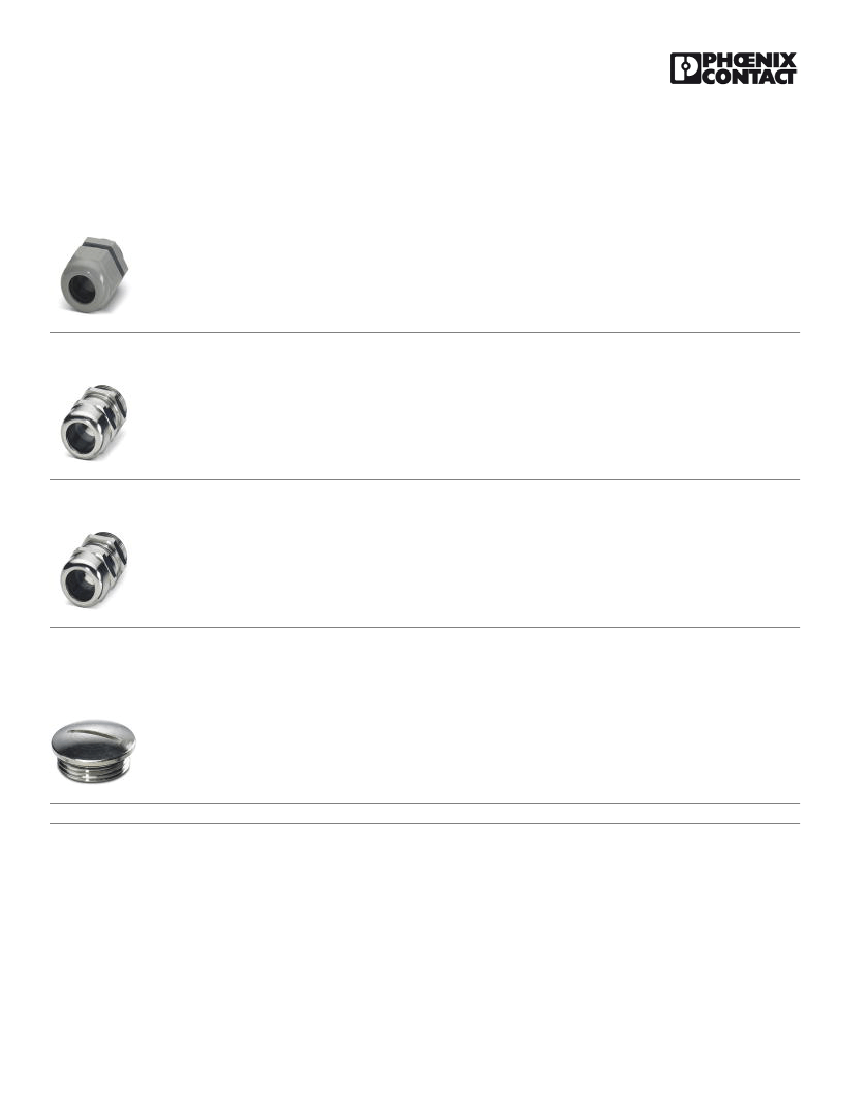

Accessories
Cable gland - G-INS-PG21-M68N-PNES-GY - 1411145
Cable gland, cable gland material: PA, external cable diameter 13 mm ... 18 mm, shielding: no, connecting thread: Pg21,
color: silver-gray RAL 7001
Cable gland - G-INS-PG21-M68N-NNES-S - 1411175
Cable gland, cable gland material: Nickel-plated brass, external cable diameter 13 mm ... 18 mm, shielding: no,
connecting thread: Pg21, color: silver, with O-ring
Cable gland - G-INSEC-PG21-M68N-NNES-S - 1411200
Cable gland, cable gland material: Nickel-plated brass, external cable diameter 13 mm ... 18 mm, shielding: Yes,
connecting thread: Pg21, color: silver, with O-ring
Plug for cable screw gland
Screw plug - HC-BS-PG21 - 1674529
Screw plug, Brass, nickel-plated, connecting thread: Pg21, color: silver
