ECM Medium Power Axial Inductors
VC0513 Series
§
§
§
§
UL Sleeved
Wide Inductance Range
High Saturation Ferrite Core
Typical Pack Size 5000pcs
The VC0513 range of axial inductors offers the user excellent reliability, over a wide inductance range,
along with high current handling.
These components have been especially developed for use in SCR and Triac controls, as well as
inclusion in other switching circuit applications. All components in the range feature UL approved
sleeving material suitable for temperatures up to 105
o
C, and low permeability ferrite core.

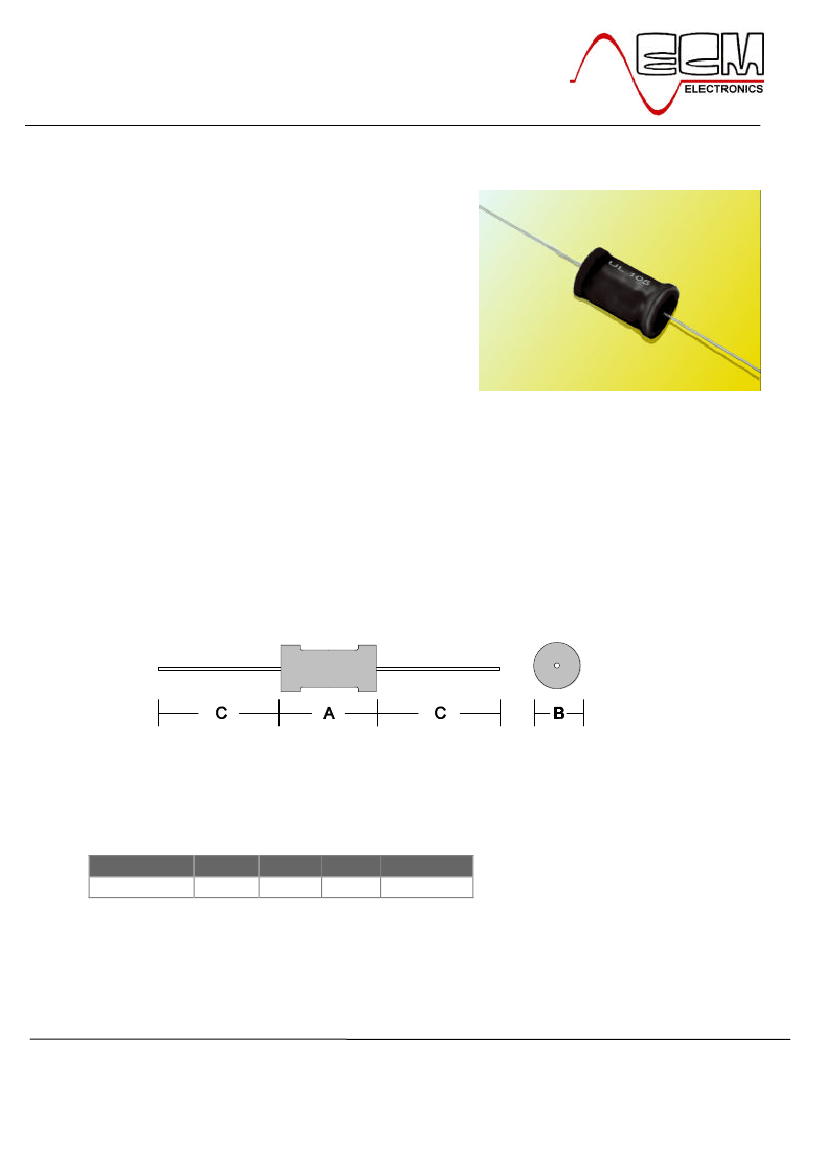

COMPONENT OUTLINE
DIMENSIONS (mm)
ECM Type
VC0513
A
16.5
B
6.6
C
38.0
Lead dia.
0.8
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
ECM Medium Power Axial Inductors
ECM
Part
VC0513-3R9
VC0513-4R7
VC0513-5R6
VC0513-6R8
VC0513-8R2
VC0513-100
VC0513-120
VC0513-150
VC0513-180
VC0513-220
VC0513-270
VC0513-330
VC0513-390
VC0513-470
VC0513-560
VC0513-680
VC0513-820
VC0513-101
VC0513-121
VC0513-151
VC0513-181
VC0513-221
VC0513-271
VC0513-331
VC0513-391
VC0513-471
VC0513-561
VC0513-681
VC0513-821
VC0513-102
VC0513-122
VC0513-152
VC0513-182
VC0513-222
VC0513-272
VC0513-332
VC0513-392
VC0513-472
VC0513-562
VC0513-682
VC0513-822
VC0513-103
VC0513-123
VC0513-153
VC0513-183
L
(µH)
µ
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
Tol
%
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
R
DC
MAX
(Ω)
Ω
0.019
0.022
0.024
0.026
0.028
0.033
0.037
0.040
0.044
0.050
0.058
0.075
0.094
0.109
0.140
0.145
0.152
0.208
0.283
0.340
0.362
0.430
0.557
0.665
0.772
1.15
1.27
1.61
1.96
2.30
2.65
3.45
4.03
4.48
5.90
6.56
8.63
10.50
13.90
16.30
20.80
26.40
29.90
42.50
48.30
I
DC
I
SAT
(A)
7.30
6.30
5.60
5.30
4.50
4.10
3.60
3.30
3.00
2.70
2.50
2.20
1.00
1.80
1.60
1.50
1.40
1.20
1.10
1.00
0.95
0.86
0.77
0.70
0.64
0.59
0.54
0.49
0.44
0.40
0.35
0.33
0.29
0.27
0.24
0.22
0.20
0.18
0.166
0.151
0.136
0.125
0.114
0.098
0.091
I
DC
I
N
(A)
1.28
1.28
1.28
1.28
1.28
1.28
1.28
1.28
1.28
1.28
1.28
1.08
0.804
0.804
0.804
0.804
0.804
0.632
0.508
0.508
0.508
0.508
0.400
0.400
0.400
0.315
0.315
0.250
0.200
0.200
0.200
0.158
0.158
0.158
0.125
0.125
0.100
0.100
0.082
0.082
0.065
0.050
0.050
0.039
0.039
TOLERANCE: K=10%.
