Part Number

Search

HDR200MET10F-G-V-SM-DR

Description
2.00 MM 10 PIN DUAL ROW VERTICAL
CategoryThe connector
File Size141KB,1 Pages
ManufacturerChip Quik
Environmental Compliance
Download Datasheet Parametric View All

HDR200MET10F-G-V-SM-DR Overview

2.00 MM 10 PIN DUAL ROW VERTICAL

HDR200MET10F-G-V-SM-DR Parametric

Parameter NameAttribute value
Connector typeConnector
Contact typefemale socket
styleboard to board
Number of pins10
Number of pins loadedall
Spacing - Mating0.079"(2.00mm)
Number of rows2
Line spacing - patching0.079"(2.00mm)
Installation typesurface mount
Terminationwelding
Fastening typepush-pull
Contact surface treatment - matinggold
Contact Surface Treatment Thickness - Mating-
Insulation color-
Insulation height0.181"(4.60mm)
Contact length - terminal-
Operating temperature-
Material flammability rating-
Contact Surface Preparation - Column-
Joint stack height-
Intrusion protection-
characteristic-
Rated current-
Rated voltage-
application-
Insulation Materials-
Contact shapeSquare
Contact material-
Contact Surface Treatment Thickness - Column-

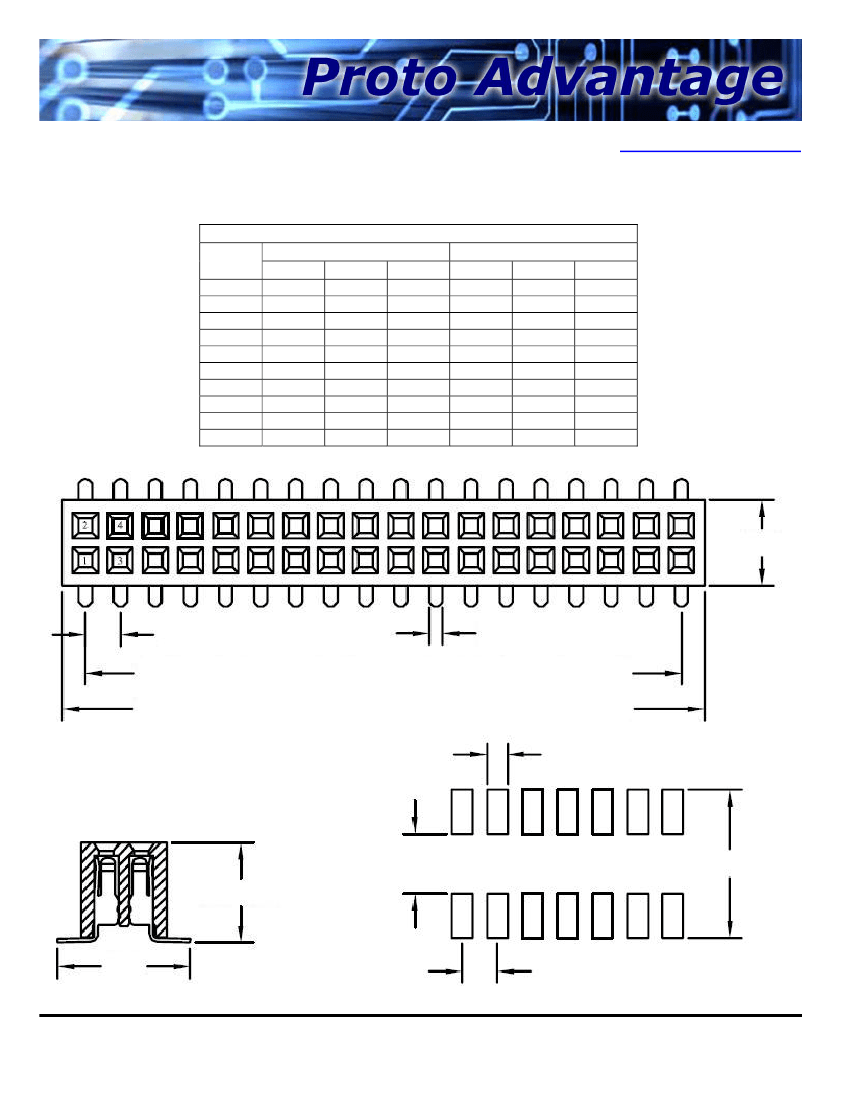

HDR200MET10F-G-V-SM-DR
Datasheet revision 1.0
www.Proto-Advantage.com
2.00 mm 10 pin Vertical Female Header Surface Mount Gold
DIMENSIONS
REF.
A
B
C
C1
E
H
L1
L2
W1
W2
MIN.
mm
TYP.
3.20
7.40
0.89
0.50
2.00
4.60
8.00
10.50
6.20
4.00
MAX.
MIN.
inches
TYP.
MAX.
W2
E
L1
L2
C1
C
A
H
Recommended PCB Layout
B
W1
E
1
© 2007-2017 Proto Advantage Inc.
