Part Number

Search

A-TB500-OQ23CH

Description
TERM BLOCK HDR 23POS 90DEG 5MM
CategoryThe connector
File Size131KB,1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

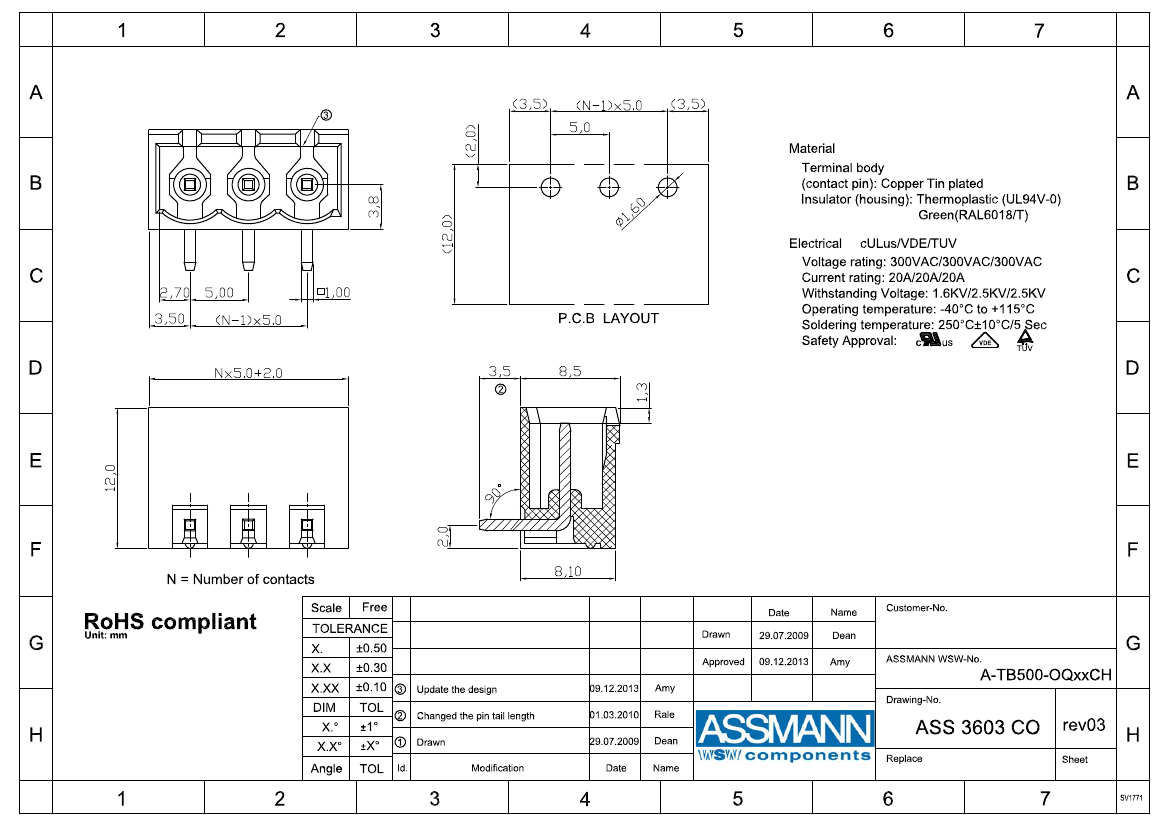

A-TB500-OQ23CH Overview

TERM BLOCK HDR 23POS 90DEG 5MM

A-TB500-OQ23CH Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (4 sides)
Number of pins23
Number of pins per level23
Number of levels1
spacing0.197"(5.00mm)
Needle seat direction90°, right angle
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC-
Current - UL20A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorgreen
Operating temperature-40°C ~ 115°C
Contact mating surface treatmenttin
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact materialcopper
Shell materialthermoplastic
Contact tail length0.138"(3.50mm)
Insulation height0.335"(8.51mm)
