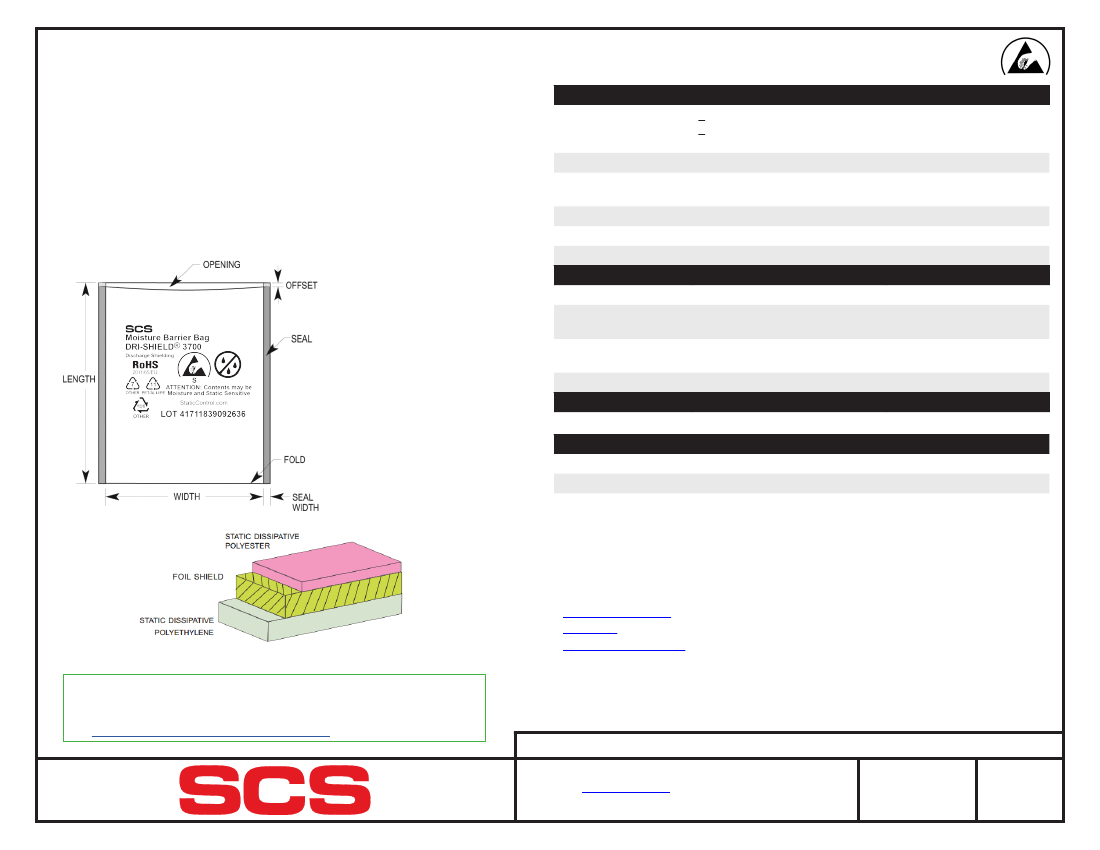

Moisture Barrier Bag Dri-Shield
®
3700
This foil moisture barrier bag provides superior protection for ESD sensitive
and moisture sensitive electronics, typically SMT (Surface Mount Technology)
items. Best practice is to use with Desiccant and a Humidity Indicator Card.
The bags are heat sealable and suitable for vacuum packaging. Bags are
printed with ESD protective and moisture sensitive warning symbols and a lot
code for traceability.
SCS Moisture Barrier Bags Dri-Shield
®
3700 are manufactured from a laminate
of polyester, foil, and polyethylene. The metal layer provides discharge
shielding and minimizes the penetration of electric fields and electrostatic
Open Top Bag
ZipTop Bag
discharges.
Meets ANSI/ESD S20.20, Packaging standard ANSI/ESD S541,
Static Control Bag ANSI/ESD S11.4 Level 1, and IPC/JEDEC J-STD-033.
Physical
Moisture Vapor
Transmission Rate
(MVTR)
Typical Value
< 0.0003 grams/100 sq. in./24 hrs
< 0.002 grams/100 sq. in./24 hrs
9900 PSI, 68 MPa
25 lbs, 111 N
15 lbs, 66 N
4.2 mils, 0.1067 mm +/-10%
Pass
Typical Value
<10 nJ
1 x 10
4
to < 1 x 10
11
ohms
1 x 10
4
to < 1 x 10
11
ohms
45 dB
Typical Value
Not Detected
Typical Value
400°F, 204°C
0.6 – 4.5 seconds
30 – 70 PSI, 206 – 482 KPa
Testing Method
ASTM F1249
ASTM F392 condition E and
ASTM F2149
Tensile Strength
Puncture Resistance
Seal Strength
Thickness
Marking Adhesion
Electrical
ESD Shielding
ASTM D882
MIL-STD-3010C Method
2065
ASTM D882
MIL-STD-3010 Method 1003
IPC-TM-650 2.4.1
Testing Method
ANSI/ESD STM11.31
Surface Resistance -
Interior
Tolerance: Width -0, +1/4"
Length +/- 1/8" Offset 0 to 1/4"
Seal width 3/8" with a tolerance of +/- 1/8"
ANSI/ESD STM11.11
ANSI/ESD STM11.11
1 to 10 GHz
Testing Method
FTIR
Surface Resistance -
Exterior
EMI Attenuation
Cleanliness
Silicone
Heat Sealing Conditions
Temperature
Note: Standard bag markings shown
above are not to scale.
Time
Pressure
Tolerance (inches): Width -0, +0.250 Length +/- 0.125 Offset O to 0.250
Bag is free of amines, silicones and heavy metals.
Seal width +/- 0.125
This product is intended for commercial use only. This product is not on the Qualified Product
Listing under the Defense Standardization Program.
NOTE:
The complete dry package concept of packaging for electronics requires three elements:
Moisture Barrier Bags
- To Protect
Desiccants
- To Absorb Moisture
Humidity Indicator Cards
- To Monitor Performance
SCS Moisture Barrier Bags are packaged in a polyethylene bag.
RoHS 3, REACH, and Conflict Minerals Statement
None of the RoHS 3 restricted materials or REACH substances of very high concern as
of 2017/07/07, or Conflict Minerals are intentionally added in manufacturing this product.
Ref: European Union Directive 2011/65/EU and Regulation (EC) No. 1907/2006/CE.
See
SCS Warranty, Limitation of Liability and Remedies
Made in the United States of America with Globally Sourced Materials.
Specifications and procedures subject to change without notice.
DRI-SHIELD
®
3700 MOISTURE BARRIER BAG
926 JR Industrial Drive, Sanford, NC 27332
WEB SITE:
StaticControl.com
PHONE (919) 718-0000
Dri-Schield 3700
DRAWING
NUMBER
DATE
October
2017
© 2017 DESCO INDUSTRIES INC.
Employee Owned
