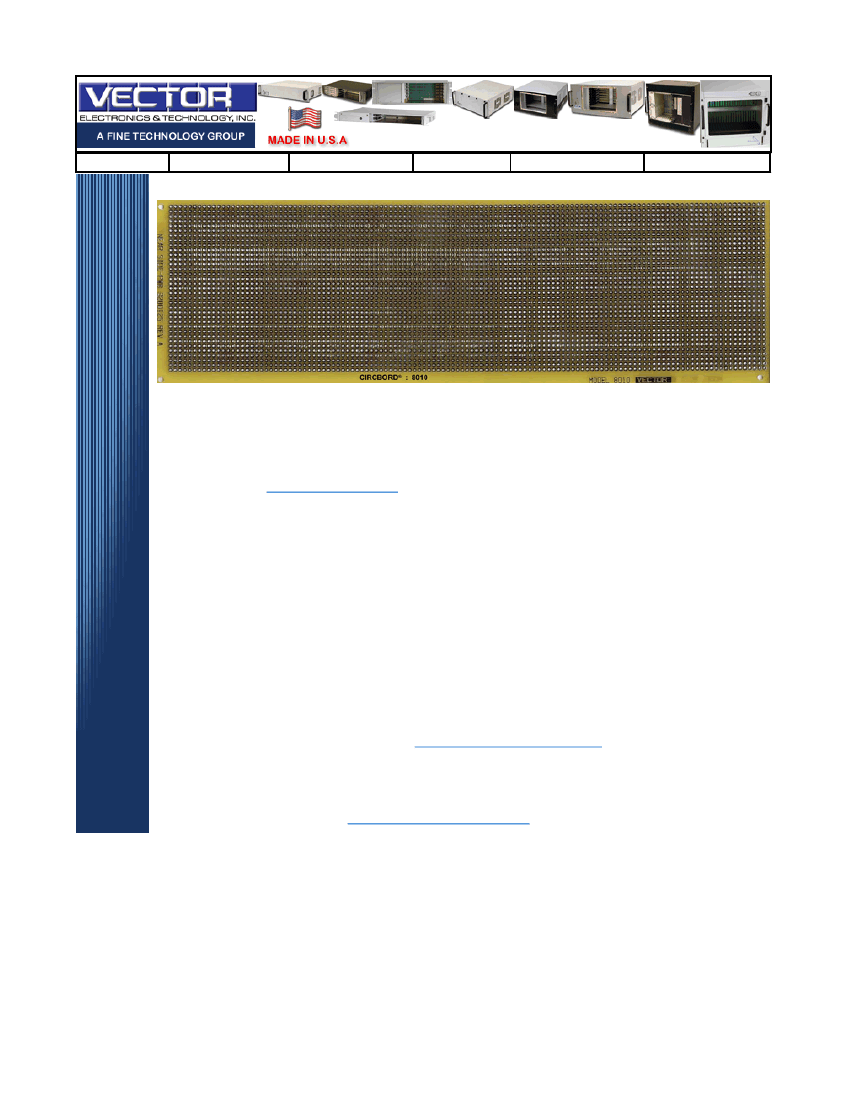

Circboard : 8010
Page 1 of 1
Home
About Vector
Distributors
Sales
Contact Us
Catalog Request
VECTORBORD
®
CIRCBORD
TM
.... PART NO. :
8010
Description :
4.0" x 13.00", Hole Dia.: 0.042", Grid: 0.100" x 0.100"
Pad-Per-Hole 2 Sides
Precision Drilled Plated Through Holes { 0.042" }
0.080" Dia. Isolated solder pads around each hole
Board Side & Surface Area Approximate Macintosh II Specifications
Unrestricated Component Placements
Layout paper
.......... Layout Paper(PDF)
Circuit Pattern :
Contacts :
16 Pin DIP Capacity :
Hole Diameter :
Grid :
Dimension { H, W, T } :
Material :
Wire-Wrap Terminals :
Solder Terminals :
Wire-Wrap Socket Pins :
NEMA Grade :
UL Flammability Class :
Pad-Per-Hole 2 Sides
N/A
124
0.042" { 1.0668 mm }
0.100" x 0.100" { 2.54mm X 2.54mm }
4.0" x 13.00" x 0.062"
FR4 Epoxy Glass { MIL - P13949 type Gf }
T44, T46, T49, T68
T42-1
R32
FR4
94V - 0
email us your requirements
:
inquire@vectorelect.com
11115 Vanowen St., North Hollywood, CA - 91605, USA
Tel: ( 818 ) 985 8208, ( 800 ) 423 5659; Fax: ( 818 ) 985 7708
Circbord®, Vectorbord® and VectorPak® are registered trademarks of Vector Electronics & Technology, Inc.
CompactPCI® is a registered trademark of PCIMG. © 2001 Vector Electronics & Technology, Inc. - All Rights Reserved
