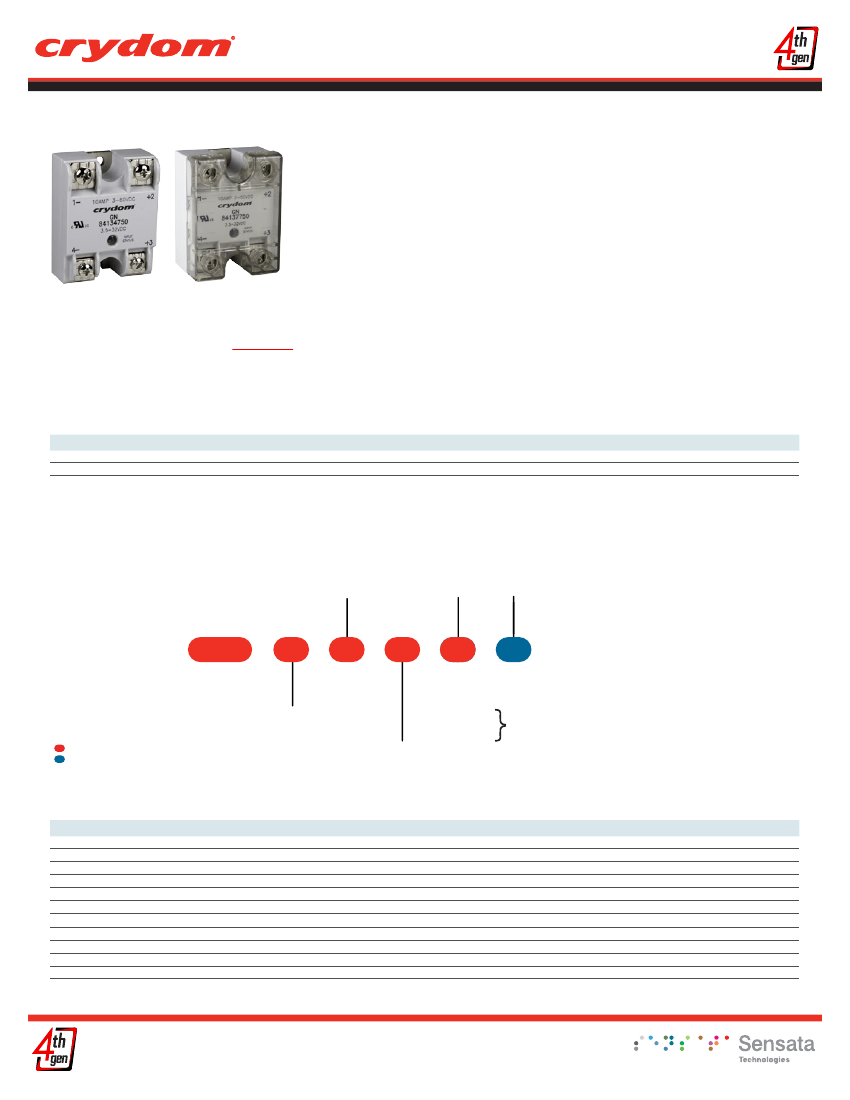

Datasheet
GN Series
DC Output SSRs
•
Current rating 10, 15 and 30 Amps
•
Output voltage 3-60, 1-50, 1-100 and 1-200 VDC
•
Transistor and Mosfet Output
•
Available with or without IP20 touch-safe cover
•
LED Input Status Indicator
•
UL Approved, CE Compliant to EN60950-1
•
Improved SEMS screw and washer
•
Redesigned housing with anti-rotation barriers
For Generation 3 datasheet
click here
Panel Mount
PRODUCT SELECTION
Control Voltage
3-32 VDC
3.5-32 VDC
10 A
84134750
84134850
15 A
84134860
30 A
84134870
AVAILABLE OPTIONS
Series
Output Type
7:
Transistor
8:
MOSFET
Control
Thermal Pad
Voltage
Blank:
Not included
0:3.5-32
VDC
H:
Included
8413
4
7
Touch Safe Cover
4:
Not included (IP00)
7:
Included (IP20)
5
U
0
H
Rated Voltage &
Load Current
5:
3-60 VDC, 10 Amps (with output type 7 only)
5:
1-200 VDC, 10 Amps
6:
1-100 VDC, 15 Amps
With output type 8 only
7:
1-50 VDC, 30 Amps
Required for valid part number
For options only and not required for valid part number
OUTPUT SPECIFICATIONS
(1)
Description
Recommended Operating Voltage [Vdc]
Absolute Maximum Rating [Vdc]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Maximum Load Current [Adc]
(2)
Minimum Load Current [mA]
Maximum On-State Voltage Drop @ Rated Current [Vdc]
Maximum On-State Resistance [RDS-ON] [Ohms]
Maximum Surge Current [Adc] (10msec)
Thermal Resistance Junction to Case (Rjc) [°C/W]
Minimum Heat Sink for Rated Current @ 40°C
[°C/W]
Maximum Pulse Width Modulation Frequency [Hz]
(3)
8413x750
3-48
60
1
10
100
1.4
N/A
15
2
5
1500
8413x850
1-150
200
0.1
10
0.1
2.1
0.21
50
1.25
1.5
2000
8413x860
1-72
100
0.1
15
0.1
0.8
0.05
50
2.1
2
2500
8413x870
1-36
50
0.1
30
0.1
0.8
0.03
72
1.5
2
1200
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current [mA]
Nominal Input Impedance [Ohms]
Maximum Turn-On Time [ sec]
Maximum Turn-Off Time [ sec]
Panel Mount
8413x750
3-32 VDC
-32 VDC
3 VDC
1 VDC
9 mA
14.5 mA
Current Regulated
100
200
8413x8xx
3.5-32 VDC
-32 VDC
3.5 VDC
(4)
1 VDC
11 mA
15 mA
75
50
GENERAL SPECIFICATIONS
(1)
Description
Dielectric Strength, Input to Output (50/60Hz)
Dielectric Strength, Input/Output to Ground (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
(5)
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Baseplate Material
Input Terminal Screw Torque Range (in-lb/Nm)
Load Terminal Screw Torque Range (in-lb/Nm)
SSR Mounting Screw Torque Range (in-lb/Nm)
Humidity
per IEC60068-2-78
LED Input Status Indicator
MTBF (Mean Time Between Failures) at 40°C ambient temperature
(6)
MTBF (Mean Time Between Failures) at 60°C ambient temperature
(6)
Parameters
3700 Vrms
2500 Vrms
10
9
Ohms
8 pF
-40 to 100 °C
-40 to 100 °C
2.46 oz (70 g)
UL94 V-0
Aluminum
13-15 /1.5-1.7
18-20 / 2-2.2
18-20 / 2-2.2
93% non-condensing
Green
11,641,553 hours (1,328 years)
7,210,376 hours (823 years)
GENERAL NOTES
(1)
All parameters at 25°C unless otherwise specified.
(2)
Heat sinking required, see derating curves.
(3)
8 VDC Minimum control voltage. Resistive loads only. Consider switching losses; at maximum frequency reduce to 75% output current.
(4)
Increase minimum voltage by 1V for operations from -20 to -40°C.
(5)
Maximum ambient temperature for 8413x750 is 80°C, decrease maximun control voltage 1.35V/°C above 80°C ambient temperature.
(6)
All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report).
For additional information or specific questions, contact Crydom Technical Support.
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet

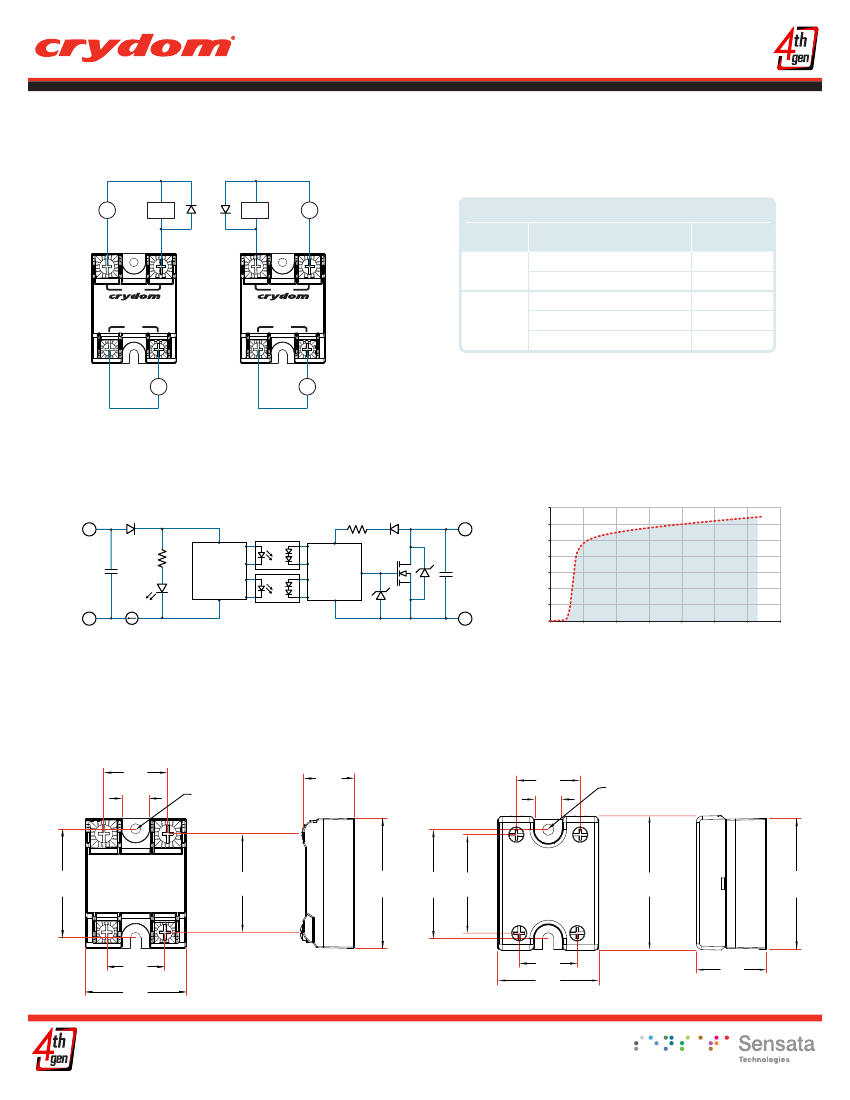

WIRING DIAGRAM
+
Panel Mount
*
Inductive loads must be diode suppresed.
+
V
-
Load
*
*
Load
+
-
V
+
Recommended Wire Sizes
Terminals
Wire Size
(Solid / Stranded)
24 AWG (0.2 mm
2
) / 0.2 [minimum]
2 x 12 AWG (3.3 mm
2
) / 3.3 [maximum]
20 AWG (0.5 mm
2
) / 0.518 [minimum]
Output
2 x 10 AWG (5.3 mm
2
)
/ 5.3
2 x 8 AWG (8.4 mm
2
) / 8.4 [maximum]
Wire Pull-Out
Strength (lb)[N]
10 [44.5]
90 [400]
30 [133]
110 [490]
90 [400]
Input
1
OUTPUT
+2
1
OUTPUT
+2
S O L I D S TAT E R E L AY
S O L I D S TAT E R E L AY
4
INPUT
+3
4
INPUT
+3
+
V
-
+
V
-
EQUIVALENT CIRCUIT BLOCK DIAGRAMS
14
12
10
8
6
4
2
0
0
Input Current vs Input Voltage
Standard Regulated DC Input
+DC
3
2
+DC
-DC
4
INPUT
Control
Circuit
Trigger
Circuit
Current
Limiter
1
-DC
Input Current (mA)
OUTPUT
5
10
DC Input Voltage
15
20
25
30
35
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
MECHANICAL SPECIFICATIONS
(1)
Screw Termination, IP00
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
0.89
[22.6]
1.10
[27.9]
0.49
[12.4]
Screw Termination, IP20
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.88
[47.6]
1.7
[43.2]
2.25
[57.3]
1.88
[47.6]
1.7
[43.2]
2.32
[58.8]
2.25
[57.3]
1.0
[25.4]
1.75
[44.5]
1.0
[25.4]
1.75
[44.5]
1.22
[30.9]
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet

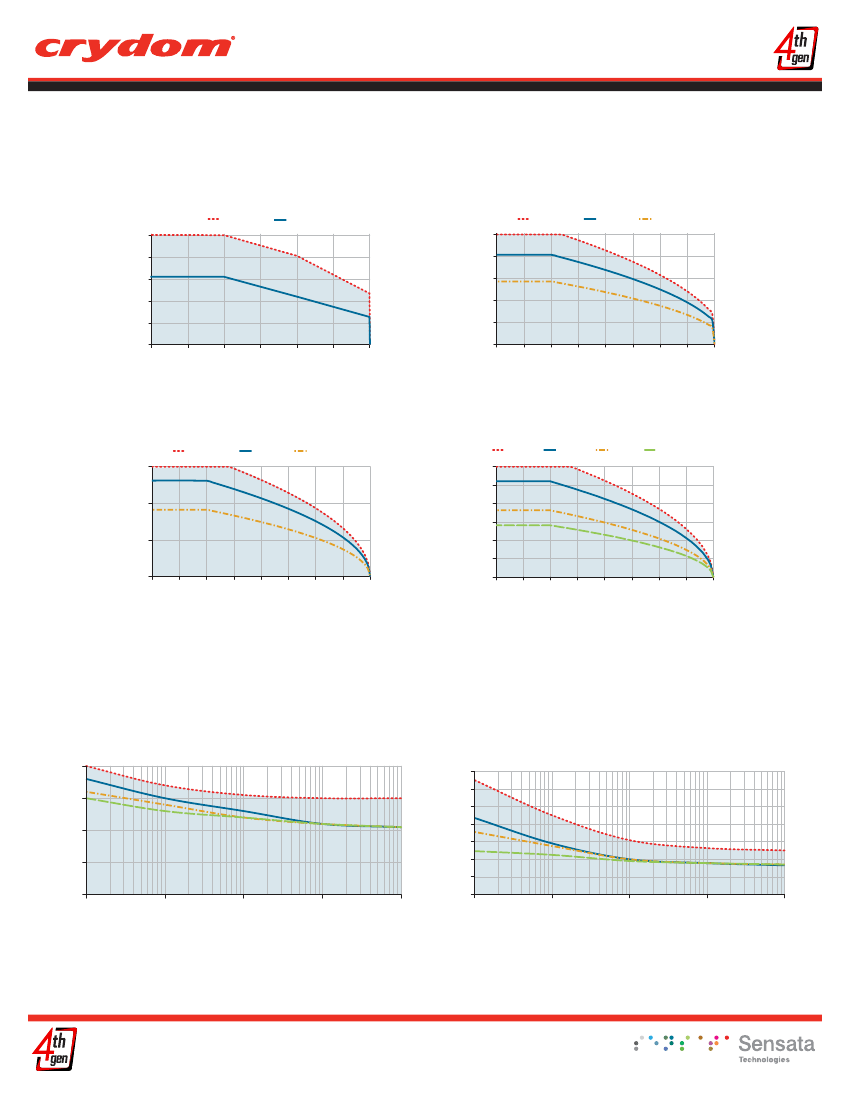

THERMAL DERATE INFORMATION
8413x750
5ºC/W
No Heat Sink (*)
2ºC/W
(i)
SSR metal base plate acting as heat sink, it must be exposed to free ambient air.
Panel Mount
8413x850
3ºC/W
5ºC/W
10
Load Current (Amps)
Load Current (Amps)
8
6
4
2
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
10
8
6
4
2
0
20
30
40
50
60
70
80
Ambient Temperature (ºC)
90
100
8413x860
2ºC/W
3ºC/W
5ºC/W
2ºC/W
8413x870
3ºC/W
5ºC/W
No Heat Sink (*)
15
Load Current (Amps)
Load Current (Amps)
20
30
40
50
60
70
80
Ambient Temperature (ºC)
90
100
10
5
0
30
25
20
15
10
5
0
20
30
40
50
60
70
80
Ambient Temperature (ºC)
90
100
SURGE CURRENT INFORMATION
20
Surge Current (Amp)
15
10
5
0
8413x750
70
Surge Current (Amp)
60
50
40
30
20
10
0
0.1
1
8413x850
0.1
1
10
100
1000
10
100
1000
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet
Surge Duration (msec)
Surge Duration (msec)
Panel Mount
80
Surge Current (Amp)
70
60
50
40
30
20
10
0

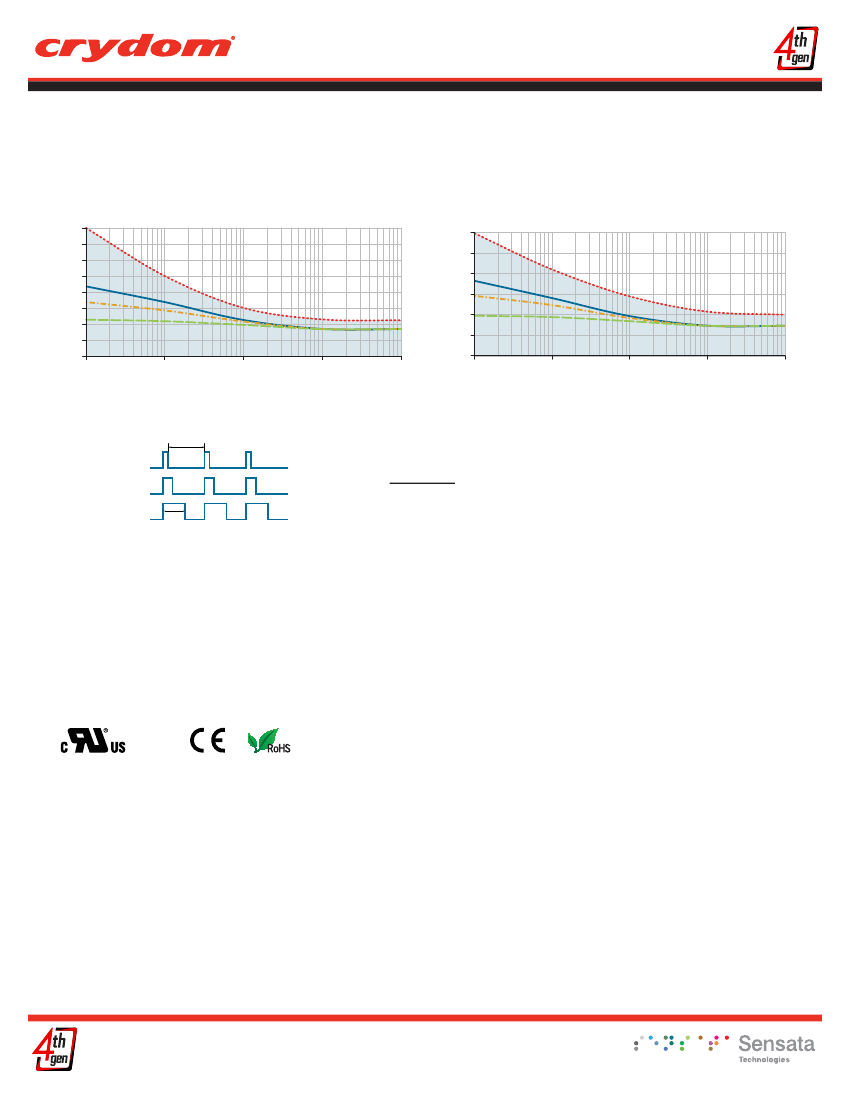

8413x860
150
Surge Current (Amp)
125
100
75
50
25
0
0.1
1
8413x870
0.1
1
10
Surge Duration (msec)
100
1000
10
Duration (msec)
Surge
100
1000
Period
Duty Factor 10%
Duty Factor 20%
Duty Factor 50%
Pulse
Width
For Pulse Width Modulation applications select
the curve according duty factor and pulse duration as following.
Duty Factor
=
Pulse Width
