32-5994UL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 32-5994UL

32-5994UL: DescriptionCONN MOD PLUG 6P4C UNSHIELDED; CategoryThe connector; File Size35KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric View All

32-5994UL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32-5994UL	-	-	View	Buy Now

32-5994UL Overview

CONN MOD PLUG 6P4C UNSHIELDED

32-5994UL Parametric

Parameter Name	Attribute value
Connector type	plug
Cable type	Round cable, solid conductor
Number of pins/contacts	6p4c（RJ11，RJ14）
characteristic	-
shield	No shielding
grade	Cat5
Intrusion protection	-
Termination	IDC
length	0.525"（13.34mm）
color	translucent - transparent
Wire gauge	-
Contact plating	gold
Contact plating thickness	50.0µin（1.27µm）
Contact material	Phosphor bronze
Rated voltage	-
Shell material	Polycarbonate (PC)
shielding material	-

Preview

Download Datasheet

View All

DESCRIPTION:

MODEL NUMBER:

APPLICATION:

CRIMP TOOL:

IMPEDANCE:

FREQUENCY RANGE:

MATERIAL:

RoHS COMPLIANCE:

TECHINCAL DETAIL:

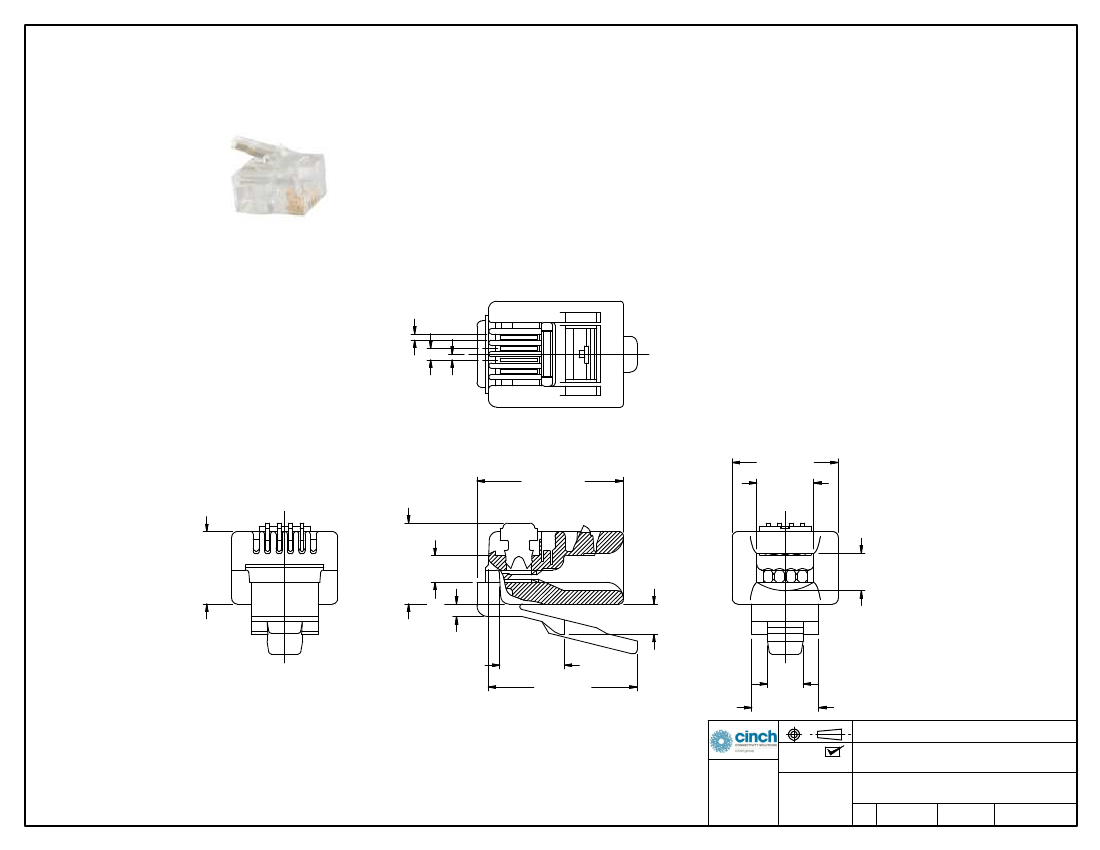

CAT5E, RJ11 (6P4C) MODULAR PLUG, UNSHIELDED,

SOLID/STRANDED, ROUND CABLE

32-5994UL

MODULAR PLUG

N/A

HOUSING

CLEAR POLYCARBONATE UL94-V0

CONTACT

PHOSPHOR BRONZE

SELECTIVE GOLD PLATING

YES

N/A

.022 [0.56] TYP

.040 [1.02]

.020 [0.51]

.380 [9.65]

.260 [6.60]

.525 [13.33] REF

.204 [5.18]

.135 [3.42]

.294 [7.47] REF

.096 [2.44]

.045 [1.14]

.232 [5.89]

.534 [13.56]

.109 [2.77]

.128 [3.25]

.240 [3.10]

3RD ANGLE PROJECTION

AIM-Cambridge

Title:

RoHS2

This PROPRIETARY Document

is property of Cinch Connectivity

Solutions. It is confidential in

nature, non-transferable, and

issued with the clear

understanding that it is not

traced or copied without

permission and is returnable

upon demand.

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

CAT5E, RJ11 (6P4C) Modular Plug,

Unshielded, Solid/Stranded, Round Cable

Model No.

INTERPRET DRAWING IN

ACCORDANCE W ITH ASME

Y14.5-2009.

.XX

.02

.XXX

.005

ANGLES

32-5994UL

Size

DO NOT SCALE

Date:

2015/12/9

DRAWING

Sheet 1 of 1
