DESCRIPTION:
MODEL NUMBER:
APPLICATION:
CRIMP TOOL:
IMPEDANCE:
FREQUENCY RANGE:
MATERIAL:
RoHS COMPLIANCE:
TECHINCAL DETAIL:
PLUG BODY
CAT5E, RJ11 (6P4C) MODULAR PLUG, UNSHIELDED,
SOLID/STRANDED, FLAT CABLE
32-5954UL
MODULAR PLUG
N/A
N/A
N/A
HOUSING
CLEAR POLYCARBONATE UL94-V0
CONTACT
PHOSPHOR BRONZE
SELECTIVE GOLD PLATING
YES
N/A
.525 [13.33] REF
.040 [1.02] TYP.
CONTACTS (4)
.040 [1.02]
.380 [9.65]
( .204 [5.18] )
( .103 [2.62] )
.128 [3.25]
.240 [6.10]
3RD ANGLE PROJECTION
.260 [6.60]
( .294 [7.47] )
.045 [1.14]
.232 [5.89]
( .575 [14.60] )
.109 [2.77]
AIM-Cambridge
Title:
RoHS2
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: INCH

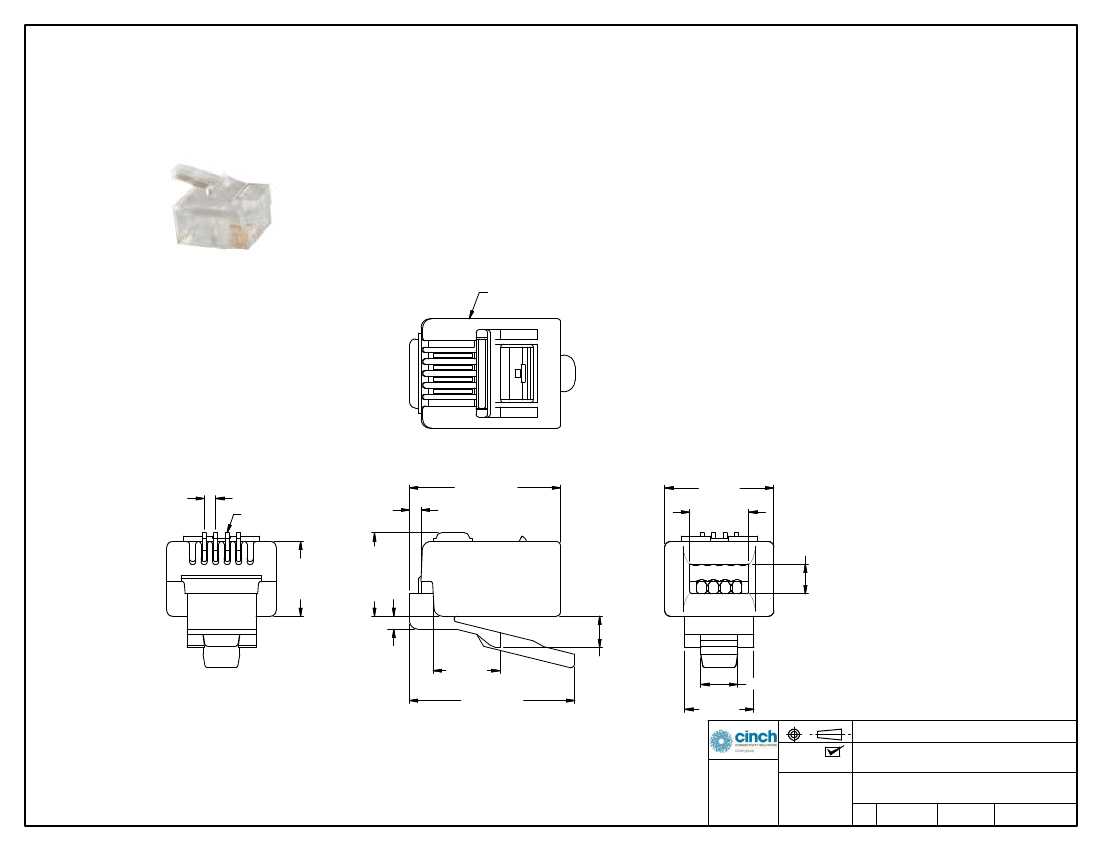

CAT5E, RJ11 (6P4C) Modular Plug,
Unshielded, Solid/Stranded, Flat Cable
Model No.
INTERPRET DRAWING IN
ACCORDANCE W ITH ASME
Y14.5-2009.
.XX
u
.02
.XXX
u
.005
ANGLES
u
2
v
32-5954UL
Size
A
DO NOT SCALE
Date:
2015/12/9
DRAWING
Sheet 1 of 1
