SPECIFICATION
Part No.
Product Name
:
:
CAB.058
Taoglas Semi-Rigid Cable Assembly
SMA(F) Jack Straight to
Strip/Tin 3/3mm
with 50mm 0.047” semi-rigid cable
Customizable
:
SPE-15-8-019/A/JC Page 1 of 6
1.
Introduction

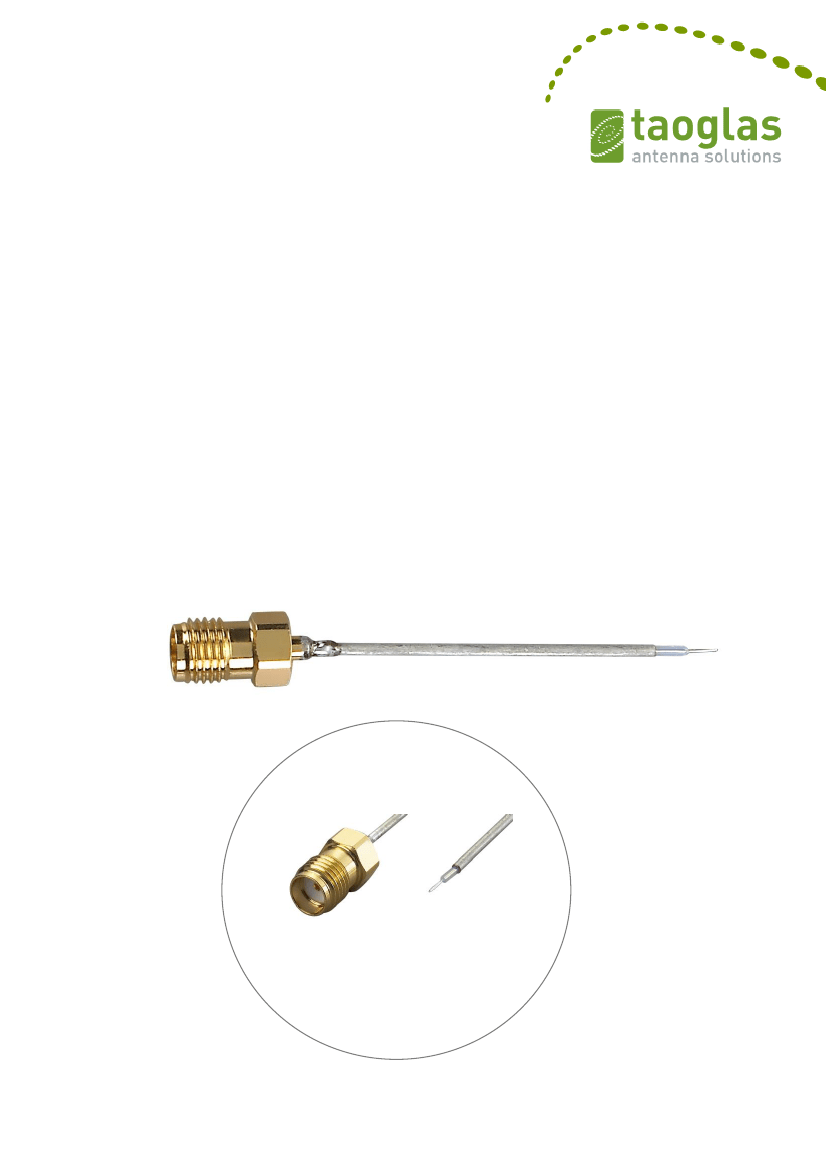

The Taoglas CAB.058 is a 0.047” semi-rigid coax pigtail with SMA connector that is ideal for RF
circuit debug and design verification. The pigtail is 50mm long and comes stripped and tinned
to expose a short length of the inner conductor, thus removing the need to make your own.
The CAB.058 acts as a 50 ohm transmission line to connect your test equipment to your
printed circuit board and has a SMA female connector making it the proper mate for most coax
cables used in design labs, eliminating the need for additional adapters. Semi-rigid coax also
has the best attenuation of all micro-coax types.
In order to make a proper connection to the PCB without causing an impedance mismatch, the
cable jacket needs to be soldered to the PCB ground and the inner conductor gets soldered to
the RF transmission line. The CAB.058 has a smooth, semi-rigid, metallic jacket that makes it
very easy to solder the jacket to the PCB ground.
The thinner 0.047” cable diameter makes it easier to solder onto densely populated circuit
boards. The semi-rigid nature of the cable also allows you to easily bend the pigtail to your
convenience, yet holds its position to prevent toppling over and shorting nearby components.
Taoglas provides customized length and connector variants subject to MOQ. Contact your
regional Taoglas office for details.
SPE-15-8-019/A/JC Page 2 of 6

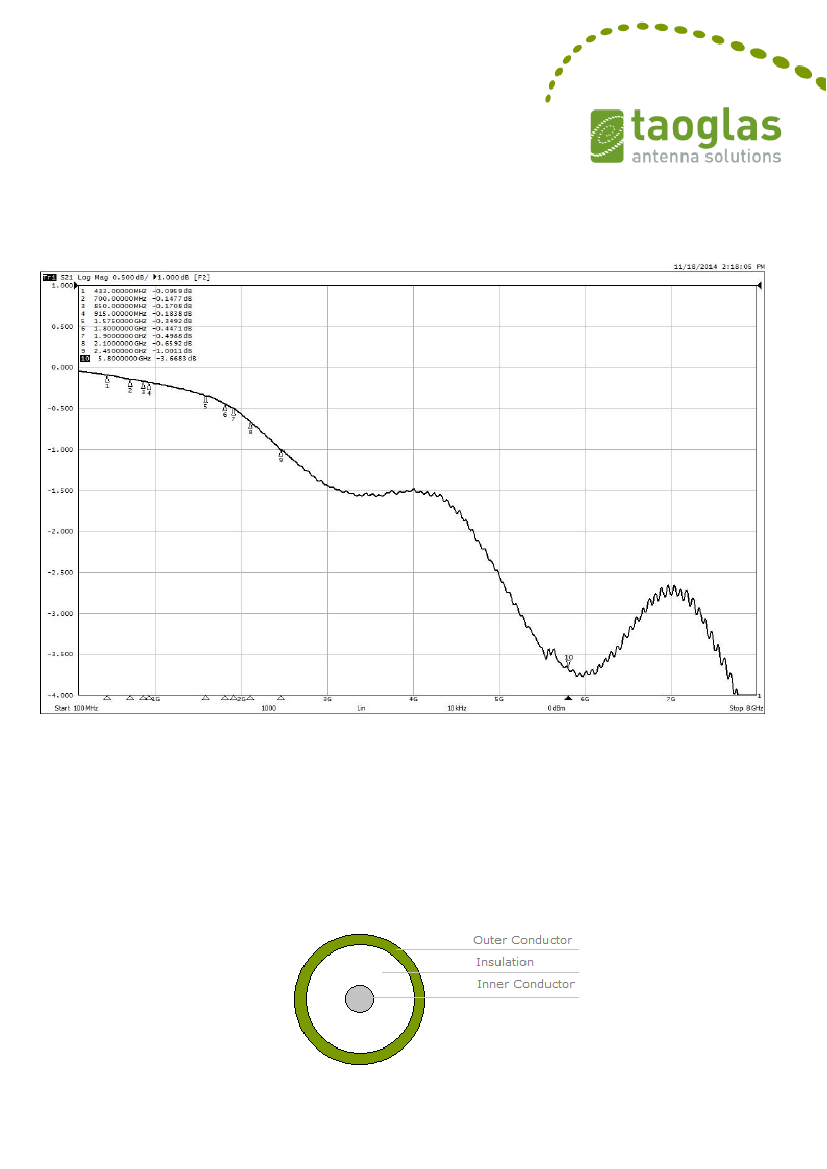

2. Cable Insertion Loss
2.
0.047” Cable Specification
2.1 Drawing – Cross Section
SPE-15-8-019/A/JC Page 3 of 6

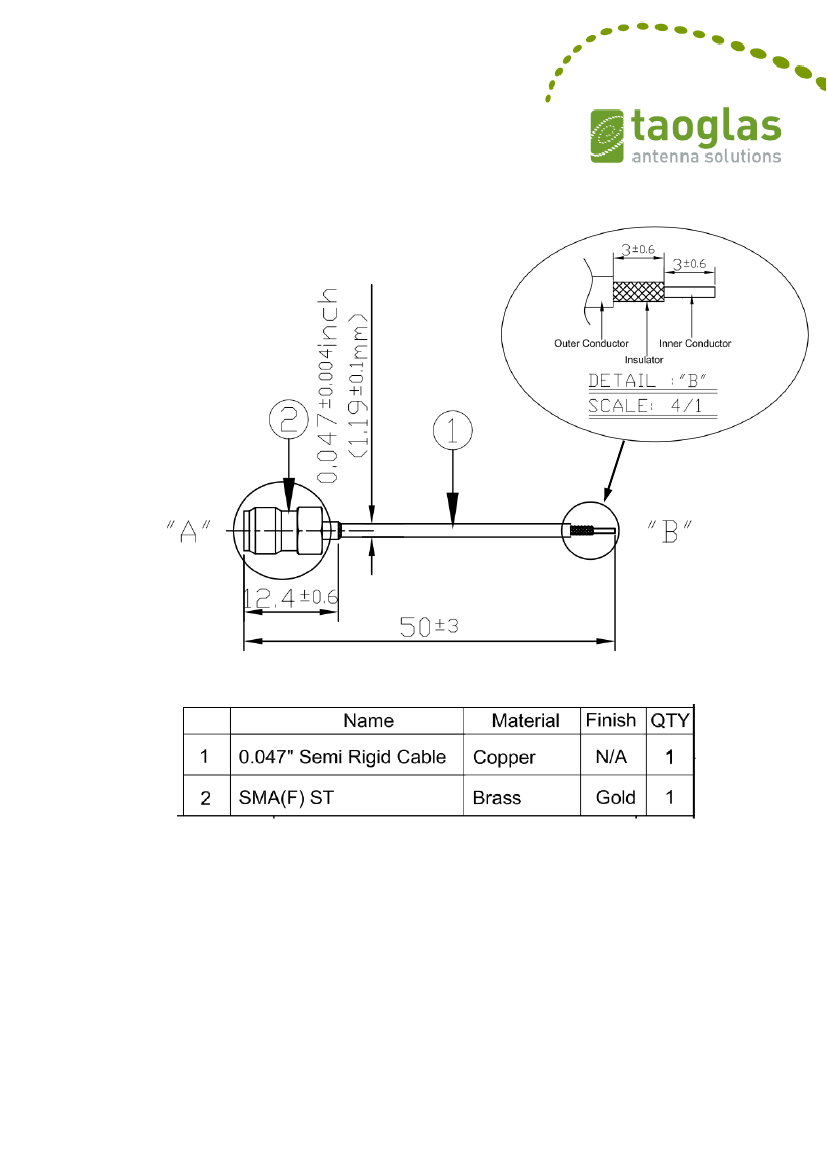

2.2 Structure and Dimensions
2.3
Electrical & Physical Specification
1
2
3
4
5
6
7
8
Operating Temperature:
Max Weight
Safe Bend Radius(proper tooling)
Corona Extinction
Max Operating Frequency
Dielectric Strength
Impedance:
Standard Attenuation:
-50°C to +100°C
4.8 (lbs/1000ft)
.050 inches
Min. 1.0 KVRMS 60 Hz
40GHz
2.0 KVRMS 60 Hz
50
1 Ω
1GHz
10GHz
20GHz
40.0 dB/100ft
32W Avg. Power
130 dB/100ft
9W Avg. Power
190 dB/100ft
6.5W Avg. Power
SPE-15-8-019/A/JC Page 4 of 6
