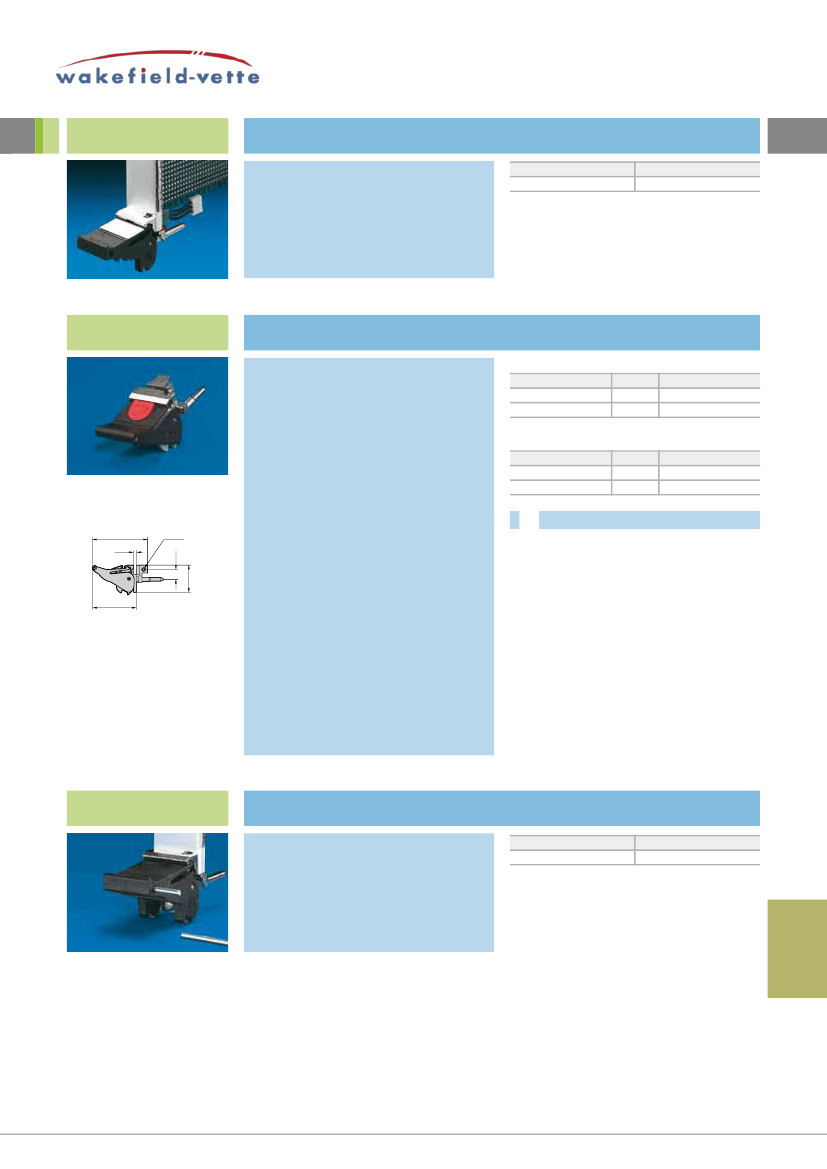

COMPONENTS / ACCESSORIES
Front panels, HanDles
identification strips
For type i, ii extractor handle and
type iv injector/extractor handle
Width 4 HP
Packs of
100
order no.
3684.328
injector/extractor handle type ivs
With push-button
For inserting and removing connectors with a
large number of pins. A metal insert ensures
reliable functioning, even at forces of up to 815 N.
•
Insertion/removal function
•
Push-button for locking and unlocking the
board type plug-in unit (cannot be extracted in
the locked position)
Optionally with ½ HP offset PCB attachment,
•
e. g. for component mounting on both sides
•
Optional integral micro-switch for “live insertion”
applications
•
ESD pin to dissipate static charges before
contacting the connectors and for precise
positioning of the board type plug-in unit
Keyable
•
•
Integral PCB attachment
•
Bayable
material:
Plastic/metal
supply includes:
Assembly parts.
note:
•
Insertion only when used with front horizontal
rails, with 10 mm extension (B, B1, B2),
see page 109-110
•
With 3 U front panels, only one extractor handle
is required.
Handles without offset
Installation
top
bottom
Handles with ½ Hp offset
Installation
top
bottom
Packs of
1
1
order no.
3688.772
3688.773
Packs of
1
1
order no.
3688.770
3688.771
+
accessories:
47.5
M2.5
8.5
2.6
38
Keys,
see page 124
Keyable guide rails,
see page 120
Keyable guide rails with 1/2 HP offset,
see page 121
Micro-switches,
see page 141
Connector pin for baying,
see page 139
23.6
connection pin
For injector/extractor handles,
types iv, ivs and vii
The connection pin can be used to connect
injector/extractor handles, types IV, IVs and VII.
material:
Steel
Packs of
20
order no.
3685.319
139
