2-174341-5 datasheet, PDF - EEWORLD Datasheet

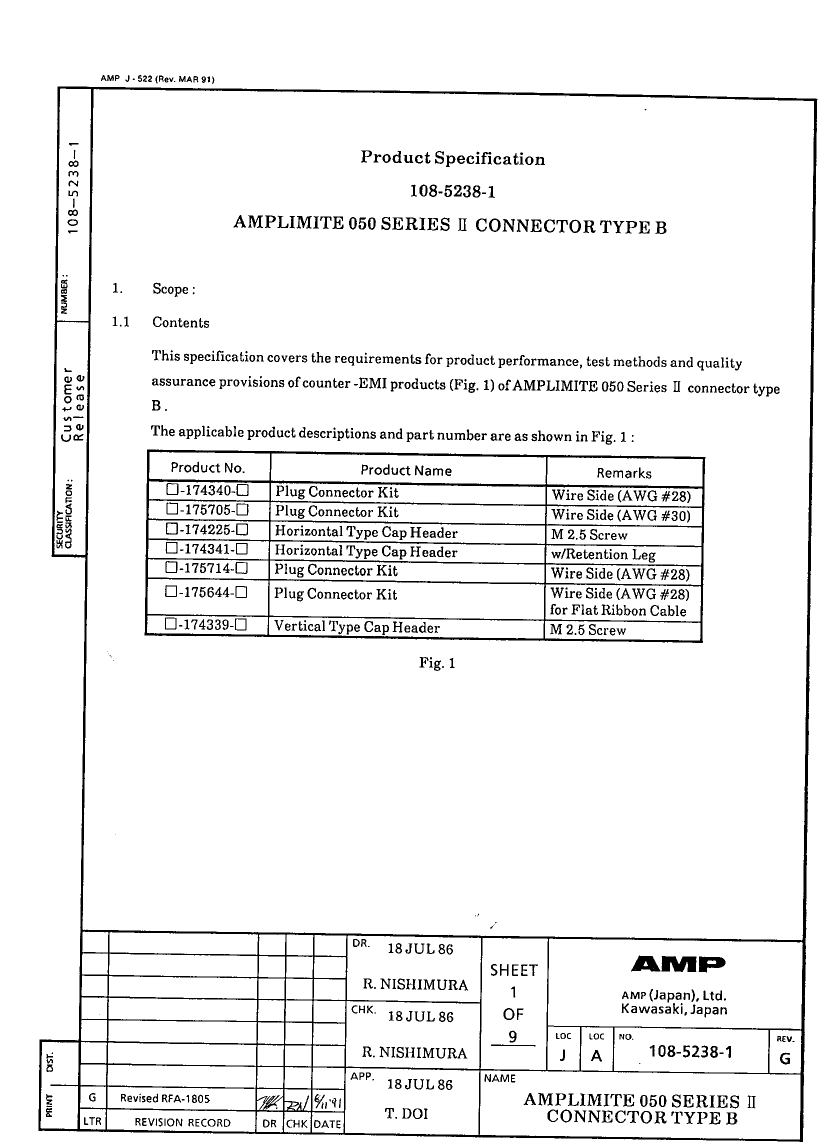

2-174341-5: DescriptionD Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, M2.5x0.45, Plug; CategoryThe connector The connector; File Size218KB，9 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2-174341-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-174341-5	-	-	View	Buy Now

D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, M2.5x0.45, Plug

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	AMPLIMITE
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.406 inch
subject depth	0.465 inch
body length	2.516 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact point gender	MALE

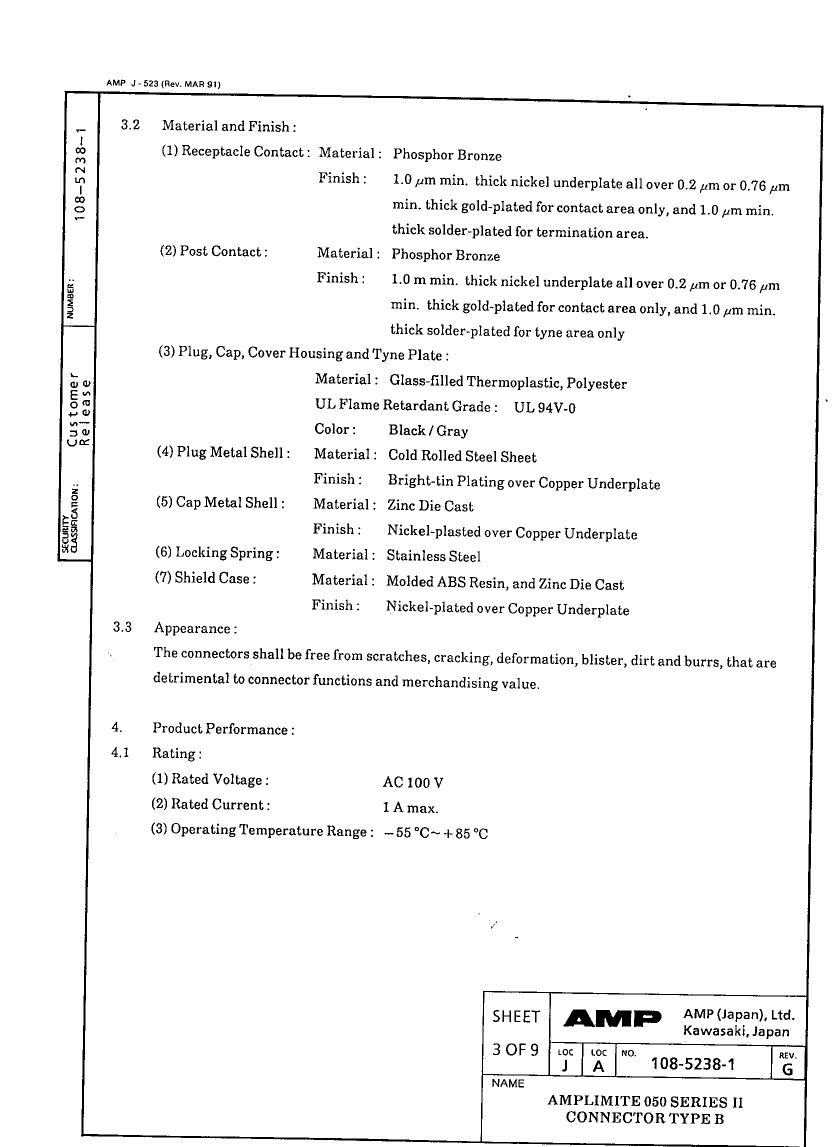

Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR

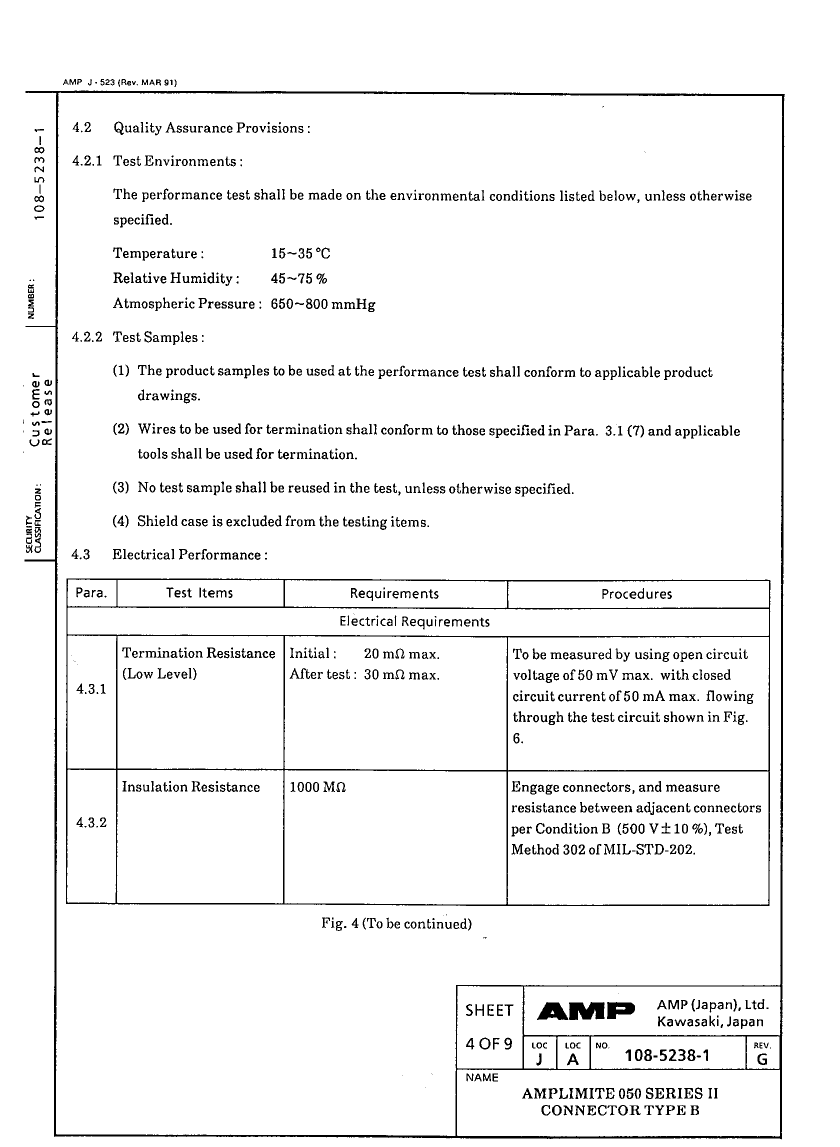

Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO

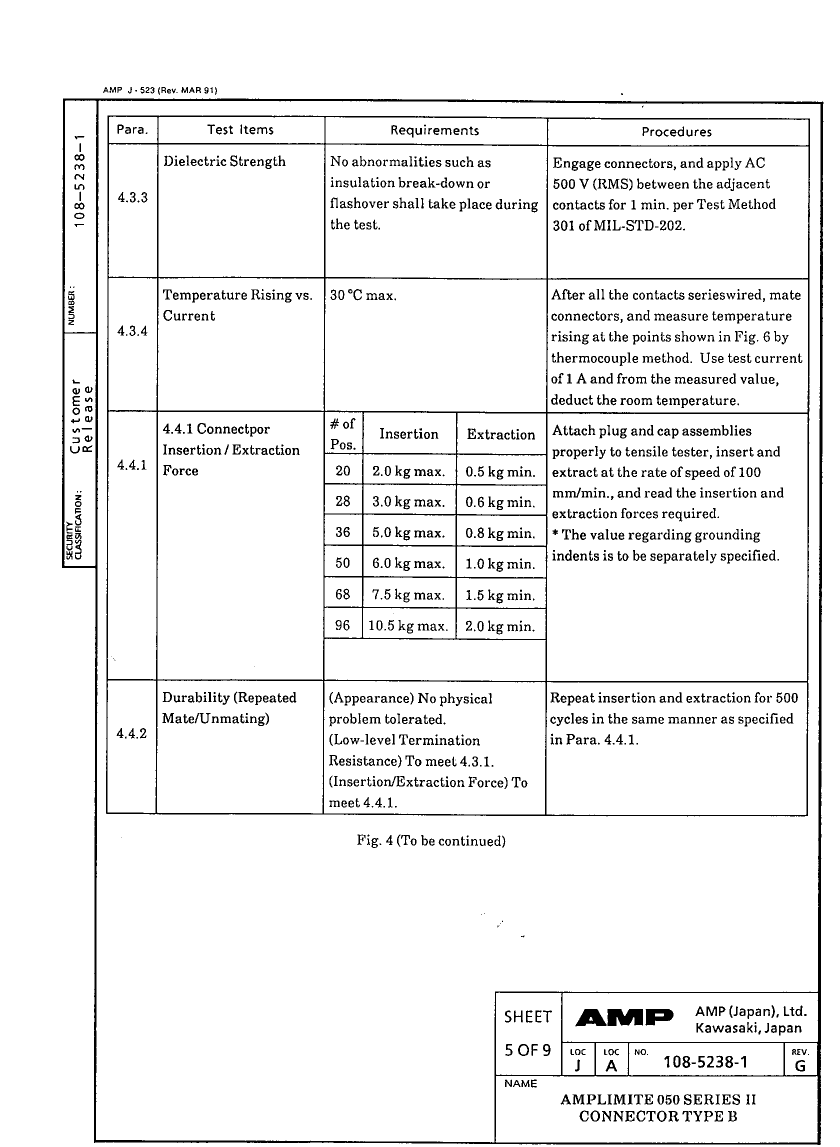

Dielectric withstand voltage	700VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e0
MIL compliance	NO

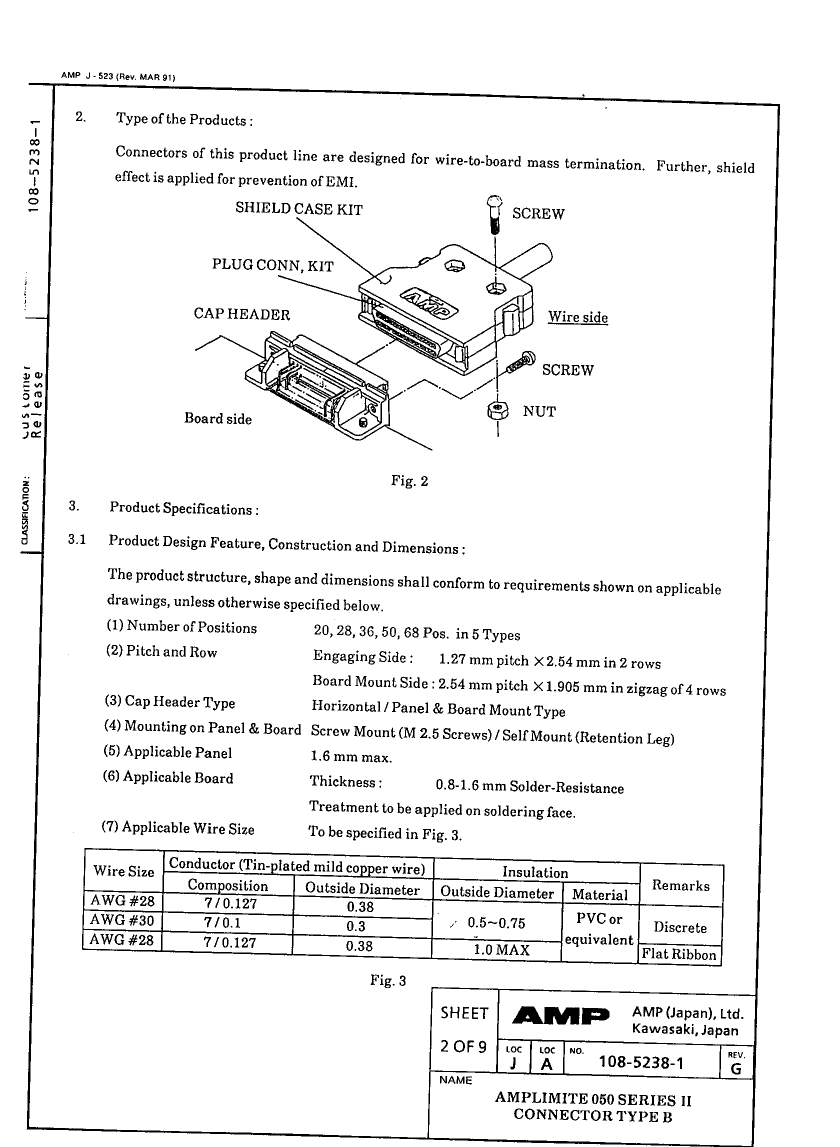

Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M2.5X0.45
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0
Base Number Matches	1
