(2) PLACES
RECOMMENDED
PANEL CUT-OUT
1.19
B
1.18
RJ45 ADAPTER
SEE TABLE
0.083
REF
0.083
REF
RJ45 ADAPTER
SEE TABLE
RJ45 MOUNTING PLATE
RJ45 MOUNTING PLATE
1.22
0.63
1.22
0.64
1.02
0.138 THRU
0.230 X 82°
(2) PLACES REF
1.02
0.138 THRU
0.230 X 82°
(2) PLACES REF
PART NUMBER
EHRJ45P5E
EHRJ45P5ES
EHRJ45P6
EHRJ45P6S
RJ45 ADAPTER
CAT5e UNSHIELDED
CAT5e SHIELDED
CAT6 UNSHIELDED
CAT6 SHIELDED
NOTES:
SHIELDED VERSIONS
EHRJ45P5ES
SHOWN
UNSHIELDED VERSIONS
EHRJ45P6
SHOWN
1. ADAPTER MEETS:
CAT5e: TIA/EIA-568-B.2 STANDARD
CAT6: TIA/EIA-568-B.2-1 STANDARD
2. MATERIALS:
RJ45 MOUNTING PLATE - THERMOPLASTIC, BLACK
RJ45 HOUSING - THERMOPLASTIC, BLACK
RJ45 SHIELD - COPPER ALLOY, NICKEL PLATED
3. FOR SCREWS TO BE SHIPPED WITH ASSEMBLY,
ADD SUFFIX -PKG TO PART NUMBER.
4. WHEN MOUNTING ASSEMBLY, USE A SCREW
TORQUE OF 10 INCH-LBS MAXIMUM.
5. THIS PRODUCT IS RoHS COMPLIANT.
B
A
REV
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
27247
26387
ECO NUMBER
SIZE
FINISH
WIDTH
MULT
LBS/M
MATERIAL
SPEC No.
TEMPER
0.02
0.005
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
SCALE
1.5:1
1/21/14
5/15/09
DATE
JGK
RS
BY
TJK
TJK
APVD
7/7/08
JGK
RS
7/28/09
TJK
10/24/09
PART No.
APVD
SHEET
1
OF
1
REV
REVISIONS
DO NOT SCALE DRAWING
NAME

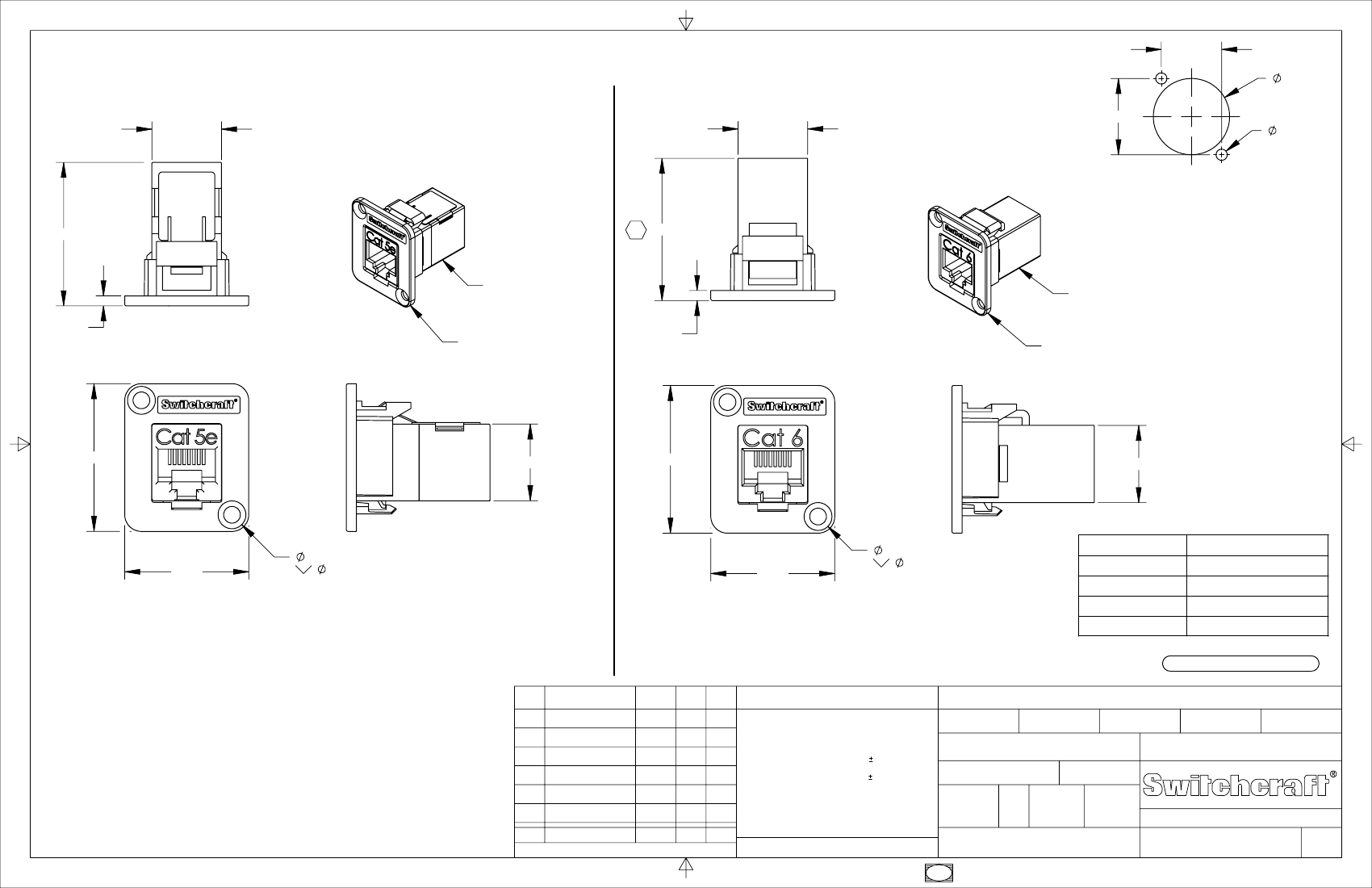

EH SERIES RJ45, RoHS
EHRJ45P SERIES
B
SolidWorks CAD File
B
