Circular connectors for small electronic devices
SR30 Series

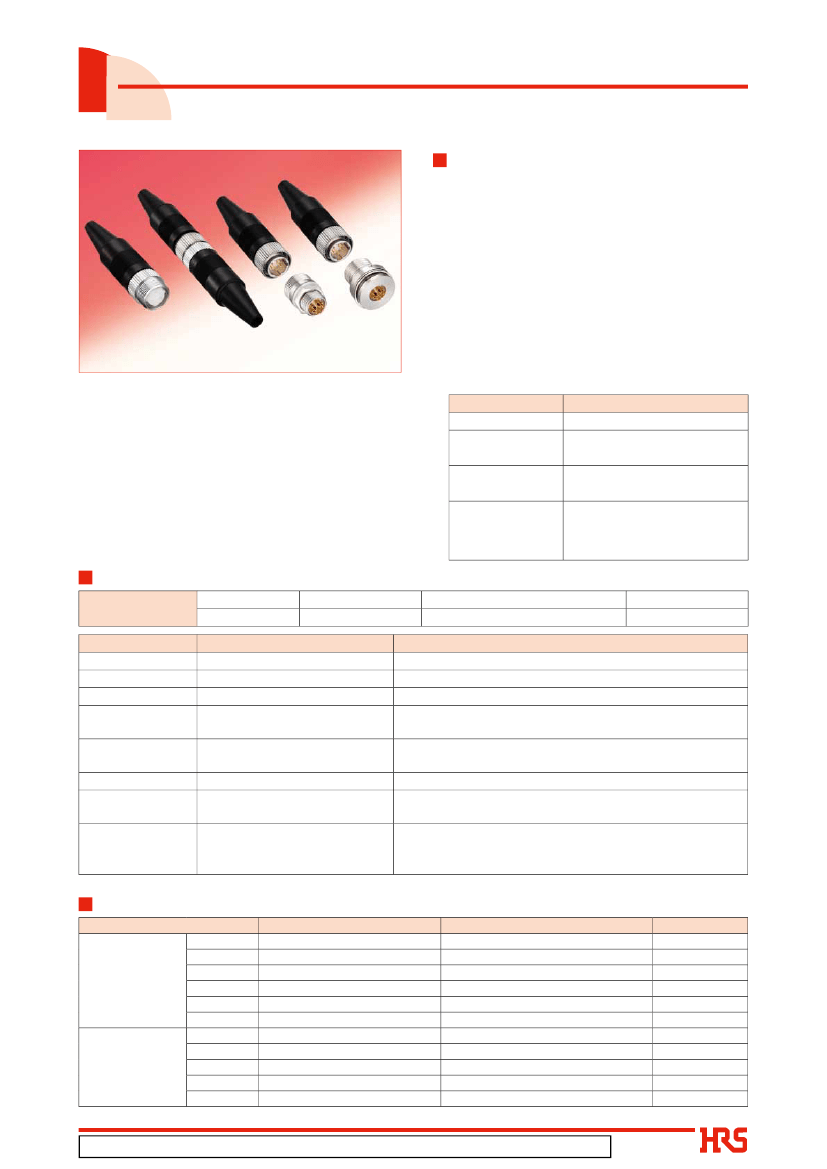

Features
1. Compact and light weight design
Optimally suited for use in small electronic
devices such as radio equipment, the SR30 has
a maximum outer shell diameter of Ø15.
2. Robustness
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
The metal construction provides for a small but
robust connector.
3. Smart design
The flexible strain relief is strong enough to
maintain its shape and resist bending stresses.
4. Variation
Items
No. of Contacts
Connector type
Termination version
Receptacle
mounting method
4 contacts, 6 contacts, 7 contacts
Plug and jack : Straight
Receptacle : Straight
Plug and jack : Soldering
Receptacle : Soldering
Tightened with nuts on either of
the front or back of the panel
(6-contact only)
Product Specifications
Ratings
Items
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Vibration resistance
5. Shock resistance
6. Mating cycle
10mø max
200Mø min
No flashover or dielectric breakdown.
No electrical discontinuity for 10µs
or greater.
No electrical discontinuity for 10µs
or greater.
Contact resistance : 15mø max
Rated current
Rated voltage
1A
100V AC, 140V DC
Operation temperature range
Storage temperature range
Conditions
Measured at 1A DC
Measured at 100V DC
300V AC for 1 minute
10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions,
2 hours each
2
Acceleration : 490m/s , duration : 11ms, 3 axis directions,
3 cycles each
1,000 times
−30°C : 30 minutes
➝
Normal temperature : 10 to 15 minutes
➝
85ç : 30
minutes
➝
Normal Temperature : 10 to 15 minutes, left for 5 cycles
Temperature : 40°C, relative humidity : 90 to 95%, left for 96 hours
−10 to +60ç
−10 to +60ç
Specifications
7. Temperature cycle Insulation resistance : 200Mø min
8. Humidity
resistance
Insulation resistance :
10Mø min (at high humidities)
100Mø min (when dry)
Materials / Finish
Items
Insulator
Contact
Shell
Hood
Clamp
Screw
Insulator
Contact
Shell
Gasket
Nut
Material
Polyacetal resin
Brass or phosphor bronze
Brass or zinc die-cast
Chloroprene rubber
Brass
Steel
Polyacetal resin
Phosphor bronze
Brass
Polyamide resin
Steel
Finish
-----------
Gold plating
Nickel or Chromium plating
-----------
-----------
Nickel plating
-----------
Gold plating
Chromium plating
-----------
Nickel plating
Remarks
-----------
-----------
-----------
-----------
-----------
-----------
-----------
-----------
-----------
-----------
-----------
Plug
Jack
Receptacle
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.8w
1
SR30 Series●Circular connectors for small electronic devices
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Connector
SR30 - 10 W P A - 6 P A (
**
)
❶
❷
❸
❹ ❺
❻ ❼ ½
❾
❶
Model name : SR30 Series
❷
Shell size : Shell size is the outer diameter of the mating end of the plug.
❸
Particularity :
No indication : Standard
W : Waterproof
❹
Shell type
P : Plug
R : Receptacle
J : Jack
❺
Shell variation : Connectors are distinguished by A, B, or C if another variation is applied in the same form.
❻
Number of contacts : Indicates the number of contacts.
❼
Contact form
P : Male contact
S : Female contact
½
Variation of insulator
A : Insulator material : Fluorinated synthetic resin
❾
Other specifications : 2 numerical digits will be added when there is a specification change other than shown in
positions
❶∼½
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●Accessory
SR30 - 10 RC 1 (
**
)
❶
❷
❸
❹
❺
❶
Model name : SR30 Series
❷
Shell size : Shell size is the outer diameter of the mating end of the plug.
❸
Accessory name : RC : Receptacle cap
❹
Form type : A number is added if there are some variations.
❺
Other specifications : 2 numerical digits will be added when there is a specification change other than shown in
positions
❶∼❹
2
SR30 Series●Circular connectors for small electronic devices

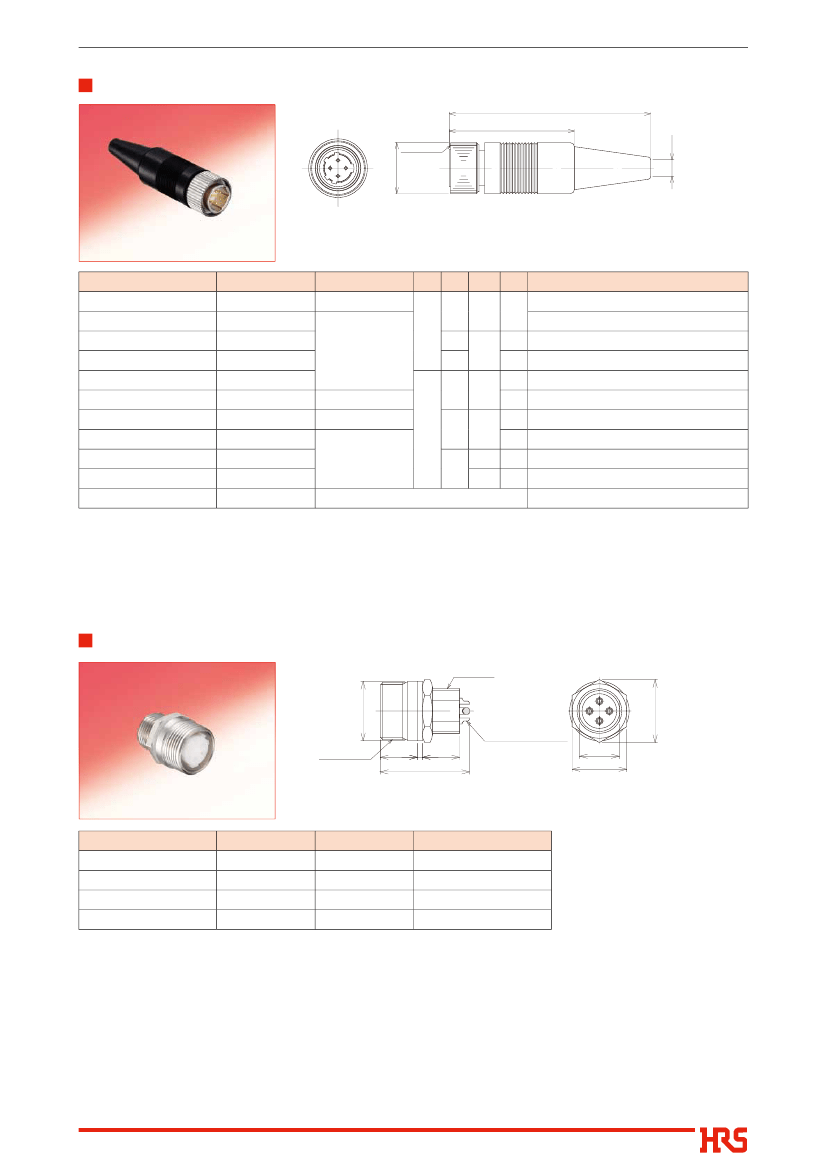

Plug
C
D
M11.5×0.75
ØA
ØB
（Representative example.）
SR30-10PE-6P(74)
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
SR30-10PE-4P(71)
SR30-10PE-6P(74)
SR30-10PG-6P(31)
SR30-10PX-6P(31)
SR30-10PF-6P(71)
SR30-10PF-7P(71)
SR30-10PM-4P(31)
SR30-10PM-6P(31)
SR30-10PQ-6P(71)
SR30-10WP-6PA(71)
SR30-P
HRS No.
103-0265-2 71
103-0258-7 74
103-0273-0 31
103-0336-9 31
103-0319-0 71
103-0316-1 71
103-0341-9 31
103-0288-8 31
103-0313-3 71
103-0350-0 71
103-0266-5
No. of contacts
4
ØA
ØB
C
D
Remarks
-----------
See Note 1
-----------
See Note 1
-----------
Silver plated contacts only
-----------
-----------
Screw attached
Waterproof
-----------
4.3 51.5 32
13
5.2
5.7
49.0
31
----
----
----
----
----
6
7
4
6
15
5.5 55.0
5.7 49.0
4.3
57.5 38
51.5 32
Metal fitting for clamping
Note 1 : When ordering the SR30-10PE-6P or SR30-10PX-6P, order SR30-P cable clamps separately, because such
plugs have no cable clamps.
Note 2 : The inner diameter of solder pot for male contact is Ø0.8.
Note 3 : Cable clamping force, cable rotation force, and other aspects may differ depending on the cable construction.
We recommend that you verify the suitability of the cable assembly before use or production.
Receptacle
（Jam nut to be fastened）
M9×0.75
（12.7）
7.5
1 7.5
18
Ø0.9
（Inner
diameter of solder pot）
8
11
Ø12.0
M11.5×0.75
（Representative example.）
SR30-10R-6S(71)
Part No.
SR30-10R-4S(71)
SR30-10R-6S(71)
SR30-10R-7S(71)
SR30-10WR-6SA(71)
HRS No.
103-0264-0 71
103-0239-2 71
103-0317-4 71
103-0349-0 71
No. of contacts
4
6
7
6
Remarks
-----------
-----------
Silver plated contacts
Waterproof
(Remarks) The mounting panel thickness should be 5mm or less.
Note 1 : Some dimensions on the waterproof types differ from those given below.
3
SR30 Series●Circular connectors for small electronic devices
Receptacle
(Jam nut to be fastened from front panel)
11.6
M11.5×0.75
M13×1
0.8
14.3
18
Ø0.9
(Inner diameter of solder pot)
SR30-10RD-6S(71)
Part No.
SR30-10RD-6S(71)
HRS No.
103-0302-7 71
(Representative example.)
No. of contacts
6
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(Remarks) The mounting panel thickness should be 3 mm or less.

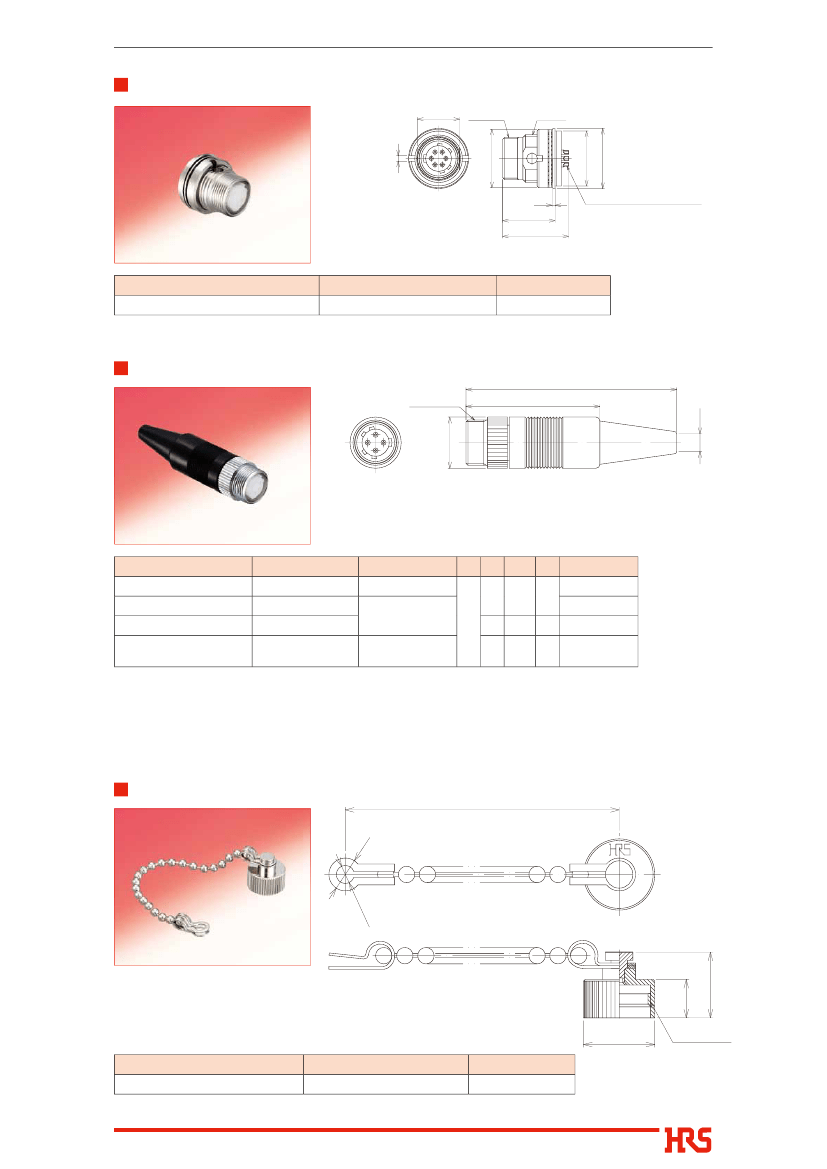

Jack
C
M11.5×0.75
D
ØB
ØA
(Representative example.)
SR30-10JE-6S(72)
Part No.
SR30-10JE-4S(71)
SR30-10JE-6S(72)
SR30-10JM-6S(71)
SR30-10JF-7S(71)
HRS No.
103-0301-4 71
103-0259-0 72
103-0292-5 71
103-0330-2 71
No. of contacts
4
6
7
ØA ØB
C
D
Remarks
-----------
Note 1)
4.3 53.5 34
13 5.7
5.5
51
57
----
-----------
Silver plated
----
contacts
Note 1 : When ordering the SR30-10JE-6S receptacles, order SR30-P (103-0266-5) cable clamps separately,
because they have no cable clamps.
Note 2 : The inner diameter of solder pot for male contact is Ø0.9.
Note 3 : Cable clamping force, cable rotation force, and other aspects may differ depending on the cable
construction. We recommend that you verify the suitability of the cable assembly before use or production.
Cap
100
SR30-10RC1(71)
12
Ø13
M11.5×0.75
Ø6
Ø16.4
Ø16
Ø15
1.5
Part No.
SR30-10RC1(71)
HRS No.
103-0344-7 71
Remarks
-----------
7
Ø3.
3
4
SR30 Series●Circular connectors for small electronic devices

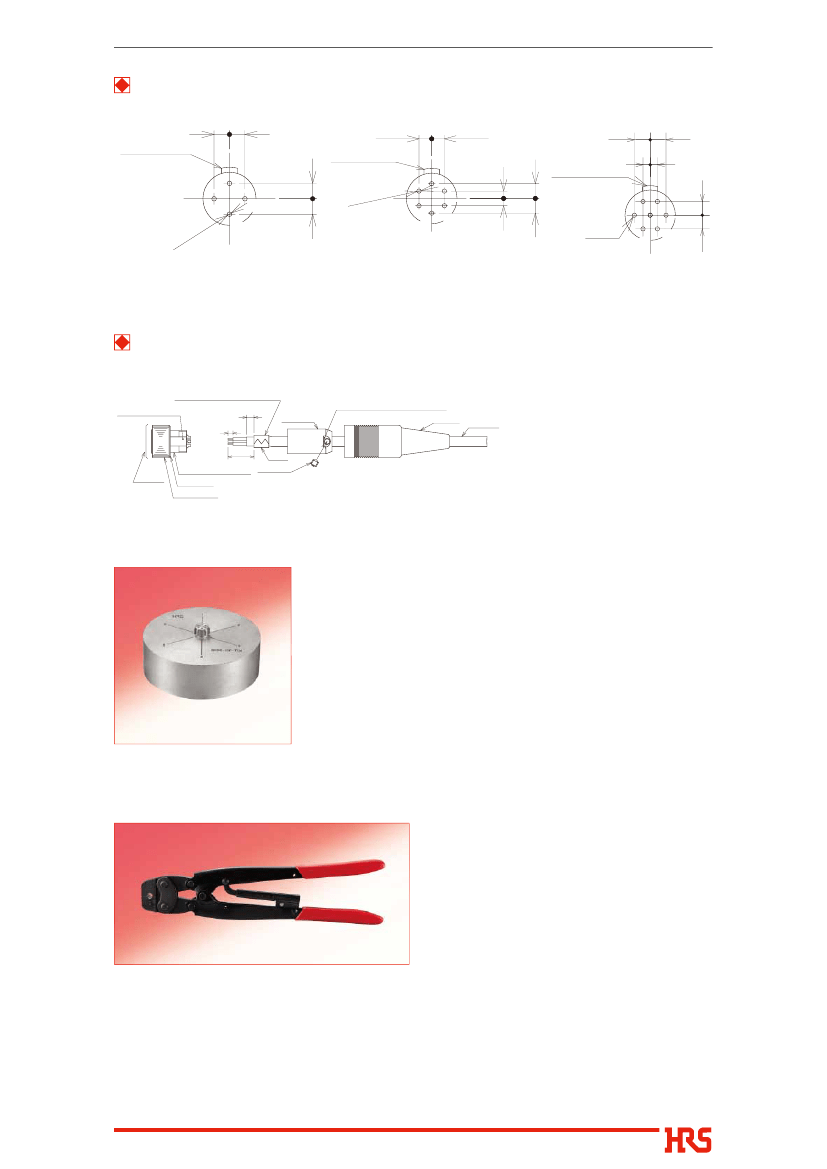

Dip post arrangement sizes for receptacles
2 4 contacts 2
Main mating guide
2
1.73
Main mating guide
6
6 contacts
1.73
2
2.2
7 contacts
1
Main mating guide
6
5
4
3
5
1
7-Ø0.6
2
4
7
3
1
2
1.9
1.9
1
2.2
1
2
1
6-Ø0.6
4
0.6
-Ø
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(Remarks) 1. Figures are views from the mating side of the receptacle.
2. A machining tolerance of ±0.05mm is recommended for the PCB layout dimensions.
Reference termination procedure (plug and jack sides)
Metal fitting for clamping
1. Please use the cables with a finished outer
Metal fitting for Wrench application point
3 or more
Wrench gap: 8mm
tightening
Wrench gap: 9mm
Hood Cable
diameter of between Ø4.2 and 4.8 and the
Approximately 2
Boss
Set screw
P shell or J shell
Washer
Coupling
10.5
2
○
Assembly procedure
Block
For details on usage, please contact our Engineering Dept. or Sales
Dept.
150-0004-6 SR30-10P-T04
Jig for termination
Crimping Tool
(for use with cable diameters between
Ø
4.2mm and 4.8mm)
nominal conductor cross section of 0.3mm
2
.
2. Pass the cable through the hood and
metal fitting for tightening in order. Cut
the cable end at an approximate length
as shown in the figure on the left.
3. Insert the block into the jig for termination
and terminate the cable by soldering.
4. Crimp the cable onto the metal fitting for
clamping (SR30-P) several times with
using the crimping tool (SR30-10PE-T),
in such a way that the outer diameter
becomes approximately Ø5.2.
5. After termination, tighten the metal
fitting for tightening into the threaded
section on the block (P shell, J shell) to
a torque of approximately 2 N•m (20
kg•cm), using a single-acting torque
wrench. When performing tightening on
the jack side, be sure to fix the wrench
application point on the J shell.
6. Secure the metal fitting for clamping by
tightening a set screw on either side of
the two bosses on the metal fitting for
clamping to a torque of approximately
0.1 N•m (1 kg•cm) in such a way that the
tip of the set screw slightly sinks.
7. Place the hood over the metal fitting for
tightening. The procedure has been
completed. Please be sure to apply a
small amount of thread adhesive to
prevent loosening.
150-0001-8
SR30-10PE-T
(handle shape is shown as an example.)
5
