0733000020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0733000020

0733000020: DescriptionCONN SMPM PLUG STR 50OHM EDGEMNT; CategoryThe connector; File Size731KB，5 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0733000020 Overview

CONN SMPM PLUG STR 50OHM EDGEMNT

0733000020 Parametric

Parameter Name	Attribute value
Connector style	SMPM
Connector type	Plug, male pin
Contact termination	welding
Protective termination	welding
impedance	50 ohms
Installation type	Board edge, cutout; surface mount
Installation features	-
cable set	-
Fastening type	snap-in
Number of ports	1
characteristic	All-round locking pin
Shell color	gold
Intrusion protection	-
include	-
Matrix material	brass
substrate surface	gold
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-
center contact material	copper beryllium
Number of patches	-
Insertion loss	-

Preview

Download Datasheet

View All

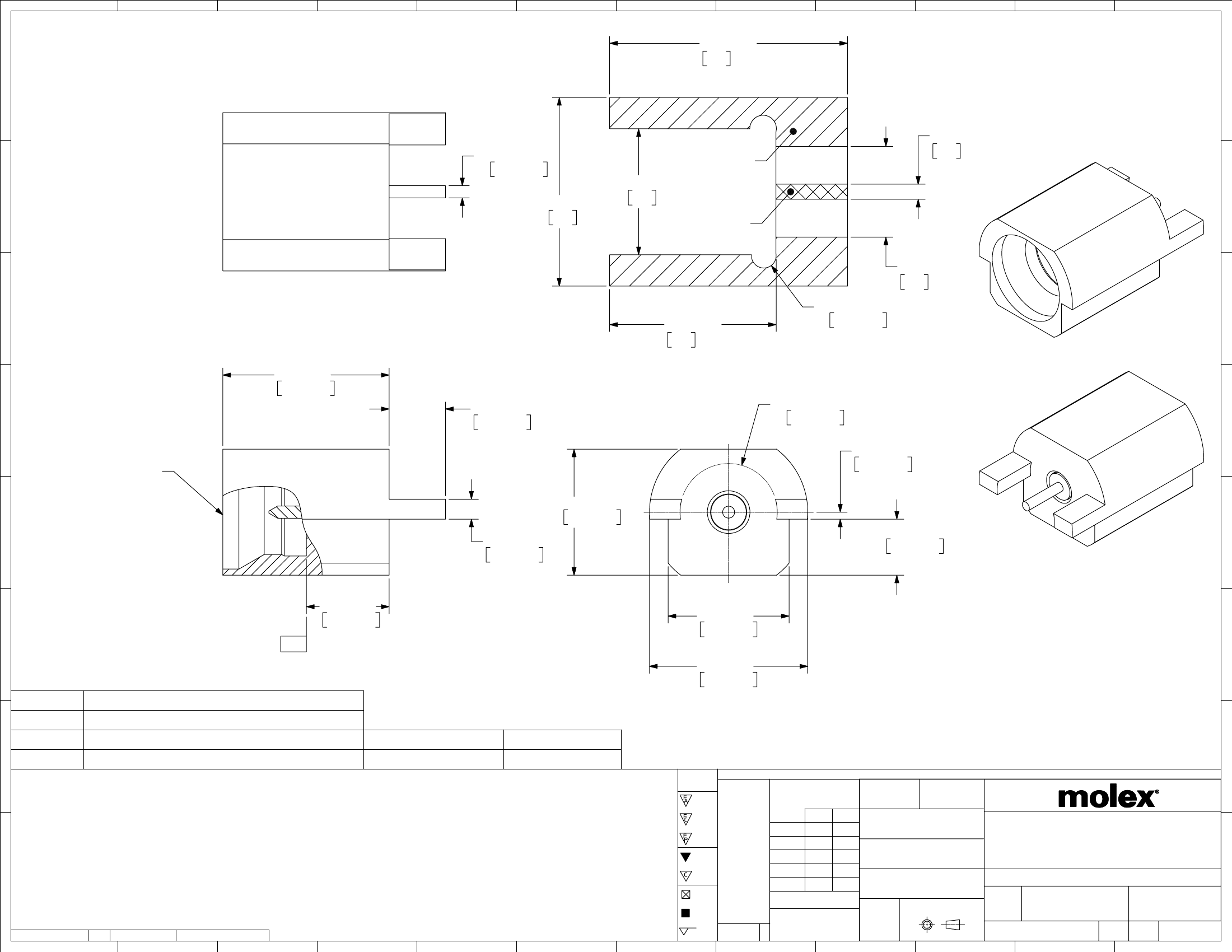

MATERIAL AND FINISH

BODY: BRASS

PLATED GOLD (30µ-in MIN) OVER

NICKEL (100µ-in MIN)

CONTACT: BERYLLIUM COPPER

PLATED GOLD (30µ-in MIN) OVER

NICKEL (100µ-in MIN)

INSULATOR: PTFE

.236

MIN

5.99

3 PLACES

⌀

.012

.002

0.30

0.05

.187

MIN

4.75

GROUND

.015

MIN

0.38

.125

MIN

3.18

TRACE

.090

MAX

2.29

.165

MIN

4.20

.165

.004

4.19

0.10

.012

.002

0.31

0.05

2 PLACES

.056

.004

1.42

0.10

3 PLACES

SMPM PLUG

INTERFACE

(FULL DETENT)

⌀

.096

.004

2.45

0.10

.007

.004

0.18

0.10

2 PLACES

.125

.006

3.18

0.15

.020

.004

0.50

0.10

2 PLACES

.082

.003

2.08

0.08

.056

.004

1.41

0.10

2 PLACES

.120

.004

3.05

0.10

R/P

.157

.006

3.99

0.15

73300-0022

73300-0021

73300-0020

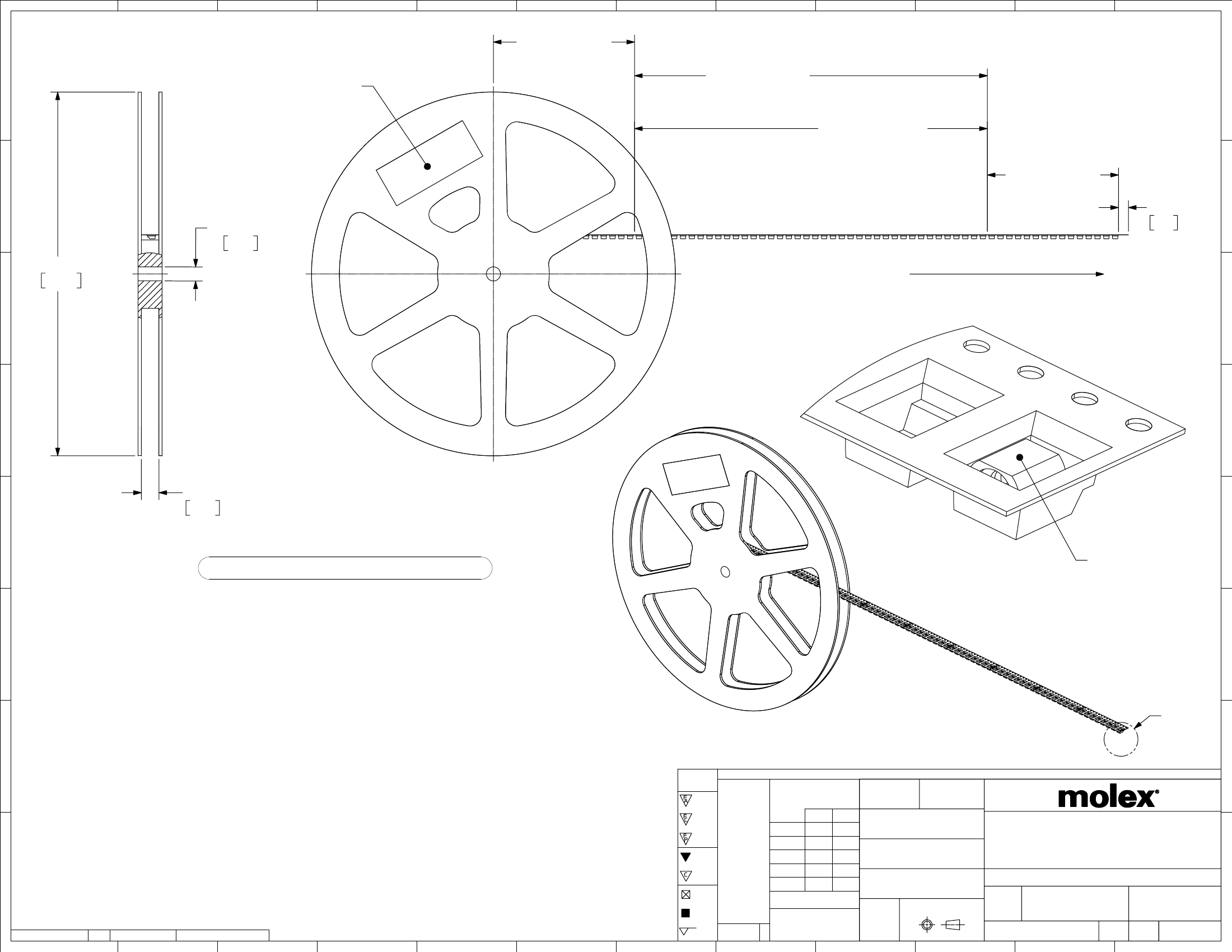

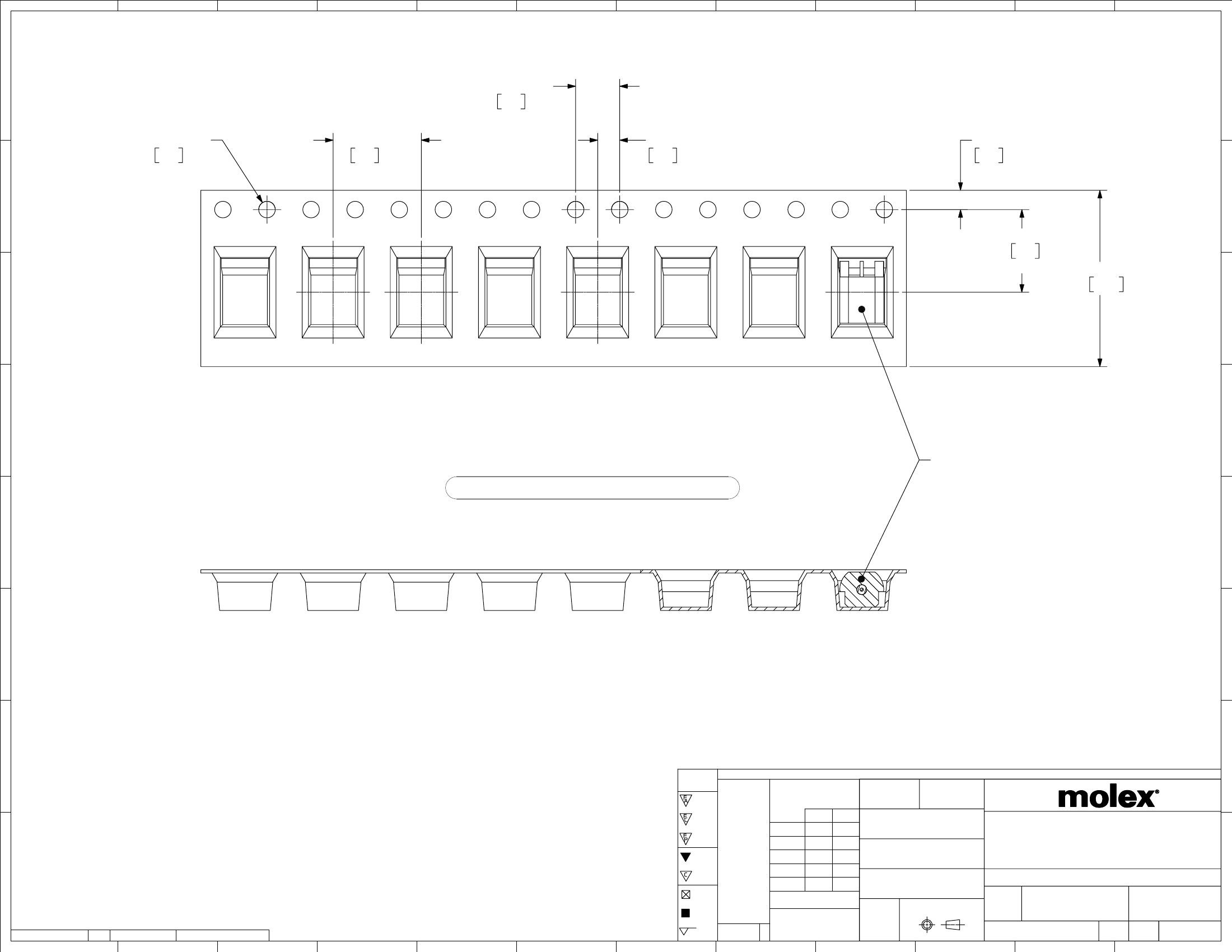

73300-0020 TAPE AND REEL (1000 PCS PER REEL)

73300-0020 TAPE AND REEL (500 PCS PER REEL)

SMPM PLUG FD INTERFACE (TRAY 80 CAVITY)

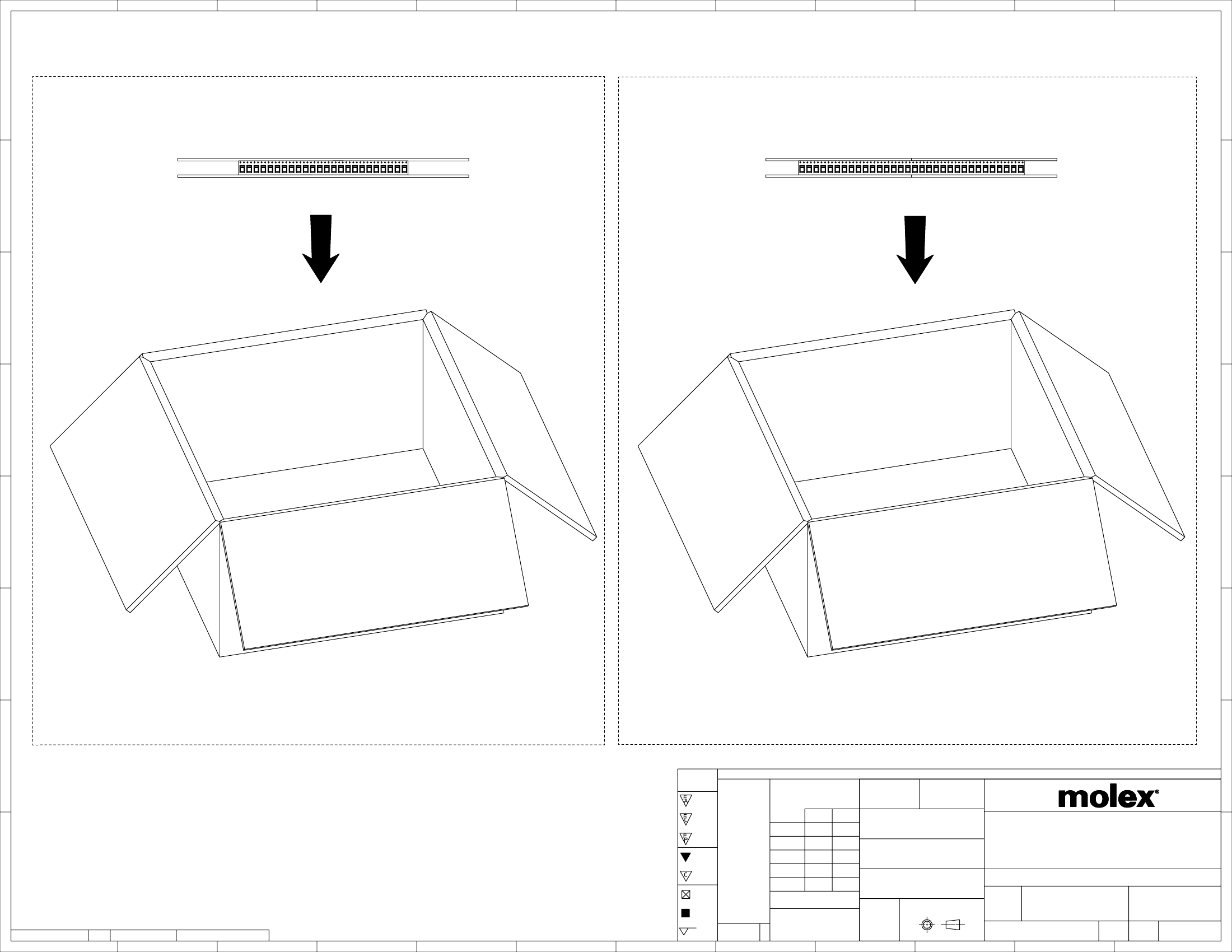

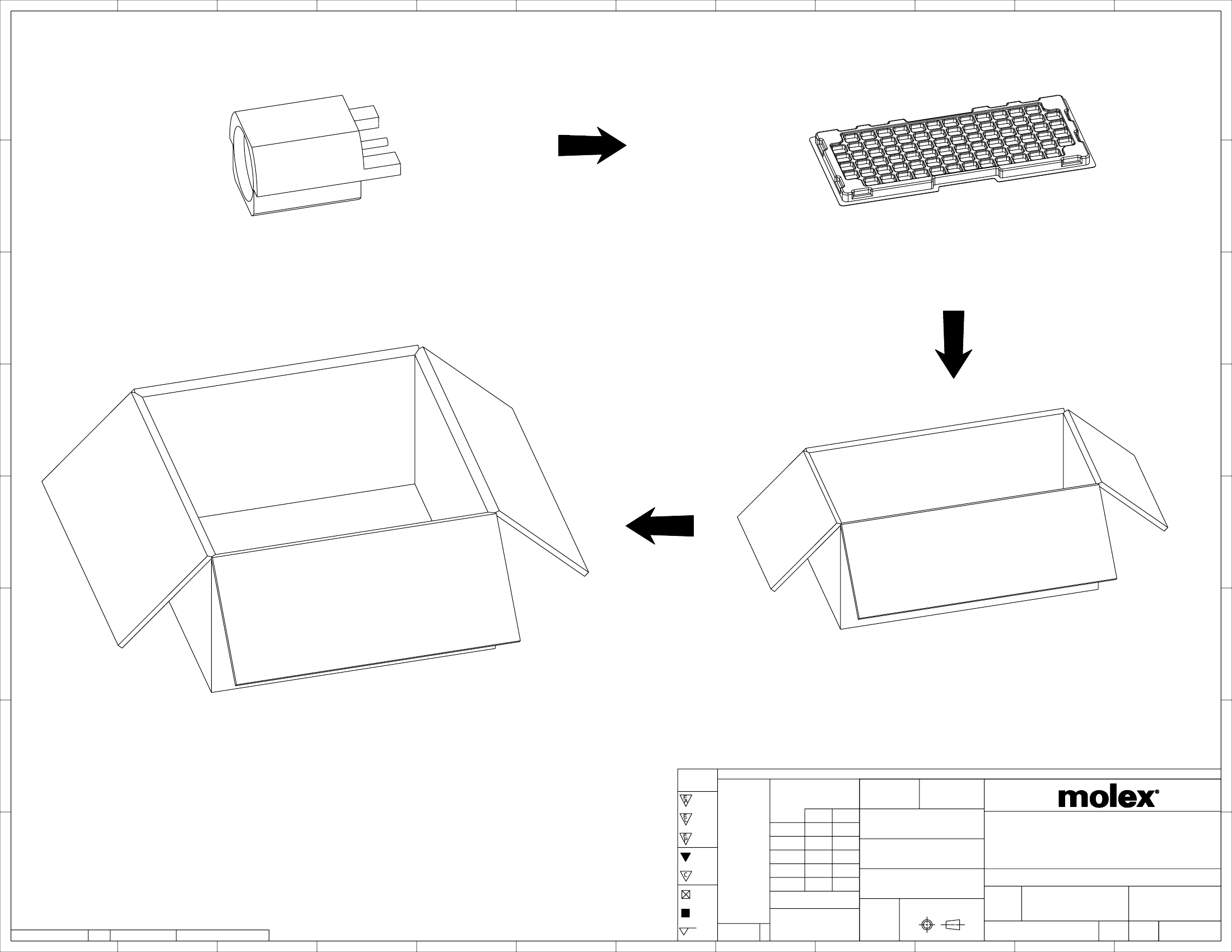

PACKAGING

MIL-STD-348B, FIG. 328-2 INTERFACE

SPECIFICATION

DESCRIPTION

2017/08/15

2017/11/27

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

GENERAL TOLERANCES

(UNLESS SPECIFIED)

PART NO.

INCH

DRWN BY

DATE

NTS

INCH

4 PLACES

MIGRATED

JLEE

CHK'D BY

DATE

2007/09/20

DATE

168078

SHO01

SSSHAH

AROBERTSON

3 PLACES

2 PLACES

1 PLACES

0 PLACES

SSS

APPR BY

SMPM PLUG EDGE MOUNT

50 OHMS, FULL DETENT

SMPM-P/PCB, EWR-11427

PRODUCT CUSTOMER DRAWING

JWIENER

DRAWING SIZE

2007/09/20

THIRD ANGLE PROJECTION

SERIES

MATERIAL NUMBER

CUSTOMER

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

2.0

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

73300

DOCUMENT NUMBER

SEE TABLE

DOC TYPE

DOC PART

SHEET NUMBER

RELEASE STATUS

FORMAT: IN-master-tb-prod-C

REVISION: B

DATE: 2017/02/06

RELEASE DATE

27.11.2017

16:33:40

REV

SD-73300-002

PSD

001

1 OF 5

0733000020 Related Products

	0733000020
Description	CONN SMPM PLUG STR 50OHM EDGEMNT
Connector style	SMPM
Connector type	Plug, male pin
Contact termination	welding
Protective termination	welding
impedance	50 ohms
Installation type	Board edge, cutout; surface mount
Fastening type	snap-in
Number of ports	1
characteristic	All-round locking pin
Shell color	gold
Matrix material	brass
substrate surface	gold
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
center contact material	copper beryllium
