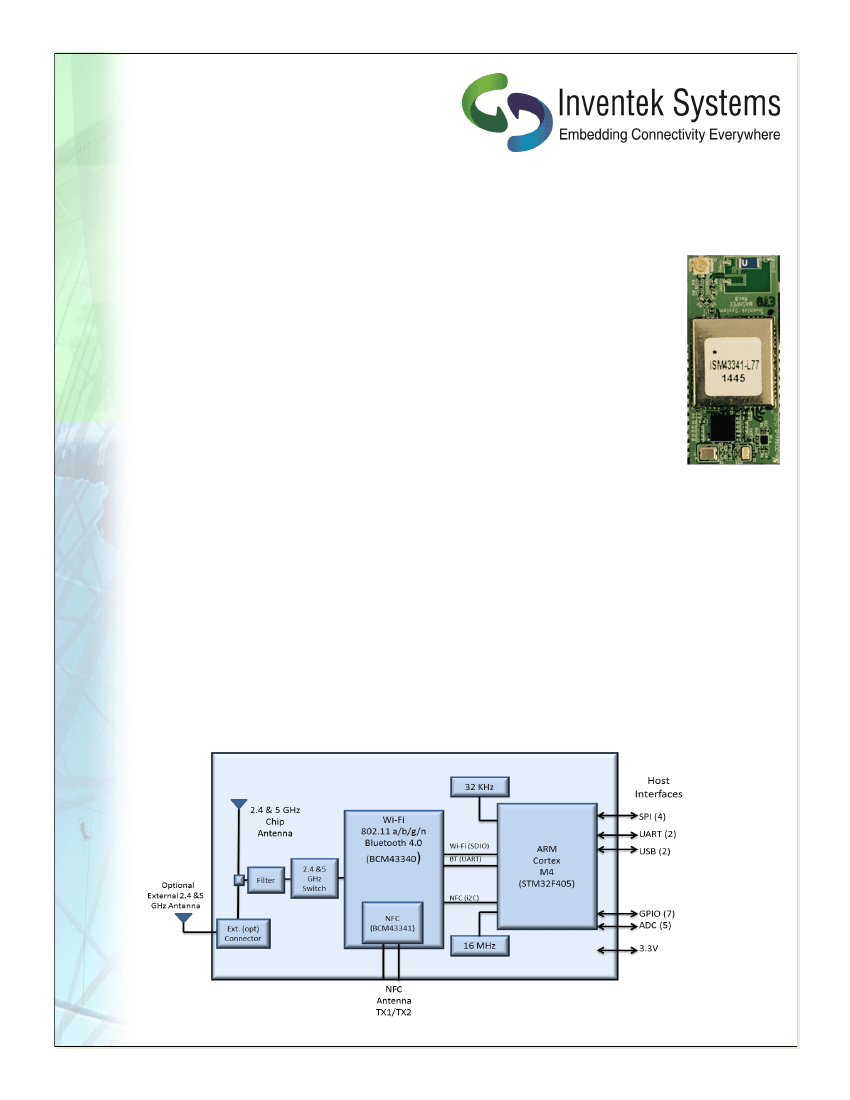

Product Brief
Inventek eS-WiFi Family
Embedding Connectivity Everywhere
Wi-Fi 802.11b/g/n Wireless Combo Module
Dual Band Wi-Fi… Bluetooth… NFC… Small Footprint
The ISM4334X-M4G-L44 is an embedded Serial to Wi-Fi module that operate in
the 2.4 & 5 GHz spectrum. The Wi-Fi modules hardware consists of a ARM M4
host processor with 1 MB flash, Broadcom BCM43340/1 Dual-Band (2.4 GHz / 5
GHz) 802.11 g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0, and NFC
including support for Bluetooth and Wi-Fi co-existence.
The module provides SPI and UART interfaces enabling easy connection to an
embedded design. The Wi-Fi module requires no operating system and has a
complete integrated TCP/IP Stack that only requires a simple AT command set
(IWIN) to establish connectivity for your wireless product minimizing develop-
ment time. The simple AT command, the low-cost, the small foot-print design
(14.70 x 34.22 mm), and the ease of design-in makes it ideal for a wide range of
embedded wireless appli
cations.
Main Features
Soft Access Point for up to 3 clients for
configuration and ad-hoc networks
Host interfaces: UART, SPI up to 25 MHz.
Network features ICMP ( Ping), ARP,
DHCP,TCP, UDP
Low power operation 3.3V
Secure Wi-Fi authentication WEP-128,
WPA-PSK (TKIP), WPA2-PSK
802.11 a/b/g/n Broadcom Radio device
Bluetooth 4.0 & NFC
Fully contained TCP/IP stack
Configurable though simple AT commands
FCC and Ce certified
Www.Inventeksys.com
Embedding Connectivity Everywhere
Product Brief
Inventek eS-WiFi Family
Embedding Connectivity Everywhere
Software Support
The family of eS-WiFi modules provide a simple serial-to-Wi-Fi con-
nectivity to the internet. These modules are ideal for low cost IoT
wireless connectivity and are enabled with the (IWIN) AT command
set with support for cloud connectivity as well as the Broadcom
Wireless Internet connectivity (WICED) SDK
.
Network Standard
RF Frequency
Data Rates
Modulation Techniques
Wireless Security
Host Interfaces
Network Protocols
WLAN Functions
Configuration
Supply Voltage
Package
Operating Temperature
Certifications
IEEE 802.11b/g/n
2.4 & 5 GHz ( Wi-Fi & BLE & Bluetooth 4.0) , 13.56 Mhz NFC
802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
802.11b: CCK, DQPSK, DBPSK
WEP (64/128-bit),WPA™ (PSK, TKIP) / WPA2™ (AES, CCMP,
802.1x Authentication)
SPI, UART, USB ( HID and VCP)
TCP, UDP, IPv4, ARP, ICMP, DHCP Client
Power save modes, automatic roaming, auto-rate
Ad-hoc and Infrastructure modes
AT commands 3.1.2 or WICED SDK 3.1.2 or later
3.3V ± 5%
44-pin LGA 0r 54-pin LGA 14.70 mm x 34.22 mm
-35°C to +80°C
FCC and CE
Ordering Information
ISM434X-M4G-L44-XXXX
Near Field Communications
0= NFC not included
1= NFC included
Apple Homekit
Blank—Not Included
H= Apple Homekit (License Required)
Additional GPIO’s:
Blank = No addition GPIO’s
10= Additional GPIO’s
Additional Flash Memory (2 MB)
Blank = Not Included
F= Flash Included
Antenna:
C= Dual Band (2.4/5 GHz) Chip Antenna
U= U.FL Connector for External Antenna
Contact
Inventek Systems
2 Republic Road
Billerica Ma 01862
978-667-1962
E-mail
Sales@Inventeksys.com
Engineering@Inventeksys.com
www.Inventeksys.com
