PA441/PA443
High Voltage Power Operational Amplifier
FEATURES
•
•
•
•
•
•
•
RoHS Compliant
Monolithic MOS Technology
Low Cost
High Voltage Operation: 350V
Low Quiescent Current: TYP = 2.2mA
No Second Breakdown
High Output Current: 120mA Peak
COMPLIANT
RoHS
APPLICATIONS
•
•
•
•
•
Piezo Electric Positioning
Electrostatic Transducer and Deflection
Deformable Mirror Focusing
Biochemistry Stimulators
Computer to Vacuum Tube Interface
DESCRIPTION
The PA441 is a high voltage monolithic MOSFET operational amplifier with improved noise and band‐
width performance compared to similar previous products.
Features previously found only in hybrid designs are offered in this monolithic package, with improved
reliability. Inputs are protected from excessive common mode and differential mode voltages. The safe oper‐
ating area (SOA) has no second breakdown limitation and can be observed with all type loads by choosing an
appropriate current limiting resistor. External compensation provides the user flexibility in choosing optimum
gain and bandwidth for the application.

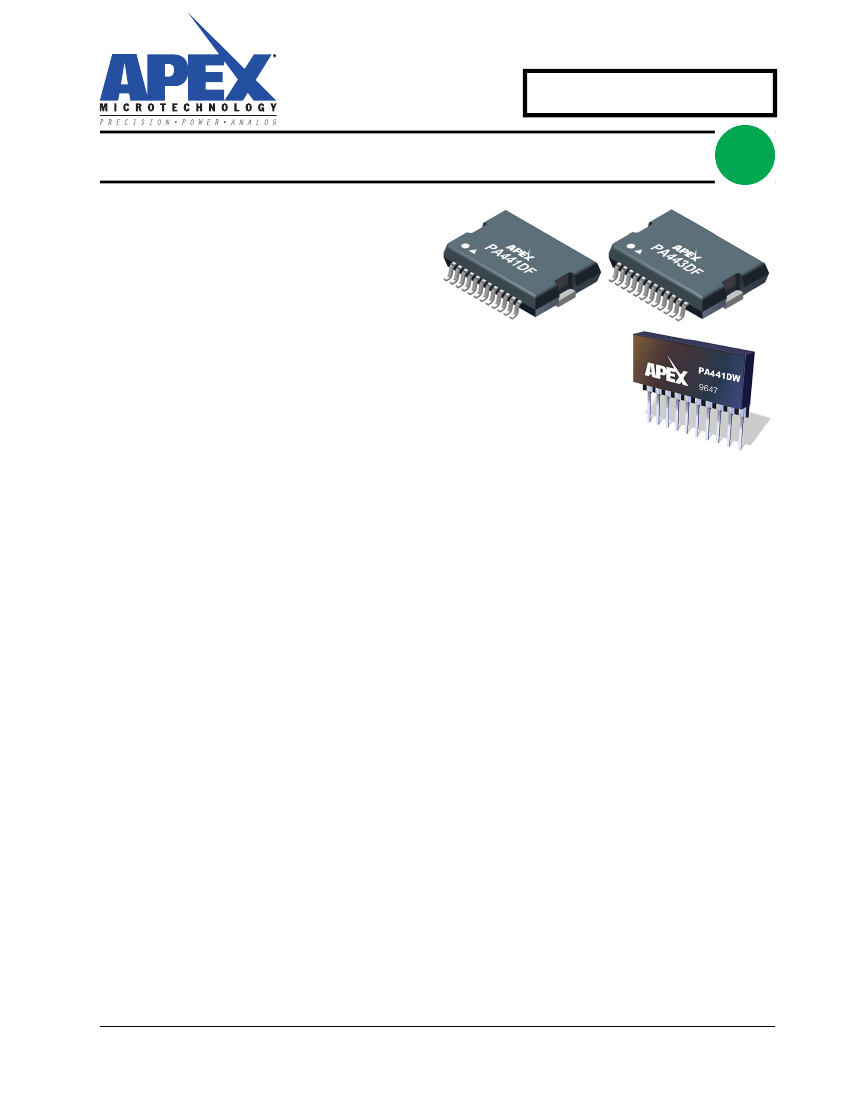

• The PA441DF is packaged in a 24‐pin PSOP (JEDEC MO‐166) package. The metal heat slug of the PA441DF
is isolated in excess of full supply voltage.
• The PA441DW is packaged in Apex Microtechnology's hermetic ceramic PIP. The alumina ceramic isolates
the die in excess of full supply voltage.
• The PA443DF has two PA441 dies packaged in a 24 pin PSOP (JEDEC MO‐166)package. The heatslug of the
PA443DF package is isolated in excess of full supply voltage
www.apexanalog.com
© Apex Microtechnology Inc.
All rights reserved
Mar 2018
PA441/PA443U Rev E
PA441/PA443
TYPICAL CONNECTION
Figure 1: Typical Connection
PINOUT AND DESCRIPTION TABLE
Figure 2: External Connections
1
NC
2 NC
3 NC
4 NC
24
NC
23
NC
22
NC
OUT 21
NC 20
19
C
C2
18
NC
17
C
C1
16
NC
CL 15
14
NC
+V
S
13
1
+V
S
_A
2
NC
3 CL_A
4
C
C1
_A
5 C _A
C2
6 OUT_A
7 NC
8 -IN_B
9 +IN_B
10 NC
11 NC
12 -V _B
S
24
-V
S
_A
23
NC
22
NC
+IN_A 21
-IN_A 20
19
NC
OUT_B 18
C _B 17
C
C1
_B 16
15
CL_B
14
NC
+V
S
_B 13
C2
5 -IN
6 NC
7 +IN
8
NC
9
NC
10 NC
11 NC
12 -V
S
1
2
3
4
5
6
7
8
9
10
-IN
+IN
NC
NC
-V
S
+V
S
CL
C
C2
C
C1
OUT
PA441DF
PA441DW
PA443DF
Notes: a)
For C
C
values, see graph on page 9.
b)
C
C
must be rated for full supply voltage.
2
PA441/PA443U Rev E
PA441/PA443
PA441DF
Pin Number
5
7
12
13
15
17, 19
21
All Others
Name
‐IN
+IN
‐Vs
+Vs
CL
CC
OUT
NC
Description
The inverting input.
The non‐inverting input.
The negative supply rail.
The positive supply rail.
Connect to the current limit resistor. Output current flows into/out of this pin
through R
CL
. The output pin and the load are connected to the other side of R
CL
.
Compensation capacitor connection. Select value based on Phase Compensation.
See applicable section.
The output. Connect this pin to load and to the feedback resistors.
No connection.
PA441DW
Pin Number
1
2
3, 4
5
6
7
8, 9
10
Name
‐IN
+IN
NC
‐Vs
+Vs
CL
CC
OUT
Description
The inverting input.
The non‐inverting input.
No connection.
The negative supply rail.
The positive supply rail.
Connect to the current limit resistor. Output current flows into/out of this pin
through R
CL
. The output pin and the load are connected to the other side of R
CL
.
Compensation capacitor connection. Select value based on Phase Compensation.
See applicable section.
The output. Connect this pin to load and to the feedback resistors.
PA441/PA443U Rev E
3
PA441/PA443
PA443DF
Pin Number
1
3
4, 5
6
8
9
12
13
15
16, 17
18
20
21
24
All Others
Name
+Vs_A
CL_A
CC_A
OUT_A
‐IN_B
+IN_B
‐Vs_B
+Vs_B
CL_B
CC_B
OUT_B
‐IN_A
+IN_A
‐Vs_A
NC
Description
The positive supply rail for channel A.
Connect to the current limit resistor. Output current flows into/out of this pin
through R
CL
. The output pin and the load are connected to the other side of R
CL
.
Compensation capacitor connection for channel A. Select value based on Phase
Compensation. See applicable section.
The output for channel A. Connect this pin to load and to the feedback resistors.
The inverting input for channel B.
The non‐inverting input for channel B.
The negative supply rail for channel B.
The positive supply rail for channel B.
Connect to the current limit resistor. Output current flows into/out of this pin
through R
CL
. The output pin and the load are connected to the other side of R
CL
.
Compensation capacitor connection for channel B. Select value based on Phase
Compensation. See applicable section.
The output for channel B. Connect this pin to load and to the feedback resistors.
The inverting input for channel A.
The non‐inverting input for channel A.
The negative supply rail for channel A.
No connection.
4
PA441/PA443U Rev E
PA441/PA443
SPECIFICATIONS
Unless otherwise noted T
C
= 25°C, C
C
= 6.8pF. DC input specifications are ± value given. Power supply voltage
is typical rating. Specifications separated by / indicate values for the PA441DF, PA441DW and PA443DF
respectively. (ex. PA441DF/PA441DW/PA443DF)
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply Voltage, total
Output Current, continuous within SOA
Output Current, peak
Power Dissipation, continuous @ T
c
= 25°C
1
Input Voltage, differential
Input Voltage, common mode
Temperature, pin solder, 10 sec
Temperature, junction
2
Temperature, storage
Temperature Range, powered (case)
T
C
T
J
‐65
‐40
Symbol
+V
s
to
‐V
s
I
O
I
O
P
D
V
IN (Diff)
V
cm
PA441DF
Min
Max
350
60
120
12
‐16
‐V
S
+16
+V
S
220
150
150
125
PA441DW
Min
Max
*
*
*
9
*
*
*
*
260
*
*
*
*
*
PA443DF
Min
Max
*
*
*
12
*
*
*
*
220
*
*
*
*
*
Units
V
mA
mA
W
V
V
°C
°C
°C
°C
1. Specifications are for individual amplifiers in PA443DF, unless otherwise noted.
2. Long term operation at the maximum junction temperature will result in reduced product life. Derate internal power dis‐
sipation to achieve high MTTF. For guidance, refer to heatsink data sheet.
CAUTION
The PA441 and PA443 are constructed from MOSFET transistors. ESD handling procedures
must be observed.
PA441/PA443U Rev E
5
