FM-RRFQ1-315P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> FM-RRFQ1-315P

FM-RRFQ1-315P: DescriptionRECEIVER FM HYBRID 315MHZ; CategoryTopical application Wireless rf/communication; File Size201KB，5 Pages; ManufacturerRF Solutions; Websitehttps://www.rfsolutions.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

FM-RRFQ1-315P Overview

RECEIVER FM HYBRID 315MHZ

FM-RRFQ1-315P Parametric

Parameter Name	Attribute value
frequency	315MHz
Sensitivity	-103dBm
Data rate (maximum)	9.6kbps
modulation or protocol	FM
application	Car alarm, remote sensing, wireless security
Current - Receive	5.7mA
Data interface	PCB, through hole
storage	-
Antenna connector	PCB, surface mount
characteristic	Equipped with RSSI
Voltage - Power	4.5 V ~ 5.5 V
Operating temperature	-25°C ~ 80°C
Package/casing	module
Supplier device packaging	module

Preview

Download Datasheet

View All

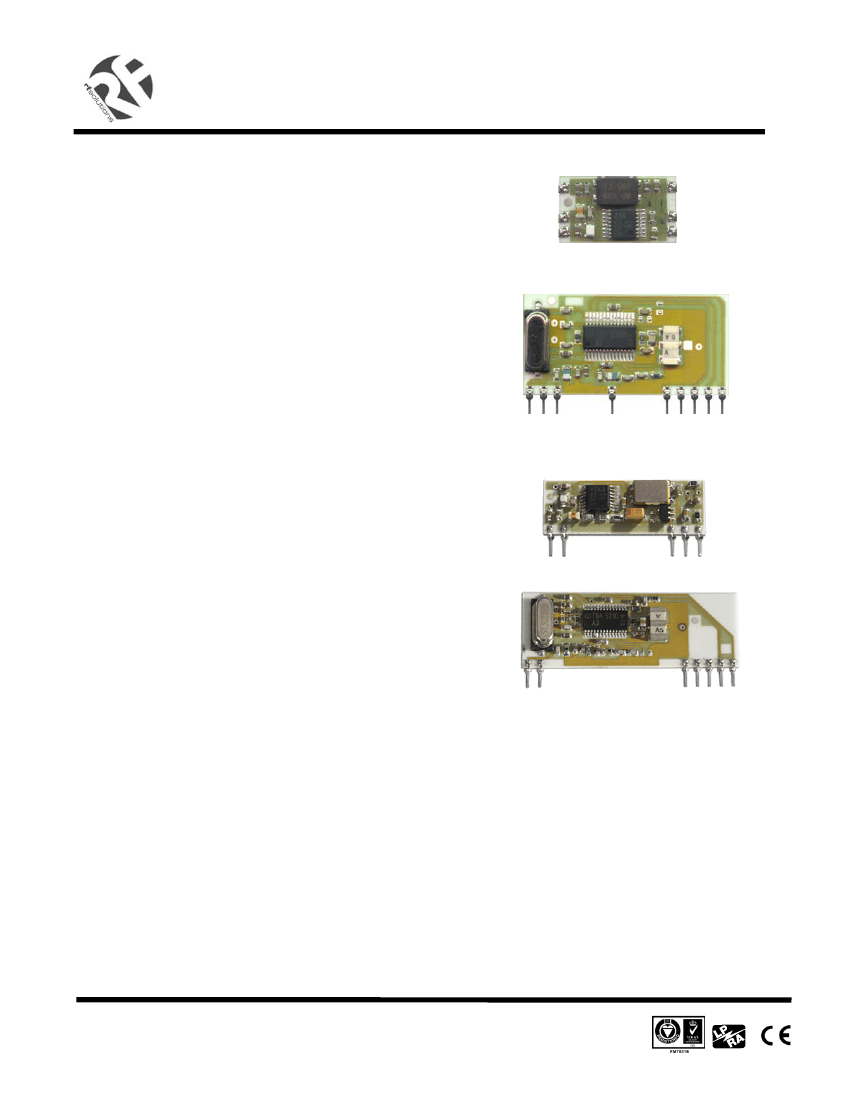

FM T

RANSMITTER

& R

ECEIVER

YBRID

ODULES

•

FM Radio Transmitter & Receivers

Available As 315 or 433 or 868MHz

Transmit Range Up To 250m

Miniature Packages

Data Rate upto 9.6Kbps

No Adjustable Components

Very Stable Operating Frequency

Operates from –20 to +85

FM-RTFQ S

ERIES

FM-RRFQ S

ERIES

RTFQ1

Transmitter

3-12 Supply Voltage

SIL or DIL Package

RRFQ1

Receiver

PLL XTAL Design

CMOS/TTL Output

RSSI Output

Standby Mode (max 100nA)

5V Supply Voltage

RTFQ2

Applications

•

Wireless Security Systems

Car Alarms

Remote Gate Controls

Remote Sensing

Data Capture

Sensor Reporting

RRFQ2

Description

These miniature RF modules provide a cost effective high performance FM Radio data link, at either 315,

433.92 or 868MHz. Manufactured using laser trimmed Thick Film ceramic Hybrid the modules exhibits

extremely stable electronic characteristics over an Industrial Temperature range. The hybrid technology uses

no adjustable components and ensures very reliable operation.

This transmitter and receiver pair enables the simple implementation of a data link at distances upto 75 metres

in-building and 250 metres open ground.

These modules will suit one-to-one and multi-node wireless links in applications including car and building

security, EPOS and inventory tracking, remote industrial process monitoring and computer networking.

Because of their small size and low power requirements, both modules are ideal for use in portable, battery-

powered applications such as hand-held terminals.

DS069-8 May 04

Page 1

FM-RRFQ1-315P Related Products

	FM-RRFQ1-315P	FMRTFQ2-433R	FM-RTFQ1-433	FM-RTFQ1-433SO	FM-RRFQ1-315	FMRRFQ2-433	FMRRFQ1-433	FMRTFQ1-315
Description	RECEIVER FM HYBRID 315MHZ	transmitter FM hybrid 250 meters	transmitter FM hybrid 433mhz	transmitter FM mod 433.92mhz dil	receiver FM hybrid 315mhz	receiver FM hybrid	receiver FM hybrid 433mhz	transmitter FM hybrid 315mhz
