AW-10PR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> AW-10PR

AW-10PR: DescriptionSIREN PIEZO IND 9-28V PNL MNT; CategoryModule/solution; File Size264KB，1 Pages; ManufacturerPUI Audio; Environmental Compliance

Download Datasheet Parametric View All

AW-10PR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AW-10PR	-	-	View	Buy Now

AW-10PR Overview

SIREN PIEZO IND 9-28V PNL MNT

AW-10PR Parametric

Parameter Name	Attribute value
driver circuit	Indicator light, internally driven
input type	DC
Voltage - Rated	24V
voltage range	9 ~ 28V
frequency	multiple
technology	Piezoelectric
Operating mode	Pin selectable
duration	variable
Sound pressure level (SPL)	88dB @ 24V，100cm
Current - Power	8 ~ 35mA
port location	top
Operating temperature	-10°C ~ 60°C
Approval	-
grade	-
Intrusion protection	IP65 - dust and water resistant
Installation type	Panel mounting
Termination	Wire leads
size/dimensions	1.969" diameter (50.00mm)
Height - Installation (maximum)	1.791"（45.50mm）

Preview

Download Datasheet

View All

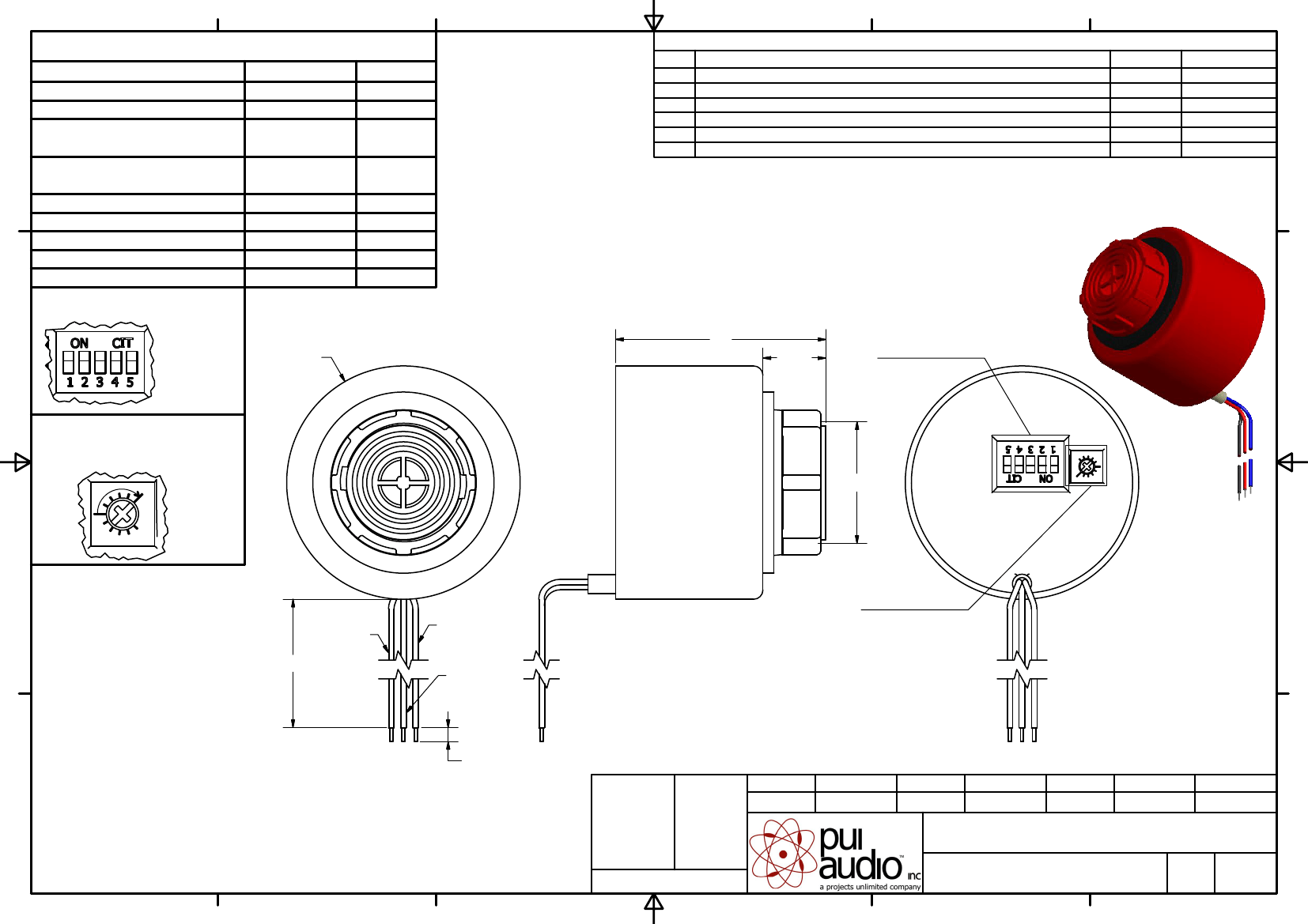

SPECIFICATIONS

PARAMETERS

RATED VOLTAGE

OPERATING VOLTAGE RANGE

TONE OUTPUT

CURRENT CONSUMPTION

(NOMINAL)

INGRESS PROTECTION

CASE MATERIAL/COLOR

TERMINAL

OPERATING TEMPERATURE

WEIGHT

VALUES

9 ~ 28

SEE 32 TONE

CHART

SEE 32 TONE

CHART

IP65

ABS/RED

LEAD WIRE

-10 ~ +60

UNITS

Vdc

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

REVISION HISTORY

LTR

DESCRIPTION

RELEASED FROM ENGINEERING

ADDED VOLUME CONTROL & TONE SWITCHES

REVISED LEAD WIRE DIMENSIONS

ADDED RoHS NOTE

REVISED DETAIL "A" DIL SWITCH

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

DATE

12/21/2005

12/19/2006

12/20/2006

5/21/2007

3/11/2009

5/20/2010

APPROVED

R.W.

B.R.

DETAIL "A"

1=CLOSED

0=OPEN

13.5

DETAIL "A"

DETAIL "B"

VOLUME CONTROL

MAX

DETAIL "B"

BLACK (-)

200

BLUE (-)

RED (+)

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

Date

Checked by

Date

Approved by

Date

Drawn Date

SIZE

J.A.F.

12/21/2005

E.P.

12/21/2005

B.R.

12/21/2005 5/20/2010

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

AW-10PR

Siren

Edition

Sheet

AW-10PR.idw

1/1
