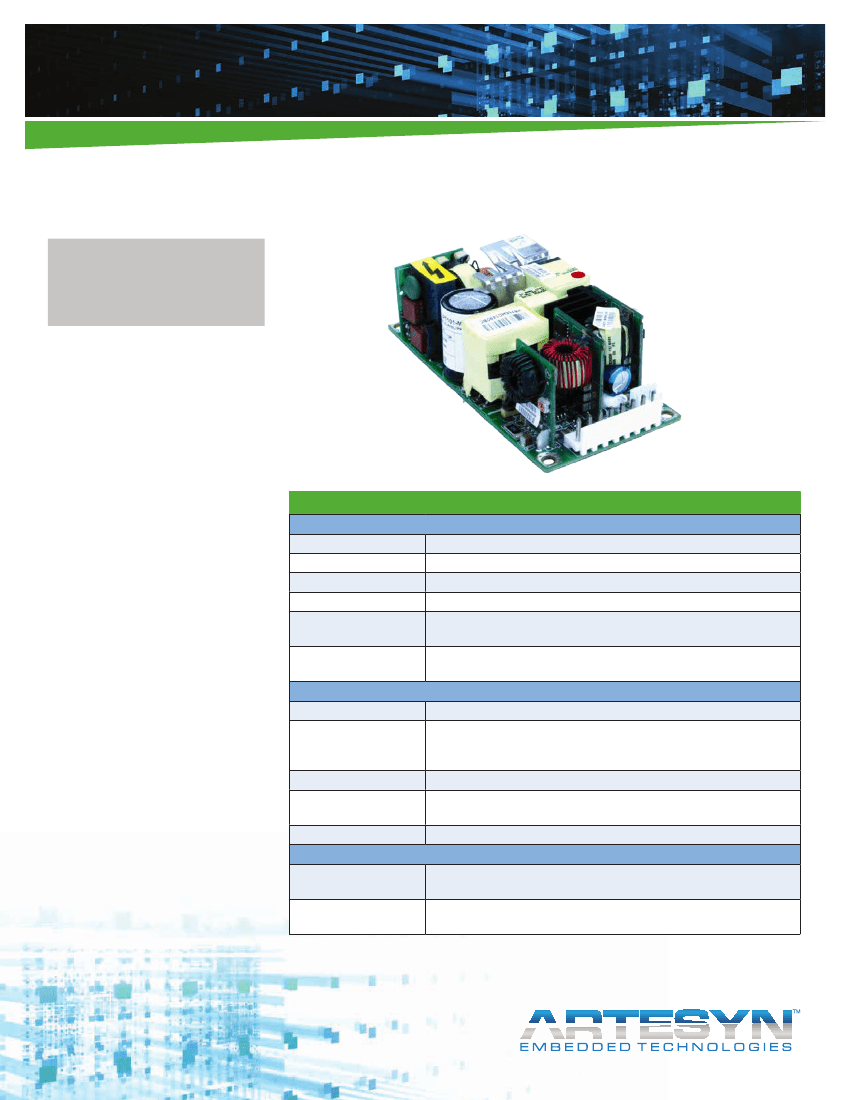

POWER
Data Sheet
Total Power:
130 Watts
Input Voltage:
90 - 264 Vac
# of Outputs:
Triple
Special FeatureS
Medical and ITE safeties
Active power factor correction
2” x 4” footprint
Less than 1U high
EN61000-3-2 compliant
Remote sense
Power fail
Adjustable main output
Built-in Class B EMI filter
Overvoltage protection
Overload protection
Thermal overload protection
LPX100 enclosure kit available
RoHS compliant
LPT100-M Series
130 Watts
Electrical Specifications
Input
Input range
Frequency
Inrush current
Efficiency
EMI/RFI
90 - 264 Vac; 127 - 300 Vdc
47 - 63 Hz
50 A max., cold start @ 25 °C
82% typical at full load
FCC Class B conducted; CISPR22 Class B conducted;
EN55022 Class B conducted; VDE0878PT3 Class B conducted
275 µA @ 50/60 Hz, 264 Vac input
SaFety
TUV
UL
CSA
NEMKO
AUSTEL
CB
CE
60950, 60601-1
60950, 60601-1
60950, 60601-1
60950, 60601-1
60950, 60601-1
Certificate & report
Mark (LVD)
Safety ground
leakage current
Output
Maximum power
Adjustment range
130 W with 200 LFM forced air
All outputs adjustable: -20%, +10%, except for +24V output on
LPT104-M which will be -10%, +20% and 3.3 V output on the LPT101-
M +10%, -15%
10 ms @ 130 W load, 120 Vac input
Short circuit protection on all outputs. Case overload
protected @ 110 - 160% above rating for V1 & V2, 150 - 250% for V3
15 - 35% above nominal output
Active LowTTL logic signal goes high 100 - 500 msec after main output;
it goes low at least 6 msec before loss of regulation
Compensates for 0.5 V lead drop min. Will operate without remote
sense connected. Reverse connection protected.
Hold-up time
Overload protection
Overvoltage protection
Logical Control
Power failure
Remote sense
LPT100-M Series Data Sheet
Environmental Specifications
Operating temperature
Storage temperature
Electromagnetic susceptibility:
Humidity
Vibration
MTBF calculated
0 °C to 50 °C ambient derate each output as 2.5% per degree from 50 °C to 70 °C. -20 °C start up
-40 °C to +85 °C
Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3
Operating; non-condensing 10% to 90% RH, non-operating, non-condensing 10% - 95%
IEC68-2-6 to the levels of IEC721-3-2
583,000 hours at full load and 25 °C ambient conditions. 230 Vac input, Bellcore

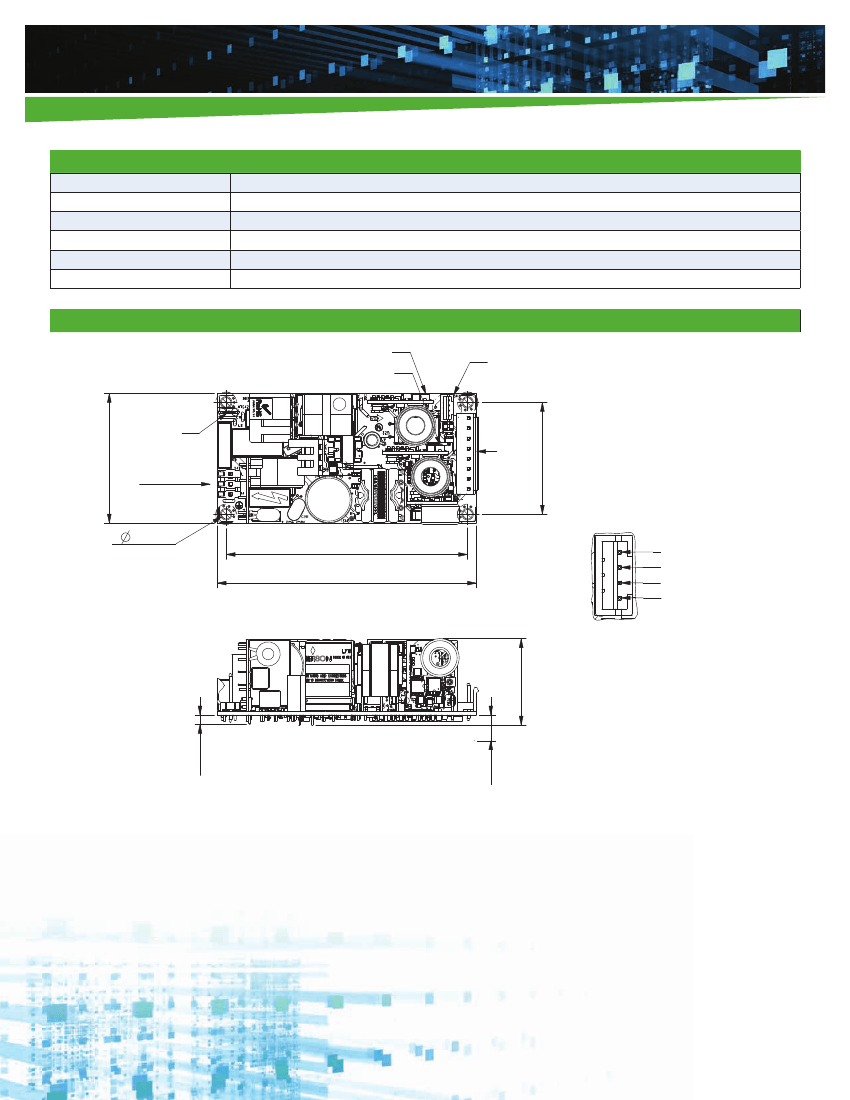

Mechanical Drawing
ADJUST POT'S
OUTPUT VOLTAGE
SK3
SEE DETAIL A
1
SK2
PIN 1 (LIVE)
PIN 3 (NEUTRAL)
2"
[50,8]
GND
SK1
8
0.16
[4]
4 places mounting hole
max screw head
diameter 0.22"[5.6]
1.72 "
[43,8]
3.72 "
[94,6]
4"
[101,6]
1
4
POWER FAIL
COMMON
(+) REMOTE SENSE
(-) REMOTE SENSE
SK3
DETAIL A
1.29 "
[32,7]
0.1 "
[2,5]
max lead
protrusion
0.197
[5]
min stand-o
height
LPT100-M Series Data Sheet
Ordering Information
Model Number
Output Voltage
+3.3 V
LPT101-M
+5 V
+12 V
+5 V
LPT102-M
+12 V
-12 V
+5 V
LPT103-M
+15 V
-15 V
+5 V
LPT104-M
+24 V
+12 V
Minimum Load
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
Maximum Load with
30CFM Forced Air
18 A
9A
2.3 A
18 A
9A
2A
18 A
7.2 A
1.5 A
18 A
3A
2.3 A
Peak Load
20 A
10 A
2.3 A
20 A
10 A
2A
20 A
8A
2A
20 A
3.5 A
2.3 A
Regulation
2
±2%
±5%
±5%
±2%
±5%
±5%
±2%
±5%
±5%
±2%
±7%
±5%
Ripple
P/P (PARD)
3
50 mV
50 mV
120 mV
50 mV
120 mV
120 mV
50 mV
150 mV
150 mV
50 mV
240 mV
120 mV
1. Peak current lasting < 15 seconds with a maximum 10% duty cycle.
2. At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 mHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.
4. This product is a Component Power Supply and is only for inclusion by professional installers within other equipment and must not be operated
as a standalone product. EMC compliance to appropriate standards must be verified at the system level. This product is for sale to OEMs and
System Integrators, including through Distribution Channels. It is not intended for sale to End Users.
LPT100-M Series Data Sheet
Pin Assignments
Connector
SK1
SK2
LPT100-M
PIN 1
PIN 3
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
SK3
PIN 1
PIN 2
PIN 3
PIN 4
Live
Neutral
V1out
V1out
GND
GND
GND
GND
V2out
V3out
Power Fail
GND
+ Remote Sense
- Remote Sense
Mating Connectors
AC Input (SK1)
AC Ground
Molex 09-50-3031
PINS: 08-52-0072
Molex 01-90020001
DC Output (SK2)
JST VHR-8N
PINS: SVH-21T-P1.1
Remote Sense
(SK3)
JST PHR-4; PINS: SPH-002T-PO.5S
OR
LANDWIN 2001S0400; PINS: 2005T
Artesyn Embedded Technologies Connector Kit #70-841-026,
includes all of the above
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is ±.02”.
3. All mounting holes should be grounded for EMI purpose
4. Mounting M1 is safety ground connection
5. This power supply requires mounting on metal standoffs 0.20” (5 m) in
height.
6. For DC input an external DC safety rated fuse must be used.
7. Warranty: 2 year
8. Weight: 0.44 lb. / 0.20 kg
WORLDWIDE OFFICES
americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
europe (uK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
LPT100-M DS 16Jul2018
