Part Number

Search

LF 510-S

Description
C/L, ASIC 500A PANEL MOUNT
CategoryThe sensor
File Size1002KB,7 Pages
ManufacturerLEM
Websitehttp://www.lem.com
Environmental Compliance
Download Datasheet Parametric View All

LF 510-S Overview

C/L, ASIC 500A PANEL MOUNT

LF 510-S Parametric

Parameter NameAttribute value
for measurementAC/DC
sensor typeHall effect, closed loop
Current Detection500A
Number of channels1
outputratio, current
Sensitivity0.2mA/A
frequency200kHz
linearity±0.1%
Accuracy0.5%
Voltage - Power14.25 V ~ 25.2 V
Response time0.5µs
Current - Power (maximum)48mA
Operating temperature-40°C ~ 85°C
polarizationTwo-way
Installation typePanel mounting
Package/casingModule, single pass

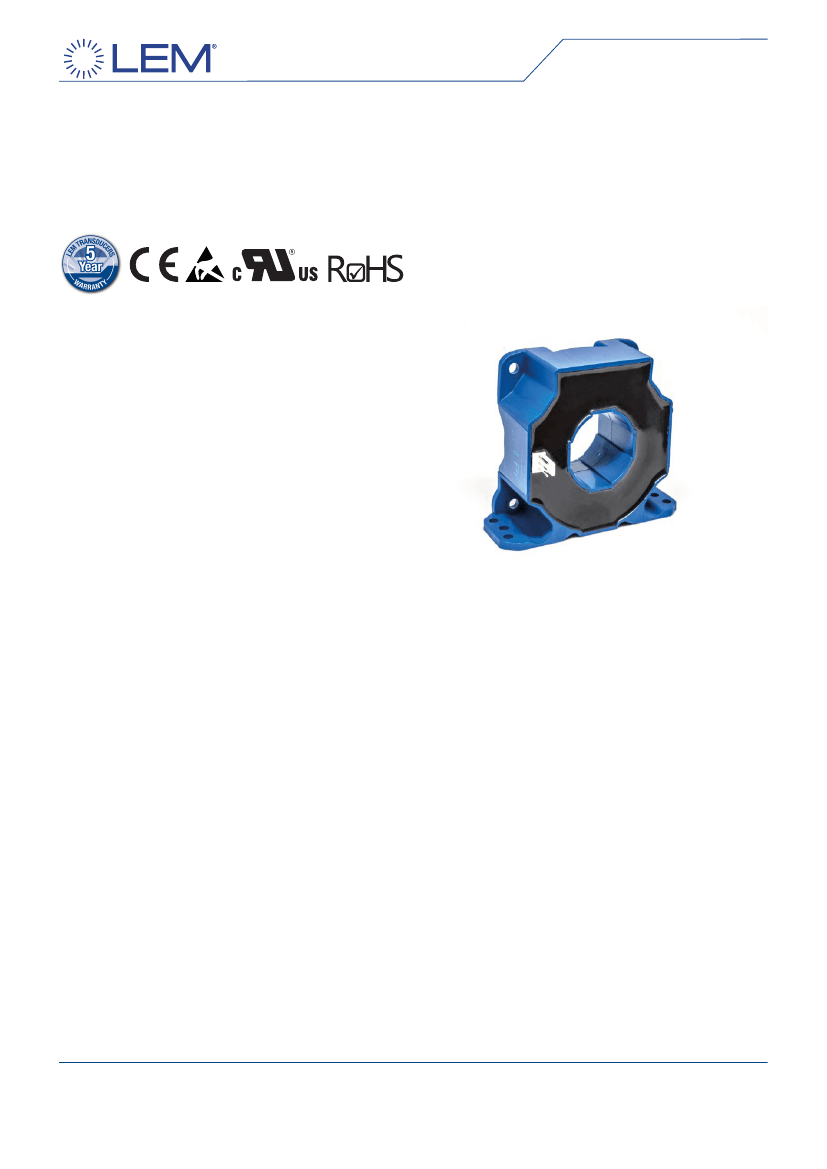

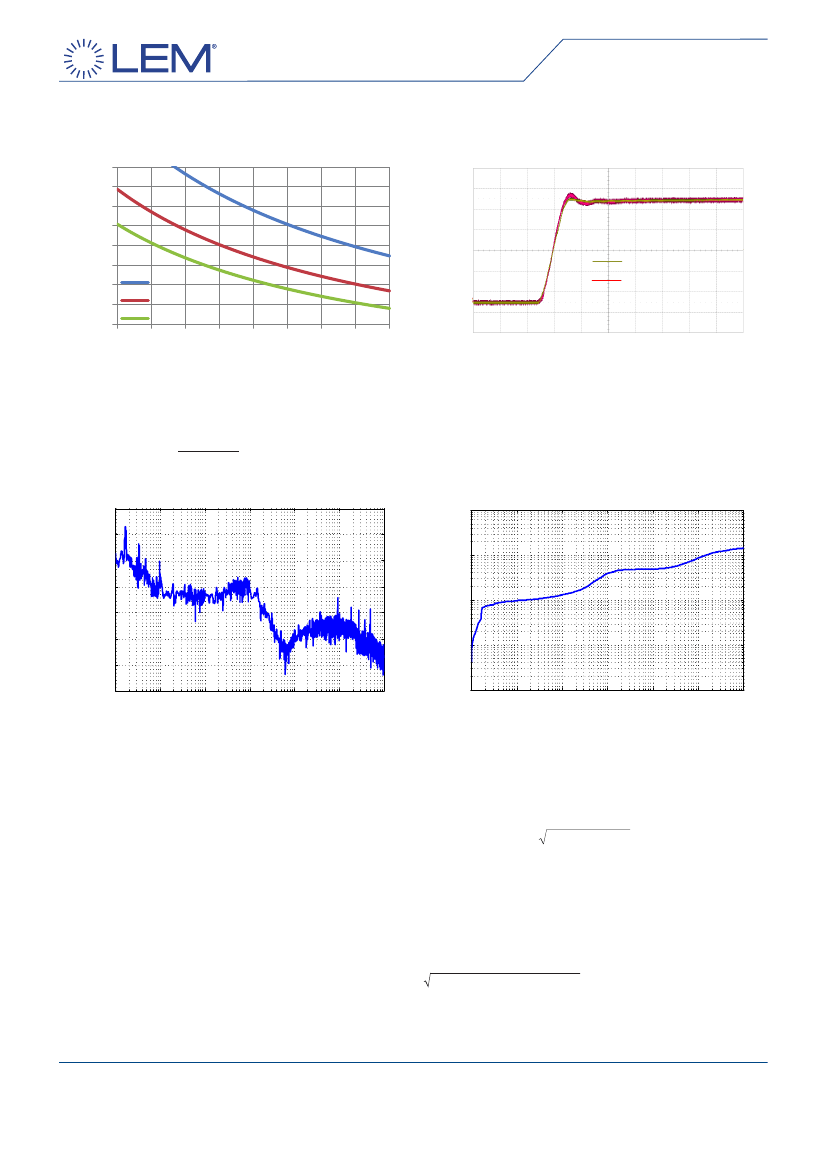

Current Transducer LF 510-S
I
P N
= 500 A
For the electronic measurement of current: DC, AC, pulsed..., with galvanic separation between
the primary and secondary circuit.
Features
● Bipolar and insulated current measurement
● Current output
● Closed loop (compensated) current transducer
● Panel mounting.
Standards
IEC 61010-1: 2010
IEC 61800-5-1: 2007
IEC 62109-1: 2010
● UL 508: 2013.
Advantages
High accuracy
● Very low offset drift over temperature.
Application Domain
● Industrial.
Applications
● Windmill inverters
Test and measurement
● AC variable speed and servo motor drives
● Static converters for DC motor drives
● Battery supplied applications
● Uninterruptible Power Supplies (UPS)
● Switched Mode Power Supplies (SMPS)
● Power supplies for welding applications.
N° 97.J9.50.000.0
15March2018/Version 8
Page 1/7
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com
