0.001 [ 0.03 ] Thick Aluminum/Polyester Film Foil and
90% Coverage Tinned Copper Braid
Electrical
Voltage Rating:
USA: N.E.C. 725, CL2 AWM 300V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
Balanced
Characteristic Impedance:
Unbalanced
51
Ω
100
Ω
Canada: 150V
EU: <50V
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
35.6 pF/ft [ 116.8 pF/m ]
.09 μH/ft [ 0.30 μH/m ]
1.82 ns/ft [ 5.97 ns/m ]
56%
18.1 pF/ft [ 59.4 pF/m ]
.18 μH/ft [ 0.59 μH/m ]
1.81 ns/ft [ 5.94 ns/m ]
56%
Note: Unbalanced is measured between conductors within a pair with one conductor connected to the shield. Balanced is measured between conductors within a pair with the shield floating.
Environmental
Temperature Rating:
USA: CL2; 75°C Max
Flammability Rating:
USA: N.E.C. 725, CL2
UL File No.: E118773, Power Limited Circuit Cable; CL2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Canada: 80°C
Canada: FT1
3M
™

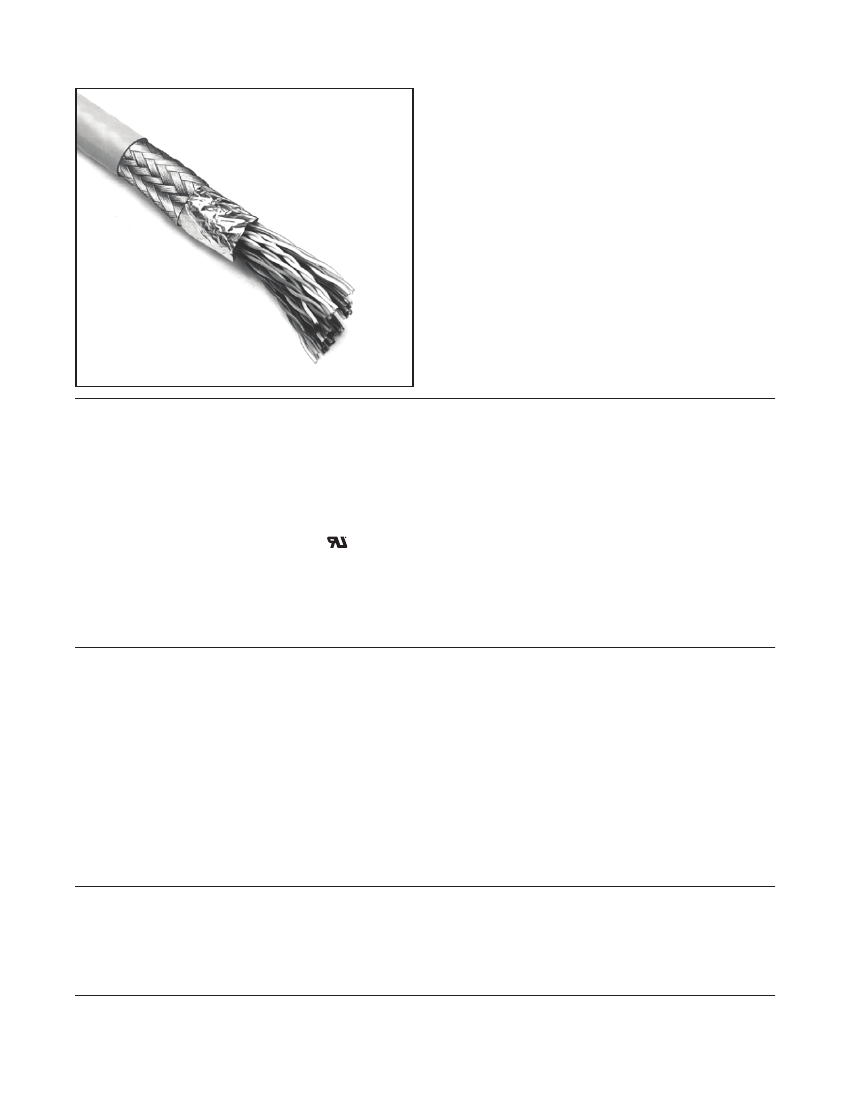

Round, Shielded/Jacketed, Disc. Wire Cable
26 AWG Stranded, Twisted Pair, PVC/PVC
C
Braid
Release Paper
( Mfg Option )
Film Foil
3750 Series
Number of
Conductors
10 (5 Pair)
16 (8 Pair)
26 (13 Pair)
38 (19 Pair)
50 (25 Pair)
60 (30 Pair)
3M Part Number
3750/10
3750/16
3750/26
3750/38
3750/50
3750/60
Dimension A
.31 [ 7.9 ]
.37 [ 9.4 ]
.43 [ 10.9 ]
.49 [ 12.4 ]
.52 [ 13.2 ]
.26 [ 6.6 ]

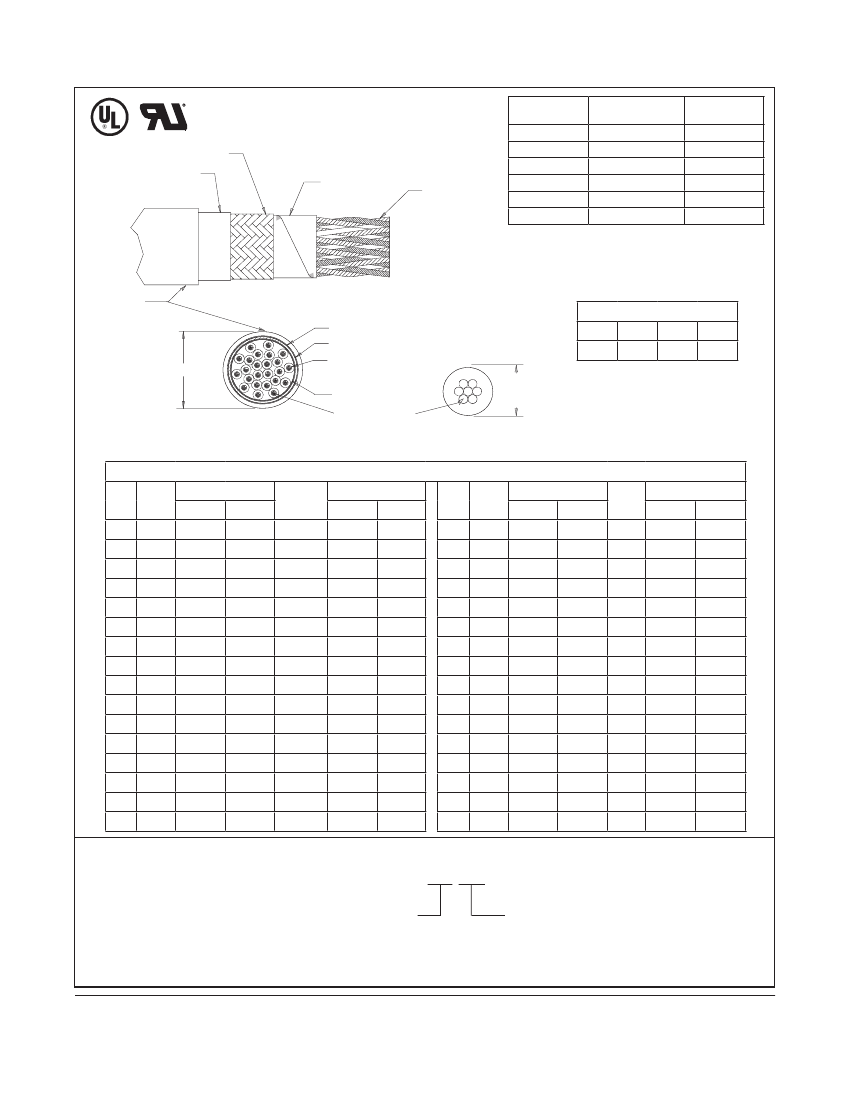

Cable: Twisted Pairs
PVC Jacket
.026 ( 0.66 ) min
Release Paper (Mfg Option )
Braid
Cable:
Twisted Pairs
Film Foil
26 AWG 7 X 34
( 7 X 0.160 ) Tinned
Stranded Copper
Conductors
Inch
[mm]
Tolerance Unless Noted
.0
Inch
.039 Dia
[ 0.99 ]
Discrete Wire Detail
.00
±.05
.000
±.010
±.1
A
[ ] Dimensions for Reference Only
Pair Identification
Pair
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Cond
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
1st Conductor
Solid
Black
Black
Black
Black
Black
Black
Black
Red
Red
Red
Red
Red
Red
Green
Green
Green
Band
Red
White
Green
Blue
Yellow
Brown
Orange
White
Green
Blue
Yellow
Brown
Orange
White
Blue
Yellow
Cond
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
2nd Conductor
Solid
Red
White
Green
Blue
Yellow
Brown
Orange
White
Green
Blue
Yellow
Brown
Orange
White
Blue
Yellow
Band
Black
Black
Black
Black
Black
Black
Black
Red
Red
Red
Red
Red
Red
Green
Green
Green
Pair
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Cond
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
1st Conductor
Solid
Green
Green
White
White
White
White
Blue
Blue
Blue
Brown
Orange
Brown
Violet
Violet
Violet
Violet
Band
Brown
Orange
Blue
Yellow
Brown
Orange
Yellow
Brown
Orange
Yellow
Yellow
Orange
Red
White
Green
Blue
Cond
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
2nd Conductor
Solid
Brown
Orange
Blue
Yellow
Brown
Orange
Yellow
Brown
Orange
Yellow
Yellow
Orange
Red
White
Green
Blue
Band
Green
Green
White
White
White
White
Blue
Blue
Blue
Brown
Orange
Brown
Violet
Violet
Violet
Violet
Ordering Information
3750 / XX XX
Number of Conductors
(See Table)
Note: Available in standard lengths of 100 ft or
1000 ft rolls, please specify when ordering.
Contact 3M for availability of additional
conductor counts and/or custom roll lengths.
Blank = Standard
SF = Splice Free
TS-0072-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
