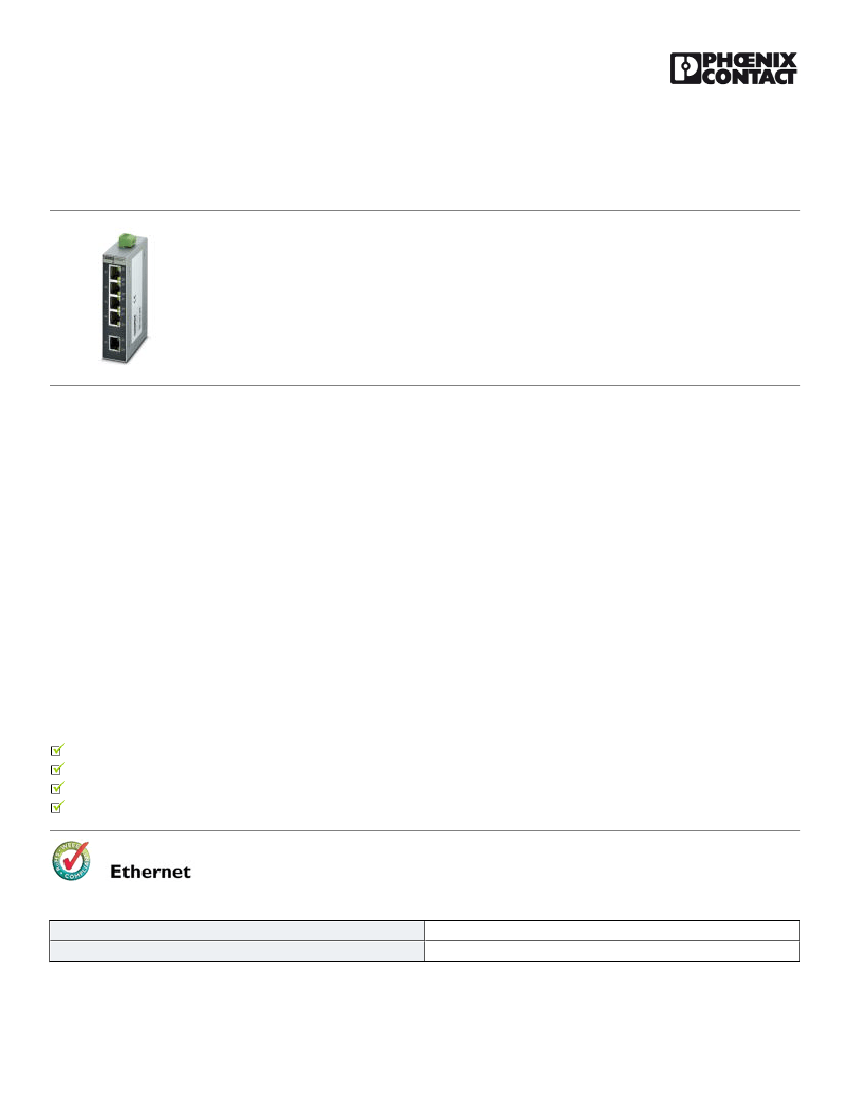

Industrial Ethernet Switch - FL SWITCH SFN 5GT - 2891444
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ethernet switch, five TP-RJ45 ports with 10/100/1000 Mbps on all ports, automatic detection of data transmission
speed of 10/100/1000 Mbps (RJ45), autocrossing function, and QoS.
Product Description
The FL SWITCH SFN… range of Factoryline switches with standard functions in numerous versions can be used for quick and cost-effective Ethernet
network expansion to the field level. Due to their narrow housing design, the components are suitable for universal remote use in control cabinets and
junction boxes. The switches have five or eight ports.
The FL SWITCH SFN 5GT support the auto negotiation function at the twisted pair ports and offer transmission speeds of 10/100/1000 Mbps. Mixed
operation for the connection of segments with different data transmission speeds is also supported.
The RJ45 ports offer an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.
Switching properties
-Multi-address function
The switch independently learns the addresses for termination devices. The switch can store up to 8192 MAC addresses in its address table.
-Quality of service
In case of heavy traffic, packets tagged with higher priority 802.1Q or Differentiated Services values will be given preference. The switch has four
internal priority queues.
-Multicast filtering
The multicast filter will block PROFINET PTCP-Delay traffic. This is accomplished by filtering frames with the destination MAC address in the range
01-80-C2-00-00-02 through 01-80-C2-00-00-0F. Note that the filter blocks LLDP traffic because PTCP-Delay uses the same MAC address, 01-80-
C2-00-00-0E.
Power connection is via a removable COMBICON connector. US is 24 V DC and GND is 0 V DC. FE, functional earth.
Product Features
All ports offer transmission speeds of 1000 Mbps
Jumbo frame support (frame size up to 10,240 bytes/frame)
QoS-prioritized (Quality of Service) messages
Local diagnostic indicators with LEDs
Packing unit
1 pc
300.0 g
10/21/2015 Page 1 / 4
Key Commercial Data
Weight per Piece (excluding packing)
https://www.phoenixcontact.com/us/products/2891444
Industrial Ethernet Switch - FL SWITCH SFN 5GT - 2891444
Custom tariff number
Country of origin
85176200
Taiwan
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
28 mm
110 mm
70 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Air pressure (operation)
Air pressure (storage/transport)
IP20
-10 °C ... 60 °C
-10 °C ... 70 °C
5 % ... 95 % (non-condensing)
62 kPa ... 108 kPa (up to 4850 m above mean sea level)
62 kPa ... 108 kPa (up to 4850 m above mean sea level)
Interfaces
Interface 1
No. of ports
Connection method
Note on connection method
Transmission physics
Transmission speed
Ethernet (RJ45)
5 (RJ45 ports)
RJ45
Auto negotiation and autocrossing
Ethernet in RJ45 twisted pair
10/100/1000 MBit/s
Function
Basic functions
Status and diagnostic indicators
Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and
forward switching mode
LEDs: U
S
, link and activity per port
Network expansion parameters
Cascading depth
Maximum conductor length (twisted pair)
Network, linear, and star structure: any
100 m
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
24 V DC
3.6 V
PP
(within the permitted voltage range)
10 V DC ... 60 V DC
typ. 200 mA (at U
S
= 24 V DC)
10/21/2015 Page 2 / 4
