RECORDS OF REVISION

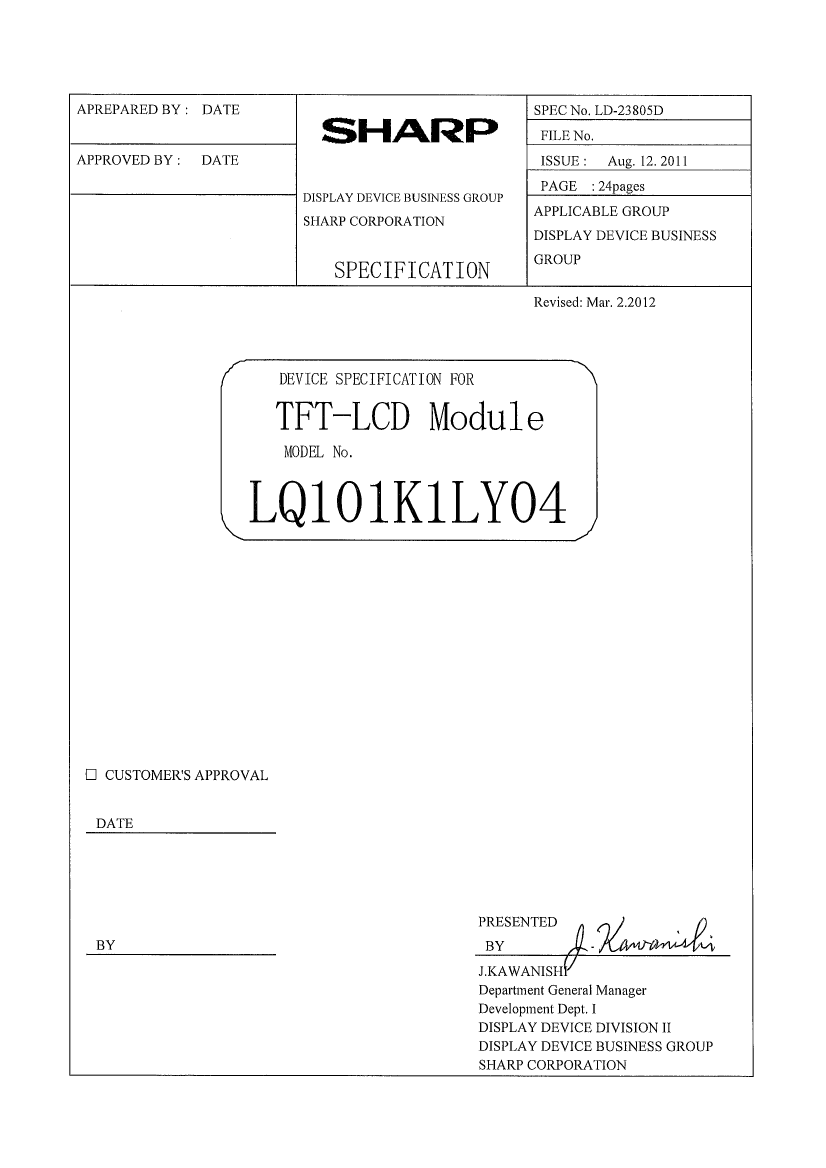

LQ101K1LY04
SPEC No.
DATE
REVISED
No.
SUMMARY
PAGE
NOTE
LD-23805A
LD-23805B
LD-23805C
Aug.12.2011
Sep.22.2011
Dec. 6.2011
-
1
2
-
P.12 Added LED life time
-
Delete
“6-4 Timing Controller function” in
1st Issue
2nd Issue
3rd Issue
accordance
with
“CN1 Pin alignmet” change.
P.4
Change “CN1 Pin
alignment “
in accordance
with
Pin No.5,6,27,28,29,30 is cheanged to "NC”
P.8 Change the figure of [Note 6-1-2] in accordance
with
“CN1 Pin alignmet” change.
p.18 11. Handling precautons
Add "u)”
p.22 Fig.2 Outline Dimensions
Add “recommended supporting area”
LD-23805D
Mar. 2.2012
3
p.22 Fig.2 Outline Dimensions
Change polarizer size
（218.96×137.6→219.56×138.2）and
size between holes（85.34→85.33）
4th Issue
LD- 23805D-1
NOTICE
This publication is the proprietary of SHARP and is copyrighted, with all rights reserved.
Under the copyright
laws, no part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical for any purpose, in whole or in part, without the express written permission of SHARP.
written permission is also required before any use of this publication may be made by a third party.
The application circuit examples in this publication are provided to explain the representative applications of
SHARP's devices and are not intended to guarantee any circuit design or permit any industrial property right or
other rights to be executed.
SHARP takes no responsibility for any problems related to any industrial property
Express
right or a third party resulting from the use of SHARP's devices, except for those resulting directly from device
manufacturing processes.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that
occur in equipment using any of SHARP's devices, shown in catalogs, data books, etc. Contact SHARP in order
to obtain the latest device specification sheets before using any SHARP's device.
SHARP reserves the right to make changes in the specifications, characteristics, data, materials, structures and
other contents described herein at any time without notice in order to improve design or reliability. Contact
SHARP in order to obtain the latest specification sheets before using any SHARP's device. Manufacturing
locations are also subject to change without notice.
Observe the following points when using any device in this publication. SHARP takes no responsibility for
damage caused by improper use of the devices.
The devices in this publication are designed for general electronic equipment use.
The appropriate design measures should be taken to ensure reliability and safety when SHARP's devices are used
for equipment such as:
・Transportation
control and safety equipment(i.e.,aircraft, trains, automobiles, etc.)
・Traffic
signals・Gas leakage sensor breakers
・Alarm
equipment・Various safety devices etc.
SHARP's devices shall not be used for equipment that requires extremely high level of reliability, such as:
・Military
and space applications
・Medical
equipment for life support
・Nuclear
power control equipment
Contact a SHARP representative, in advance, when intending to use SHARP’s devices for any “specific”
applications other than those recommended by SHARP.
Contact and consult with a SHARP representative if there are any questions about the contents of this publication.
LD- 23805D-2
Table of contents
1.
2.
3.
4.
2
Application
...................................................................................................................................... 3
Overview.........................................................................................................................................
3
Mechanical Specifications
................................................................................................................. 3
Input Terminals
................................................................................................................................ 4
4 - 1.
4 - 2.
Symbol .................................................................................................................................................4
LVDS interface block diagram ............................................................................................................6
5.
6.
Absolute Maximum Ratings
.............................................................................................................. 7
Electrical Characteristics
................................................................................................................... 8
6 - 1.
6 - 2.
TFT-LCD panel driving .......................................................................................................................8
LVDS input specification...................................................................................................................10
AC characteristics ......................................................................................................................10
LVDS data .................................................................................................................................11
6 - 2 - 1.
6 - 2 - 2.
6 - 3.
7.
Backlight driving ...............................................................................................................................11
Timing Characteristics of Input Signals..............................................................................................12
7 - 1.
7 - 2.
Timing characteristics ........................................................................................................................12
Input data signals and display position on the screen ........................................................................13
8.
9.
Input Signals, Basic Display Colors and Gray Scale of Each Color
.......................................................14
Optical Characteristics
.....................................................................................................................15
10. Display Quality
...............................................................................................................................16
11. Handling Precautions
.......................................................................................................................17
12. Packaging Condition........................................................................................................................18
13. Label..............................................................................................................................................19
14. RoHS Directive
...............................................................................................................................19
15. Reliability Test Items
.......................................................................................................................20
Fig. 1
Packing Form
............................................................................................................................21
Fig. 2 Outline Dimensions ...............................................................................................................22
LD- 23805D-3
1.
Application
This specification applies to a color TFT-LCD module, LQ101K1LY04.
2.
Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film
Transistor). It is composed of a color TFT-LCD panel, driver ICs, a control circuit and power supply circuit, and
a backlight unit. Graphics and texts can be displayed on a 1280×3×800 dots panel with (16,777,216) colors by
using LVDS (Low Voltage Differential Signaling) to interface and supplying +3.3V DC supply voltage for
TFT-LCD panel driving and supply voltage for backlight.
In this TFT-LCD panel, color filters for excellent color performance and backlights for high brightness are
incorporated to realize brighter and clearer pictures, making this model optimum for use in multi-media
applications.
Optimum viewings are in all directions.
Backlight-driving LED controller is not built in this module.
3.
Mechanical Specifications
Parameter
Display size
Active area
Pixel format
Pixel pitch
Pixel configuration
Display mode
Surface treatment
Specifications
25.6 (10.07")
Diagonal
Unit
cm
mm
pixel
217.0 (H)×135.6 (V)
1280 (H)×800 (V)
(1 pixel = R+G+B dots)
0.170 (H)×0.170 (V)
R,G,B vertical stripe
Normally black
Glare + LR
mm
Dimension*
Mass
229.46(W) x 149.1(H) x 4.8(D)
Typ.165/Max .185
mm
g
[Note 3-1] Outline dimensions is shown in Fig.2
