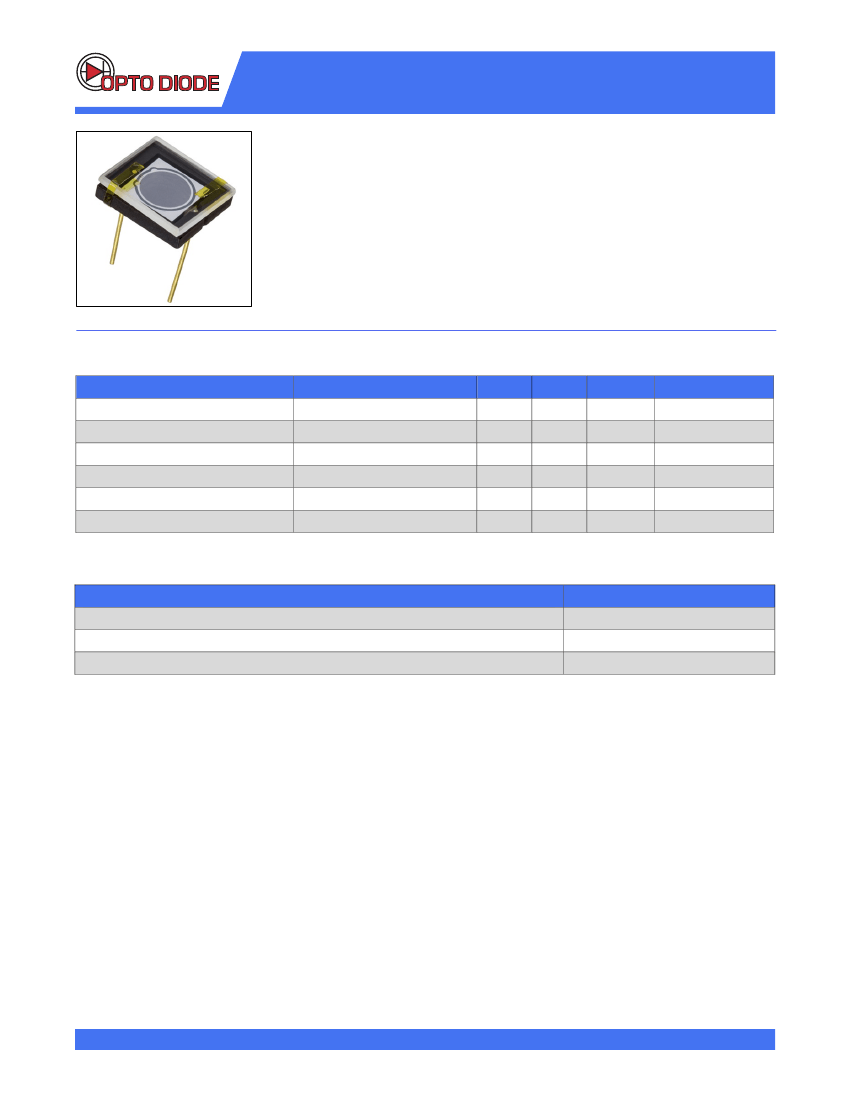

Photodiode Φ5 mm
FEATURES
•
Circular Active Area
•
•
•
•
Ideal for EUV Detection
100% Internal Quantum Efficiency
High Speed
Grid Lines 5 Microns, Pitch 100 Microns
AXUV20HS1
•
Protective Cover Plate
3
Electro-Optical Characteristics at 25 °C
Parameters
Active Area
Responsivity
Reverse Breakdown Voltage, V
R
Capacitance, C
Rise Time
Dark Current
Test Conditions
Φ5.01 mm
(see graph on next page)
I
R
= 1 µA
V
R
= 0 V
R
L
= 50 Ω, V
R
= 150 V
V
R
= 150 V
160
200
800
3.5
100
Min
Typ
20
Max
Units
mm
2
A/W
Volts
pF
nsec
nA
Thermal Parameters
Storage and Operating Temperature Range
Ambient
1
Nitrogen or Vacuum
Lead Soldering Temperature
2
1
Units
-10 ° to 40 °C
-20 °C to 80 °C
260 °C
Temperatures exceeding these parameters may create oxide growth on the active area.
Over time responsivity to low energy radiation and wavelengths below 150 nm will be compromised.
0.080" from case for 10 seconds.
Shipped with temporary cover to protect the photodiode array and wire bonds.
Review the Application Note, “Handling Precautions for AXUV, SXUV, and UVG Detectors”, prior to removing cover.
2
3
Revision May 25, 2018
Page 1 of 3
From Deep UV to Mid-IR
An ITW Company
Photodiode Φ5 mm
AXUV20HS1
Typical Electron Response
0.30
RESPONSIVITY (A/W)
0.25
0.20
0.15
0.10
0.05
0.00
100
1000
10,000
100,000
ENERGY (ev)
Typical EUV-UV Photon Response
0.30
0.25
0.20
0.15
0.10
0.05
0.00
0
50
100
150
200
250
RESPONSIVITY (A/W)
WAVELENGTH (nm)
Typical UV-VIS-NIR Photon Responsivity
0.5
0.4
0.3
0.2
0.1
0.0
200
300
400
500
600
700
800
900
1000
1100
RESPONSIVITY (A/W)
WAVELENGTH (nm)
Revision May 25, 2018
Page 2 of 3
From Deep UV to Mid-IR
An ITW Company
Photodiode Φ5 mm
AXUV20HS1

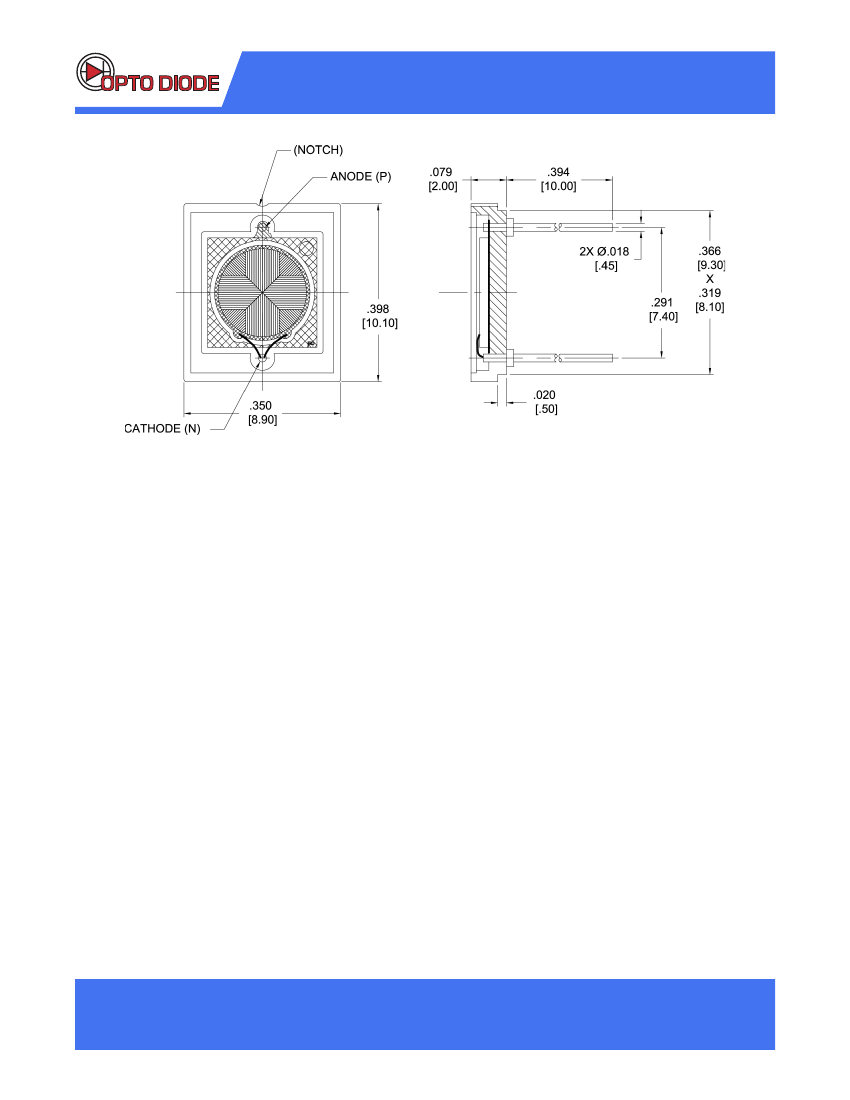

Package Information
Dimensions are in inch [metric] units.
Ordering Information
ODD-AXU-036
High Speed Circular Photodiode Ideal for Radiation Detection Shipped with Protective Cover
Specifications are subject to change without prior notice.
1260 Calle Suerte, Camarillo, California 93012
Phone: +1 805.499.0335 | Fax: +1 805.499.8108 | sales@optodiode.com | www.optodiode.com
Revision May 25, 2018
Page 3 of 3
