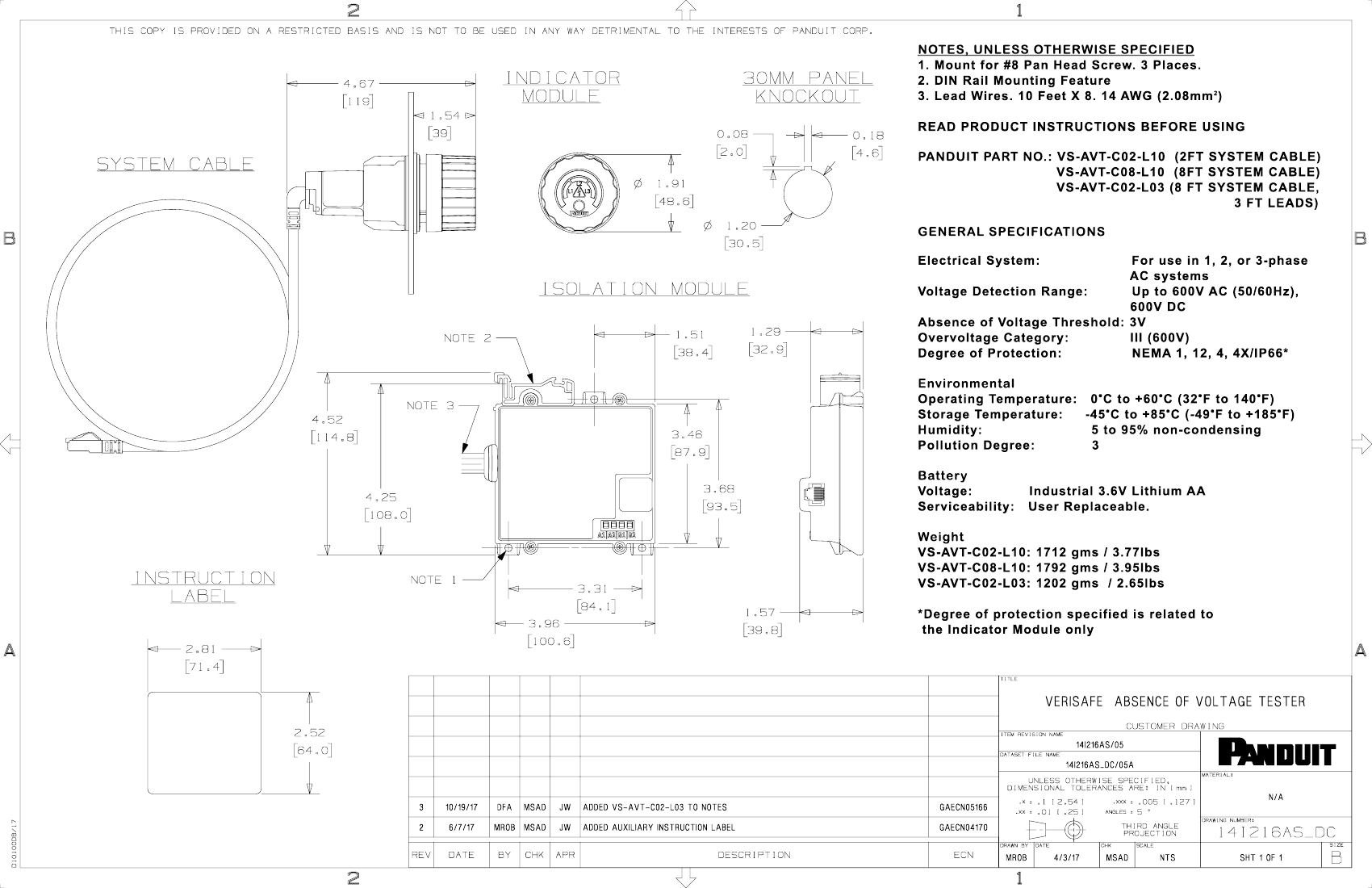

NOTES, UNLESS OTHERWISE SPECIFIED
1. Mount for #8 Pan Head Screw. 3 Places.
2. DIN Rail Mounting Feature
3. Lead Wires. 10 Feet X 8. 14 AWG (2.08mm
2
)
4.67
119
1.54
39
INDICATOR
MODULE
30MM PANEL
KNOCKOUT
0.08
2.0
0.18
4.6
READ PRODUCT INSTRUCTIONS BEFORE USING
SYSTEM CABLE
1.91
48.6
1.20
PANDUIT PART NO.
: VS-AVT-C02-L10 (2FT SYSTEM CABLE)
VS-AVT-C08-L10 (8FT SYSTEM CABLE)
VS-AVT-C02-L03 (8 FT SYSTEM CABLE,
3 FT LEADS)
GENERAL SPECIFICATIONS
Electrical System:
For use in 1, 2, or 3-phase
AC systems
Voltage Detection Range:
Up to 600V AC (50/60Hz),
600V DC
Absence of Voltage Threshold: 3V
Overvoltage Category:
III (600V)
Degree of Protection:
NEMA 1, 12, 4, 4X/IP66*
B
30.5
B
ISOLATION MODULE
NOTE 2
1.51
38.4
1.29
32.9
NOTE 3
4.52
114.8
3.46
87.9
Environmental
Operating Temperature: 0
°
C to +60
°
C (32
°
F to 140
°
F)
Storage Temperature:
-45
°
C to +85
°
C (-49
°
F to +185
°
F)
Humidity:
5 to 95% non-condensing
Pollution Degree:
3
Battery
4.25
108.0
3.68
93.5
Voltage:
Serviceability:
Industrial 3.6V Lithium AA
User Replaceable.
INSTRUCTION
LABEL
A
2.81
71.4
NOTE 1
3.31
84.1
3.96
100.6
1.57
39.8
Weight
VS-AVT-C02-L10: 1712 gms / 3.77lbs
VS-AVT-C08-L10: 1792 gms / 3.95lbs
VS-AVT-C02-L03: 1202 gms / 2.65lbs
*Degree of protection specified is related to
the Indicator Module only
A
TITLE
VERISAFE
ABSENCE
OF
VOLTAGE
TESTER
2.52
64.0
CUSTOMER DRAWING
ITEM REVISION NAME
14I216AS/05
DATASET FILE NAME
14I216AS_DC/05A
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
3
D10100DB/17
10/19/17
DFA
MROB
MSAD
MSAD
JW
JW
ADDED
VS-AVT-C02-L03
TO
NOTES
.X
GAECN05166
.XX
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
N/A
2
6/7/17
DATE
ADDED
AUXILIARY
INSTRUCTION
LABEL
GAECN04170
DRAWN BY
DATE
CHK
THIRD ANGLE
PROJECTION
SCALE
14I216AS_DC
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
MROB
4/3/17
MSAD
NTS
SHT
1
OF
1
B
2
1
