Metal Line Switches
www.schurter.com/PG70
Metal Switch Medium Stroke, Switching Voltage up to 250 VAC

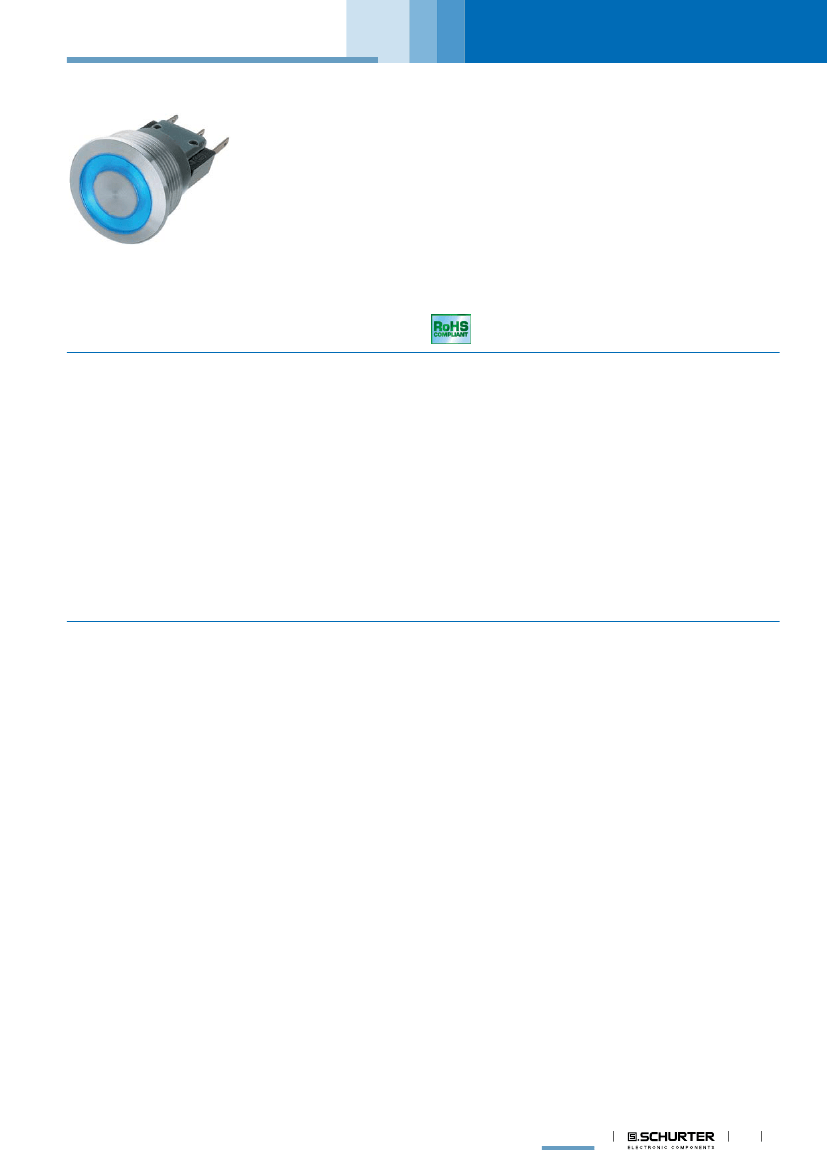

MSM 22
MSM 22 RI blue
Description
- Momentary action switch available in version: Standard (ST), with Let-
tering (LE), from diameter 19 mm with Point Illumination (PI) and with
Ring Illumination (RI)
- Assembly method: clip micro-switch into the saddle, secure switch
using mounting nut
- Equipped with flat-pin plugs to permit fast connection
Characteristics
Standards
Approvals
- DIN EN 61058-1
- UL 1054
- Low Voltage Directive 2006/95/EC compliant; following certificate
numbers apply to micro switch
- VDE / ENEC Certificate Number (Omron): 40008425, 129246, 125256
- UL / CSA File Number (Omron): E41515
- VDE / ENEC Certificate Number (Marquardt): 097550
- UL / CSA File Number (Marquardt): E41791
- KEMA / ENEC File Number (Cherry): 2089323.01
- UL / CSA File Number (Cherry): E23301
- Housing and actuator material: high-quality stainless steel
- Variety of design options regarding size, colour, illumination, connec-
tion or lettering
- Switching voltage from 30 VDC to 250 VAC, switching current from 0.1
A to 10 A
- optional with point or ring illumination
- IP-Protection: IP 67 from front side to contact area, Micro-Switch is
available in versions IP 40 or IP 67, moving actuator is rated IP 40 to
frontside
- for use in harsh environments
References
Alternative: double-pole switch:
MSM DP 22
Alternative: switch with latching function:
MSM LA 22; MSM LA CS 22
Alternative: switch with backlighted illumination:
MSM CS 22
Weblinks
html-datasheet, General Product Information, CE declaration of
conformity, RoHS, CHINA-RoHS, e-Shop, CAD-Drawings, Product
News, Detailed request for product
Switches
1
MSM 22
Technical Data
Electrical Data
Switching Function
Number of Poles
Supply Voltage
N.O., N.C., N.O./N.C.
1 pole
24 / 12 / 5 VDC Ring Illumination, Point
Illumination without series resistor, LED
operating data are listed in separate
table
Surge Strength
4 kV MSM ST / MSM LE
Micro Switch 5 A / 125 VAC or 3 A / 250 VAC, IP40
Contact Material
Ag
Switching Voltage
max. 125 / 250 VAC
Switching Current
max. 5 / 3 A
Rated Switching Capacity
750 W
Lifetime
0.2 million actuations at Rated Swit-
ching Capacity
Contact Resistance
< 30 mΩ
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 5 ms
Micro Switch 0,1 A / 30 VDC, IP40
Contact Material
Au
Switching Voltage
max. 30 VDC
Switching Current
max. 0.1 A
Rated Switching Capacity
3W
Lifetime
0.2 million actuations at Rated Swit-
ching Capacity
Contact Resistance
< 50 mΩ
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 5 ms
Micro Switch for Electrical Rating 10 A / 250 VAC (Protection Class
IP40)
Contact Material
Ag
Switching Voltage
max. 250 VAC
Switching Current
max. 10 A
Rated Switching Capacity
2500 W
Lifetime
0.05 million actuations at Rated Swit-
ching Capacity
Contact Resistance
< 30 mΩ
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 5 ms
Micro Switch 5 A / 250 VAC, IP67
Switching Voltage
max. 250 VAC
Switching Current
max. 5
Rated Switching Capacity
1250 W
Lifetime
0.05 million actuations at Rated Swit-
ching Capacity
Micro Switch 0,1 A / 250 VAC, IP67 - on request
Switching Voltage
max. 250 VAC
Switching Current
max. 0.1
Rated Switching Capacity
25 W
Lifetime
0.05 million actuations at Rated Swit-
ching Capacity
Micro Switch 10 A / 250 VAC, IP67 - on request
Switching Voltage
max. 250 VAC
Switching Current
max. 10 A
Rated Switching Capacity
2500 W
Lifetime
0.01 million actuations at Rated Swit-
ching Capacity
Mechanical Data
Actuating Force
Actuating Travel
Metal Line Switches
www.schurter.com/PG70
Lifetime
Shock Protection
Tightening Torque Plastic Nut
Tightening Torque Stainless
Steel Nut
Climatical Data
Operating Temperature
Storage Temperature
IP-Protection
4.5 N
1.0 mm, for mounting diameter 16, 19,
22 mm 1.2 mm for mounting diameter
30 mm
1.5 million actuations
IK 07 for mounting diameter 19, 22, 30
mm,, IK 06 for mounting diameter 16
mm
max. 2 Nm for thread M16, 4.5 Nm for
M19, 3.5 Nm for M22, 8 Nm for M30
max. 10 Nm for thread M16, 12 Nm for
M19, 16 Nm for M22, 50 Nm for M30
-25 to +85 °C
-25 to +85 °C
IP 67 Front Side Contact Area, IP
40 Front Side mechanical, IP 40 / IP
67 Rear Side Contact Area optional
24 h / 48 h / 96 h Residence Time
Salt Spray Test (acc. to DIN
50021-SS)
Material
Housing
Actuator
Light Conductor (Point Illumi-
nation)
Illuminated Ring (Ring Illumi-
nation)
Gasket
Switcher Collet
Stainless Steel
Stainless Steel
PC
PA
NBR70
PA
2
Switches
Metal Line Switches
www.schurter.com/PG70
MSM 22

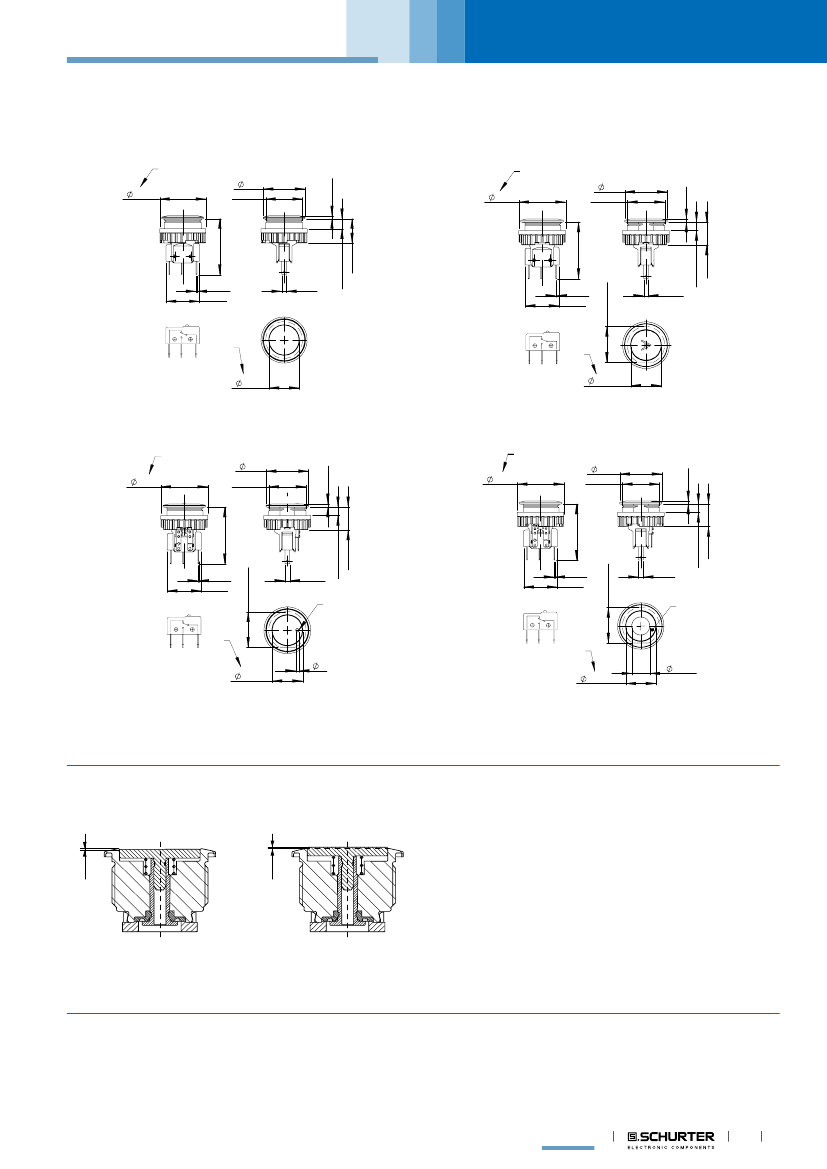

Dimension
MSM 22 ST
D
27,60
25
M22x1
1,75
MSM 22 LE
D
27,60
1,75
2,80
2,80
A
10,66
max. 5mm
13,50
B
17,90
21,10-0,05
1,75
25
M22x1
33,40
33,40
0,50
20
B
NC NO COM
B
NC NO COM
18
18
MSM 22 PI
D
1,75
25
27,60
M22x1
MSM 22 RI
D
27,60
25
M22x1
33,40
max. 5mm
13,50
0,50
20
21,10-0,05
2,80
A
B
NC NO COM
NC NO COM
18
2
Legend
A = Illumination Area
B = Actuating Area
C = Width Across Flats
D = Nut
Tolerance Range
Actuator Tolerance Range
0.20
The mounting tolerance range of the actuator varies from 0.2 mm projection length
and 0.2 mm short length to the housing edge. The slanting position of the actuator
can range within this tolerance.
0.20
Switches
33,40
0,50
20
21,10-0,05
0,50
20
2,80
max. 6mm
14,50
max. 5mm
13,50
3
MSM 22
Dimension
MSM 22 ST / MSM 22 RI
MSM 22 LE / MSM 22 PI / MSM 22
RI optional
Metal Line Switches
www.schurter.com/PG70
Assembly Instructions
During assembly, the protruding bars of the holder should not be pressed together.
I Housing
II Flat Pin Terminal (Illumination)
III Gasket
IV Nut (Nut type see Dimensions)
V Module Switching Contact
Installation Instruction:
1.) Place the gasket accurately on the actuator housing. Then mount the actuator housing assembly into the panel.
2.) Tighten the screw nut according to the torque instructions.
3.) Clasp the module switching contact into the micro switch holder of the actuator housing.
Installation information:
1.) The power supply and the configuration of the flat pin terminals have to be installed correctly for the illumination and micro switch function.
2.) Insulate the terminals as required. Fully insulated plug-in sleeves are recommended.
3.) Installation instructions according to VDE-standard DIN VDE 0100-100 or alternatively IEC 60354 standard.
4
Switches
Metal Line Switches
www.schurter.com/PG70
MSM 22
Diagrams
MSM ST / MSM LE
MSM PI
COM
NO NC
COM
NO NC
MSM RI / 5 V
D6
D5
D4
D3
D2
D1
MSM RI / 12 V
D5
D3
D1
D6
D4
D2
Rv
Rv
COM
NO NC
Rv
COM
NO NC
Rv
MSM RI / 24 V
D3
D2
D1
D4
D5
D6
Rv
COM
NO NC
Rv
Point Illumination
Operating Data
LED red
LED green
LED yellow
LED blue
LED white
Forward Current max.
30 mA
30 mA
30 mA
20 mA
30 mA
Forward Voltage at
10 mA
1.9 VDC
2.1 VDC
2.1 VDC
3.7 VDC
3.6 VDC
Forward Voltage at
8 mA
Forward Voltage at
20 mA
Forward Voltage max.
3.0 VDC
3.0 VDC
3.0 VDC
4.5 VDC
4.0 VDC
Attention: Switches are delivered without series resistor.
Lettering
The last three digits in the order number define the lettering:
000
001-074
101-
No Lettering
Standard Lettering
Customized Lettering
Switches
5
