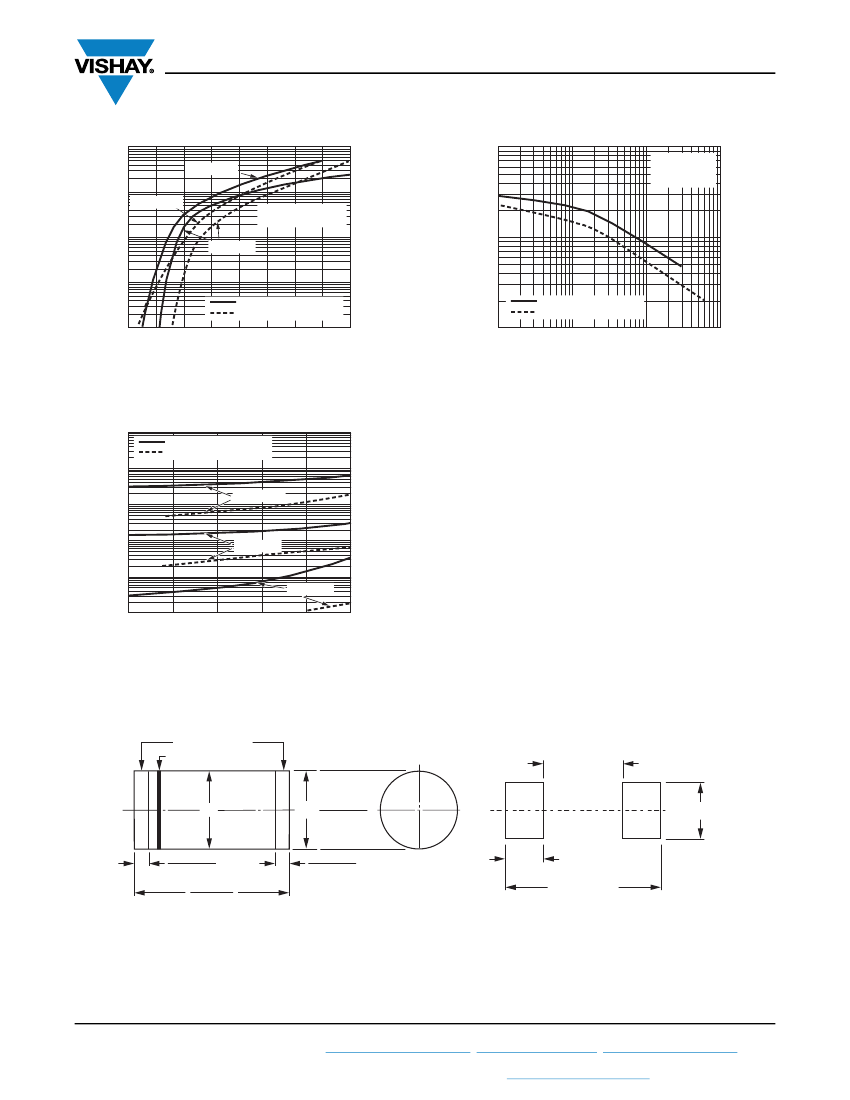

BYM13-xx, SGL41-xx
www.vishay.com
Vishay General Semiconductor
Surface Mount Schottky Barrier Rectifier
FEATURES
• MELF Schottky rectifier
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 250 °C
GL41 (DO-213AB)
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications
MECHANICAL DATA
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
Package
Circuit configuration
1.0 A
20 V to 60 V
30 A
0.50 V, 0.70 V
125 °C, 150 °C
GL41 (DO-213AB)
Single
Case:
GL41 (DO-213AB)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
two bands indicate cathode end 1
st
band denotes
device type 2
nd
band denotes voltage type
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
DENOTES SCHOTTKY DEVICES:
1
st
BAND IS ORANGE
Polarity color bands (2
nd
band) voltage type
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
dV/dt
T
J
T
STG
-55 to +125
-55 to +150
SYMBOL BYM13-20 BYM13-30 BYM13-40 BYM13-50 BYM13-60
SGL41-20
Gray
20
14
20
SGL41-30
Red
30
21
30
SGL41-40
Orange
40
28
40
1.0
30
10 000
-55 to +150
SGL41-50
Yellow
50
35
50
SGL41-60
Green
60
42
60
V
V
V
A
A
V/μs
°C
°C
UNIT
Reivision: 19-Feb-18
Document Number: 88548
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYM13-xx, SGL41-xx
www.vishay.com
Vishay General Semiconductor
BYM13-20 BYM13-30 BYM13-40 BYM13-50 BYM13-60
SGL41-20
0.50
SGL41-30
0.50
SGL41-40
0.50
0.5
I
R
C
J
10
110
5.0
80
mA
pF
SGL41-50
0.70
SGL41-60
0.70
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
(1)
Maximum reverse
current at rated DC
blocking voltage
(1)
Typical junction
capacitance
TEST CONDITIONS
1.0 A
T
A
= 25 °C
T
A
= 100 °C
4.0 V, 1.0 MHz
SYMBOL
V
F
UNIT
V
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum thermal resistance
(1)
SYMBOL
R
JA
R
JT
BYM13-20 BYM13-30 BYM13-40 BYM13-50 BYM13-60
SGL41-20
SGL41-30
SGL41-40
75
30
SGL41-50
SGL41-60
UNIT
°C/W
(1)
Note
Thermal resistance junction to terminal, 0.24" x 0.24" (6.0 mm x 6.0 mm) copper pads to each terminal
ORDERING INFORMATION
(Example)
PREFERRED P/N
SGL41-40-E3/96
SGL41-40-E3/97
BYM13-40-E3/96
BYM13-40-E3/97
SGL41-40HE3/96
(1)
SGL41-40HE3/97
(1)
UNIT WEIGHT (g)
0.137
0.137
0.137
0.137
0.137
0.137
0.137
0.137
PREFERRED PACKAGE CODE
96
97
96
97
96
97
96
97
BASE QUANTITY
1500
5000
1500
5000
1500
5000
1500
5000
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
BYM13-40HE3/96
(1)
BYM13-40HE3/97
(1)
(1)
Note
AEC-Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.0
30
At Rated T
d
8.3 ms Single Half Sine-Wave
25
0.75
SGL41-20 to SGL41-40
Peak Forward Surge Current (A)
Average Forward Current (A)
Resistive or
Inductive Load
20
0.50
SGL41-50 and SGL41-60
15
0.25
PCB Mounted on
0.24" x 0.24" (6.0 mm x 6.0 mm)
Copper Land Areas
0
0
25
50
75
100
125
150
175
10
5
1
10
100
Terminal Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Reivision: 19-Feb-18
Document Number: 88548
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYM13-xx, SGL41-xx
www.vishay.com
Vishay General Semiconductor
1000
100
Instantaneous Forward Current (A)
T
J
= 125 °C
10
T
J
= 150 °C
Pulse Width = 300 µs
1 % Duty Cycle
T
J
= 25 °C
1
Junction Capacitance (pF)
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
0.1
SGL41-20 to SGL41-40
SGL41-50 and SGL41-60
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
SGL41-20 to SGL41-40
SGL41-50 and SGL41-60
10
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
100
Instantaneous Reverse Current (mA)
SGL41-20 to SGL41-40
SGL41-50 and SGL41-60
10
T
J
= 125 °C
1
0.1
T
J
= 75 °C
0.01
T
J
= 25 °C
0.001
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Reverse Characteristics
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
GL41
(DO-213AB)
Solderable
Ends
1
st
Band
Mounting Pad Layout
0.138 (3.5) MAX.
D2 = D1
+ 0
- 0.008 (0.20)
D2
D1 =
0.105 (2.67)
0.095 (2.41)
0.118 (3.0) MIN.
0.022 (0.56)
0.018 (0.46)
0.205 (5.2)
0.185 (4.7)
0.022 (0.56)
0.018 (0.46)
0.049 (1.25) MIN.
0.238 (6.0) REF.
1
st
band denotes type and positive end (cathode)
Reivision: 19-Feb-18
Document Number: 88548
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
