XPGBWT-P1-R250-00BZ8

Description
LED XLAMP XP-G2 WARM WHT 2700K
CategoryLED optoelectronic/LED
File Size2MB,27 Pages
ManufacturerCree
Websitehttp://www.cree.com/
Environmental Compliance
Download Datasheet Parametric View All

XPGBWT-P1-R250-00BZ8 Online Shopping

Suppliers Part Number Price MOQ In stock
XPGBWT-P1-R250-00BZ8 - - View Buy Now

XPGBWT-P1-R250-00BZ8 Overview

LED XLAMP XP-G2 WARM WHT 2700K

XPGBWT-P1-R250-00BZ8 Parametric

Parameter NameAttribute value
colorwhite, warm color
CCT(K)2700K
Flux, current at 85°C - Test97 lm(94 lm ~ 100 lm)
Flux, current at 25°C - Test-
Current - Test350mA
Voltage - Forward (Vf) (Typical)2.8V
Lumens/Watt at different test currents99 lm/W
CRI (high color rendering index)85
Current - maximum1.5 A
perspective115°
Installation typesurface mount
Package/casing1414 (3535 metric)
Supplier device packaging-
size/dimensions0.136" long x 0.136" wide (3.45mm x 3.45mm)
Height - Installation (maximum)0.094"(2.39mm)
Package thermal resistance4°C/W

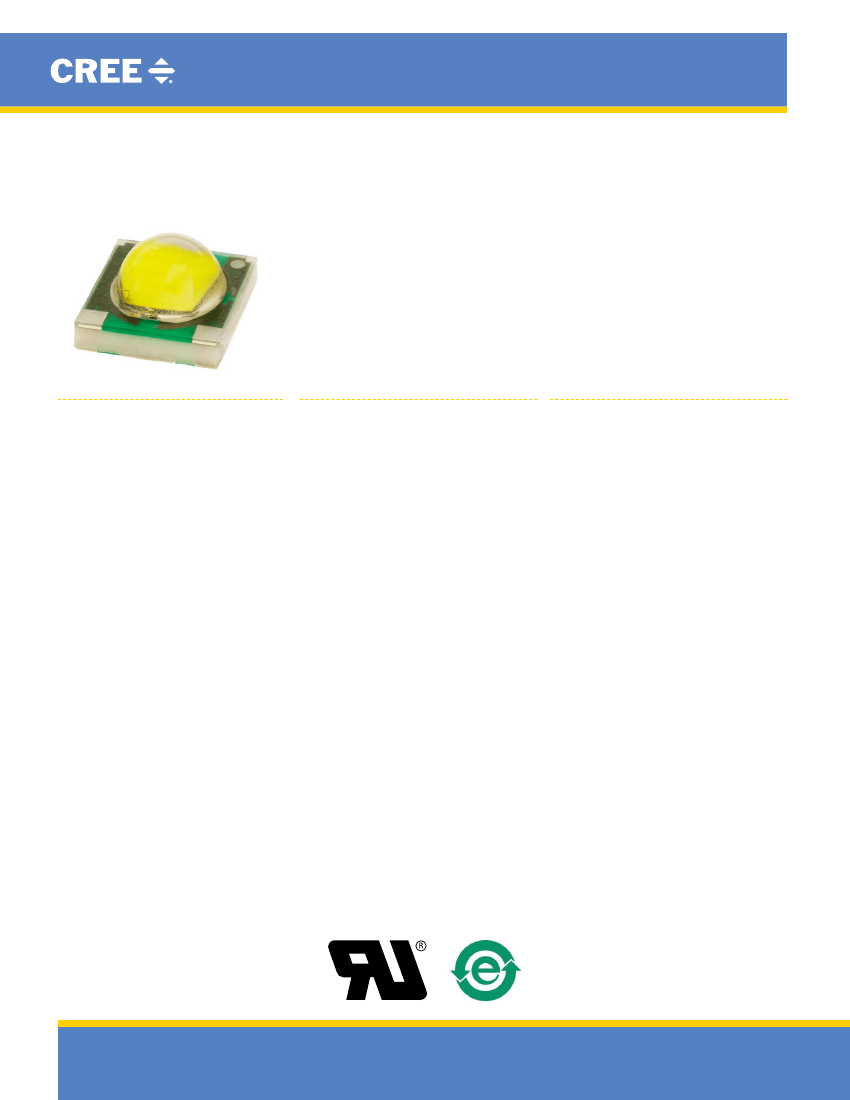

CLD-DS20 Rev 15e
Product family data sheet
Cree
®
XLamp
®
XP-G LEDs
ProDuCt DEsCriPtion
The
XLamp
®
XP-G
LeD
delivers
unprecedented levels of light output
and efficacy for a single die LED. The
XLamp XP-G LeD continues Cree’s
history of innovation in LEDs for lighting
applications with wide viewing angle,
symmetrical package, unlimited floor life
and electrically neutral thermal path.
FEAturEs
Available in white, outdoor white and
80-CRI, 85-CRI and 90-CRI white
ANSI-compatible chromaticity bins
Maximum drive current: 1500 mA
Low thermal resistance: 4 °C/W
Wide viewing angle: 125°
Unlimited floor life at
≤ 30 ºC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path
RoHS and REACh compliant
UL
®
recognized component (E349212)
tAbLE oF ContEnts
Characteristics
............................................2
Flux Characteristics
....................................3
Relative Spectral Power Distribution
.........7
Relative Flux vs. Junction Temperature.....7
electrical Characteristics
............................8
Relative Flux vs. Current .............................8
Relative Chromaticity vs Current and
Temperature
................................................9
Typical Spatial Distribution......................
10
Thermal Design
........................................
10
Performance Groups – Luminous Flux... 11
Performance Groups – Chromaticity......
12
Cree’s Standard Chromaticity Regions
Plotted on the 1931 CIE Curve ................
15
Cree’s Standard Cool White Kits Plotted
on ANSI Standard Chromaticity
Regions
.....................................................
17
Cree’s Standard Warm and Neutral
White Kits Plotted on ANSI Standard
Chromaticity Regions ..............................
18
Cree’s Standard Chromaticity Kits ..........
20
Bin and Order Code Formats
...................
21
XLamp XP-G LeDs are the ideal choice
for lighting applications where high
light output and maximum efficacy are
required, such as LeD light bulbs, outdoor
lighting, portable lighting, indoor lighting
and solar-powered lighting.
www.CRee.Com/XLAmp
Reflow Soldering Characteristics ............
22
Notes
........................................................ 23
Mechanical Dimensions
..........................
25
Tape and Reel
...........................................
26
Packaging .................................................
27
Copyright © 2009-2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, the Cree logo and
XLamp
®
are registered trademarks of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
