Printview: Male connector; 6-pole; Pin spacing 3.5 mm / 0.138 in; with gripping plate - Item No.: 2091-
1506/002-000
.
Male connector; 6-pole; Pin spacing 3.5 mm / 0.138 in; with
gripping plate
Item No.: 2091-1506/002-000
.
Male connector; 6-pole; Pin spacing 3.5 mm / 0.138 in; with gripping plate
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2091-1506/002-000
4050821161332
1
50
Item description:Universal connection for all conductor typesSimple, push-in termination of solid and ferruled
conductorsEasy-to-use design does not require special toolsTesting parallel to conductor entry – tip contactFor “wire-
to-wire” and “board-to-wire” connectionsIntegrated release lever
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Color
Ratings according to 1
Rated voltage (III / 3) [V]
6
3.5 mm (0.138 in %)
6
6
light gray
IEC/EN 60664-1
160 [V]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male connector; 6-pole; Pin spacing 3.5 mm / 0.138 in; with gripping plate - Item No.: 2091-
1506/002-000
Technical data
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Length
2.5 [kV]
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
10 [A]
1
1
Push-in CAGE CLAMP®
1
Betätigungsdrücker
0.2 … 1.5 mm² / 24 … 14 AWG
0.2 … 1.5 mm² / 24 … 14 AWG
0.25 … 0.75 mm² / …
0.25 … 1.5 mm² / …
8 … 9 mm / 0.31 … 0.35 in
I
Polyphthalamide (PPA GF)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
0.148 [MJ]
6.327 [g]
23 mm / 0.906 in
15.9 mm / 0.626 in
47 mm / 1.85 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male connector; 6-pole; Pin spacing 3.5 mm / 0.138 in; with gripping plate - Item No.: 2091-
1506/002-000

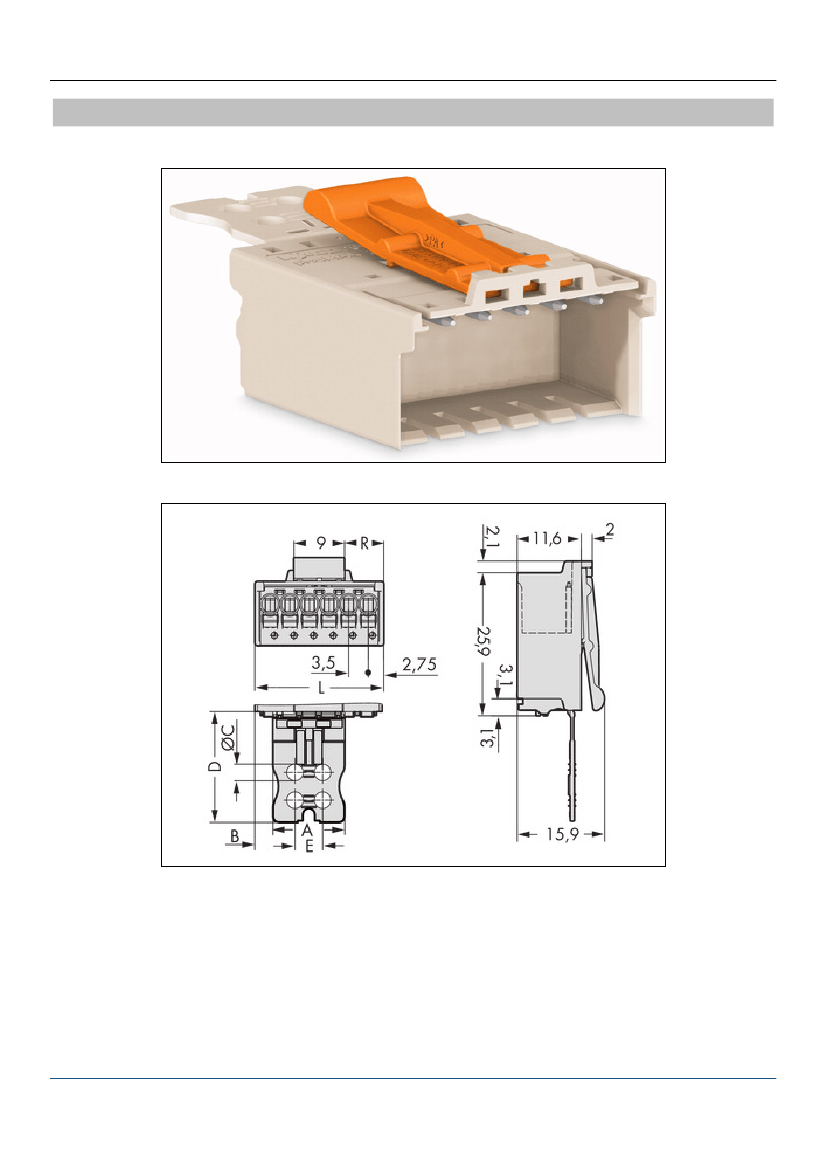

Images & drawings
.
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male connector; 6-pole; Pin spacing 3.5 mm / 0.138 in; with gripping plate - Item No.: 2091-
1506/002-000
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
