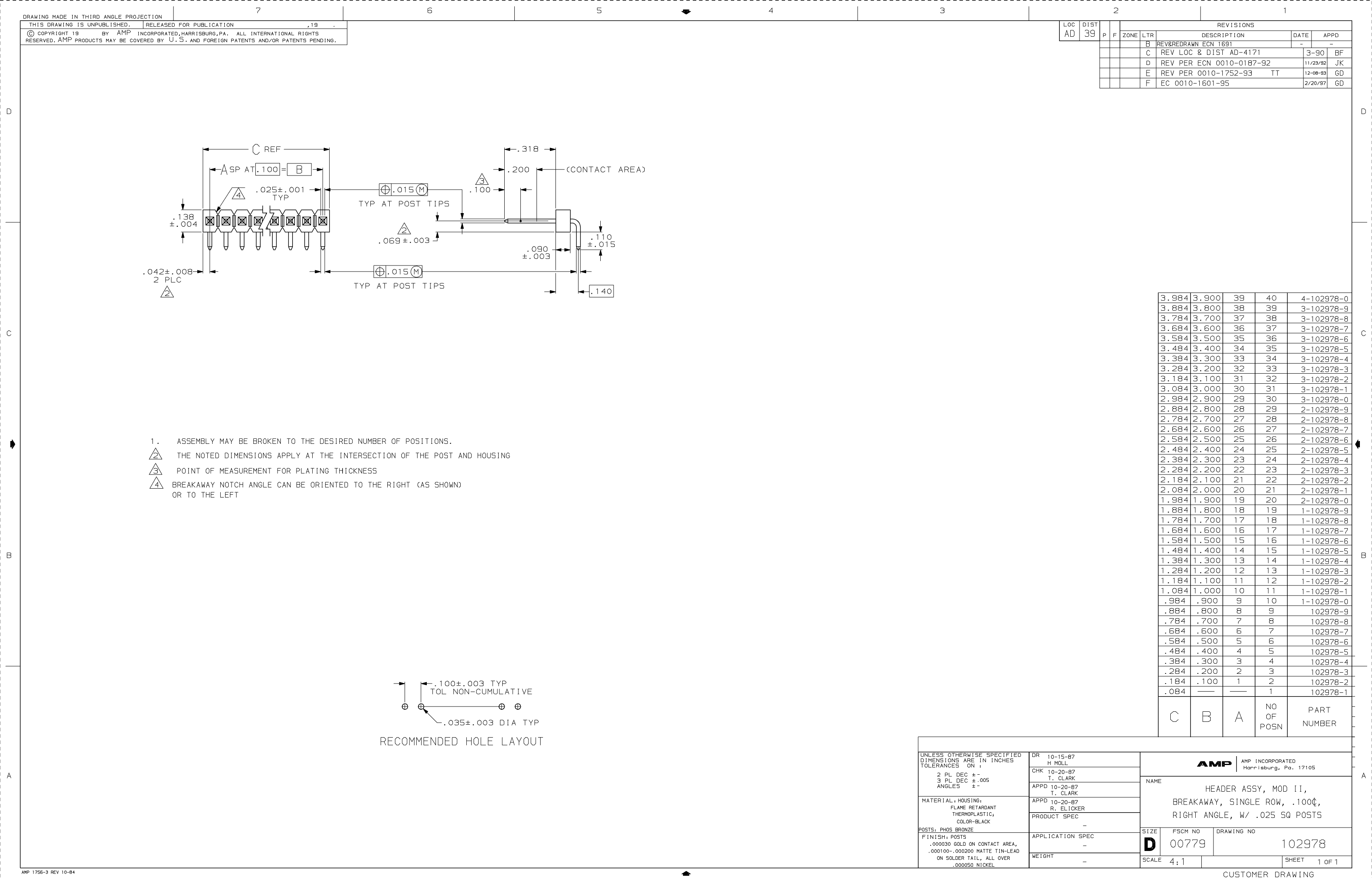

2-102978-8: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,28 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size95KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-102978-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,28 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK

2-102978-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	BREAKAWAY TYPE
body width	0.153 inch
subject depth	0.138 inch
body length	2.784 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	102978
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

2-102978-8 Related Products

	2-102978-8	2-102978-5	1-102978-2	1-102978-3
Description	HEADER CONNECTOR,PCB MNT,RECEPT,28 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,25 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	13 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compli	compliant
Other features	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE	AMP
body width	0.153 inch	0.153 inch	0.153 inch	0.153 inch
subject depth	0.138 inch	0.138 inch	0.138 inch	0.138 inch
body length	2.784 inch	2.484 inch	1.184 inch	1.284 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	102978	102978	102978	102978
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	28	25	12	13
Base Number Matches	1	1	1	1
