5-103911-9: Description24 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size151KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

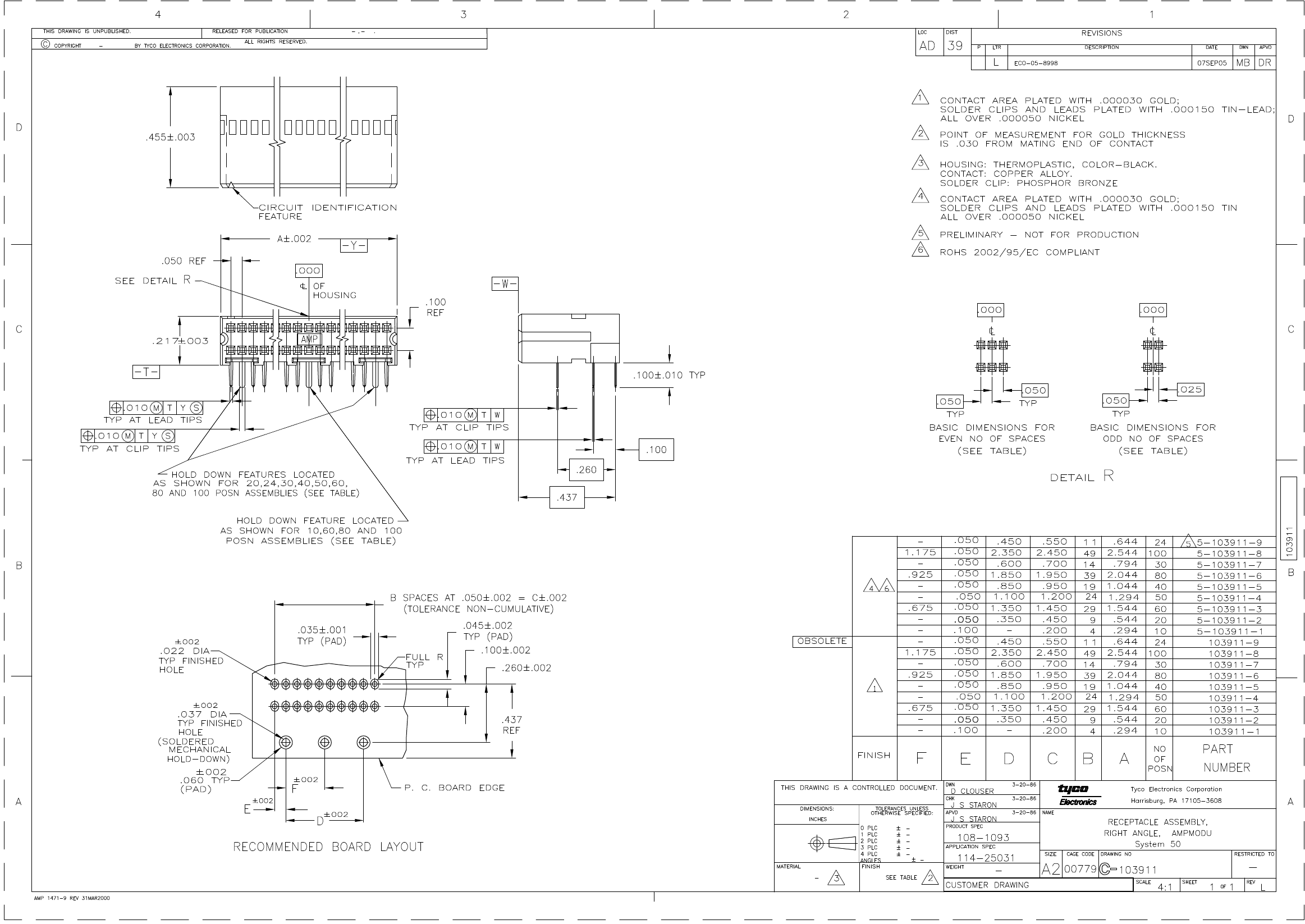

Download Datasheet Parametric Compare View All

5-103911-9 Overview

24 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	AMPMODU
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	103911
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

	5-103911-9	103911-9
Description	24 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	HEADER CONNECTOR,PCB MNT,PLUG,24 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,BLACK
Reach Compliance Code	unknow	unknow
Other features	AMPMODU	AMPMODU
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e0
MIL compliance	NO	NO
Manufacturer's serial number	103911	103911
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER
Total number of contacts	24	24
Base Number Matches	1	1
