3179-010107 datasheet, PDF - EEWORLD Datasheet

3179-010107: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerWieson Technologies Co., Ltd.

Download Datasheet Parametric View All

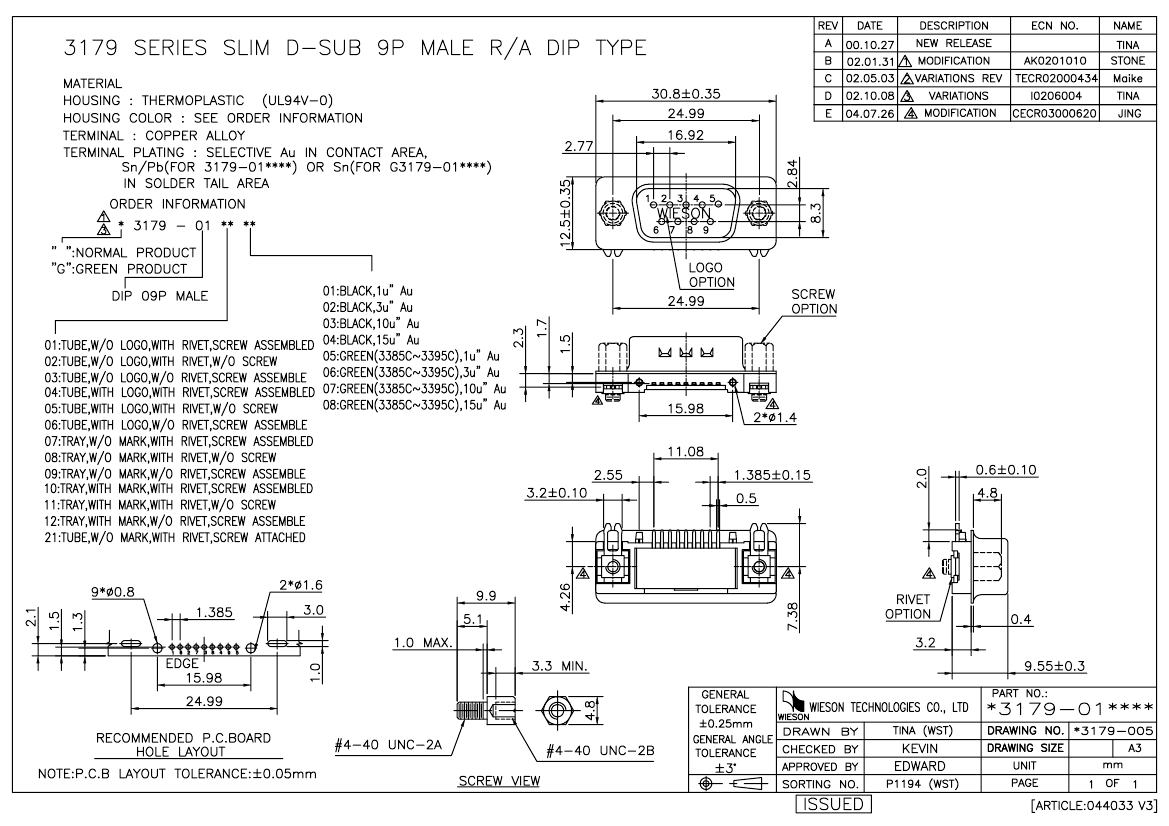

3179-010107 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
body width	0.492 inch
subject depth	0.142 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	GREEN
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	3179
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.3716 mm
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1
