XM3C0922501 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> XM3C0922501

XM3C0922501: DescriptionCONN D-SUB PLUG 9POS R/A SOLDER; CategoryThe connector; File Size571KB，1 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

XM3C0922501 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XM3C0922501	-	-	View	Buy Now

XM3C0922501 Overview

CONN D-SUB PLUG 9POS R/A SOLDER

XM3C0922501 Parametric

Parameter Name	Attribute value
Connector style	D-Sub
Connector type	Plug, male pin
Number of pins	9
Number of rows	2
Housing size, connector layout	1（DE，E）
Contact type	Signal
Installation type	Through hole, right angle
Flange characteristics	Body/housing (unthreaded)
Termination	welding
characteristic	shield
Housing material, plating	Steel, nickel plated
Contact plating	gold
Contact plating thickness	16.0µin (0.41µm)
Intrusion protection	-
Material flammability rating	UL94 V-0
Rated current	5A
Operating temperature	-55°C ~ 105°C
Rated voltage	300V
color	black
Contact shape	-
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced
Wire gauge	-
Contact material	Phosphor bronze
Braking device interval	-

Preview

Download Datasheet

View All

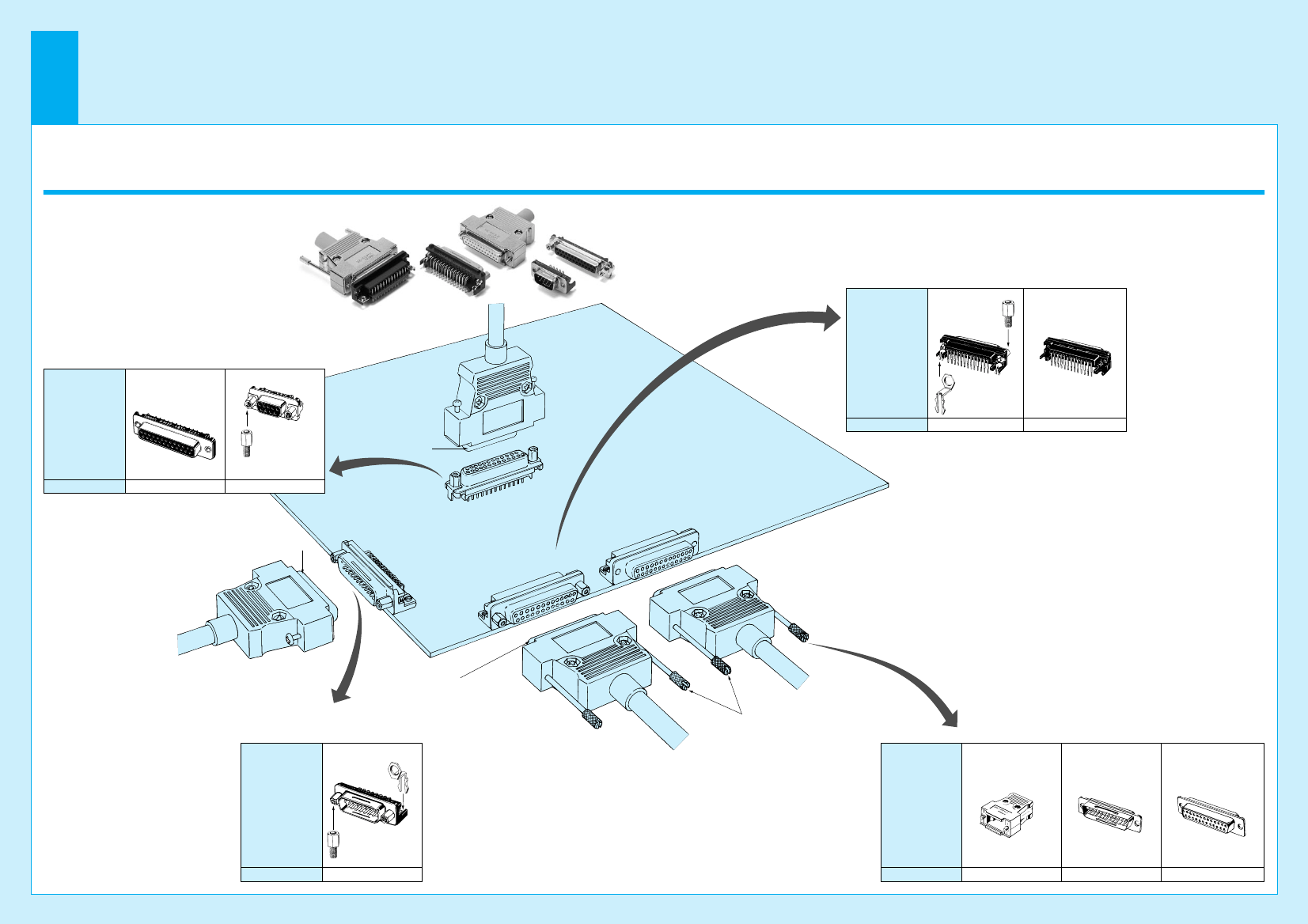

XM2/XM3

D-sub Connectors

D-sub Connectors Ideal for

Interfacing with OA Equipment

D-sub Connectors Ideal for Interfacing with OA Equipment.

Shielded connectors that prevent EMI.

Noise can be suppressed effectively by using

the XM2S Plastic Hood with metallic finish.

XM3B-F multi-hole ferrite-core models are also

available. Use these models to suppress

high-frequency noise and save PCB mounting space.

Compact and tough structure with a metal shell provided.

A wide variety of mounting brackets and grounding

metals are available.

XM2F Sockets with Straight Terminal

XM2F-

10-132

XM2S

Hood

OA:Office Automation

XM3B Sockets with Right Angle Terminal

XM3B-

22-132

XM3B-

screw inch size

(#4-40UNC)

Connection Examples

Shape

Connection Example

Shape

XM2A

Plug with solder

cup terminal

screw inch size

(#4-40UNC)

Number of contacts

9,15,25,37

XM2F

Socket with straight terminal

XM3B-F

Socket with right angle

terminal and

ferrite core

Number of contacts

9,15,25,37

XM2C

Plug with right angle terminal

XM2D Socket with solder cup terminal

XM3B

Socket with right

angle terminal

XM2S Hood

XM2A

Plug with solder cup terminal

XM2S Hood

XM2C Plugs with Right Angle Terminal

XM2C-

12-132

XM2Z-007

Mounting Bracket 5 (with jack screws)

Hood/Solder Cup Terminal

Hood

XM2S-

with accessory

Plug

XM2A-

Socket

XM2D-

Shape

screw inch size

(#4-40UNC)

Number of contacts

9,15,25,37

Number of contacts

9,15,25,37
