5444770

Description
TERM BLOCK HDR 15POS VERT 3.81MM
CategoryThe connector
File Size56KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5444770 Online Shopping

Suppliers Part Number Price MOQ In stock
5444770 - - View Buy Now

5444770 Overview

TERM BLOCK HDR 15POS VERT 3.81MM

5444770 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (4 sides)
Number of pins15
Number of pins per level15
Number of levels1
spacing0.150"(3.81mm)
Needle seat directionVertical
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC8A
Voltage - IEC320V
Current - UL8A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorgreen
Operating temperature-
Contact mating surface treatmenttin
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact material-
Shell materialPolyamide (PA), nylon
Contact tail length0.134"(3.40mm)
Insulation height0.362"(9.20mm)
https://www.phoenixcontact.com/us/products/5444770

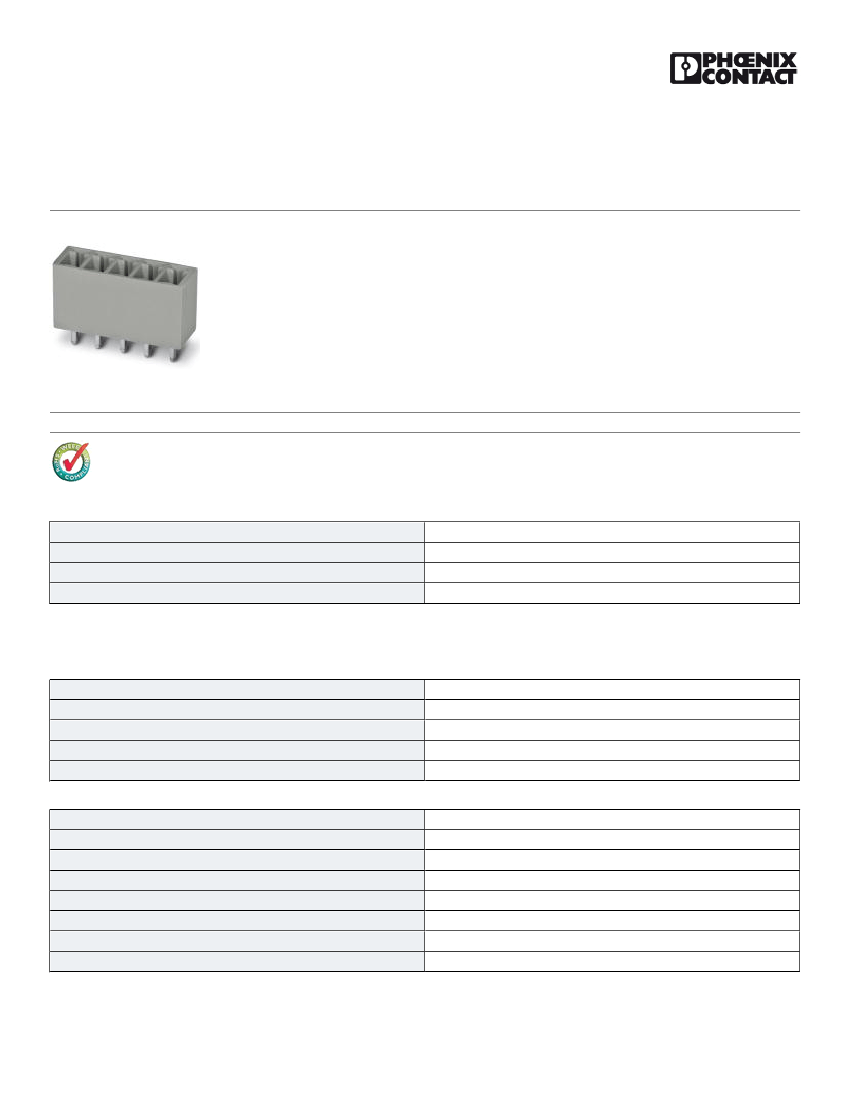

Printed-circuit board connector - BCH-381V-15 GN - 5444770
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 15, Pitch: 3.81 mm, Color: pastel
green, Contact surface: Tin, Mounting: Soldering
The figure shows a 5-pos. version of
the product in gray

Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
100 pc
85366990
China
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
7.4 mm
3.81 mm
53.34 mm
0,8 x 0,8 mm
1.2 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
BCH-V
I
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
320 V
