Over 90 year history ...
ITT Electronic Components is an innovative and dynamic company with
the in-depth experience of a 90 plus year industry leader. We are part of
ITT Corporation, a multi-disciplined, multi-national company engaged in
the design and manufacture of electronic components, defense products
and fluid handling controls.
ITT operates globally and is active in many diverse markets
including telecom, carrier networks, wireless, medical electronics,
instrumentation, military, microwave components, information systems
and radar. ITT is an approved manufacturer to ISO 9001 and ISO 14001.

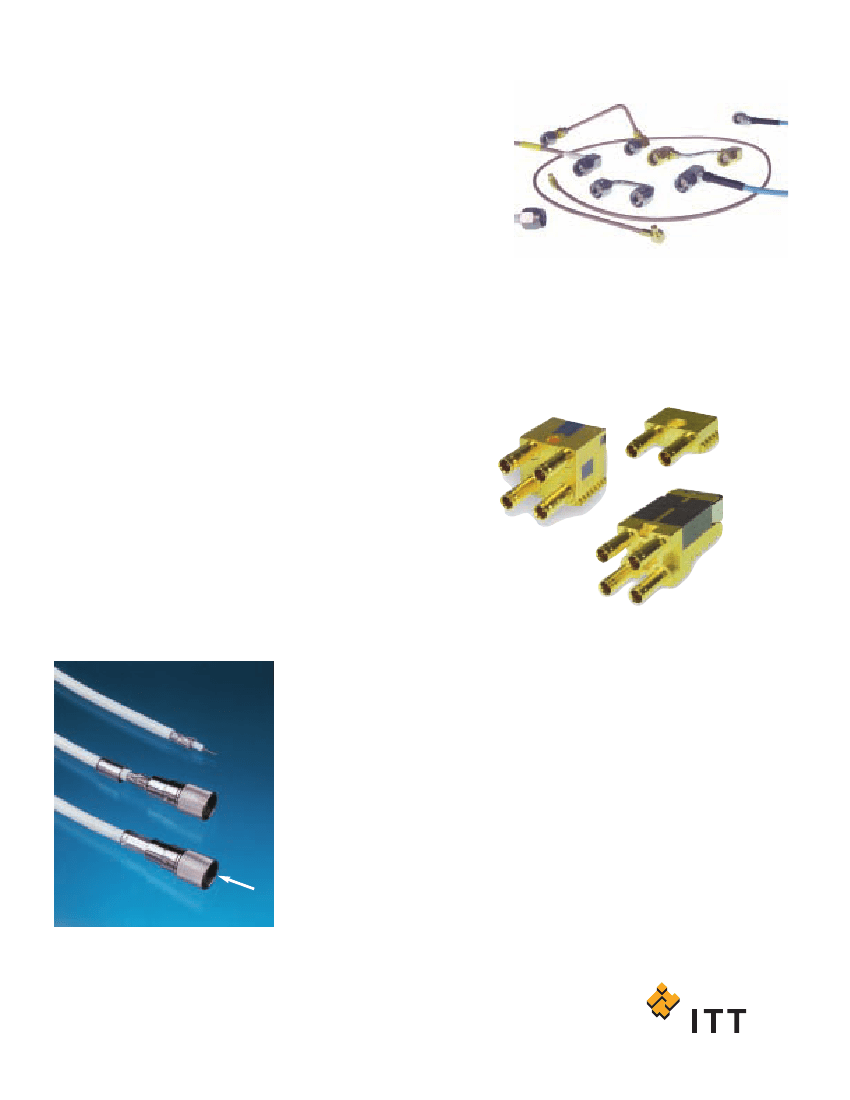

Broad range of Cannon connectors and cable assemblies
In addition to our 50 Ohm RF product line, we also offer a range of 75 Ohm connectors including
Type 43 (SMZ), 1.0/2.3, 1.6/5.6 and BNC.
Cannon CoSMID
TM
connectors
CoSMID
TM
(Coax Surface Mount MID) 75 ohm connectors use molded
interconnect device technology – a process which allows the selective
metallization of 3D plastic shapes. Two, three or four coaxial
connector lines can be integrated into a single surface mountable
module. The modular design means that designers can incorporate more coax
lines on a card edge than ever before.
QT - Quick Termination Connectors
Quick Termination connectors have the special QT contact
pre-assembled into the main connector assembly, which eliminates
the process of crimping or soldering onto the center conductor of a
cable. The center conductor is terminated to the inner contact within
the connector assembly, by activating the QT (patented) mechanism
using the simple plastic tool provided. The assembly is completed in
4 simple steps.
1. Strip cable using standard tooling.
2. Assemble connector on to cable.
3. Press insulator into connector body.
4. Crimp the ferrule using standard hex crimp tool to
complete the termination.
The QT principle may be applied to 50 Ohm products also. Contact
our Customer Service group for more information.
1
2
4
3
CoSMID is a trademark of ITT Corporation.
CANNON, ENGINEERED FOR LIFE, the ITT “Engineered Blocks” symbol and the composite ITT logo
are registered trademarks of ITT Corporation © 2007
2
TABLE OF CONTENTS
Description
Selection Guide
SMA (Precision) Connectors
SMA (Commercial) Connectors
SMB Connectors
SMC Connectors
SSMB Connectors
SSMC Connectors
Coaxial Terminators
Between Series Adaptors
Sealflex 2
TM
Page
4
6
13
19
24
27
31
33
35
37
40
41
58
60
61
62
Assemblies
Mounting Information
Assembly Instructions
Tooling
Glossary of Terms
Part Number Index
Product Safety Information
CABLE ASSEMBLY SERVICE
Cannon has a precision cable assembly facility for the manufacture and testing of a wide range of cable / connector
assemblies. By using Cannon's considerable expertise in this field, the customer is relieved of expensive training, tooling
and reject problems. This invariably offers economic and logistical advantages when compared to user assembly.
Flexible, semi-rigid and Sealflex 2 RF and microwave coaxial cable assemblies for DC to 40 GHz are manufactured to the
most complex customer designs and exacting mechanical and electrical tolerances. A full range of MIL-C-17G proprietary
flexible and semi-rigid cables are used as well as the Sealflex 2 fully flexible, low loss microwave cable. With computerized
semi-rigid cable forming and Vector Network Analyzer test equipment cable assemblies are manufactured for quality
conscious customers the world over. Our skills, experience and 100% electrical testing allow us to build products that meet
or exceed expectations.
75 OHM CONNECTORS
Cannon also offer a wide selection of 75 Ohm connectors for switching and transmission in telecom applications. These
include the popular Type 43 (SMZ), 1.0/2.3, 1.6/5.6 and BNC connector ranges incorporating the CoSMID ™ surface
mountable modular technology and the (patented) ‘QT’ quick termination designs. The CoSMID modular design allows
designers to incorporate more coax lines on a card edge than ever before and the QT assembly eliminates the process of
crimping or soldering onto the centre conductor of the cable.
FAKRA CONNECTORS
In addition to the range of SMB connectors we also offer FAKRA connectors for automotive applications.
For more details on any of the products listed above, please visit www.ittcannon.com.
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
3
Cannon 50 Ohm Connectors
Selection Guide

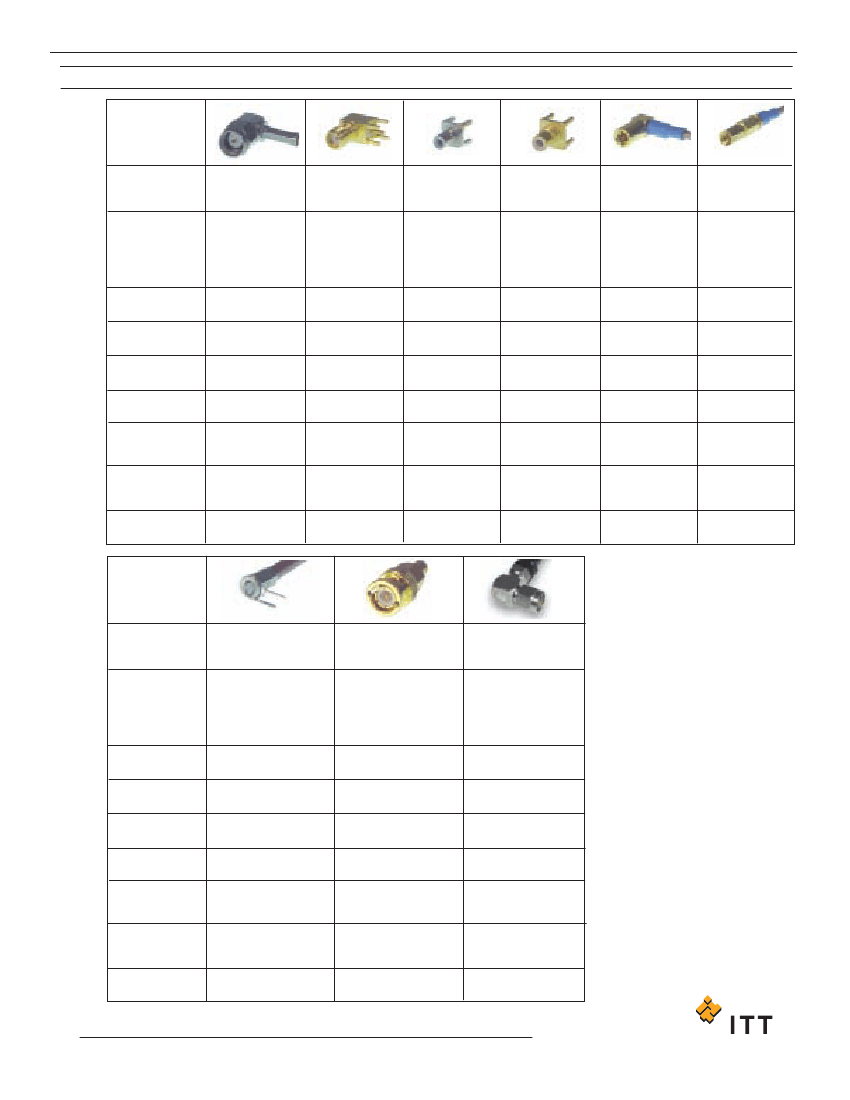

CONNECTOR / CABLE SELECTION GUIDE
Given here are details of all popular cables with which the connectors in this publication may be used.
Cable numbers suitable for use with all cable mounting connectors are given opposite the connector part numbers in the
series chosen.
Cable Number
BT3002
RD179*
RD316*
RG174/U
RG178/U
RG179/U
RG187/U
RG188/U
RG196/U
RG316/U
RG402/U
RG405/U
TZC75024
RG141
RG142
Impedance
(ohms)
75
75
50
50
50
75
75
50
50
50
50
50
75
50
50
Diameter Diameter of Outer Diameter of
Conductor (Max) Dielectric (Max)
of Jacket
2,85 (.112)
1,95 (.077)
3,55 (.140)
2,69 (.106)
1,68 (.066)
3,07 (.121)
2,79 (.101)
1,60 (.063)
3,00 (.118)
2,24 (.088)
1,60 (.063)
2,67 (.105)
1,37 (.054)
0,91 (.036)
1,91 (.075)
2,13 (.084)
1,68 (.066)
2,67 (.105)
2,13 (.084)
1,68 (.066)
2,80 (.110)
2,06 (.081)
1,60 (.063)
2,80 (.110)
1,37 (.054)
0,91 (.036)
2,04 (.080)
2,06 (.081)
1,60 (.063)
2,60 (.102)
3,61 (.142)
3,05 (.120)
-
2,18 (.086)
1,70 (.067)
-
3,01 (.119)
1,95 (.077)
3,55 (.140)
3,71 (.146)
3,07 (.121)
4,95 (.195)
4,34 (.171)
3,07 (.121)
5,08 (.200)
Diameter of Center
Conductor (Nom)
0,31 (.012)
0,30 (.012)
0,51 (.020)
0,48 (.019)
0,30 (.012)
0,30 (.012)
0,30 (.012)
0,51 (.020)
0,30 (.012)
0,51 (.020)
0,91 (.036)
0,51 (.020)
0,31 (.012)
0,99 (.039)
0,99 (.039)
*Double shielded
PART NUMBER GUIDE
This table shows how the part numbers for coaxial connectors are constructed.
TYPICAL PART NUMBER
Product Type
Mating Engagement
Design Series
Connector Configurations
Cable size code or special
modification
Finish / plating code
Packaging or variant code
0 5
0 - 0 0 7 -
0 0 0 0 2 2 0
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
4
