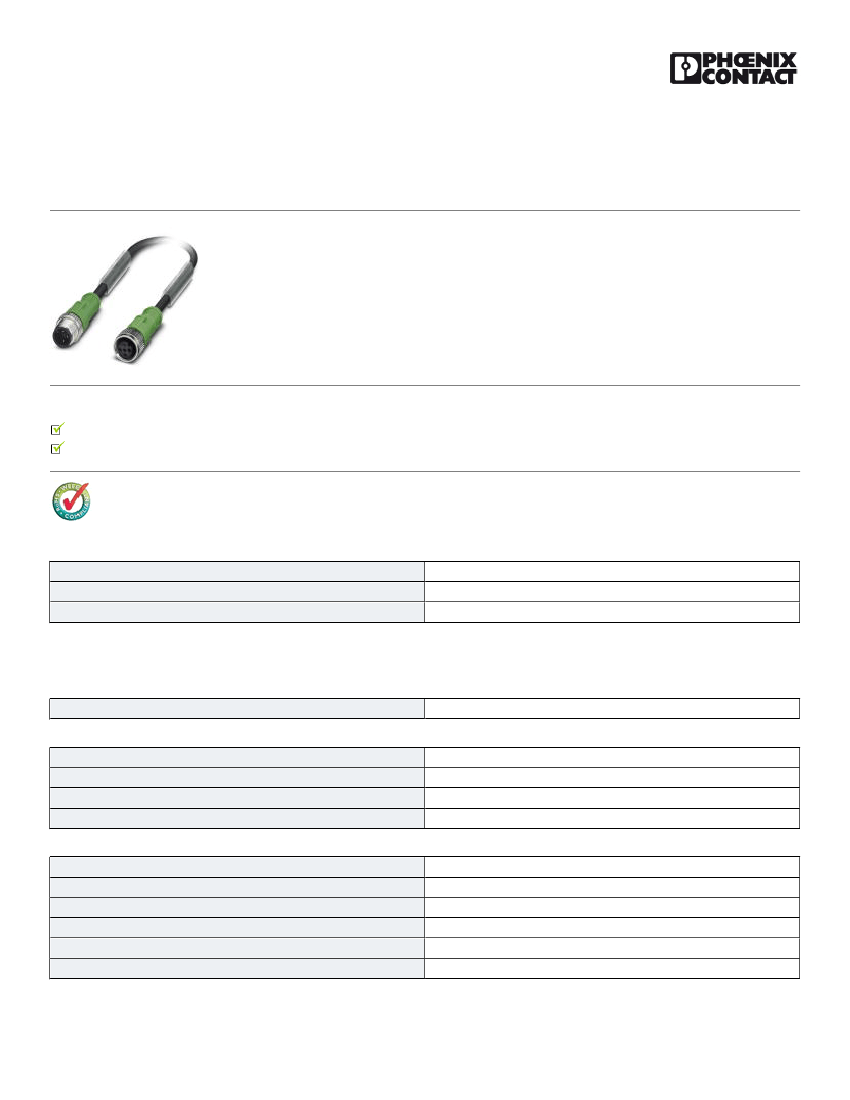

Sensor/Actuator cable - SAC-3P-M12MS/0,3-PVC/M12FS - 1414576
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PVC, Black RAL 9005, Plug straight M12, A-coded, on Socket straight M12, A-
coded, Cable length: 0.3 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 pc
85444290
Germany
Technical data
Dimensions
Length of cable
0.3 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Contact resistance
Insulation resistance
Coding
4A
250 V
3
≤ 5 mΩ
≥ 100 MΩ
A - standard
05/13/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/1414576
Sensor/Actuator cable - SAC-3P-M12MS/0,3-PVC/M12FS - 1414576
Technical data
General
Standards/regulations
Status display
Protective circuit/component
Surge voltage category
Pollution degree
Insertion/withdrawal cycles
M12 connector IEC 61076-2-101
No
Unwired
II
3
≥ 100
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
PVC black
PVC
LiYY
2464 / 1729 (80°C/300 V)
3x 0.34 mm² (signal line)
22
19x 0.15 mm
1.26 mm ±0.05 mm
≥ 0.23 mm (Core insulation)
brown, blue, black
3 wires, twisted
Black RAL 9005
≥ 0.76 mm
4.3 mm ±0.2 mm
5xD
10 x D
40 kg/km
PVC
PVC
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
05/13/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/1414576
Sensor/Actuator cable - SAC-3P-M12MS/0,3-PVC/M12FS - 1414576
Technical data
Cable
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
max. 57 Ω/km (at 20 °C)
≤ 300 V
≥ 2500 V
As per UL-Style 2464
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
27061801
27061801
ETIM
ETIM 5.0
EC001855

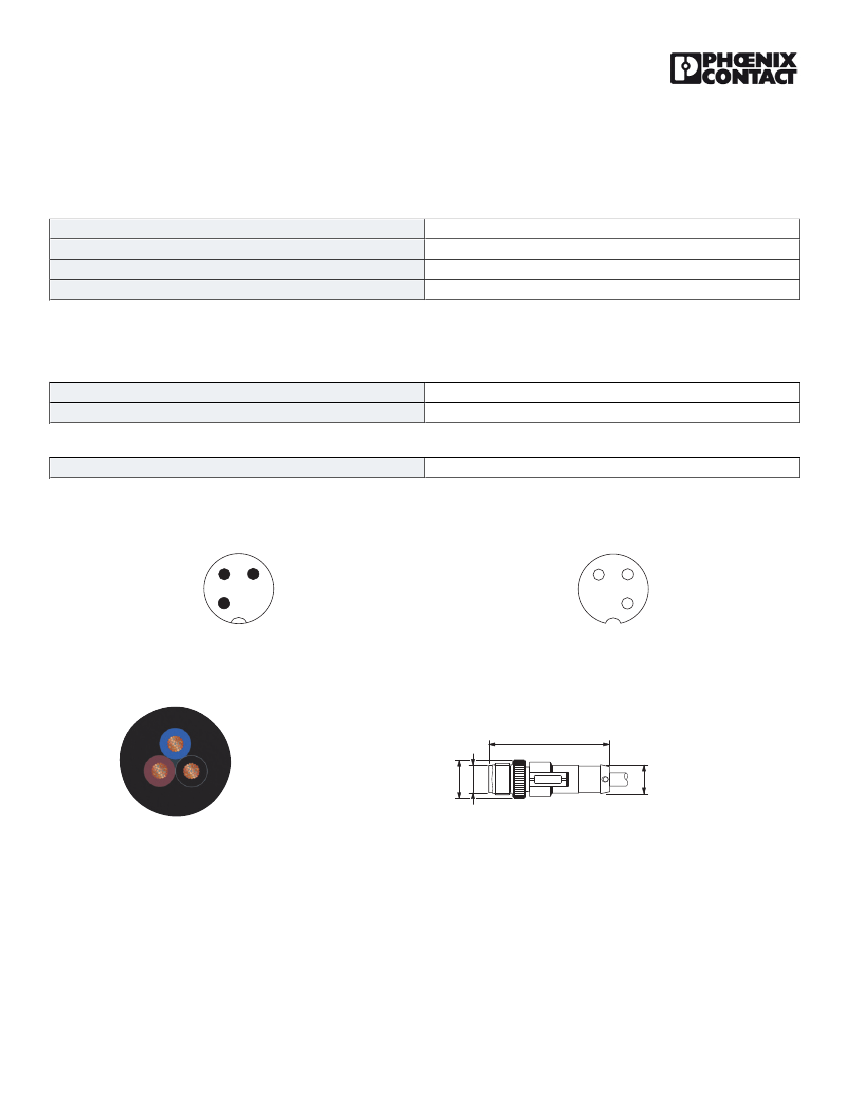

Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
1
Pin assignment M12 plug, 3-pos., A-coded, view male side
Pin assignment socket M 12
Cable cross section
Dimensional drawing
46,8
Ø14,8
PVC black [PVC]
M12 x 1 plug, straight
M12
Ø11
05/13/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/1414576
Sensor/Actuator cable - SAC-3P-M12MS/0,3-PVC/M12FS - 1414576
Dimensional drawing
Circuit diagram
44
1
1
4
3
Ø14,8
Ø11
M12
4
3
M12 x 1 socket, straight
Contact assignment of the M12 plug and the M12 socket
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
05/13/2015 Page 4 / 4
