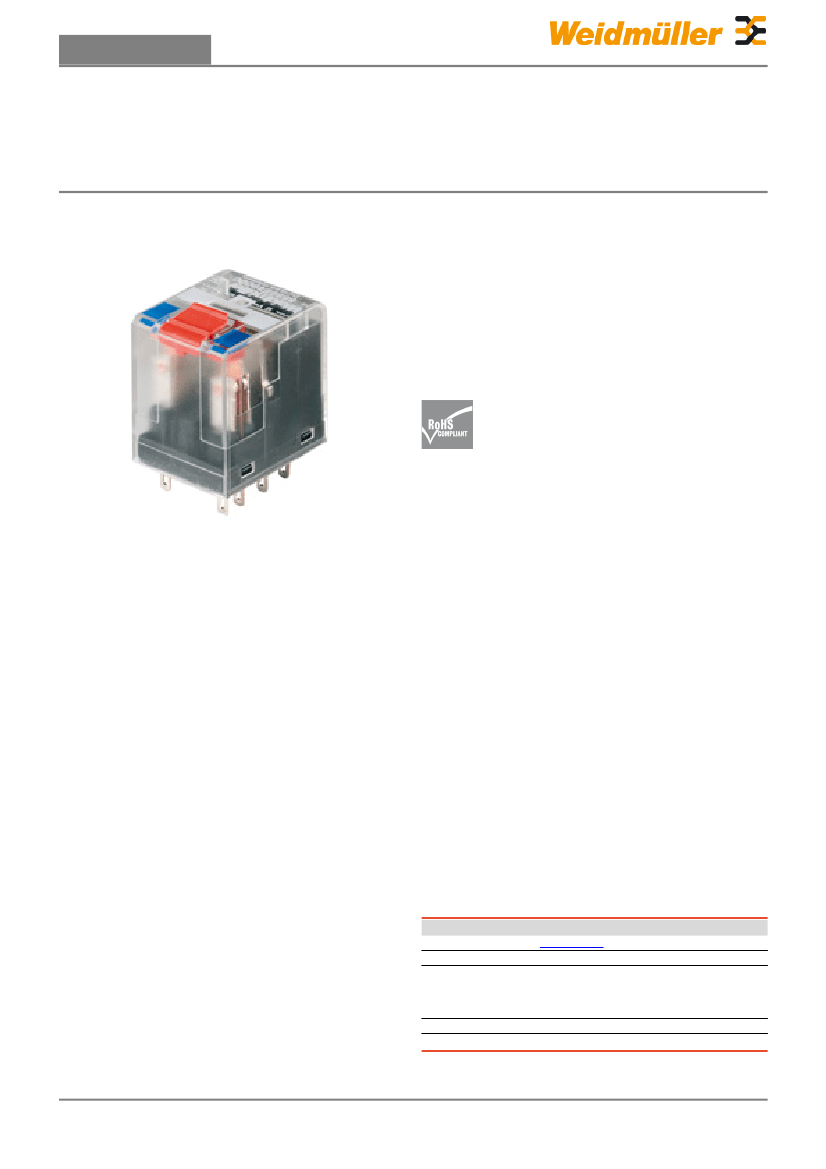

Standard relays in the RIDERSERIES RCM
• 2 CO contacts
• Optionally AC or DC coils
• with test button
• Comes optionally with integrated status display
and/or free-wheel diode
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8689770000
RCM270R24
RIDERSERIES, Relais, No. of contacts: 2, CO
contact with test button, AgNi 90/10, Rated
control voltage: 24 V AC, Continuous current: 12
A, Plug-in connection
4032248360444
10 pc(s).
Creation date March 11, 2013 4:54:57 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
RIDERSERIES
RCM270R24
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Humidity
Ratings
Conductor connection system
UL 94 flammability rating
Plug-in connection
V-0
40 °C / 93 % rel. humidity,
no condensation
Dimensions and weights
Width
Depth
22.5 mm
29 mm
Height
Net weight
28 mm
30 g
Temperatures
Operating temperature
-40 °C...+70 °C
Storage temperature
-40 °C...+85 °C
Input
Rated control voltage
Coil resistance
Response / drop-out voltage AC coil
24 V AC
192 Ω ±10 %
38.4 V / 14.4 V
Rated current AC
Power rating
Status indicator
41.6 mA
1.0 VA
red LED
Output
Rated switching voltage
Continuous current
Max. switching power
Min. switching power
240 V AC
12 A
3000 VA
100 mA / 5 V, 10 V / 10
mA, 24 V / 1 mA
Max. switching voltage, AC
400 V
making current
24 A / 20 ms
Response time
15 ms / 10 ms
Max. switching frequency at rated load
0.1 Hz
Contact specifications
No. of contacts
2
AgNi 90/10
Contact design
Mechanical service life
CO contact with test
button
Contact material
AC coil 20 x 10
6
Switching
cycles, DC coil 30 x 10
6
Switching cycles
Insulation coordination
Rated voltage
250 V
Clearance and creepage distances for
control side - load side
Impulse withstand voltage
Insulating material group
≥ 4 mm
5 kV (1.2/50 µs)
IIIa
Dielectric strength for control side - load
2.5 KV
eff
/ 1 min.
side
Protection degree
IP 20
Other technical data
Version
with LED
Status indicator
red LED
Further details of approvals / standards
Standards
IEC 61810-1, UL508
Creation date March 11, 2013 4:54:57 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
RIDERSERIES
RCM270R24
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC001437
30-21-19-17
27-37-16-01
27-37-16-01
ETIM 3.0
eClass 4.1
eClass 6.0
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.0
EC001437
40-02-06-14
27-37-16-01
Approvals
Approvals
Downloads
Declaration of Conformity
K295_12_10.pdf
Creation date March 11, 2013 4:54:57 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
3
Data sheet...
RIDERSERIES
RCM270R24
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

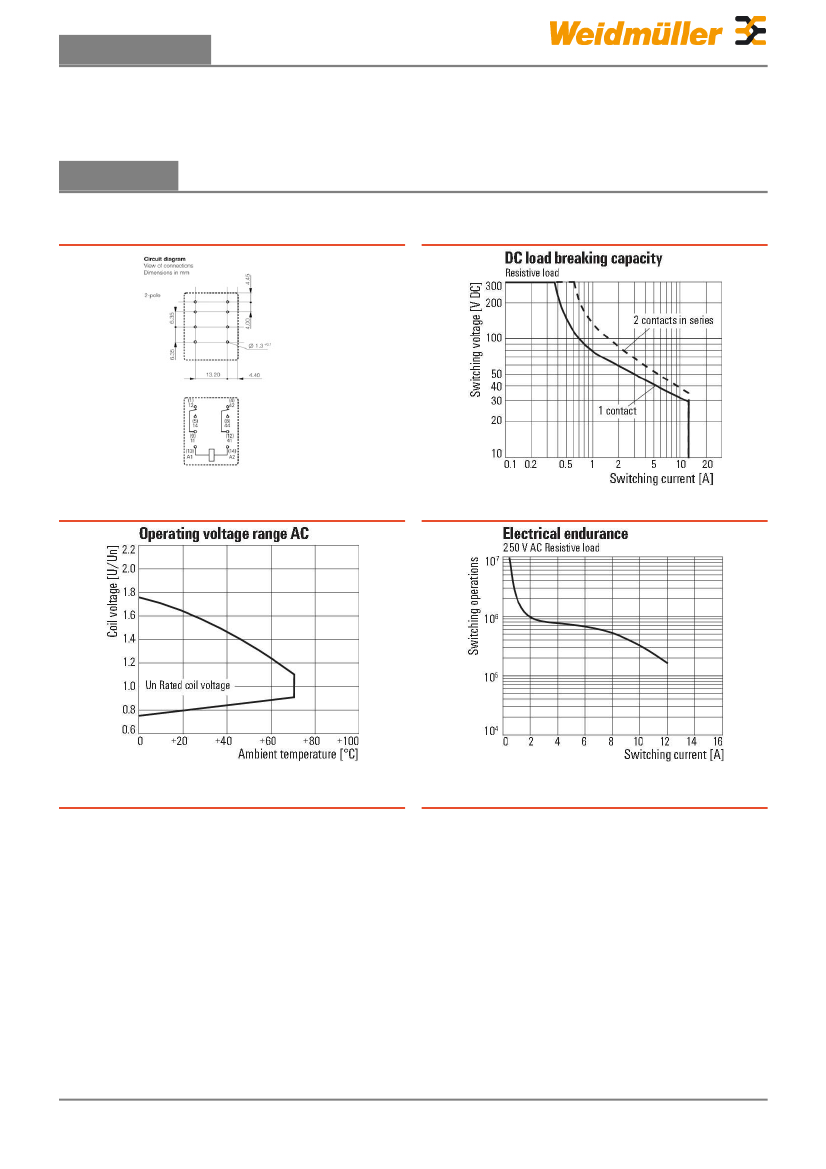

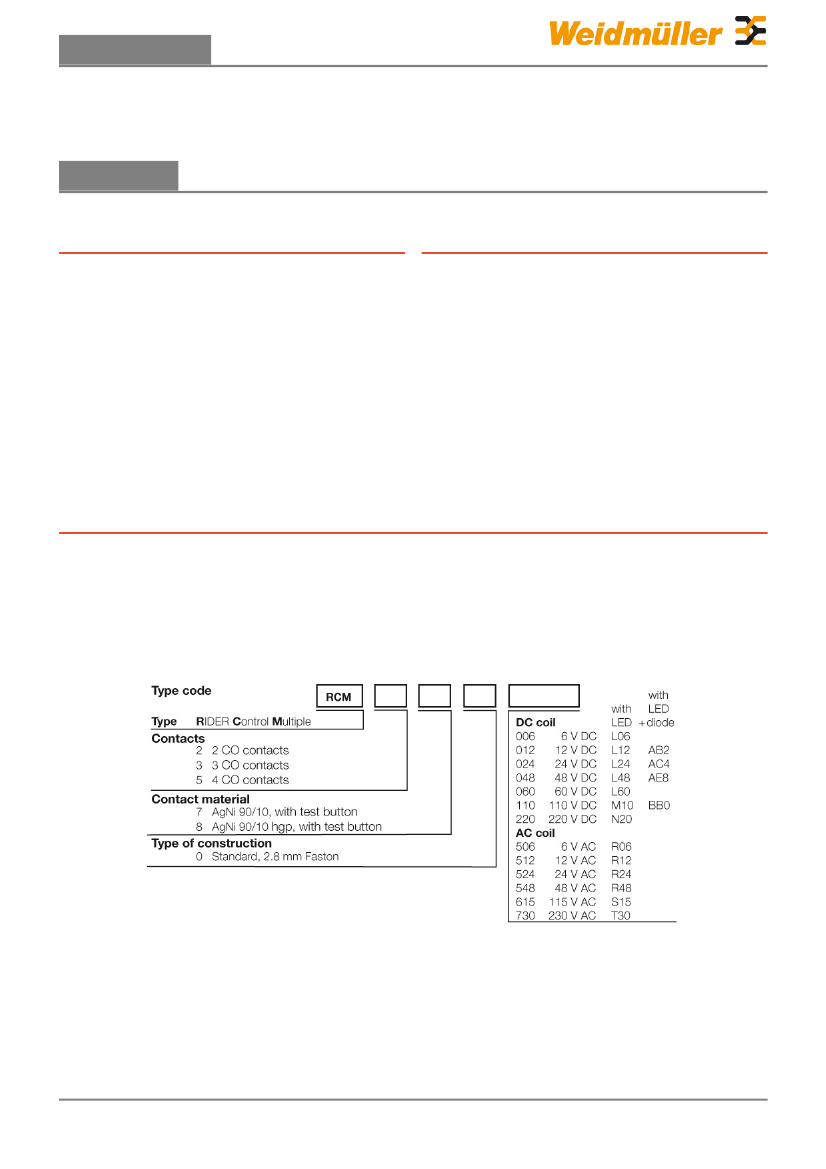

Drawings
