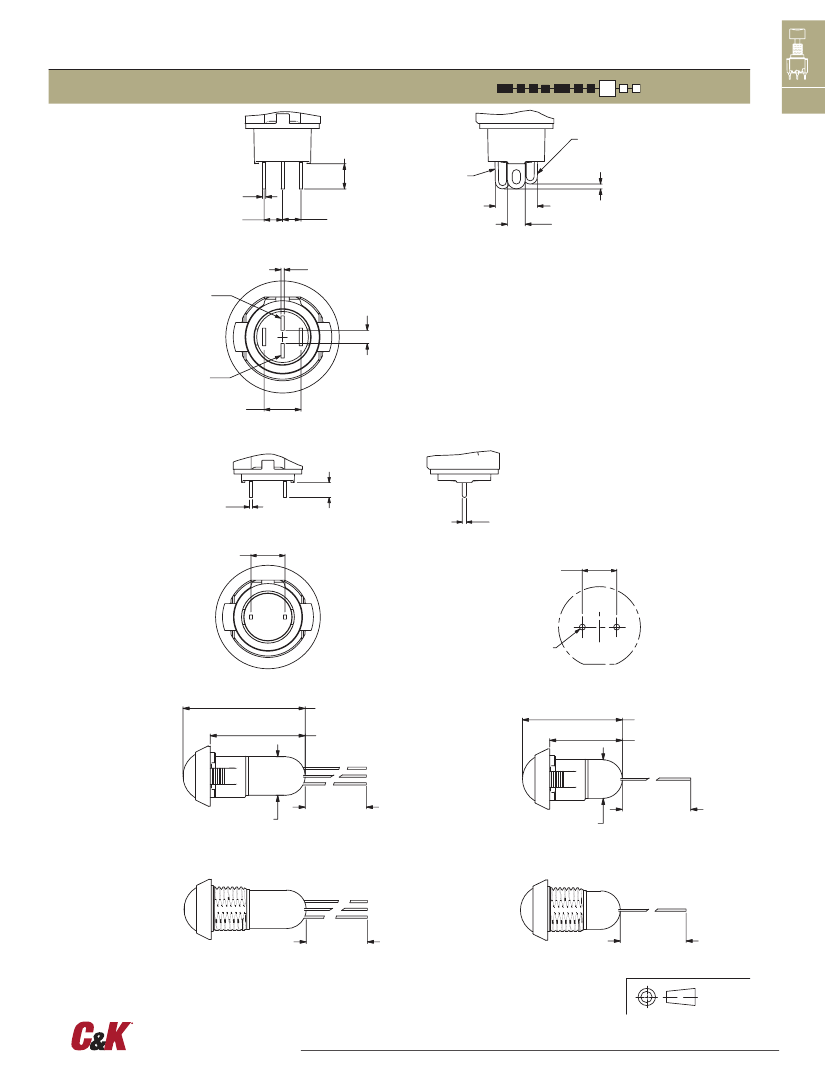

AP Series
Industrial Pushbutton Switch
A
Pushbutton
Features/Benefits
•
IP67 sealed
•
1,000,000 life cycle
•
Illumination / non-illumination
•
Multiple colored caps
•
Threaded or snap-in mounting
•
Caps available separately
•
RoHS compliant
Specifications
Typical Applications
•
Harsh environments
•
Off-Road
•
Industrial
•
Medical
•
Transportation
•
Joystick control modules
•
Gaming
•
Military
Materials
HOUSING: PBT
BASE: PBT
CAP: PBT
ACTUATOR:
Illuminated: Clear polycarbonate
Non-illuminated: PBT
INTERNAL SEAL: Silicone rubber
TERMINALS: Copper alloy, gold over silver plating
MOVABLE CONTACT: Copper alloy, gold over silver plating
TERMINAL SEAL: Epoxy
WIRE LEADS: UL1569 Black 22 AWG
FUNCTION: SPST Momentary
CONTACT ARRANGEMENT: N.O.
MOUNTING TYPE:
Snap-in (no panel seal)
Threaded body (hex nut, lock washer, and panel seal gasket provided)
Torque spec for threaded body: Do not exceed 8-9 in-lbs (0.9-1.0 N.m)
Mechanical
OPERATING LIFE: 1,000,000 cycles
TOTAL TRAVEL: 2.1 ± 0.2 mm
OPERATING POINT 1.55 ± 0.25 mm
OVER TRAVEL: 0.6 min.
OPERATING FORCE: 4N ± 1N standard configuration; other force
option 2N ± 0.5N
VIBRATION: 10-500 Hz 10g Max
SHOCK: 60g 11ms sawtooth wave
CONTACT RATING:
200mA @ 24 V DC resistive (500,000 cycles)
100mA @ 50 V DC resistive (500,000 cycles)
400mA @ 32 V AC resistive (500,000 cycles)
125mA @ 125 V AC resistive (1,000,000 cycles)
DIELECTRIC STRENGTH: 1000 V AC min.
INSULATION RESISTANCE: 1 G Ω @ 500 VDC
INITIAL CONTACT RESISTANCE 50 mΩ max (without wire leads)
BOUNCE TIME: <5 ms
Operating Environment
OPERATING TEMPERATURE: -40˚C to 85˚C (+105˚C non-illuminated)
ESD PROTECTION: 20 KV min.
Electrical
Process Environment
SEALING: IP67 for threaded body
IP65 for snap-in version (no panel seal)
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.

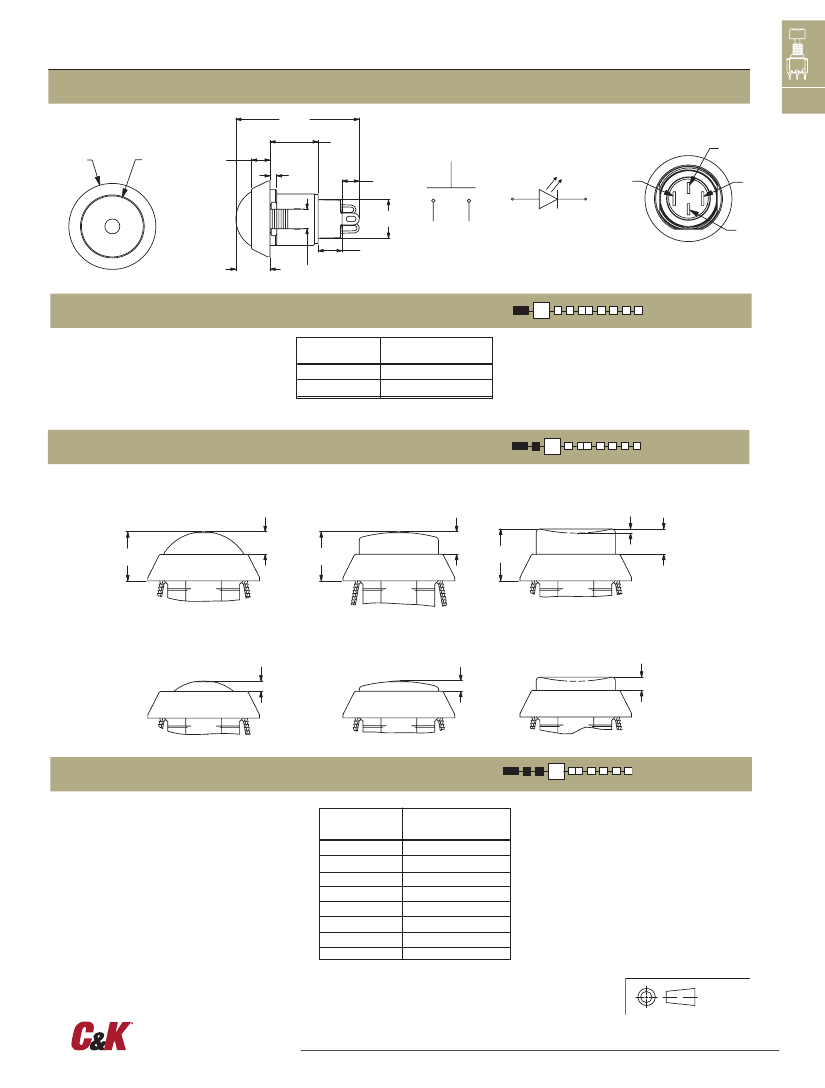

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box.
A
Designation
AP
AP Series
Operating Force
2
2 Newtons
4
4 Newtons
Actuator Style
D
Dome / Convex
C
Concave
E
Extended Dome
N
None
Actuator Color
No Cap
0
2
Black
3
Red
4
Orange
5
Yellow
6
Green
7
Blue
9
Gray
Illumination
00
No LED*
Super White
01
02
Bi-color; Red (Green)
03
Red
05
Amber
06
Green
07
Super Blue
08
Bi-color; Amber (Green)
* No LED available in short body only
Specifications and dimensions subject to change
P
B
E
Terminal Seal
E
Epoxy
All models are epoxy sealed
Contact Material
B
Gold
Termination
Z
Solder Lug
W
12” Wire Leads 22 AWG
C***
PC Terminals
Bushing Style**
S**
Snap-in plastic
Threaded plastic
T
**
***
No panel seal option
PC terminals not available with illumination
Please contact Customer
Service for additional
colors and paint / laser
etched button options.
Contact Customer Service for additional hardware options.
A-108
www.ckswitches.com
AP Series
Industrial Pushbutton Switch
A
ILLUMINATION
OPTION
CODE
ILLUMINATION
TYPE
TYPICAL INTENSITY*
MIN
MAX
(mcd)
00
01
02
03
05
06
07
08
Model without illumination
LED Super White
LED Bi-Color – Red (Green)
LED Red
LED Amber
LED Green
LED Super Blue
LED Bi-Color – Amber (Green)
4,000
10
4
35
35
800
10
N/A
5,000
20
8
50
50
1,500
10
PEAK
WAVELENGTH
(nm)
N/A
N/A
635/565
700
610
565
470
585/565
3.5
2.0
2.0
2.0
2.0
3.8
2.0
Vf Forward Voltage
Pushbutton
*LED FORWARD CURRENT: 20 mA
LED FORWARD VOLTAGE: see chart above
LED REVERSE VOLTAGE: 5.0 V MAX
* For information on specific and custom LED, please contact Customer Service.
+ Anode
NOTE:
For bi-color LED’s the polarity must be reversed to alternate the color
- Cathode
4
3
BUSHING STYLE
S
SNAP-IN
28,00
[ 1.102 ]
7,74
[ 0.305 ]
20,25
[ 0.797 ]
7,75
[ 0.305 ]
24,00
[ 0.945 ]
16,25
[ 0.640 ]
SNAP-IN
WITH ILLUMINATION
1,50
[ 0.059 ]
SNAP-IN
NO ILLUMINATION
1,50
[ 0.059 ]
T
THREADED PLASTIC
M13 X 1.25-6g
M13 X 1.25-6g
THREADED WITH
ILLUMINATION
0,85
[ 0.033 ]
THREADED
NO ILLUMINATION
0,85
[ 0.033 ]
PANEL CUTOUT
øA
B
PANEL THICKNESS
1 mm
[0.039 in]
2 mm
[0.079 in]
3 mm
[0.118 in]
THREADED BODY
MIN PANEL THICKNESS 1 mm
DIM A (± 0.05 mm)
13.70 mm
[0.539 in]
13.80 mm
[0.539 in]
13.90 mm
[0.547 in]
13.70 mm
[0.539 in]
DIM B (± 0.05 mm)
13.00 mm
[0.512 in]
13.00 mm
[0.512 in]
13.10 mm
[0.516 in]
13.00 mm
[0.512 in]
Third Angle
Projection
A 0.1mm min. chamfer on the leading edge of the mounting hole is recommended for snap-in version.
Dimensions are shown: mm (inches)
Specifications and dimensions subject to change
A-110
www.ckswitches.com
AP Series
Industrial Pushbutton Switch
TERMINATION
Z
SOLDER LUG
3,90
[0.154]
LED TERMINAL
ANODE (+)
0,50 TYP
[0.020]
2,83 TYP
[0.111]
2,83 TYP
[0.111]
LED TERMINAL
CATHODE (-)
0,75 TYP
[0.030]
A
Pushbutton
6,44 TYP
[0.254]
2,75
[0.108]
0,50 TYP
[0.020]
LED TERMINAL
ANODE (+)
2,04 TYP
[0.080]
* Switching terminals are gold and LED terminals are silver
LED TERMINAL
CATHODE (-)
5,65 TYP
[0.222]
PC TERMINALS
C
***
Illumination not available with PC Terminals
2,50 TYP
[0.098]
0,50
[0.020]
0,70
[0.028]
5,65 TYP
[0.222]
5,70
[0.224]
2X ø 1,00
[0.039]
PCB HOLE PATTERN
BOARD VIEW
W
12” WIRE LEADS 22 AWG
34,78 TYP
[1.369]
27,04 TYP
[1.065]
28,44 TYP
[1.120]
20,69 TYP
[0.815]
WIRE LEADS WITH
POTTED BASE,
SNAP-IN
NO ILLUMINATION
WIRE LEADS WITH
POTTED BASE,
SNAP-IN
ILLUMINATION
ø 11,11
[0.437]
304,81
[12.000]
WIRELEADS
22 AWG STD
ø 11,11
[0.437]
304,81
[12.000]
WIRELEADS
22 AWG STD
WIRE LEADS WITH
POTTED BASE,
THREADED
ILLUMINATION
304,81
[12.000]
WIRELEADS
22 AWG STD
WIRE LEADS WITH
POTTED BASE,
THREADED
NO ILLUMINATION
304,81
[12.000]
WIRELEADS
22 AWG STD
Third Angle
Projection
Wires: Black wires - Terminals
Red wires - LED (+) Positive
White wire - LED (-) Negative
Dimensions are shown: mm (inches
Specifications and dimensions subject to change
A-111
www.ckswitches.com
