RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
TVS
1.5FMCJ
SERIES
SURFACE MOUNT
TRANSIENT VOLTAGE SUPPRESSOR
1500 WATT PEAK POWER 5.0 WATT STEADY STATE
FEATURES
*
*
*
*
*
*
Plastic package has underwriters laboratory
Glass passivated chip construction
1500 watt surage capability at 1ms
Excellent clamping capability
Low zener impedance
Fast response time
DO-214AB

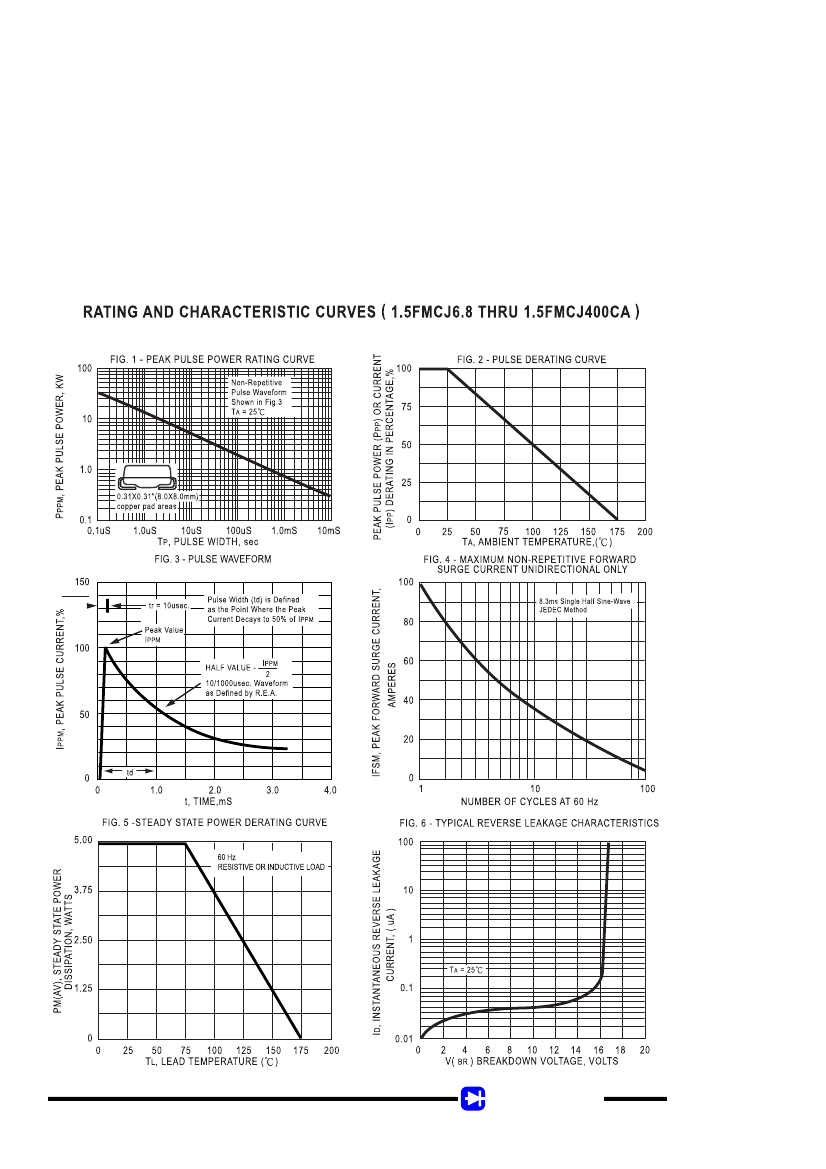

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Dimensions in inches and (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix for types 1.5FMCJ6.8 thru 1.5FMCJ400
Electrical characteristics apply in both direction
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Peak Power Dissipation with a 10/1000uS ( Note 1,2, Fig.1 )
Peak Pulse Current with a 10/1000uS Waveform
( Note 1, Fig.3 )
Steady State Power Dissipation at T
L
= 75
o
C ( Note 2 )
Peak Forward Surge Current, 8.3ms single half sine wave-
superimmposed on rated load( JEDEC METHOD )( Note 2,3 )
Maximum Instantaneous Forward Voltage at 50A for unidirectional only
( Note 3,4 )
Operating and Storage Temperature Range
V
F
T
J
, T
STG
SEE NOTES 4
-65 to + 175
Volts
0
SYMBOL
P
PPM
I
PPM
P
M(AV)
I
FSM
VALUE
Minimum 1500
SEE TABLE 1
5.0
100
UNITS
Watts
Amps
Watts
Amps
C
1998-8
NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25
o
C per Fig.2.
2. Mounted on 0.31 X 0.31” (8.0 X 8.0mm) copper pads to each terminal.
3. Measured on 8.3mS single half sine-wave or equivaient square wave, duty cycle = 4 pulses per minute maximum.
4. V
F
= 3.5V on 1.5FMCJ6.8 thru 1.5FMCJ90 diveces and VF = 5.0V on 1.5FMCJ100 thru 1.5FMCJ400 devices.
