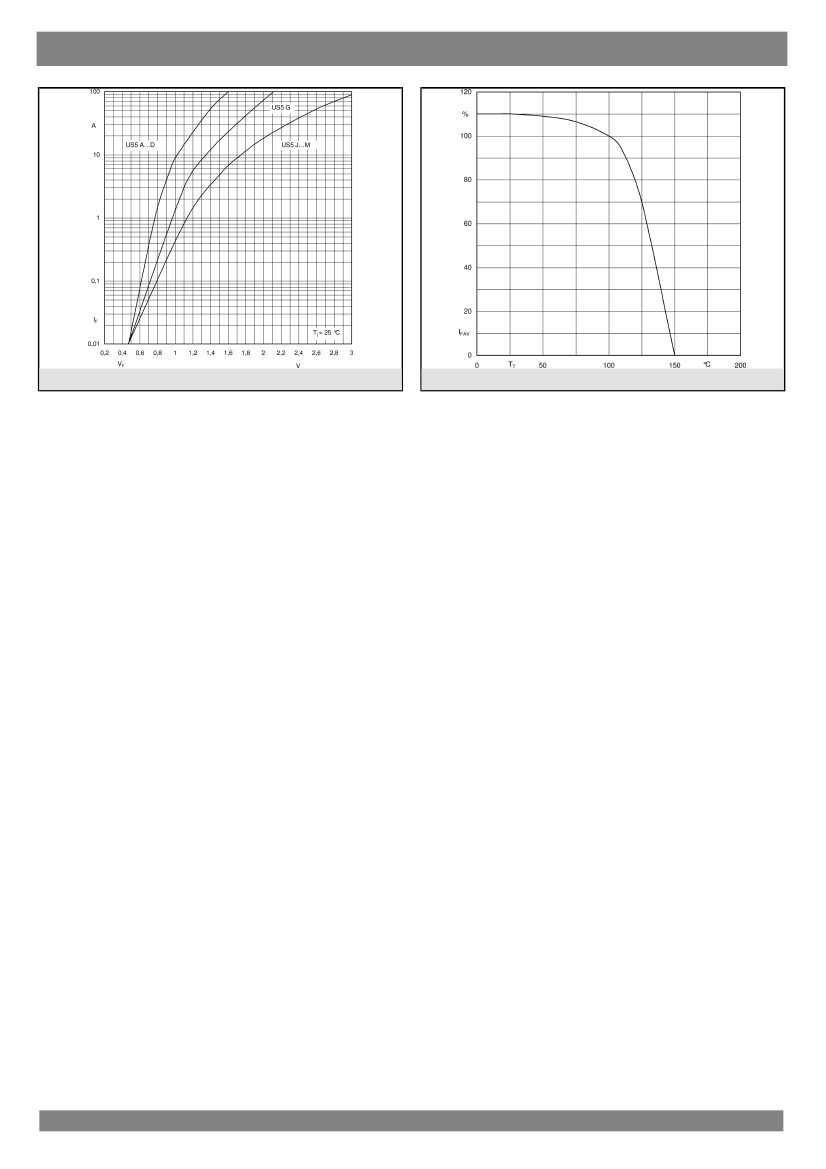

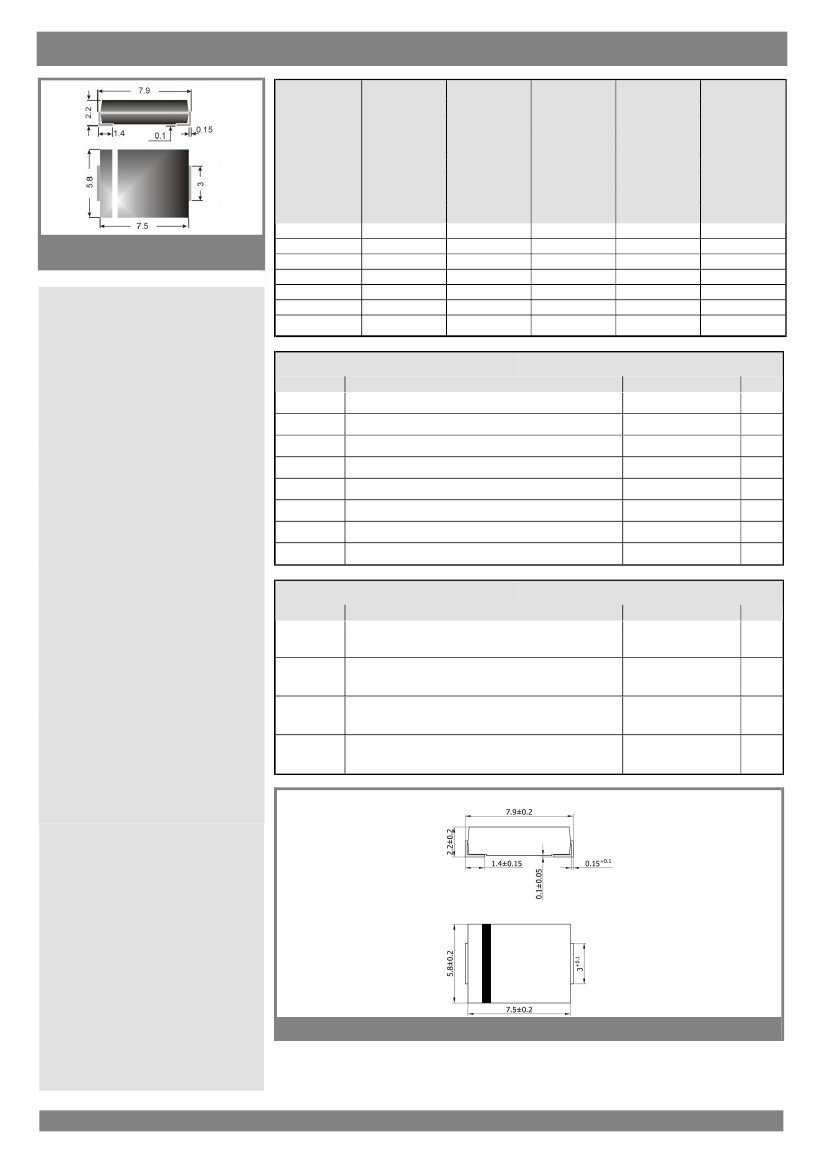

Ultrafast silicon rectifier diodes
| Parameter Name | Attribute value |
| Parts packaging code | DO-214AB |
| package instruction | R-PDSO-C2 |
| Contacts | 2 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| application | ULTRA FAST RECOVERY |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | DO-214AB |
| JESD-30 code | R-PDSO-C2 |
| Maximum non-repetitive peak forward current | 150 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -50 °C |
| Maximum output current | 5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| Maximum reverse recovery time | 0.1 µs |
| surface mount | YES |
| Terminal form | C BEND |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| US5K | US5A | US5B | US5D | US5G | US5J | US5M | |
|---|---|---|---|---|---|---|---|
| Description | Ultrafast silicon rectifier diodes | Ultrafast silicon rectifier diodes | Ultrafast silicon rectifier diodes | Ultrafast silicon rectifier diodes | Ultrafast silicon rectifier diodes | Ultrafast silicon rectifier diodes | Ultrafast silicon rectifier diodes |
| Parts packaging code | DO-214AB | DO-214AB | DO-214AB | DO-214AB | DO-214AB | DO-214AB | DO-214AB |
| package instruction | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 |
| Contacts | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow | unknow | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-214AB | DO-214AB | DO-214AB | DO-214AB | DO-214AB | DO-214AB | DO-214AB |
| JESD-30 code | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 |
| Maximum non-repetitive peak forward current | 150 A | 150 A | 150 A | 150 A | 150 A | 150 A | 150 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C |
| Maximum output current | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V | 50 V | 100 V | 200 V | 400 V | 600 V | 1000 V |
| Maximum reverse recovery time | 0.1 µs | 0.075 µs | 0.075 µs | 0.075 µs | 0.075 µs | 0.1 µs | 0.1 µs |
| surface mount | YES | YES | YES | YES | YES | YES | YES |
| Terminal form | C BEND | C BEND | C BEND | C BEND | C BEND | C BEND | C BEND |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | - | - | 1 | 1 | 1 | - |
