Data sheet...
Industrial Ethernet
IE-C5ES8UG0100A46A46-X
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

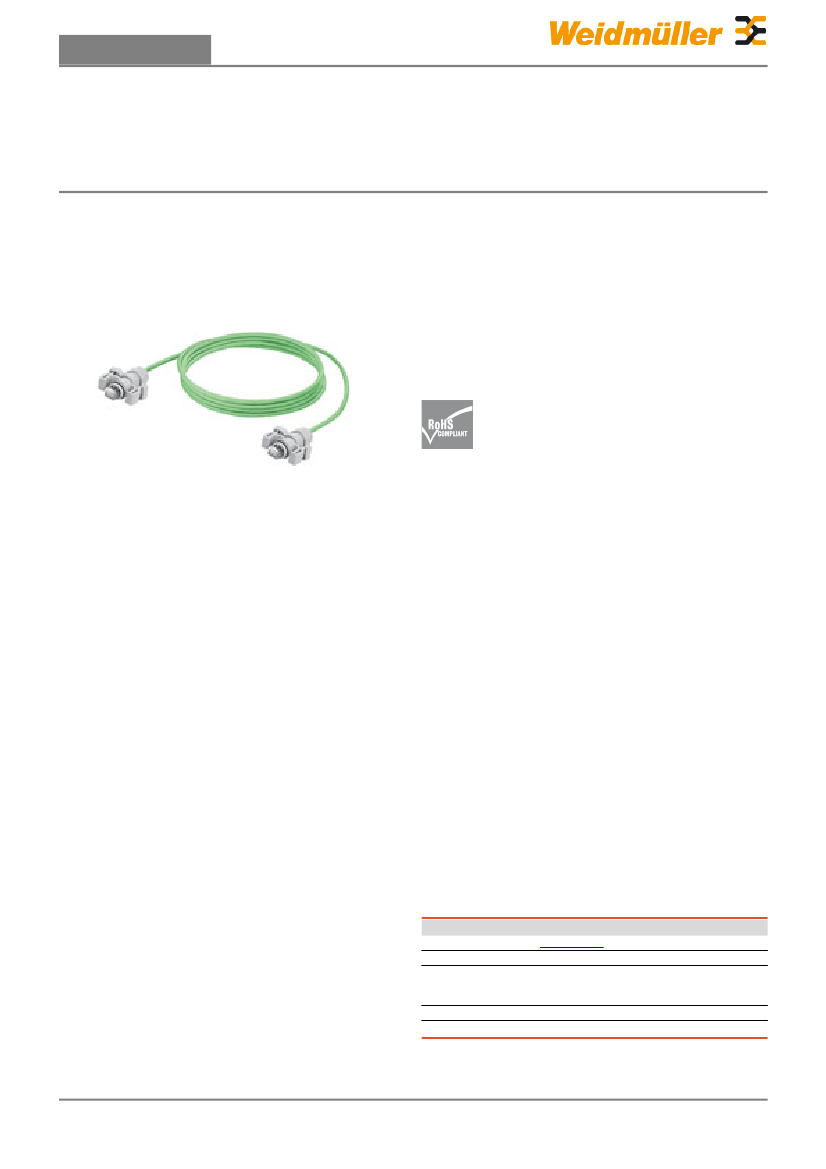

Assembled IE cables, SnapIn connectors according to IEC
61076-3-106 ver.6, Cat. 5, PUR, green
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8829670000
IE-C5ES8UG0100A46A46-X
System cable, RJ45 IP 67 snap-in V06 plastic,
RJ45 IP 67 V 06, Cat.5 (ISO/IEC 11801) / Cat.5e
(TIA T568-B), PUR, 10 m
4032248534166
1 pc(s).
Creation date April 29, 2013 9:02:12 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
1
Data sheet...
Industrial Ethernet
IE-C5ES8UG0100A46A46-X
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
10 m
Net weight
Dimensions and weights
Length
422 g
Temperatures
Operating temperature
Installation temperature
-40 °C...+80 °C
-10 °C...+60 °C
Storage temperature
-40 °C...+80 °C
Standards
Corrosiveness of fumes
Connector standard
to IEC 60754-2
IEC 60603-7-51
Generic communication cable facilities ISO / IEC 11801:2002, EN
50173-1:2007
Standard, assembly
UL-Style 20963
(80°C/30V)
Cable structure
Wire material
Strands
Insulation
No. of wires
Colour sequence or wires - wire pairs
Complete shielding
Material sheath
Sheath diameter, max.
Stranded tin-plated copper
wire
7
PE
8
white - blue, white -
orange, white - green,
white - brown
Aluminium foil, Shielding
braid made from copper
wiring
PUR
6.1 mm
Standard designations
Cross-section
Insulation cross-section
Arrangement of wire cores
Shielding
Shielding braid thickness
Sheath diameter, min.
Sheathing colour
LI02YS(ST)C11Y
4x2x0.15-100 GN NC, SF/
UTP
4*2*AWG 26/7 -
4*2*0.128 mm²
1 mm
Twisted pair
SF/UTP
0.1 mm
5.7 mm
green (RAL 6018)
Electrical properties of cable
Category
Cat.5 (ISO/IEC 11801) /
Cat.5e (TIA T568-B)
100 ± 5 Ω at 100MHz
25 ns/100m
4.85 ns/m
Test voltage: wire-wire-shield, at RMS
50Hz, 1 min.
Loop resistance
Capacity at 1 kHz
700 V
290 Ω/km
50 nF/km
Characteristic impedance
Deviation
Signal propagation time
Mechanical and material properties of cable
Min. bending radius, once only
Abrasion resistance
Resistance to oils
Silicone-free
Corrosiveness of fumes
5 *diameter
very good
in accordance with IEC
60811-2-1
Yes
to IEC 60754-2
Min. bending radius, repetitive
Resistance to spread of flame
UV-resistant
Halogen
10 *diameter
in accordance with IEC
60332-1
Yes
in accordance with IEC
60754-2
plug
Version connector left
RJ45 IP 67 snap-in V06
plastic
Version connector right
RJ45 IP 67 V 06
Creation date April 29, 2013 9:02:12 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
2
Data sheet...
Industrial Ethernet
IE-C5ES8UG0100A46A46-X
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC001262
26-12-16-06
27-06-18-02
27-06-18-01
ETIM 3.0
eClass 4.1
eClass 6.2
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.1
EC001262
27-06-08-05
27-06-18-01
Approvals
Approvals
ROHS
Conform
Creation date April 29, 2013 9:02:12 PM CEST
