822B026-203R001 datasheet, PDF

Datasheet> All Categories > The connector> 822B026-203R001

822B026-203R001: DescriptionCONN RCPT FMALE 26POS SOLDER CUP; CategoryThe connector; File Size115KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric Compare View All

822B026-203R001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	822B026-203R001	-	-	View	Buy Now

822B026-203R001 Overview

CONN RCPT FMALE 26POS SOLDER CUP

822B026-203R001 Parametric

Parameter Name	Attribute value
Connector type	socket, female socket
Number of pins	26
Housing Dimensions - Plug-in	-
Housing size, MIL	-
Installation type	Panel mount, bulkhead style (front nut)
Termination	solder cup
Fastening type	push-pull
towards	Marked
Intrusion protection	IP50 - Dustproof
Housing material, plating	Brass, nickel plated
Contact plating	gold
characteristic	shield
Rated current	-
Voltage - Rated	315V
Contact plating thickness	7.00µin（0.178µm）
Operating temperature	-40°C ~ 200°C

Preview

Download Datasheet

View All

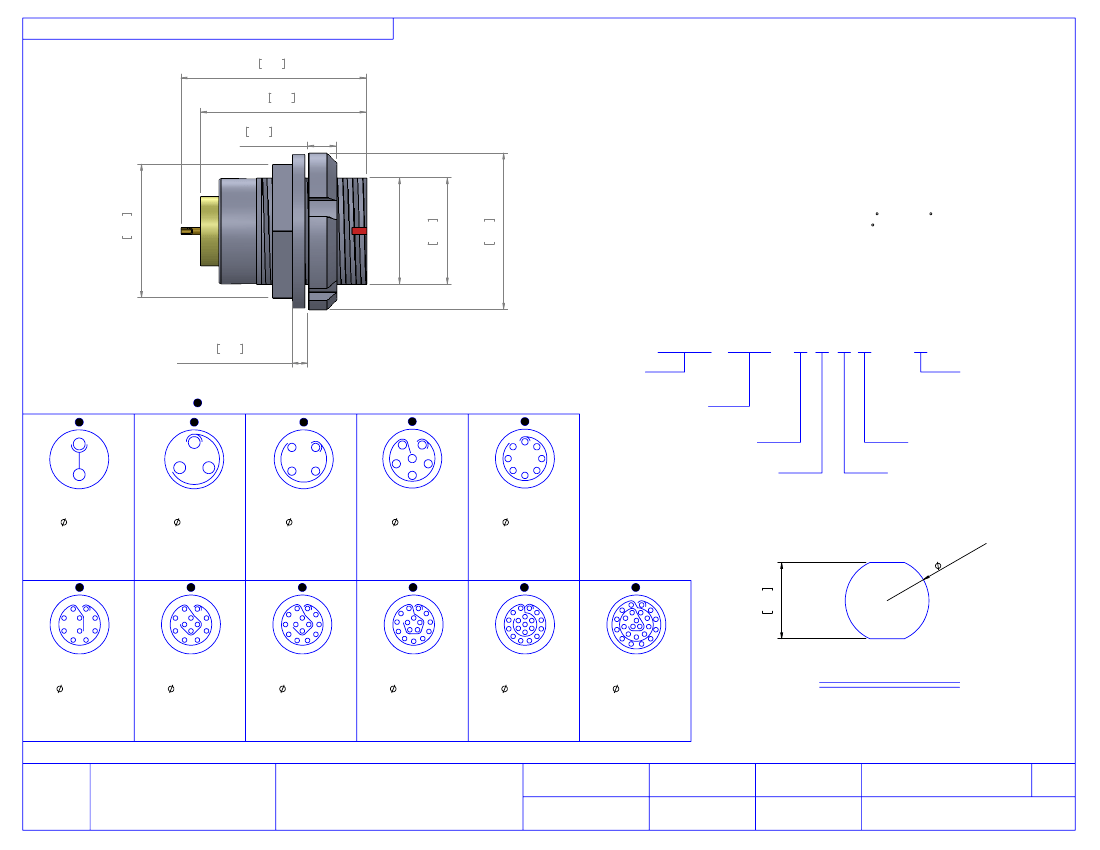

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - PANEL MOUNT

0.976

24.80

0.787

20.00

0.138

3.50

UNITS = MM [INCHES]

CHARACTERISSTICS

MATERIALS

SHELL : BRASS

SHELL PLATING : NICKEL

NUT : BRASS

NUT PLATING : NICKEL

LATCH SLEEVE : BRASS

LATCH SLEEVE PLATING : NICKEL

CONTACTS : COPPER ALLOY

CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.

INSULATOR : PPS (HIGH TEMPERATURE)

MECHANICAL

DURABILITY: 5000 CYCLES

OPERATING TEMP. RANGE: -40 C ~ +200 C

PROCESS TEMPERATURE : 260 C FOR 5 SECONDS

MAX. TORQUE VALUE : 6.0 Nm [53 IN/lbs]

SHIELDING: 75dB @ 10MHz

40dB @ 1GHz

IP RATING: 50

0.531

13.50

(ACROSS FLATS)

0.669

17.00

M15*1.0

0.787

20.00

0.256

6.50

(MAX. PANEL THICKNESS)

822B YYY - 2 0 3 R 00 1

**VIEW FROM TERMINATION END**

CHART A

SERIES

15.00 [0.591]

# OF POSITIONS

(Ex. 002)

**SEE CHART A**

2 = FEMALE

SOLDER CUP (PANEL MOUNT)

1 = GOLD FLASH

= KEY LOCATION

RoHS COMPLIANT

NICKEL/CHROME PLATED SHELL

2 POSITION

14 AWG MAX.

30 AMP MAX.

= 2.00 [0.079]

CONTACT

RESISTANCE

= 3 mΩ

TEST VOLTAGE

= 2100V

WORKING VOLTAGE

= 700V

3 POSITION

18 AWG MAX.

17 AMP MAX.

= 1.60 [0.063]

CONTACT

RESISTANCE

= 4 mΩ

TEST VOLTAGE

= 2400V

WORKING VOLTAGE

= 800V

4 POSITION

20 AWG MAX.

15 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 mΩ

TEST VOLTAGE

= 1850V

WORKING VOLTAGE

= 610V

6 POSITION

20 AWG MAX.

12 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 mΩ

TEST VOLTAGE

= 1350V

WORKING VOLTAGE

= 450V

8 POSITION

22 AWG MAX.

10 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1500V

WORKING VOLTAGE

= 500V

0.535

13.60

10 POSITION

22 AWG MAX.

8 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1450V

WORKING VOLTAGE

= 500V

12 POSITION

24 AWG MAX.

7 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 1250V

WORKING VOLTAGE

= 480V

14 POSITION

24 AWG MAX.

6.5 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 1150V

WORKING VOLTAGE

= 380V

16 POSITION

24 AWG MAX.

6 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 950V

WORKING VOLTAGE

= 315V

19 POSITION

24 AWG MAX.

5 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 850V

WORKING VOLTAGE

= 280V

26 POSITION

28 AWG MAX.

2 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 mΩ

TEST VOLTAGE

= 950V

WORKING VOLTAGE

= 315V

PANEL CUTOUT

TOLERANCE = +0.10, -0.0

[+0.004, -0.00]

RoHS COMPLIANT

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF NorComp AND

SHALL NOT BE REPRODUCED, COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

NorComp

DRAWN:

M. SIGMON

DATE:

02-05-16

SCALE:

N.T.S.

SHEET

REV:

CHECKED:

DATE:

DWG NO.

822BYYY-203R001
