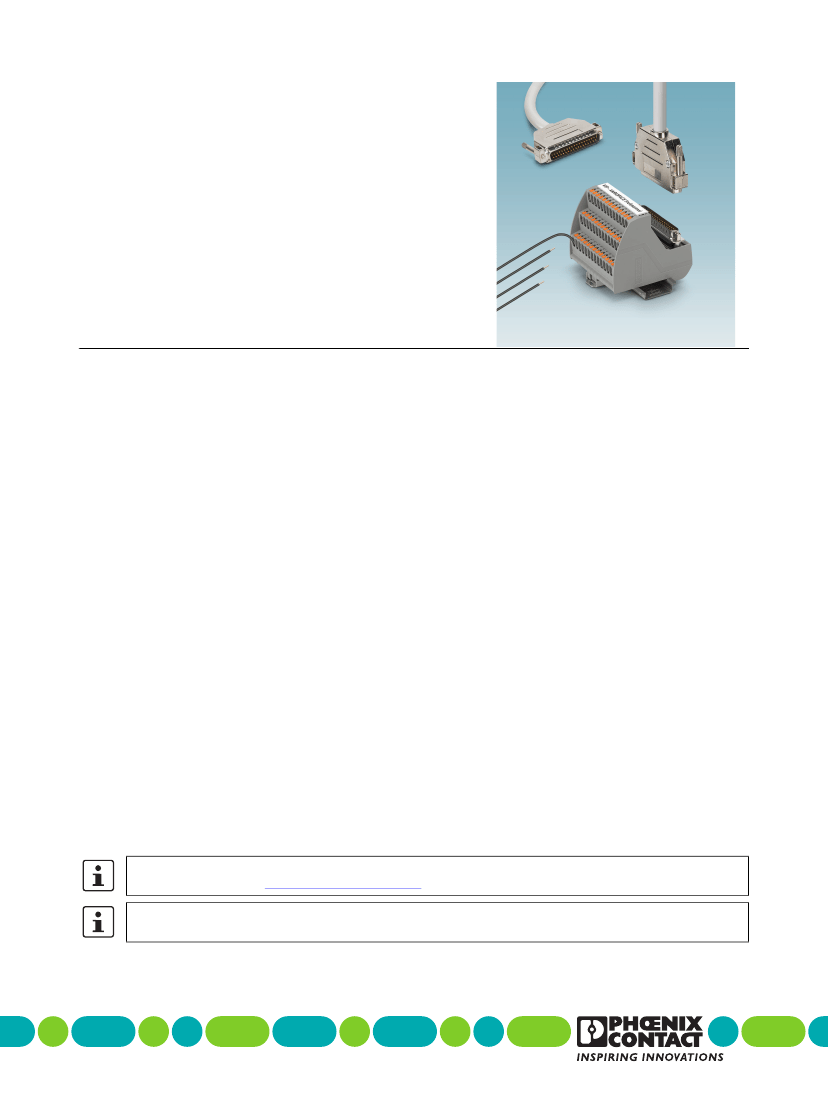

CABLE-D...SUB...
VARIOFACE system cable with D-SUB female
connector and pin strip
Data sheet
100008_en_07
1
Description
© PHOENIX CONTACT 2017-05-16
2
1
2
3
4
5
Table of contents
Description ..............................................
1
Table of contents.....................................
1
Technical data.........................................
2
Color code with pin assignment for
CABLE-D...SUB...
........................................... 2
Ordering data ..........................................
3
5.1
5.2
5.3
5.4
5.5
5.6
Shielded system cable with D-SUB female
connector and pin strip .................................. 3
Shielded system cable with two D-SUB
female connectors ......................................... 5
Shielded system cable with two D-SUB
pin strips ........................................................ 6
Shielded system cable with D-SUB female
connector and one open end ......................... 7
Shielded system cable with D-SUB
pin strip and one open end ............................ 9
Unassembled shielded system cable .......... 10
The pre-assembled and shielded D-SUB cables can be used
as control and signal cables in environments prone to
interference. When used with VARIOFACE interface
modules (see INTERFACE catalog), they enable quick and
easy connection between the control and field level.
Currents of up to 2 A can be transmitted on each signal path
thanks to the large conductor cross-sections.
Five configuration versions are available:
– D-SUB female connector at one end;
D-SUB pin strip at the other end
– D-SUB female connector at both ends
– D-SUB pin strip at both ends
– D-SUB female connector at one end;
open cable end at the other end
– D-SUB pin strip at one end;
open cable end at the other end
Various D-SUB cables are available as preferred types in fixed
lengths. In addition, cables of any length can be ordered using
version codes.
Cables are tested for short circuit, polarity reversal, and
open circuit, which ensures they are working properly and
prevents time-consuming troubleshooting during startup.
Make sure you always use the latest documentation.
It can be downloaded at
phoenixcontact.net/products.
This data sheet is valid for all products listed on page 3 and onwards:
CABLE-D...SUB...
3
Technical data
25 V AC / 60 V DC
2A
0.09
Ω/m
-20°C ... 50°C
Tinned copper braided shield, approximately 85% covering
> 200
24 AWG/0.25 mm²
7.5 mm
9 mm
10.5 mm
12 mm
13.5 mm
General data
Maximum permissible operating voltage
Maximum permissible current carrying capacity per path
Maximum conductor resistance
Ambient temperature range
Shield
Insertion/withdrawal cycles
Conductor cross-section
Outside diameter
9-pos.
15-pos.
25-pos.
37-pos.
50-pos.
Dimensions of the D-SUB
connector
9-pos.
15-pos.
25-pos.
37-pos.
50-pos.
A
35 mm
35 mm
38 mm
51 mm
51 mm
B
31.5 mm
40 mm
53.5 mm
70.5 mm
68 mm
C
15.5 mm
15.5 mm
15.5 mm
A
Dimensional drawing
B
C
16 mm
18.5 mm
4
Color code with pin assignment for CABLE-D...SUB...
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Number of
Conductor color
White
Brown
Green
Yellow
Gray
Pink
Blue
Red
Black
Violet
Gray/pink
Red/blue
White/green
Brown/green
White/yellow
Yellow/brown
White/gray
Gray/brown
White/pink
Pink/brown
White/blue
Brown/blue
White/red
Brown/red
White/black
(WH)
(BN)
(GN)
(YE)
(GY)
(PK)
(BU)
(RD)
(BK)
(VT)
(GY/PK)
(RD/BU)
(WH/GN)
(BN/GN)
(WH/YE)
(YE/BN)
(WH/GY)
(GY/BN)
(WH/PK)
(PK/BN)
(WH/BU)
(BN/BU)
(WH/RD)
(BN/RD)
(WH/BK)
Number of
PIN
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Conductor color
Brown/black
Gray/green
Yellow/gray
Pink/green
Yellow/pink
Green/blue
Yellow/blue
Green/red
Yellow/red
Green/black
Yellow/black
Gray/blue
Pink/blue
Gray/red
Pink/red
Gray/black
Pink/black
Blue/black
Red/black
White/brown/black
Yellow/green/black
Gray/pink/black
Blue/red/black
White/green/black
Green/brown/black
(BN/BK)
(GY/GN)
(YE/GY)
(PK/GN)
(YE/PK)
(GN/BU)
(YE/BU)
(GN/RD)
(YE/RD)
(GN/BK)
(YE/BK)
(GY/BU)
(PK/BU)
(GY/RD)
(PK/RD)
(GY/BK)
(PK/BK)
(BU/BK)
(RD/BK)
(WH/BN/BK)
(YE/GN/BK)
(GY/PK/BK)
(BU/RD/BK)
(WH/GN/BK)
(GN/BN/BK)
9-pos.
37-pos.
15-pos.
50-pos.
25-pos.
100008_en_07
PHOENIX CONTACT
2 / 10
CABLE-D...SUB...
5
5.1
–
Ordering data

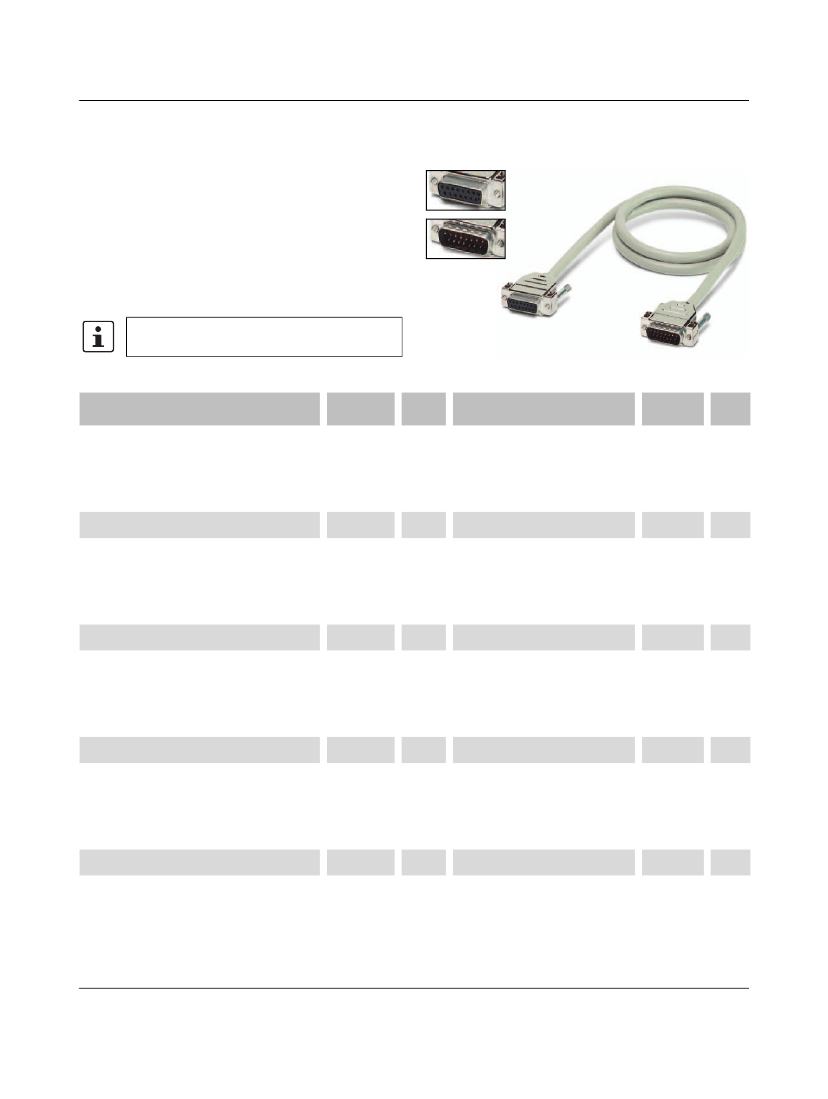

Shielded system cable with D-SUB female
connector and pin strip
Assembly: D-SUB female connector at one end, D-SUB
pin strip at the other end according to IEC 807-2/
DIN 41652 (1:1 connection)
Cable outlet: Straight
Metal-plated housing
Screw connection: 2 UNC 4-40 screws
Special lengths can be defined using an order
key, see ordering example on page 4.
–
–
–
Standard lengths
Description
Assembled round cable,
with 9-pos. D-SUB female
connector and pin strip in fixed lengths
Number of
positions
9
Cable
length Type
0.5 m
1.0 m
1.5 m
2.0 m
3.0 m
4.0 m
6.0 m
CABLE-D 9SUB/B/S/ 50/KONFEK/S
CABLE-D 9SUB/B/S/100/KONFEK/S
CABLE-D 9SUB/B/S/150/KONFEK/S
CABLE-D 9SUB/B/S/200/KONFEK/S
CABLE-D 9SUB/B/S/300/KONFEK/S
CABLE-D 9SUB/B/S/400/KONFEK/S
CABLE-D 9SUB/B/S/600/KONFEK/S
CABLE D-SUB-S/09S/C01/...
1
CABLE-D 15SUB/B/S/ 50/KONFEK/S
CABLE-D 15SUB/B/S/100/KONFEK/S
CABLE-D 15SUB/B/S/150/KONFEK/S
CABLE-D 15SUB/B/S/200/KONFEK/S
CABLE-D 15SUB/B/S/300/KONFEK/S
CABLE-D 15SUB/B/S/400/KONFEK/S
CABLE-D 15SUB/B/S/600/KONFEK/S
CABLE D-SUB-S/15S/C28/...
1
CABLE-D 25SUB/B/S/ 50/KONFEK/S
CABLE-D 25SUB/B/S/100/KONFEK/S
CABLE-D 25SUB/B/S/150/KONFEK/S
CABLE-D 25SUB/B/S/200/KONFEK/S
CABLE-D 25SUB/B/S/300/KONFEK/S
CABLE-D 25SUB/B/S/400/KONFEK/S
CABLE-D 25SUB/B/S/600/KONFEK/S
CABLE D-SUB-S/25S/C36/...
1
CABLE-D 37SUB/B/S/ 50/KONFEK/S
CABLE-D 37SUB/B/S/100/KONFEK/S
CABLE-D 37SUB/B/S/150/KONFEK/S
CABLE-D 37SUB/B/S/200/KONFEK/S
CABLE-D 37SUB/B/S/300/KONFEK/S
CABLE-D 37SUB/B/S/400/KONFEK/S
CABLE-D 37SUB/B/S/600/KONFEK/S
CABLE D-SUB-S/37S/C43/...
1
CABLE-D 50SUB/B/S/ 50/KONFEK/S
CABLE-D 50SUB/B/S/100/KONFEK/S
CABLE-D 50SUB/B/S/150/KONFEK/S
CABLE-D 50SUB/B/S/200/KONFEK/S
CABLE-D 50SUB/B/S/300/KONFEK/S
CABLE-D 50SUB/B/S/400/KONFEK/S
CABLE-D 50SUB/B/S/600/KONFEK/S
Order No.
2299987
2299990
2300009
2302010
2302023
2302036
2302049
2302340
2
2302052
2302065
2302078
2302081
2302094
2302104
2302117
2302340
2
2302120
2302133
2302146
2302159
2302162
2302175
2302188
2302340
2
2302191
2302201
2302214
2302227
2302230
2302243
2302256
2302340
2
2302269
2302272
2302285
2302298
2302308
2302311
2302324
Pcs./
Pkt.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Assembled round cable,
with 9-pos. D-SUB female
connector and pin strip in variable lengths
Assembled round cable,
with 15-pos. D-SUB female
connector and pin strip in fixed lengths
9
15
Variable
0.5 m
1.0 m
1.5 m
2.0 m
3.0 m
4.0 m
6.0 m
Assembled round cable,
with 15-pos. D-SUB female
connector and pin strip in variable lengths
Assembled round cable,
with 25-pos. D-SUB female
connector and pin strip in fixed lengths
15
25
Variable
0.5 m
1.0 m
1.5 m
2.0 m
3.0 m
4.0 m
6.0 m
Assembled round cable,
with 25-pos. D-SUB female
connector and pin strip in variable lengths
Assembled round cable,
with 37-pos. D-SUB female
connector and pin strip in fixed lengths
25
37
Variable
0.5 m
1.0 m
1.5 m
2.0 m
3.0 m
4.0 m
6.0 m
Assembled round cable,
with 37-pos. D-SUB female
connector and pin strip in variable lengths
Assembled round cable,
with 50-pos. D-SUB female
connector and pin strip in fixed lengths
37
50
Variable
0.5 m
1.0 m
1.5 m
2.0 m
3.0 m
4.0 m
6.0 m
100008_en_07
PHOENIX CONTACT
3 / 10
CABLE-D...SUB...
Description
Assembled round cable,
with 50-pos. D-SUB female
connector and pin strip in variable lengths
1
Number of
positions
50
Cable
Type
length
Variable
CABLE D-SUB-S/50S/C49/...
1
Order No.
2302340
2
Pcs./
Pkt.
1
Please specify cable length, see ordering example
(Minimum length: 0.2 m)
Version order number
2
Ordering example for round cable assembled with pin strip at one end and female connector at the other end
–
Shielded 25-pos. round cable, assembled with a 25-pos. D-SUB female connector and a 25-pos. D-SUB pin strip,
11.5 mm long:
1 pcs.
2302340/CABLE D-SUB-S/25S/C36/11,50
100008_en_07
PHOENIX CONTACT
4 / 10
CABLE-D...SUB...
5.2
–
–
–
–

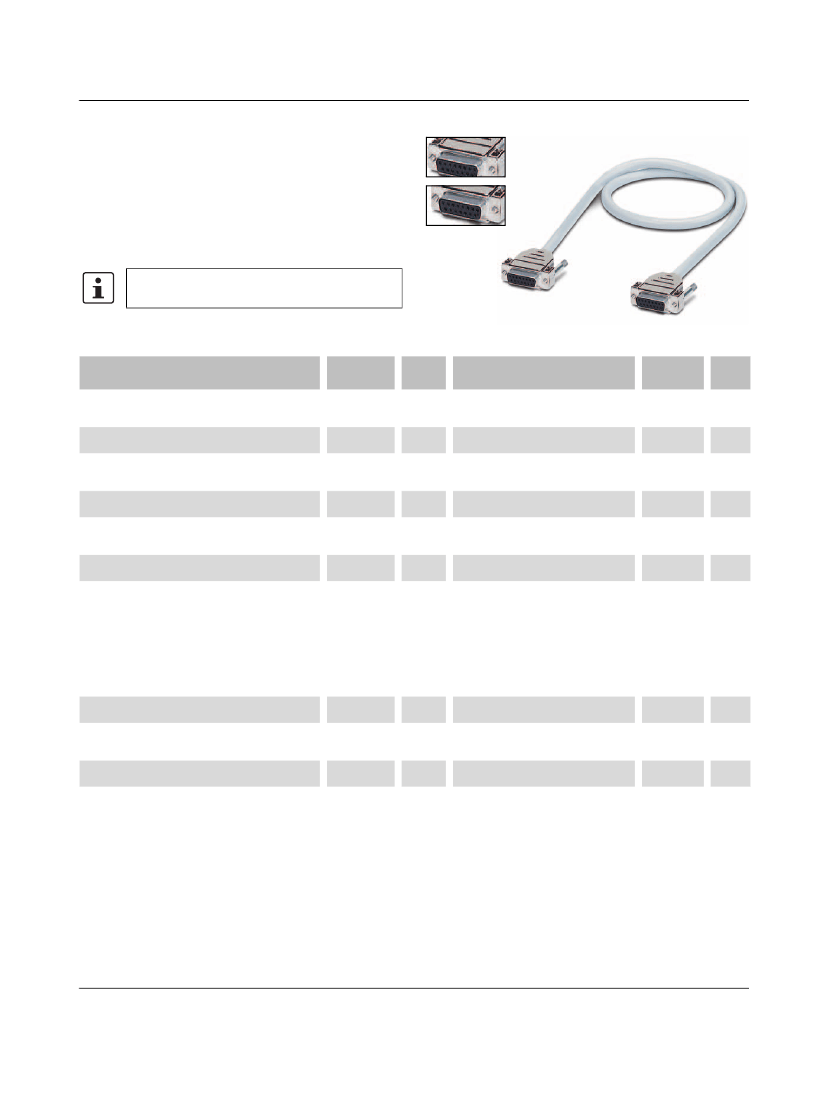

Shielded system cable with two D-SUB female
connectors
Assembly: D-SUB female connector at both ends
according to IEC 807-2/DIN 41652 (1:1 connection)
Cable outlet: Straight
Metal-plated housing
Screw connection: 2 UNC 4-40 screws
Special lengths can be defined using an order
key, see ordering example on page 5.
Description
Assembled round cable,
with 9-pos. D-SUB female
connectors in fixed lengths
Assembled round cable,
with 9-pos. D-SUB female
connectors in variable lengths
Assembled round cable,
with 15-pos. D-SUB female
connectors in fixed lengths
Assembled round cable,
with 15-pos. D-SUB female
connectors in variable lengths
Assembled round cable,
with 25-pos. D-SUB female
connectors in fixed lengths
Assembled round cable,
with 25-pos. D-SUB female
connectors in variable lengths
Assembled round cable,
with 37-pos. D-SUB female
connectors in fixed lengths
Number of
positions
9
Cable
length Type
1.0 m
2.0 m
3.0 m
Variable
1.0 m
2.0 m
3.0 m
Variable
1.0 m
2.0 m
3.0 m
Variable
1.0 m
2.0 m
3.0 m
4.0 m
6.0 m
8.0 m
10.0 m
15.0 m
20.0 m
CABLE-D 9SUB/B/B/100/KONFEK/S
CABLE-D 9SUB/B/B/200/KONFEK/S
CABLE-D 9SUB/B/B/300/KONFEK/S
CABLE D-SUB-B-B-S/09S/C22/...
1
CABLE-D 15SUB/B/B/100/KONFEK/S
CABLE-D 15SUB/B/B/200/KONFEK/S
CABLE-D 15SUB/B/B/300/KONFEK/S
CABLE D-SUB-B-B-S/15S/C29/...
1
CABLE-D 25SUB/B/B/100/KONFEK/S
CABLE-D 25SUB/B/B/200/KONFEK/S
CABLE-D 25SUB/B/B/300/KONFEK/S
CABLE D-SUB-B-B-S/25S/C37/...
1
CABLE-D 37SUB/B/B/100/KONFEK/S
CABLE-D 37SUB/B/B/200/KONFEK/S
CABLE-D 37SUB/B/B/300/KONFEK/S
CABLE-D 37SUB/B/B/400/KONFEK/S
CABLE-D 37SUB/B/B/600/KONFEK/S
CABLE-D 37SUB/B/B/800/KONFEK/S
CABLE-D 37SUB/B/B/1000/KONFEK/S
CABLE-D 37SUB/B/B/1500/KONFEK/S
CABLE-D 37SUB/B/B/2000/KONFEK/S
CABLE D-SUB-B-B-S/37S/C44/...
1
CABLE-D 50SUB/B/B/100/KONFEK/S
CABLE-D 50SUB/B/B/200/KONFEK/S
CABLE-D 50SUB/B/B/300/KONFEK/S
CABLE D-SUB-B-B-S/50S/C50/...
1
Order No.
2305415
2305428
2305431
2302421
2
2305444
2305457
2305460
2302421
2
2305473
2305486
2305499
2302421
2
2305509
2305512
2305525
2900759
2900760
2900761
2900762
2900763
2900764
2302421
2
2305541
2305554
2305567
2302421
2
Pcs./
Pkt.
1
1
1
1
1
1
1
1
1
1
1
9
15
15
25
25
37
1
1
1
1
1
1
1
1
1
Assembled round cable,
with 37-pos. D-SUB female
connectors in variable lengths
Assembled round cable,
with 50-pos.
D-SUB female connectors in fixed lengths
Assembled round cable,
with 50-pos. D-SUB female
connectors in variable lengths
1
37
50
Variable
1.0 m
2.0 m
3.0 m
Variable
1
1
1
50
Please specify cable length, see ordering example
(Minimum length: 0.2 m)
Version order number
2
Ordering example for round cable assembled with female connector at both ends
–
Shielded 37-pos. round cable, assembled with two 37-pos. D-SUB female connectors, 12.75 m long:
1 pcs.
2302421/CABLE D-SUB-B-B-S/37S/C44/12,75
100008_en_07
PHOENIX CONTACT
5 / 10
京公网安备 11010802033920号
EEWORLD
