3371R20KL.5 datasheet, PDF - EEWORLD Datasheet

3371R20KL.5: DescriptionPOTENTIOMETER; CategoryPassive components; File Size680KB，3 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

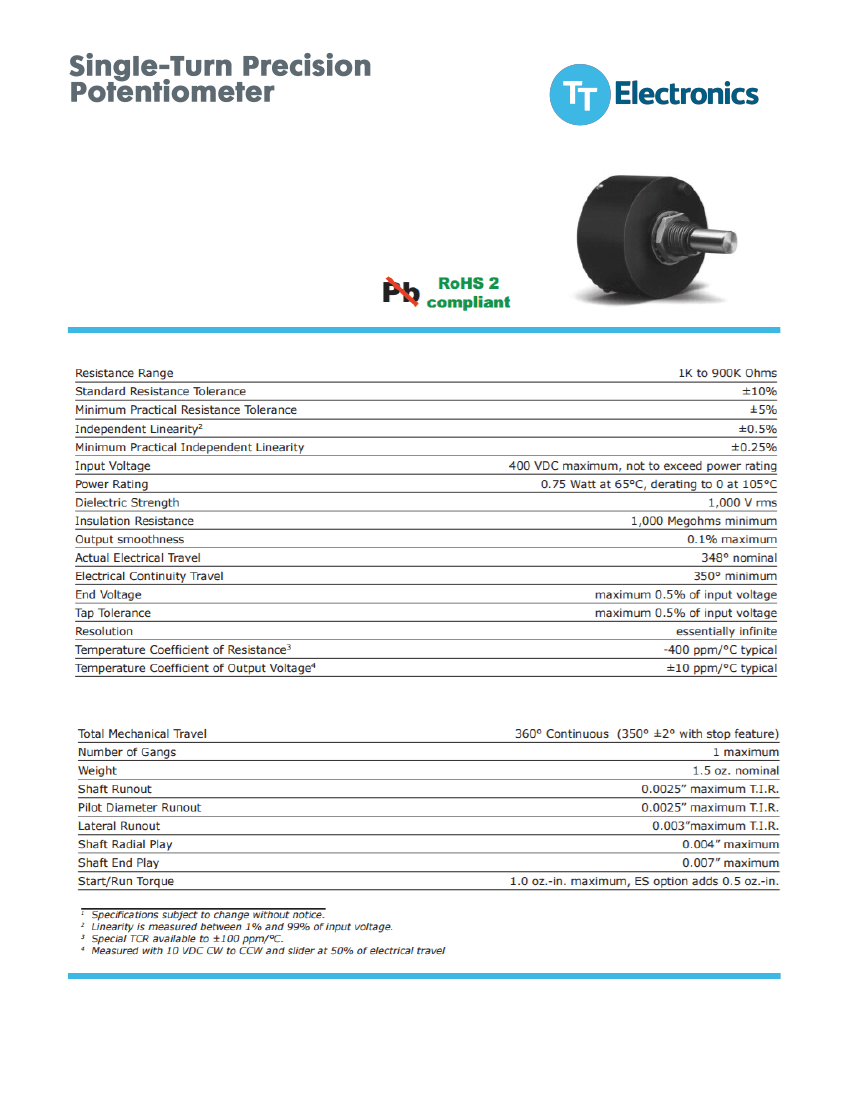

3371R20KL.5 Overview

POTENTIOMETER

Model 3371

Features:



1-5/16” diameter



Conductive plastic



Low noise



Excellent output smoothness

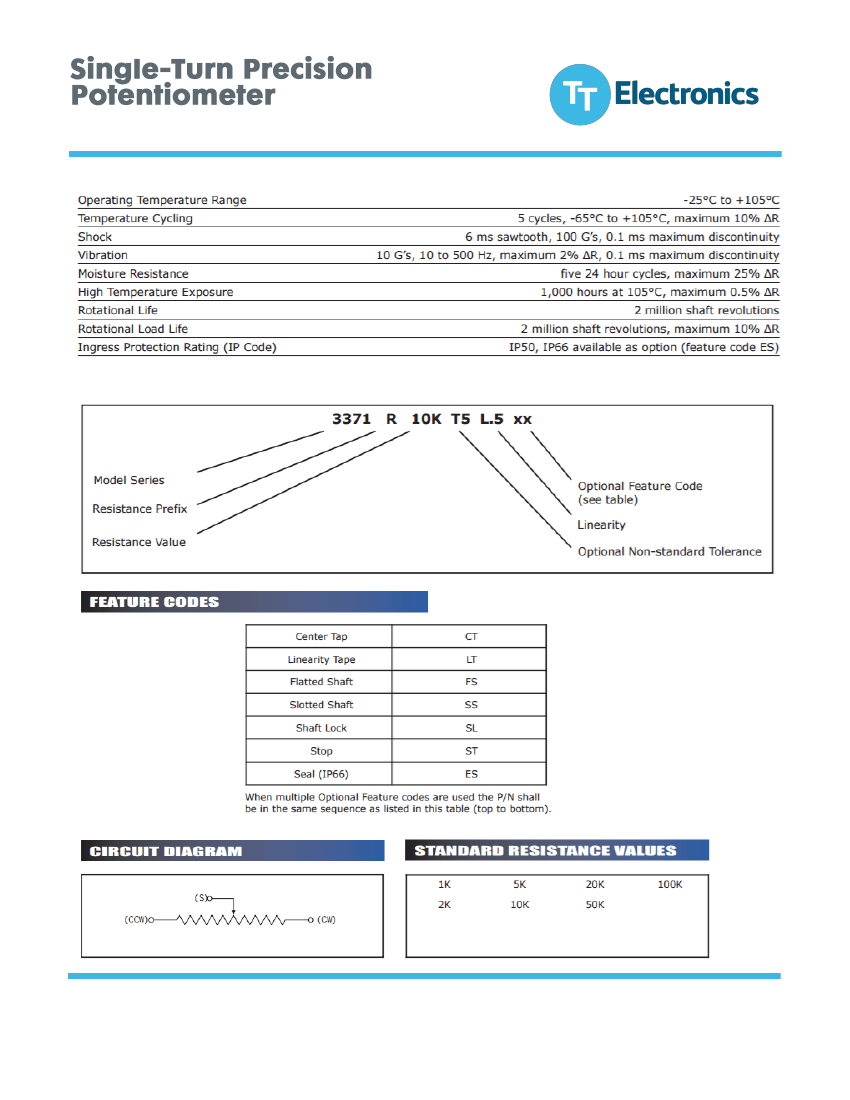

Electrical

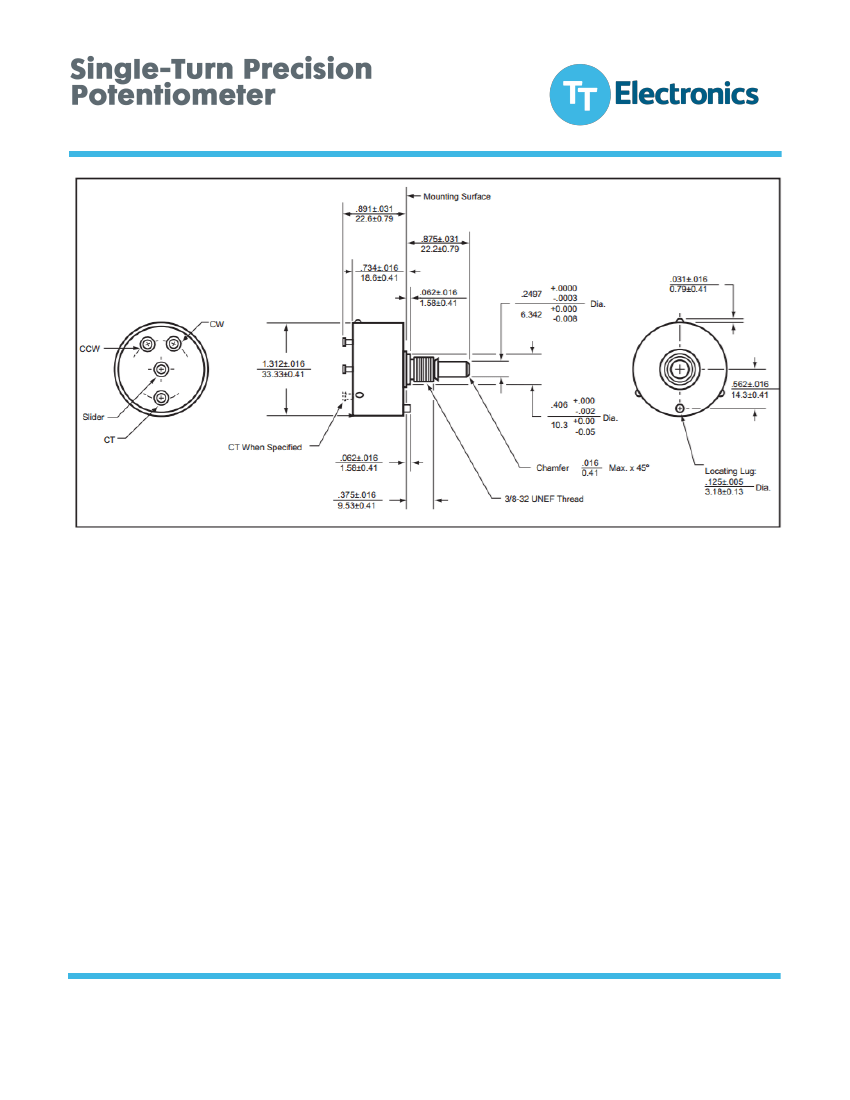

Mechanical

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

BI Technologies

4200 Bonita Place, Fullerton, CA 92835 |Ph: +1 714 447 2300

www.bitechnologies.com | www.ttelectronics.com

Issue B

02/2015

Page 1

	3371R20KL.5	3371R10KL.5	3371R1KL.5	3371R2KL.5	3371R5KL.5
Description	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
cone	Linear	Linear	Linear	Linear	Linear
Resistance (ohms)	20k	10k	1k	2k	5k
Tolerance	±10%	±10%	±10%	±10%	±10%
Number of sets	1	1	1	1	1
Built-in switch	none	none	none	none	none
Power (W)	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W
Temperature Coefficient	-400ppm/°C	-400ppm/°C	-400ppm/°C	-400ppm/°C	-400ppm/°C
Number of turns	1	1	1	1	1
rotate	continuous	continuous	continuous	continuous	continuous
Adjustment type	Custom	Custom	Custom	Custom	Custom
Resistive materials	Conductive plastic	Conductive plastic	Conductive plastic	Conductive plastic	Conductive plastic
Terminal type	welding turret	welding turret	welding turret	welding turret	welding turret
Actuator type	round	round	round	round	round
Actuator length	0.874"（22.20mm）	0.874"（22.20mm）	0.874"（22.20mm）	0.874"（22.20mm）	0.874"（22.20mm）
Actuator diameter	0.250"（6.35mm）	0.250"（6.35mm）	0.250"（6.35mm）	0.250"（6.35mm）	0.250"（6.35mm）
Bushing thread	3/8-32	3/8-32	3/8-32	3/8-32	3/8-32
Installation type	Panel mounting	Panel mounting	Panel mounting	Panel mounting	Panel mounting
