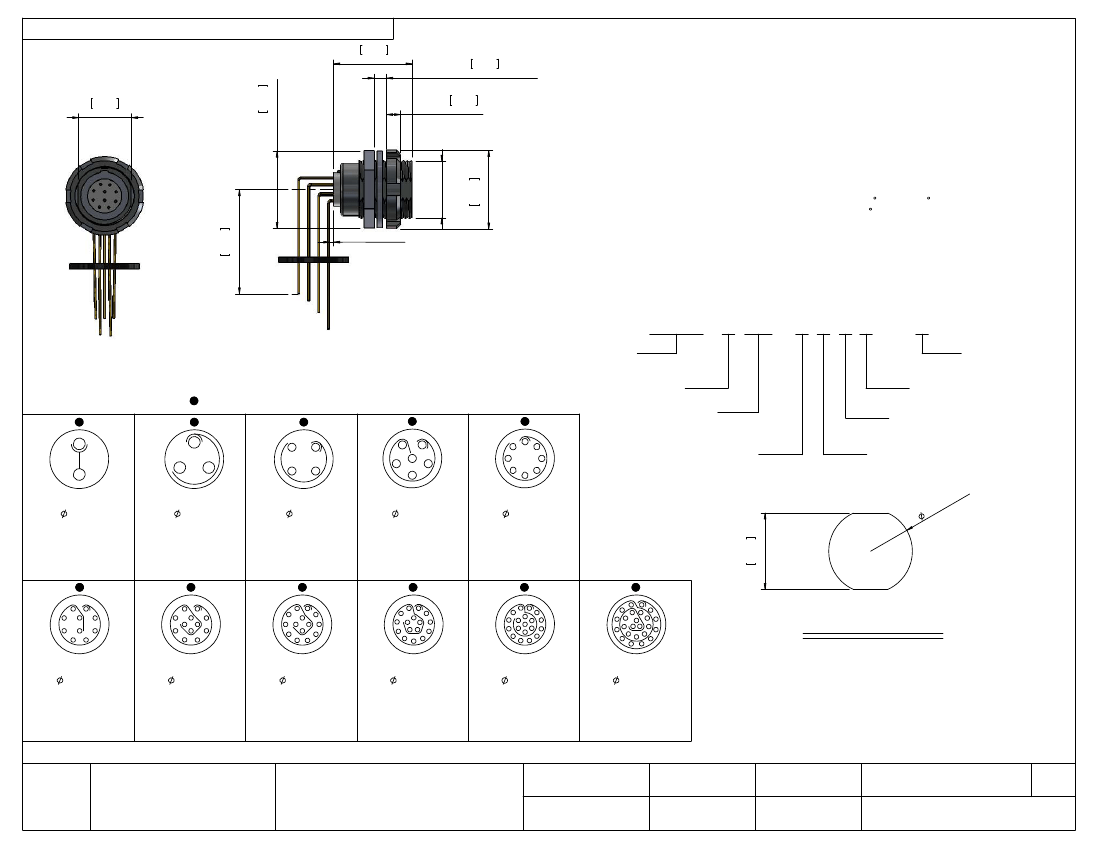

DESCRIPTION: QUIK-LOQ - FEMALE - RIGHT ANGLE - PANEL MOUNT
0.787
20.00
0.256
6.50
(MAX. PANEL THICKNESS)
0.138
3.50
0.530
13.46
UNITS = MM [INCHES]
CHARACTERISSTICS
MATERIALS
SHELL : BRASS
SHELL PLATING : NICKEL
NUT : BRASS
NUT PLATING : NICKEL
LATCH SLEEVE : BRASS
LATCH SLEEVE PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 6.0 Nm [53 IN/lbs]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 50
0.768
19.50
M15*1.0
0.787
20.00
2.00 [0.079]
0.787
20.00
822B R YY - 2 1 3 R 00 1
SERIES
15.00 [0.591]
1 = GOLD FLASH
CHART A
1
1
= KEY LOCATION
1
**VIEW FROM TERMINATION END**
1
1
R = RIGHT ANGLE
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
BOARD MOUNT (PANEL MOUNT)
2 POSITION
30 AMP MAX.
= 2.00 [0.079]
PIN
CONTACT
RESISTANCE
= 3 mΩ
TEST VOLTAGE
= 2100V
WORKING VOLTAGE
= 700V
3 POSITION
17 AMP MAX.
PIN
= 1.60 [0.063]
CONTACT
RESISTANCE
= 4 m
Ω
TEST VOLTAGE
= 2400V
WORKING VOLTAGE
= 800V
4 POSITION
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1850V
WORKING VOLTAGE
= 610V
6 POSITION
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1350V
WORKING VOLTAGE
= 450V
8 POSITION
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1500V
WORKING VOLTAGE
= 500V
5
[0.
.1
15
]
94
1
1
1
1
1
1
0.535
13.60
PANEL CUTOUT
10 POSITION
8 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 m
Ω
TEST VOLTAGE
= 1450V
WORKING VOLTAGE
= 500V
12 POSITION
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 480V
14 POSITION
6.5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 1150V
WORKING VOLTAGE
= 380V
16 POSITION
6 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
19 POSITION
5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
26 POSITION
2 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
**NOTE**
SEE PAGE 2 FOR
BOARD LAYOUTS
SCALE:
SHEET
OF
REV:
NorComp
DRAWN:
DATE:
M. SIGMON
CHECKED:
DATE:
02-15-16
N.T.S.
1
DWG NO.
2
2
822BRYY-213R001
DESCRIPTION:
QUIK-LOQ - FEMALE - RIGHT ANGLE - PANEL MOUNT
UNITS = MM [INCHES]

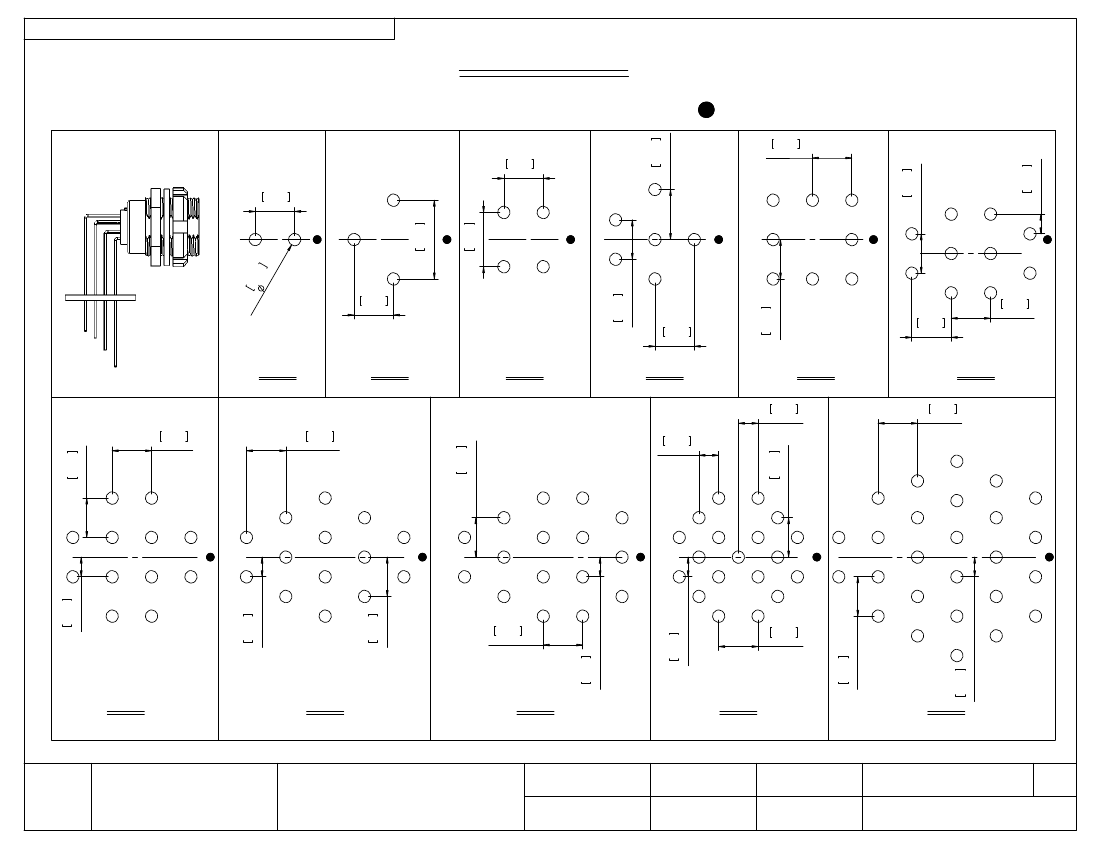

BOARD LAYOUTS (TOP VIEW)
NOTE : **HOLE DIAMETERS ARE TYPICAL ALL SIZES**
0.100
2.54
= KEY LOCATION / PCB EDGE
0.100
2.54
0.100
2.54
TYP.
0.100
2.54
TYP.
0.050
1.27
TYP.
7
8
6
1
2
1
2
0.100
2.54
2
0.100
2.54
TYP.
3
4
3
1
5
9
1
2
0.100
2.54
3
10
4
0.100
2.54
TYP.
6
5
0.100
2.54
1
2
1
3
0.200
5.08
0.138
3.50
4
3
5
4
8
7
6
0.0
3
0 1
AL .80
LS
IZE
S
**
2
0.100
2.54
**T
YP
0.100
2.54
2 POS
3 POS
4 POS
6 POS
0.050
1.27
TYP.
8 POS
0.100
2.54
TYP.
10 POS
0.100
2.54
TYP.
0.100
2.54
TYP.
0.100
2.54
TYP.
0.079
2.00
TYP.
0.100
2.54
TYP.
0.050
1.27
TYP.
9
8
7
16
12
15
12
11
18
17
10
9
11
12
10
21
22
14
23
24
6
1
15
16
2
3
0.100
2.54
TYP.
4
0.050
1.27
TYP.
17
5
25
18
6
26
19
7
20
8
9
8
7
8
12
6
11
5
1
9
0.050
1.27
TYP.
10
4
2
0.050
1.27
TYP.
2
3
3
4
0.100
2.54
1
10
11
12
5
2
0.100
2.54
TYP.
3
9
14
13
1
7
6
11
10
8
7
13
13
14
6
1
13
14
19
15
16
5
4
0.050
1.27
TYP.
2
3
4
5
0.100
2.54
0.050
1.27
TYP.
12 POS
14 POS
16 POS
19 POS
26 POS
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
02-10-16
N.T.S.
2
DWG NO.
2
2
822BRYY-213R001
