A-TB500-V303R

Description
TERMINAL BLOCK
CategoryThe connector
File Size31KB，1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

A-TB500-V303R Overview

TERMINAL BLOCK

A-TB500-V303R Parametric

Parameter NameAttribute value
Number of levels1
Number of pins per level3
spacing0.197"（5.00mm）
Mating directionHorizontal and vertical, with panels
current10A
Voltage300V
Wire gauge12-22 AWG
Installation typeThrough hole
wire terminationScrews - Lift Cage Clamp
characteristic-
colorgrey
Operating temperature-40°C ~ 115°C
Shell materialthermoplastic
Contact material - plating-
Fixture Material - PlatingNickel plated brass
Screw material - coatingGalvanized steel
Torque - Screws0.4 Nm（3.5 Lb-In）
ThreadM2.5

Preview

Download Datasheet
A
B
C
D
E
F
Modification
Date
Name

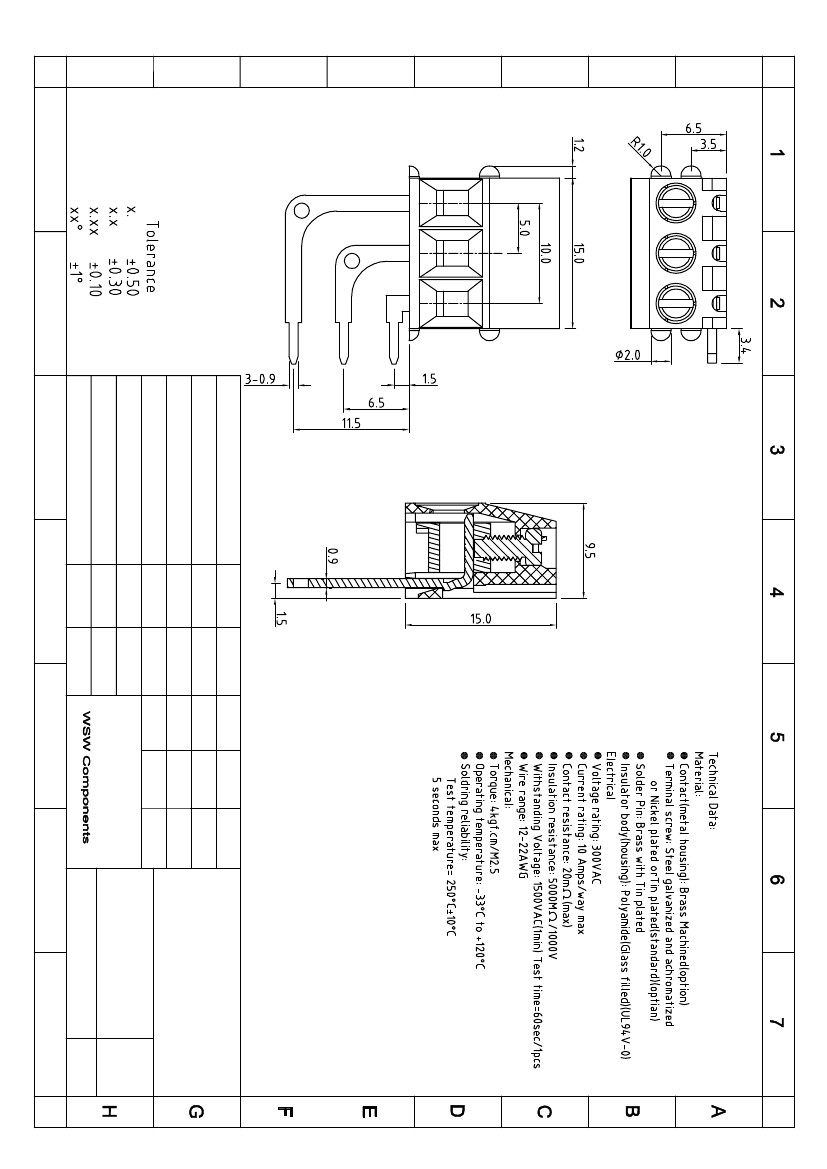

Drawn
Date
06.12.06
Name
P/N
G
Hellwig
A-TB500-V303R
Drawing-No.
Sheet
H
1
2
3
4
ASSMANN
5
ASS 0653 CO
1/1
Replace
Sheet
6
7
