UPTW6221MRD

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450 V, 100 uF, THROUGH HOLE MOUNT
CategoryPassive components
File Size101KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric View All

UPTW6221MRD Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450 V, 100 uF, THROUGH HOLE MOUNT

UPTW6221MRD Parametric

Parameter NameAttribute value
Maximum operating temperature105 Cel
Minimum operating temperature-25 Cel
negative deviation20 %
positive deviation20 %
Rated DC voltage urdc450 V
Processing package descriptionRADIAL LEADED, ROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
terminal coatingMATTE TIN (472) OVER COPPER
Installation featuresTHROUGH HOLE MOUNT
Manufacturer SeriesPT
capacitance100 uF
packaging shapeCYLINDRICAL PACKAGE
Capacitor typeNON SOLID
Terminal shapeWIRE
polarityPOLARIZED
tangent angle0.2
ripple current0.65A
leakage current2710uA

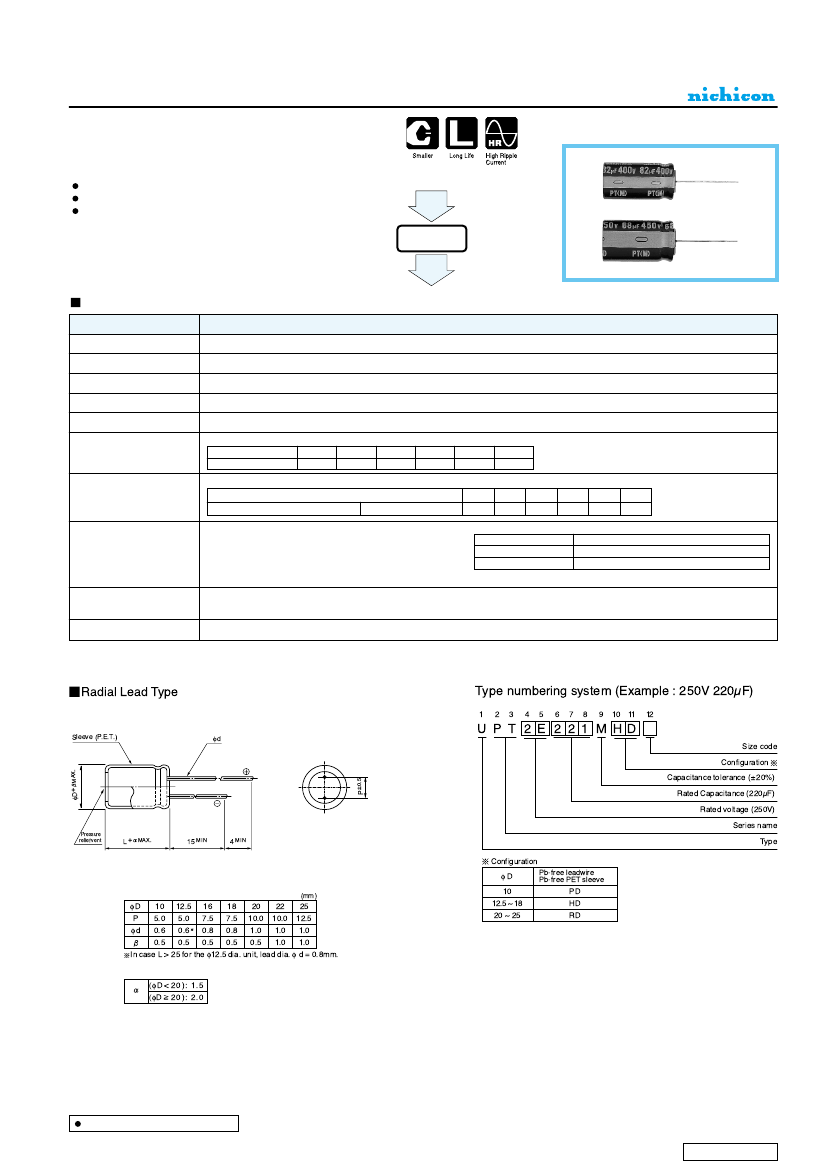

ALUMINUM ELECTROLYTIC CAPACITORS
PT
Miniature Sized, High Ripple Current, Long Life
series
High ripple current.
Suited for ballast application.
Adapted to the RoHS directive (2002/95/EC).
PB
Smaller
PT
Smaller
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
PZ
Performance Characteristics
– 25 ~ +105°C
200 ~ 450V
15 ~ 820µF
± 20% at 120Hz, 20°C
After 2 minutes' application of rated voltage, leakage current is not more than 0.06CV+10 (µA)
Measurement frequency : 120Hz, Temperature : 20°C
Rated voltage (V)
tan
δ
(MAX.)
200
0.12
220
0.12
250
0.12
400
0.15
420
0.20
450
0.20
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Impedance ratio ZT / Z20 (MAX.)
Z– 25°C / Z+20°C
200
3
220
3
250
3
400
8
420
8
450
8
Endurance
After an application of D.C. bias voltage plus the rated ripple
current for 5000 hours at 105°C the peak voltage shall not
exceed the rated D.C. voltage, capacitors meet the
characteristic requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ± 20% of initial value
200% or less of initial specified value
Initial specified value or less
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours, and after performing voltage treatment based on JIS C
5101-4 clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
Radial Lead Type
Sleeve (P.E.T.)
MAX.
B
Type numbering system (Example : 250V 220µF)
d
U PT 2 E 2 2 1 M HD
T
P ±
0.5
1 2 3 4 5 6 7 8 9 10 11 12
Size code
Configuration
Capacitance tolerance (±20%)
Rated Capacitance (220µF)
Rated voltage (250V)
Series name
Type
B
D+
Pressure
relief vent
L+
MAX.
15
MIN
4
MIN
B
D 10 12.5 16 18 20 22
P 5.0 5.0 7.5 7.5 10.0 10.0
d 0.6 0.6 0.8 0.8 1.0 1.0
0.5 0.5 0.5 0.5 0.5 1.0
In case L > 25 for the 12.5 dia. unit, lead dia.
B
B
B
B
B
25
12.5
1.0
1.0
d = 0.8mm.
(mm)
Configuration
Pb-free leadwire
D
Pb-free PET sleeve
10
PD
12.5 ~ 18
HD
20 ~ 25
RD
B
D < 20): 1.5
D 20): 2.0
Please refer to page 21 about the end seal configulation.
Please refer to page 21, 22, 23 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.

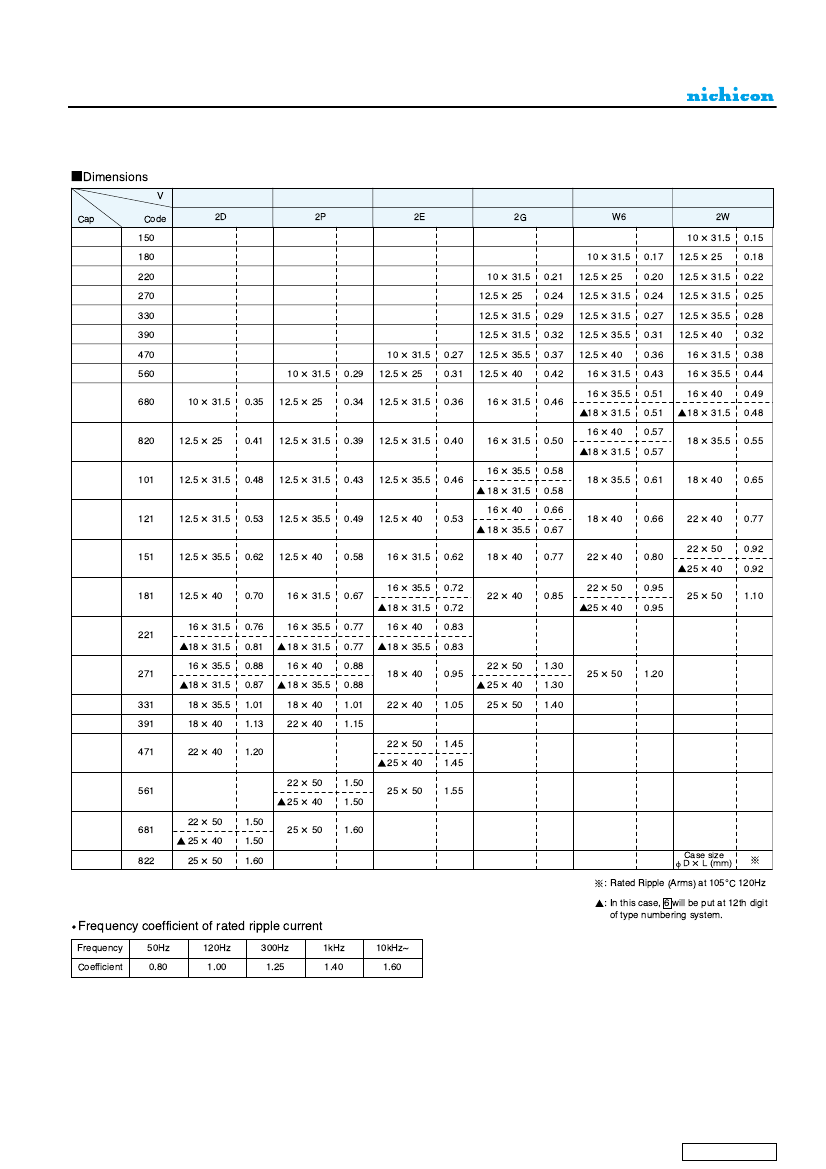

Dimension table in next page.
